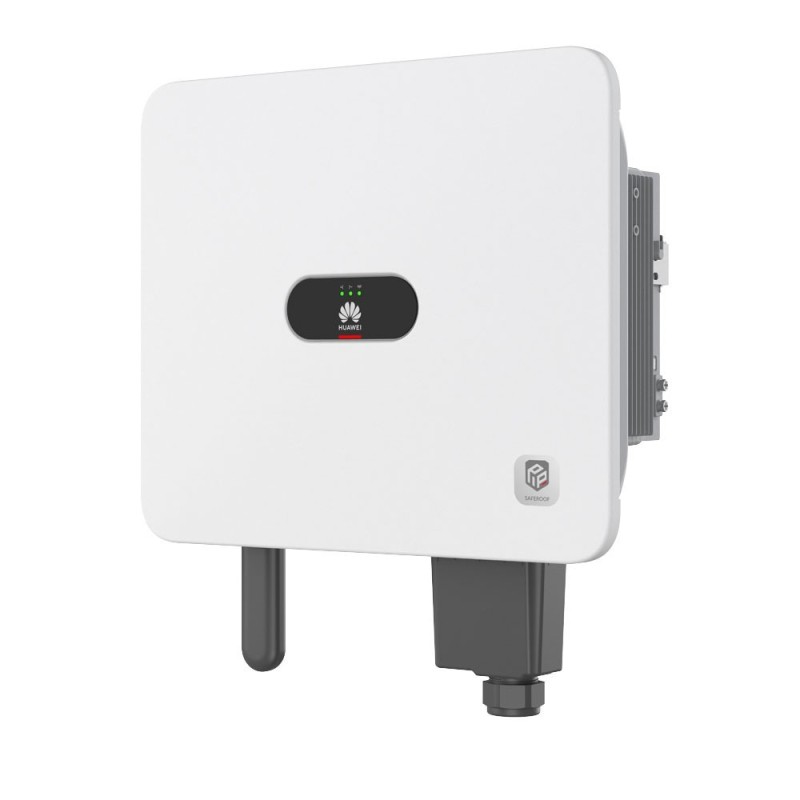

Huawei SUN5000-17K-MB0 17kW 25500Wp 3-Phase Hybrid Inverter ONLY FULLY OPTIMIZED
The SUN5000 version of the MB0 Smart PV Solution hybrid series includes proven features such as high input currents and integrated surge protection. Two separate battery inputs are also available, enabling suitable storage combinations with the LUNA S0 and S1 in these power classes.
The SUN5000 version enables additional safety features such as continuous AFCI arc detection and rapid shutdown thanks to overall optimization.
Protected against external influences with an IP66 degree of protection. Natural convection provides cooling. It also features internal lightning protection on both the DC and AC sides, as well as arc fault protection. Suitable for direct use of the generated energy, fed back into the grid and if necessary, stored in batteries. Makes monitoring faster and supports new power optimizers.
• High DC input current
• 2 battery inputs
• AFCI + RSD via optimizer
Go Together, Yield Higher
Introducing a remarkable collaboration between inverters and optimizers, the SUN5000 Series is designed to deliver peak performance. Thanks to Huawei's innovative optimizing system, each PV module operates independently at its best, minimizing power loss even in shaded areas.
Say goodbye to mismatches and hello to unparalleled energy efficiency.
More Capacity, More Productivity

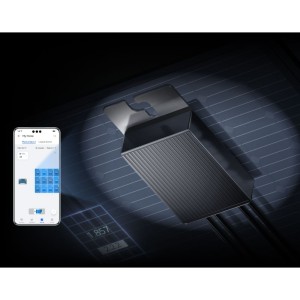

Making full use of your rooftop by putting solar panels on every side. Unaffected by complex roof structures or shadings, the Smart Module Controller enables up to 25/35 modules* positioned in different directions in one PV string.
Relax, and let the sun work for you.
Safety Evolution
• AFCI Protection
With its intelligent Arc-fault Circuit Interrupter (AFCI) protection, the energy controller can disconnect any DC arc within 0.5 seconds, averting the fire risk. The proactive protection ensures the safety of both people and property.
More sun on the roof, less worries on your mind.
• Rapid Shutdown
In an emergency, the Rapid Shutdown (RSD) function quickly reduces the roof voltage to 30 volts in 30 seconds, granting safe access to the roof and mitigating potential electrical hazards.
One-fits-all, Ready to Install

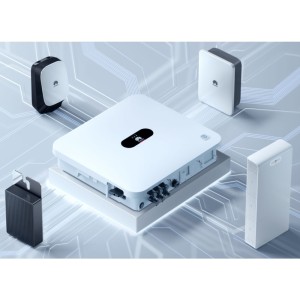

Enjoy an easy, worry-free, and time-saving PV system setup with Huawei Smart Module Controller. You can upgrade your system with Huawei batteries or backup box whenever necessary. This pairing can store daytime solar energy and provide eco-friendly power for nights and overcast days, enabling a 24/7 green life.
More Reliable than You Could Ever Imagine
The FusionSolar app lets you view energy yield, revenue, and other information anywhere. In the event of any malfunction, the instant fault-locating feature kicks in to reduce the necessity for on-site maintenance.
Durability for the Long Haul
Rest assured with the extensive 15-year warranty**, the SUN5000 Series endures all the extremes and stands the test of time.

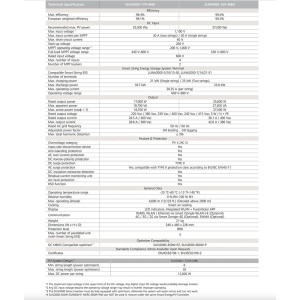

Caratteristiche del prodotto:
- Nominal AC power: 17 kW
- Max. DC generator power: 25.5 kWp
- Max. AC power: 18.7 kVA
- MPPT voltage range: 200-1000 V
- MPPT input voltage range: 440-800 V
- Max. input voltage DC: 1,100 V
- Nominal input voltage: 600 V
- DC input current: per MPPT 30 A (double string) / 20 A (single string)
- Nominal output current: 24.5 A / 400 Vac
- Max. output current: 28.6 A / 380 Vac
- Max. number of inputs: 4
- Number of MPPTs: 2
- Number of bat connections: 2
- Compatible storage: LUNA2000 S0 + S1
- Overvoltage protection: AC + DC type 2
- Max. charging power: 21 kW (single string) / 25 kW (double string)
- Max. discharging power: 18.7 kW
- Max. operating current: 26.25 A (per string)
- Operating voltage range: 600 V-980 V
- Interface 2: W-Lan
- AC connection: 400V, 3-phase
- Max. efficiency: 98.40%
- European efficiency: 98.10%
- Communication: RS485, Wifi / LAN (optional), 4G / 3G / 2G (optional), EMMA (optional)
- Protection class: IP66
- Cooling: active
- Dimensions (HxWxD): 460x546x228 mm
- Weight: 21 kg
Compatible optimizers: SUN2000-450W-P2, SUN2000-600W-P
Number of optimizers per string: 6 - 35 (max. 12.0 kWp)
NB: CEI 0-21 and CEI 0-16 certifications not yet available!!!
*** Smart Dongle NOT included in the supply - if necessary it must be purchased separately ***
The devices of the new Huawei SUN5000 series must always provide for the use of optimizers in combination with them.
Their operation is therefore not possible without the presence of optimizers on ALL modules of the system (therefore with partial optimization).
