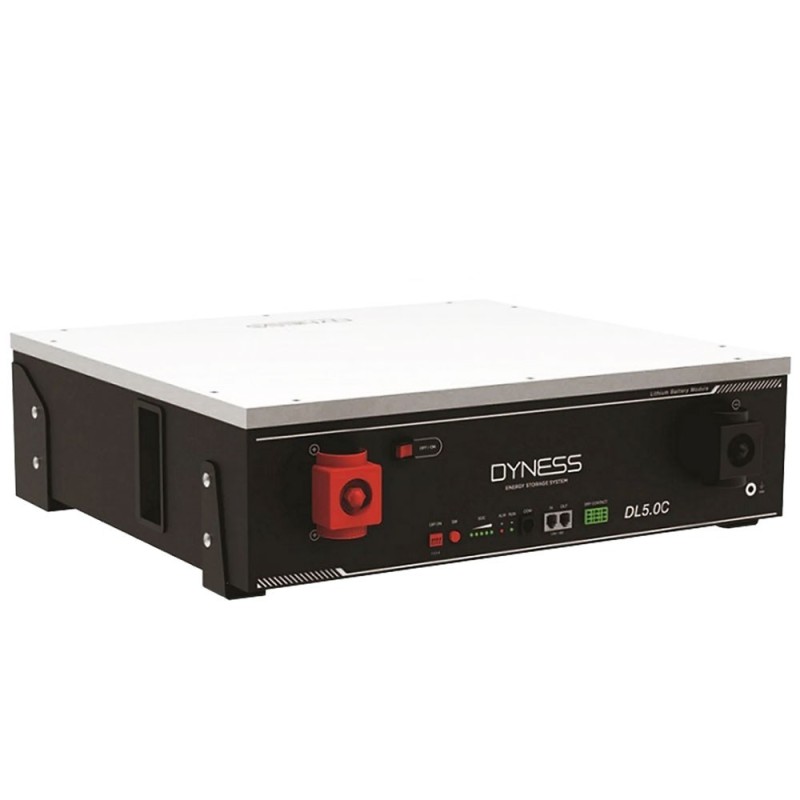

Dyness DL5.0C 5.12kW 51.2V LiFePO4 Battery with BMS
Dyness DL5.0C adopts economic design, and is tailor-made for residential and small commercial application. This LFP battery module supports remote upgrade and APP monitoring, and provides multiple installation methods. It is scalable from 5.12kWh to 256kWh (max. 50 modules in parallel), providing various energy options to meet different requirements.
APP Monitoring (optional) Real-time monitoring & Remote upgrade available
Module Design Flexible expansion
Various Mounting Methods Wall-mounted, floor-standing and stacked
High Safety LFP Cell level monitoring and balancing
Wide Compatibility Matching with leading inverters
DL5.0C lithium iron phosphate battery system is a standard battery system unit, customers can choose a certain number of DL5.0C according to their needs, by connecting parallel to form a larger capacity battery pack, to meet the user's long-term power supply needs. The product is especially suitable for energy storage applications with high operating temperatures, limited installation space, long power backup time and long service life.
DL5.0C lithium iron phosphate battery energy storage system can provide energy storage for photovoltaic power generation users through parallel combination. Our product can store extra electricity into battery from photovoltaic power generation system in daytime and supply stable power to user’s equipment as power backup at nighttime or any time when needed. It can improve the efficiency of photovoltaic power generation and increase the electric power efficiency by peak load shifting.
DL5.0C energy storage product’s positive electrode materials are lithium iron phosphate, battery cells are managed effectively by BMS with better performance, the system’s features as below:
• Comply with European ROHS, Certified SGS, employ non-toxic, non-pollution environment-friendly battery.
• Anode materials are lithium iron phosphate (LiFePO4), safer with longer life span.
• Carries battery management system with better performance, possesses protection function like over-discharge, over-charge, over-current, abnormal temperature.
• Self-management on charging and discharging, Single core balancing function.
• Intelligent design configures integrated inspection module.
• Flexible configurations allow parallel of multi battery for longer standby time.
• Self-ventilation with lower system noise.
• Less battery self-discharge, then recharging period can be up to 10 months during the storage.
• No memory effect so that battery can be charged and discharged shallowly.
• With wide range of temperature for working environment, -20oC~ +55oC, circulation span and discharging performance are well under high temperature.
• Less volume, lighter weight.

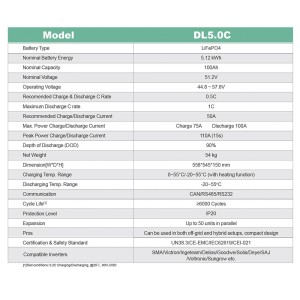

Technical data
Battery type: LiFePO4
Battery nominal energy: 5.12 kWh
Nominal capacity: 100 Ah
Nominal voltage: 51.2 V
Operating voltage: 44.8 ~ 57.6 V
Recommended C rate: 0.5C
Recommended charge/discharge current: 50 A
Maximum charge current: 75 A
Maximum discharge current: 100 A
Peak power Charge/discharge current: 110A (15s)
Depth of discharge (DOD): 90%
Net weight: 54 kg
Dimensions [LxWxH]: 558x545x150 mm
Charging Temperature Range: 0~55℃
Discharging Temperature Range: -20~55℃

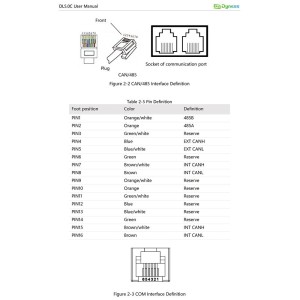

Communication: CAN/RS485/RS232
Life Cycle[1]: ≥6000 cycles
Protection Level: lP20

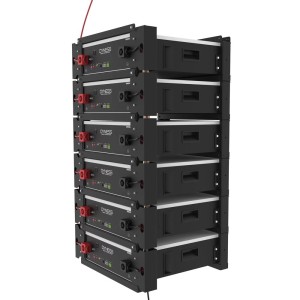

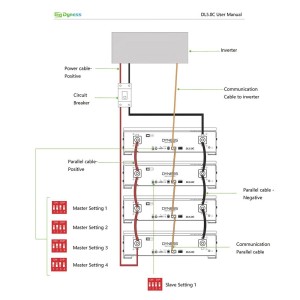

Expansion: Up to 50 units in parallel
Pros: Can be used in both off-grid and hybrid configurations, compact design
Certification and Safety Standards: UN38.3/CE-EMC/IEC62619/CEI-021
Compatible Inverters: SMA, Victron, Ingeteam, Delios, Goodwe, Solis, Deye, SAJ, Voltronic, Sungrow etc.
[1] Test Condition: 0.2C charge/discharge, @25℃, 90% DOD
