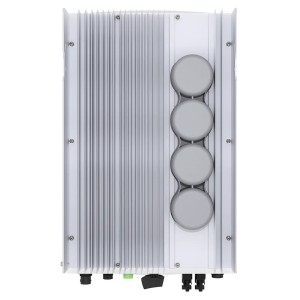

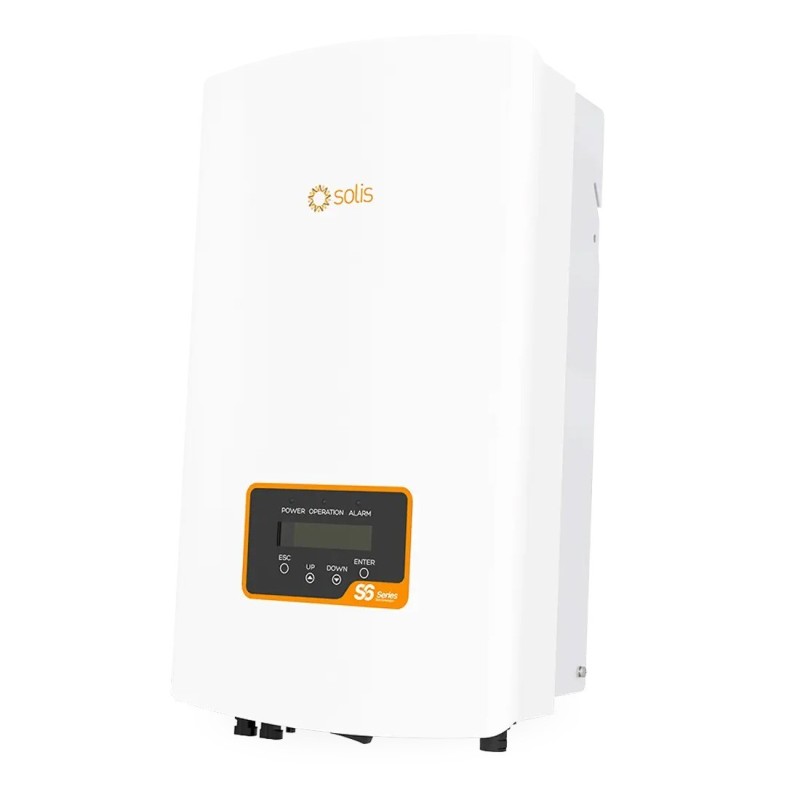

Solis S6-GR1P6K 6kW Single-phase Inverter 2 Strings
The S6-GR1P6K 6kW inverter is designed for residential PV plants. The maximum input current per string is 14A, which is compatible with high-efficiency modules and bi-facial modules. Compact and lightweight design, bring easy installation. The protection level is increased to IP66. Integrated AFCI function can proactively reduce the risk of fire.
✓ Maximum efficiency 97.7%
✓ String current up to 14A
✓ Super high frequency switching technology
✓ Wide voltage range and low startup voltage
✓ 2 MPPT design with precise MPPT algorithm
✓ Integrated Export Power Manager (EPM)
✓ AFCI protection, proactively reduces fire risk
✓ Compact and lightweight
✓ Friendly and adaptable connection to the grid
✓ IP66 degree of protection
✓ Supports RS485, Wi-Fi, GPRS

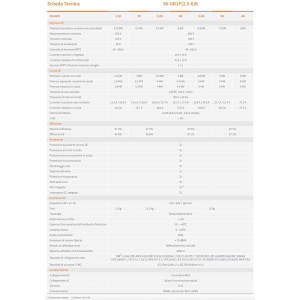

Technical specifications
DC input
Maximum recommended photovoltaic power: 9 kW
Absolute maximum voltage: 600 V
Rated Voltage: 330 V
Starting Voltage: 120 V
MPPT voltage range: 90-520 V
Maximum input current: 14 A/14 A
Maximum short circuit current: 22 A/22 A
MPPT number: 2
Maximum number of strings: 2
AC output
Rated Output Power: 6 kW
Maximum apparent output power: 6 kVA
Maximum output power: 6 kW
Rated mains voltage: 1/N/PE, 220 V/230 V
Rated Grid Frequency: 50-60 Hz
Rated Mains Output Current: 27.3 A
Maximum output current: 27.3 A
Power Factor: >0.99 (0.8 leading - 0.8 lagging)
THDi: <3%
Efficiency
Maximum efficiency: 97.7%
EU efficiency: 97.1%
Protection
DC Reverse Polarity Protection: Yes
Short Circuit Protection: Yes
Output Overcurrent Protection: Yes
Overload Protection: Yes
Network Monitoring: Yes
Anti-island system: Yes
Temperature Protection: Yes
Multi peak scan: Yes
Integrated DC switch: Yes
Integrated AFCI: Yes
General data
Dimensions (WxHxD): 310x543x160 mm
Weight: 12 kg
Topology: Without transformer
Self-consumption (night) (night): <1 W
Operating environment temperature range: -25 ~ +60°C
Relative Humidity: 0-100%
Degree of protection: IP66
Cooling method: Natural cooling
Maximum operating altitude: 4000m
Safety/EMC standards: IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-3
Grid connection standard: GG98 or 99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
Characteristics
DC connection: MC4 connector
AC connection: Quick connect plug
Screen: LCD
Communication: RS485, Optional: Wi-Fi, GPRS
