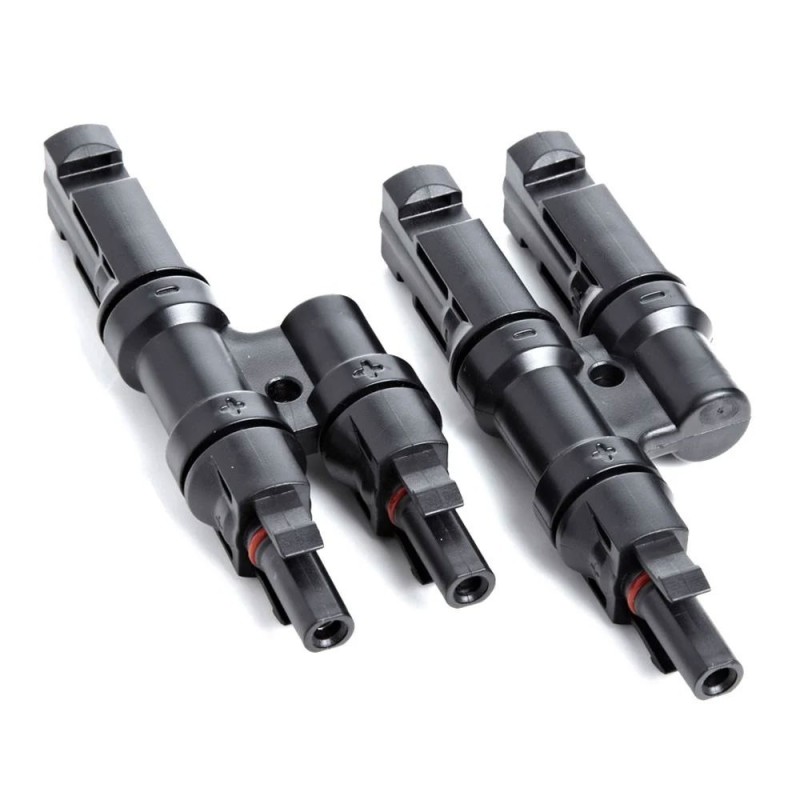

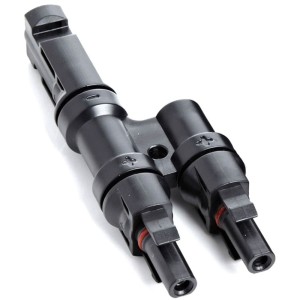

Branch Plug Y-Connector Pair for 4/6mmq pv cable

Branch plug Y-Connector pair

Y-connector female/male-male and male/female-female for contacts with section from 4 mmq to 6 mmq. These branch plugs are used to connect solar modules parallely to maintain a constant voltage. Ideal for 12V-systems or the connection of thin-film modules.

Details:
•    1 Pair Y-connectors for a parallel connection of solar modules
•    Easy snap-in connection system
•    For cables with a max. diameter of 4 - 6mm²
•    Ideal for 12V-systems and thin-film modules
•    Suitable for voltages up to max. 1000V DC
•    Snap-in connection system
•    Compatible with solar connector plugs

Technical data:
- Maximum voltage: 1000V DC;
- Maximum current: 25A at 70°C - 20A at 85°C;
- Contact resistance: <5m Ohm;
- Contact material: Cu;
- Plating: tin;
- Insulation: PPO;
- IP rating: IP67;
- Temperature range: -40°C +90°C;
- Flammability level: UL94-VO.

Scope of Delivery:
1x branch plugs Y-Connectors (pair).
