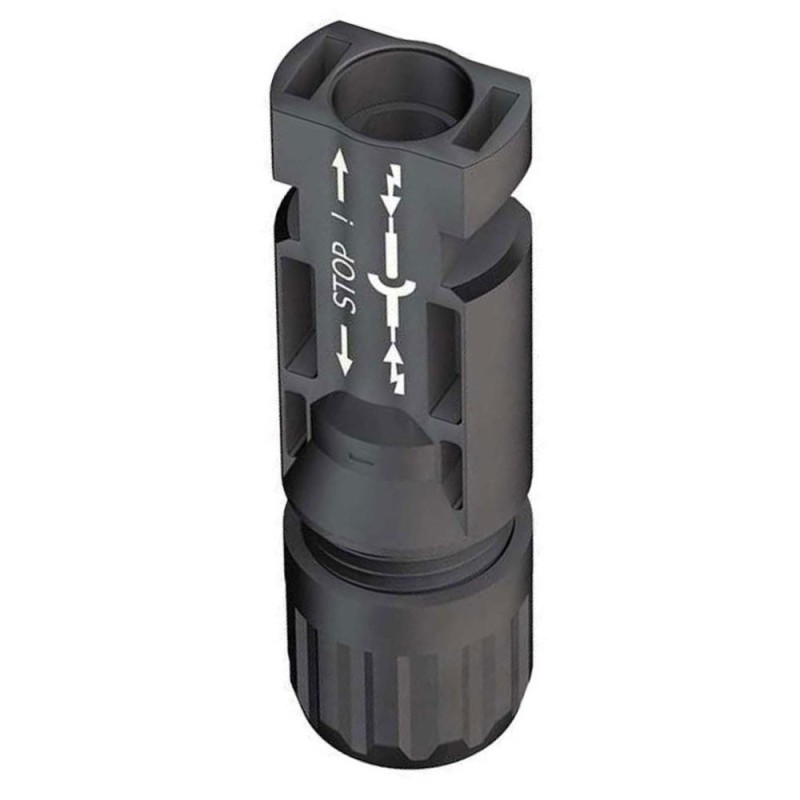

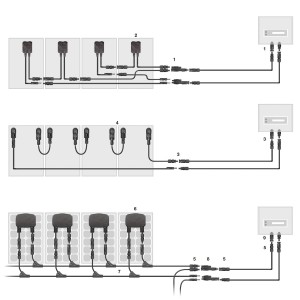

Staubli PV-KST4/6X-UR MC4 coupling connector (-) for cable Ø4/6mmq for quick and reliable connections in photovoltaic applications with the most common inverter and junction box. Male cable coupler as individual part (including insulating part), for example for KBE solar cable with cross-section 4-6 mm² Ø range of cable gland: 5.5-7.4 mm
■ Snap-in lock
■ In accordance with NEC 2014, requires a tool to open
■ Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector
■ Tried and tested plug connectors, over 15 years of experience in the field
■ Available for assembly with cross-sections of 10 mm²
■ Also available as ready made leads
■ Mating compatibility with MC4 connector family
■ Leads made to customer’s specifications

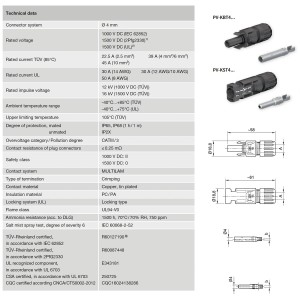

Technical data:
Connector system: Ø 4 mm;
Rated voltage: 1000 V DC (IEC 62852) | 1500 V DC (2Pfg2330) | 1500 V DC (UL);
Rated current TÜV (85°C): 22.5 A (2.5 mm²) | 39 A (4 mm²/6 mm²) | 45 A (10 mm²);
Rated current UL: 30 A (14 AWG) | 30 A (12 AWG/10 AWG) | 50 A (8 AWG);
Rated impulse voltage: 12 kV (1000 V DC (TÜV)), 16 kV (1500 V DC (TÜV));
Ambient temperature range: -40°C...+85°C (TÜV), -40°C...+75°C (UL);
Upper limiting temperature: 105°C (TÜV);
Degree of protection,
- mated: IP65, IP68 (1 h / 1 m)
- unmated: IP2X
Overvoltage category / Pollution degree: CATIII / 3;
Contact resistance of plug connectors: ≤ 0.25 mΩ;
Safety class: 1000 V DC: II, 1500 V DC: 0;
Contact system: MULTILAM;
Type of termination: Crimping;
Contact material: Copper, tin plated;
Insulation material: PC / PA;
Locking system (UL): Locking type;
Flame class: UL94-V0;
Ammonia resistance (acc. to DLG): 1500 h, 70°C / 70% RH, 750 ppm;
Salt mist spray test, degree of severity 6: IEC 60068-2-52;
TÜV-Rheinland certified, in accordance with IEC 62852: R60127190;
TÜV-Rheinland certified, in accordance with 2PfG2330: R60087448;
UL recognized component, in accordance with UL 6703: E343181;
CSA certified, in accordance with UL 6703: 250725;
CQC certified according CNCA/CTS0002-2012: CQC16024138286
