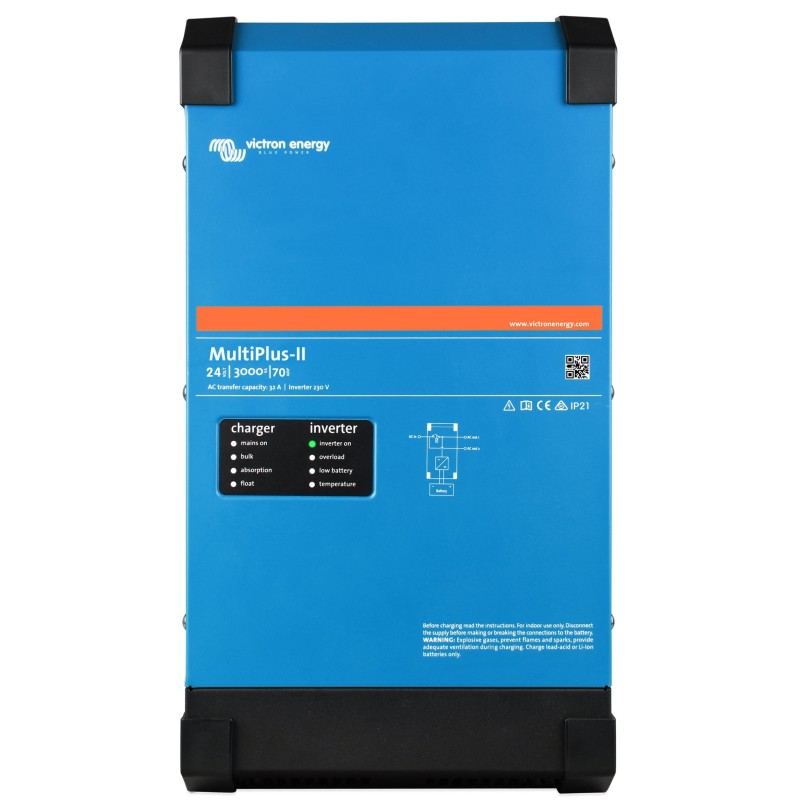

Victron MultiPlus ll 24/3000/70-32 Inverter 24V 3000W with 24V 70A Charger

Victron MultiPlus ll 24/3000/70-32 Inverter 24V 3000W with 24V 70A Charger

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.
PowerAssist
The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
ESS: Energy Storage Systems
The robust MultiPlus-II is the key component in a Victron Energy Storage System. Our new Dynamic ESS feature takes ESS to the next level. It automatically switches between - or combines - grid, battery and solar energy based on live-pricing, predicted energy-use and solar yield so it's always consuming the cheapest energy.
Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…"

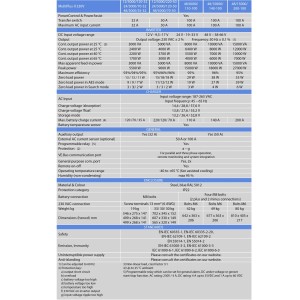

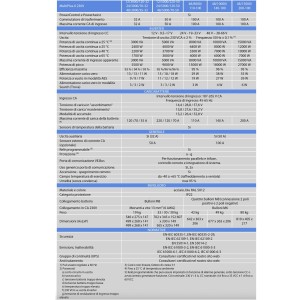

Specifications:
Model: 24/3000/70-32
PowerControl / PowerAssist: Yes
Transfer switch: 32 A
Maximum AC input current: 32 A
INVERTER
Input voltage range: 19-33 V
Output voltage: 230 VAC±2%
Frequency: 50 Hz±0.1%
Continuous output power at 25 ºC: 3000 VA
Continuous output power at 25 ºC: 2400 W
Continuous output power at 40 ºC: 2200 W
Continuous output power at 65 ºC: 1700 W
Max apparent feed-in power: 3000 VA
Peak power: 5500 W
Maximum efficiency: 94 %
Zero-load power: 13 W
Zero load power in AES mode: 9 W
Zero-load power in search mode: 3 W
CHARGER
Input voltage range: 187-265 VAC
Input frequency: 45-65 Hz
Absorption Charge voltage: 28.8 V
Float Charge voltage: 27.6 V
Storage mode: 26.4 V
Max battery charge current: 70 A
Battery temperature sensor: Yes
Weight: 19 kg
Dimensions (HWD): 499x268x141 mm.
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1, EN-IEC 62109-2
Emission immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, I EC 61000-6-3
