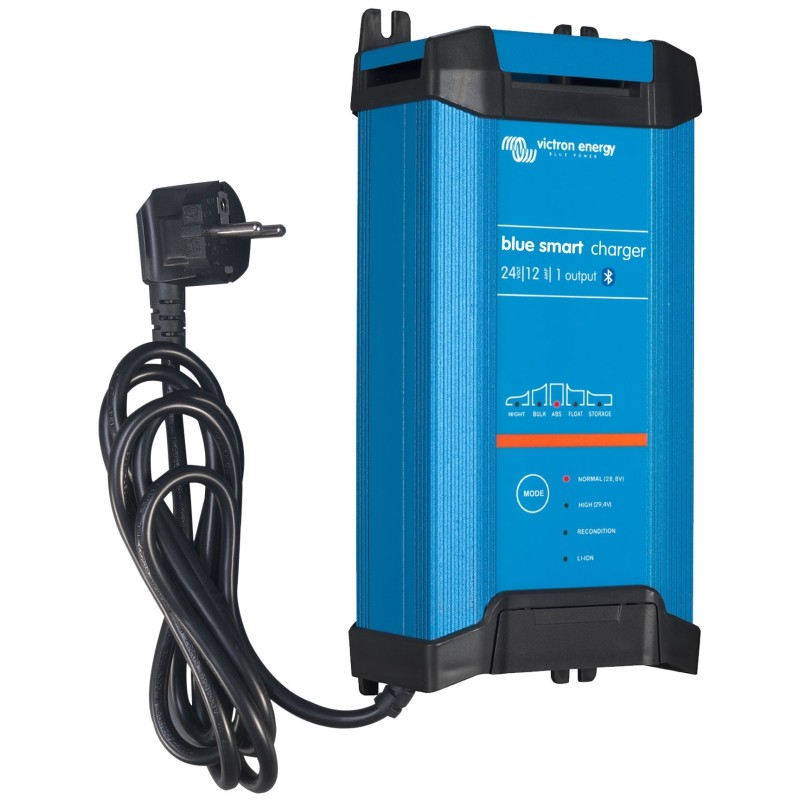

Victron Blue Smart 24/12/1 IP22 Charger 24V 12A 1 wall outlet with Bluetooth

Victron Energy Blue Smart 24/12/1 24V 12A 1 output IP22 Battery Charger

The Blue Smart IP22 Charger is the new professional battery charger with built-in bluetooth. It can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
With up to 94% efficiency, these chargers generate up to four times less heat than the industry standard. And when the battery is fully charged, power consumption drops to 0.5 Watts, which is five to ten times lower than the industry standard.
For the Smart versions it is possible to monitor the parameters of the charger through a free downloadable app.
Communication with the smartphone is Bluetooth.

The battery is charged, smartly... to perfect condition
6-step adaptive charging algorithm: test - constant current - absorption - reconditioning - maintenance - storage. Storage mode: less maintenance and loss of battery capacity in non-operating phases. It also charges Li-ion batteries. NIGHT and LOW settings with output current reduced to no more than 50% of the rated output and the charger will be completely silent. Thermal protection. Eleven status indicator LEDs.

Recovery of deeply-discharged 'dead' batteries
Unlike other brands, the Blue Smart IP22 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.

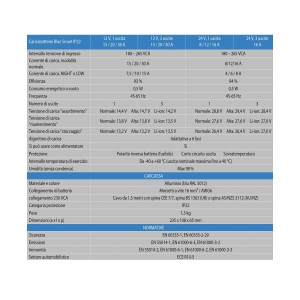

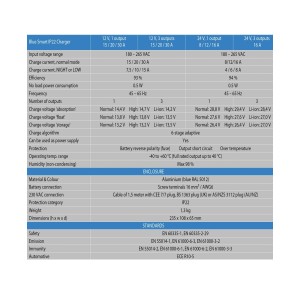

Specifications:
Model: Blue Smart 24/12/1;
Input voltage range: 180 – 265 VAC;
Charging current, normal mode: 12 A;
Charging current, NIGHT or LOW: 6 A;
Efficiency: 94%;
No-load power consumption: 0.5 W;
Frequency: 45-65 Hz;
Number of outputs: 1;
“Absorption” charging voltage:
- Normal: 28.8 V
- High: 29.4 V
- Li-ion: 28.4 V
“Float” charging voltage:
- Normal: 27.6 V
- High: 27.6 V
- Li-ion: 27.0 V
“Storage” charging voltage:
- Normal: 26.4 V
- High: 26.4 V
- Li-ion: 27.0 V
Charging algorithm: 6-stage adaptive;
Can it be used as a power supply: Yes;
Protection: Battery reverse polarity (fuse) Output short circuit Overtemperature;
Operating temperature range: -40 to +60°C (maximum rated output up to 40°C);
Humidity (non-condensing): Max 98%.
CARCASS
Material and colour: Aluminum (blue RAL 5012);
Battery connection: Screw terminals 16 mm² / AWG6;
230 VAC connection: 1.5 meter cable with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ);
Protection category: IP22;
Weight: 1.3 kg;
Dimensions (HxWxD): 235x108x65 mm.
REGULATIONS
Safety: EN 60335-1, EN 60335-2-29
Emissions: EN 55014-1, EN 61000-6-3, EN 61000-3-2
Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
Automotive sector: ECE R10-5

For further information, consult the technical datasheet or looking images.
