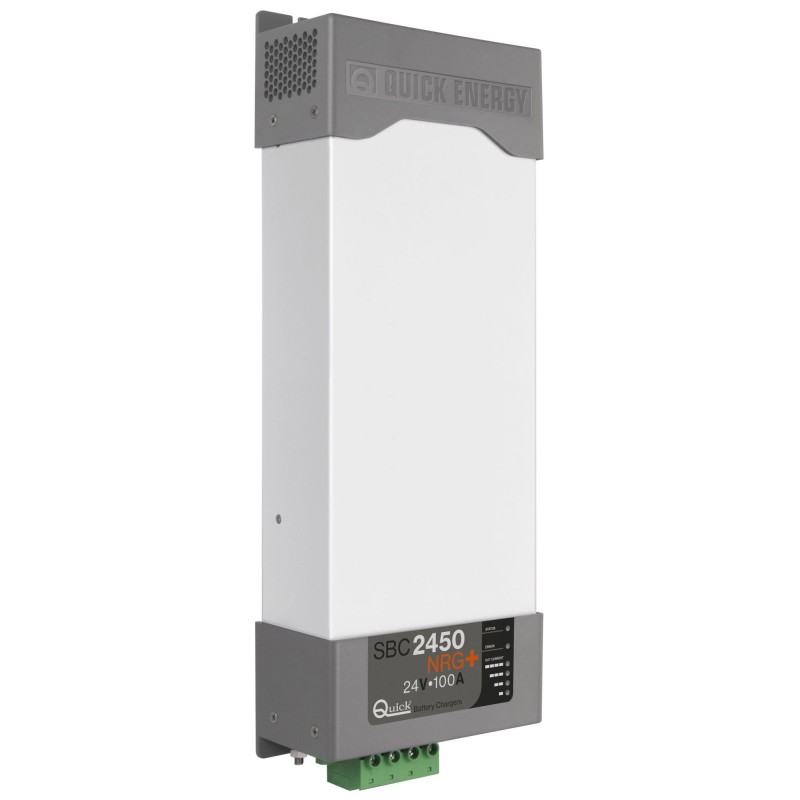

Quick Hi Power Battery Charger SBC2450 NRG+ 100A 24V 3 Outputs HR with remote control panel

Quick Hi Power Battery Charger SBC2450 NRG+ 100A 24V 3 Outputs HR + remote control panel

Features of SBC NRG+ Battery Chargers Series:
• Three stage IUoU battery charging;
• Multiple outputs in order to charge more groups of batteries (Electronic mosfet charge separator inside);
• Differentiated charging for open or sealed liquid electrolite, GEL or AGM batteries;
• Integrated output fuses inside the battery charger (for each output);
• Capacity of supplying full power with low AC network supply voltage;
• The possibility of using the battery charger as a power supply without batteries;
• Low residual fluctuation on output;
• Universal AC supply input;
• Power factor (cos ϕ) equal to 1;
• Compatible with the generators;
• Can work in a wide range of ambient temperatures;
• “Quick Smart Fan” system for optimized management of the cooling fans;
• User interface (multi-lingual) that consists of a LCD display with 3 buttons;
• Automatic and manual power derating;
• CAN BUS interface for data transfer;
• Possibility to connect up to three battery chargers of the same model in parallel, by means of digital control, for current sharing;
• Thermal battery protection (with optional sensors);
• Short circuit, overloading, output overvoltage and overheating protection.

Features:
- Max output current: 100 A;
- Charge absorption voltage: 28,2 Vdc EL open - 28,8 Vdc EL sealed / Gel /AGM - 29,4 Vdc Li-ion / Optima;
- Charge float voltage: 26,8 Vdc EL open / 27 Vdc Li-Ion -27,2 Vdc AGM - 27,6 Vdc sealed / Gel / Optima;
- Number of outputs: 3;
- Supply voltage: 264÷161 Vac with power under 207 Vac;
- Frequency: 45 ÷ 66 Hz;
- Efficiency: ≥ 92%;
- Max absorption (230/240 Vac): 12,5 A;
- Current Sharing: Yes;
- Operating temperature: -15 ÷ +70°C, with power reduction over +50°C;
- Cooling: Forced, by variable speed cooling fans;
- Case Dimensions L x H x D: 170 x 481 x 81,5 mm.

Note: Product available in 7 working days, the order transmitted directly to the manufacturer/importer.
