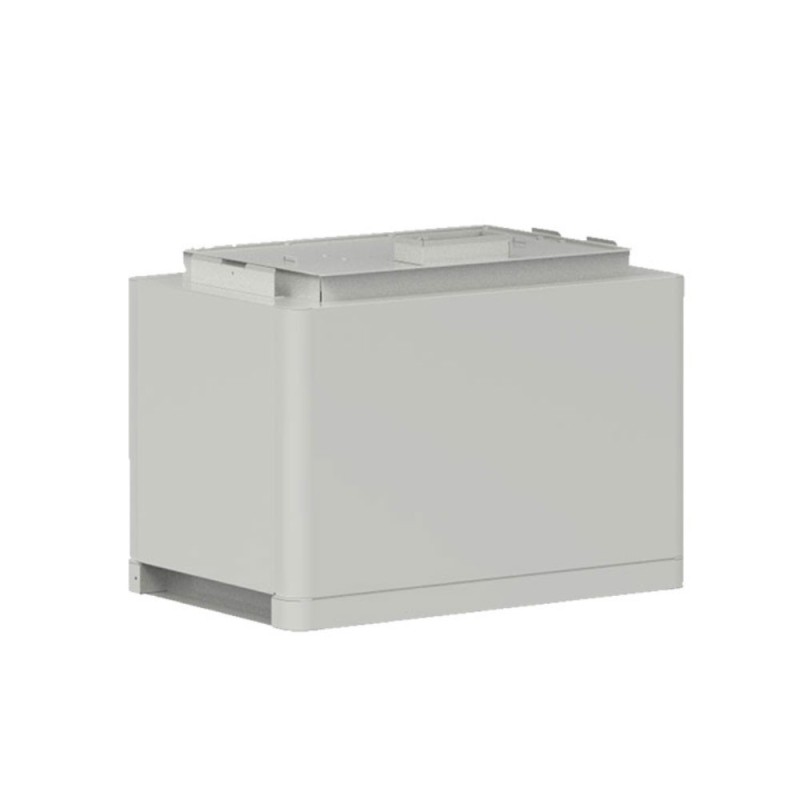

Pylontech FORCE-H2 FH9637M 96V 3.5kWh High Voltage Battery Module without BMS

Pylontech FORCE-H2 FH9637M 96V 3.5kWh High Voltage Battery Module without BMS

Pylontech FORCE-H2 FH9637M high voltage lithium battery module 96V 3.5kWh without BMS power module suitable for single-phase or three-phase self-consumption systems with Pylontech inverter. Equipped with cells with Lithium Ferrophosphate (LiFePO4) technology.
Force H2 is the latest version of the high voltage battery storage system provided by Pylontech. The newly developed system provides an easy connector to save valuable time for installers. The modular system provides flexible configurations from 96 V to 384 V voltage and from 7.1 kWh to 24.86 kWh capacity. The white steel color reflects the strong ability to retain energy. The indoor/outdoor compatible function offers more installation possibilities. Ideal for large home and small commercial application.

• Modular system, from 2 to 5 modules with 1 external BMS
• Capacity of the single battery module equal to 3.55 kWh
• System scalable from 7.1 kWh up to 17.75 kWh
• Parallelable
• EPS backup function
• Plug & Play
• 90% DOD

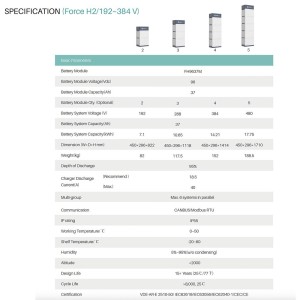

Technical features:
- Lithium ion battery (lithium iron phosphate);
- Voltage: 96 V;
- Nominal capacity: 37 Ah;
- Battery system capacity: 3,55 kWh;
- Interface: CANBUS, Modbus RTU;
- Discharge current (continuous/maximum): 18.5/40;
- Working temperature: 0~50 °C;
- Shelf temperature: 20~60 °C;
- Design life: 15 cycles (25 °C);
- Cycle life: >8000 (90% DOD);
- Cellular chemistry: LFP;
- Storage type: High Voltage;
- Size: 450x296x296 mm;
- Weight: 35.5 kg.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
