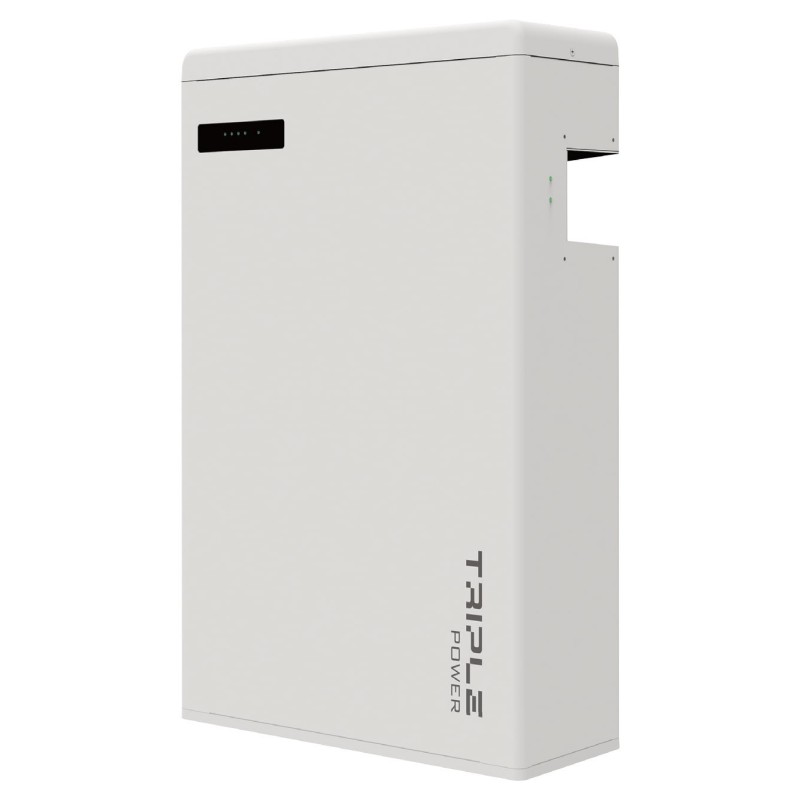

Triple Power T-BAT H 5.8 MASTER PACK V2.1 5.8kWh High-Voltage Battery
Triple Power T-BAT H 5.8 MASTER PACK V2.1 high-voltage battery. Designed and manufactured by SolaX, Triple Power is offering a NEW 5.8kWh model that can be installed in series with up to 4 batteries enabling 23kWh of storage. The new Triple Power encompasses the very latest in LFP technology which ensures much safer installations with wider temperature tolerances. With a 10-year warranty and 90% depth of discharge, the new Triple Power battery is a flexible, practical, high-performance energy storage solution.
Monitor your battery in real-time, see its current charge, historical charging data and even choose when and if you want to charge your battery from the grid during cheaper electricity tariffs, all from your smartphone or tablet.
The Triple Power battery is IP65 rated meaning that it can be installed outside providing that the battery is covered with adequate protection against the weather.
• Multiple Communication Interface
• IP65 Protection Level
• Auto Power Replenishment Tech
• Floor Or Wall Mounting
• Long Life Cycle
• Safest LiFePO4 battery
• 90% DOD
• Cycle life>6000 times
Technical data:
Nominal Voltage: 115.2 V
Operating Voltage: 100-131 V
Battery Type: Li-ion (LFP)
Total Capacity: 5.8 kWh
Usable Capacity: 5.1 kWh
Faradic Charge Efficiency: 99%
Battery Roundtrip Efficiency: 95%
Standard Power: 2.8 kW
Max Power: 4.0 kW
Recommend Charge/Discharge Current: 25 A
Max Charge/Discharge Current: 35 A
Short Circuit Current: 760 A
Cycle Life: >6000 cycles
Warranty: 10 Year
Available Operating Temperature Range: 0 to 55°C
Full-load Operating Temperature Range: 5 to 48°C
Relative Humidity: 4 to 100% (condensing)
Altitude: below 2000 m
Protection: IP55
System to Inverter: CAN2.0
Battery to Battery/BMS: RS485
Data Collection Port /FW UPDATE: CA2.0
Master Control Working Mode Indicator: 1 LED
Master Control Capacity Indicator: 4LED (25%, 50%, 75%, 100%)
Battery Module LED: 2 LED
Reset: button
Switch ON/OFF: button x1 + breaker x1
Safety: CE, RCM, IEC62619, UL1973, ROHS, REACH
UN Number: UN3840
Hazardous Materials Classification: Class 9
Transport Testing Requirement: UN38.3
Dimensions (LxWxH): 474×193×708 mm
Weight: 72.2 kg
For more details, we recommend that you view the manufacturer's technical data sheet.
