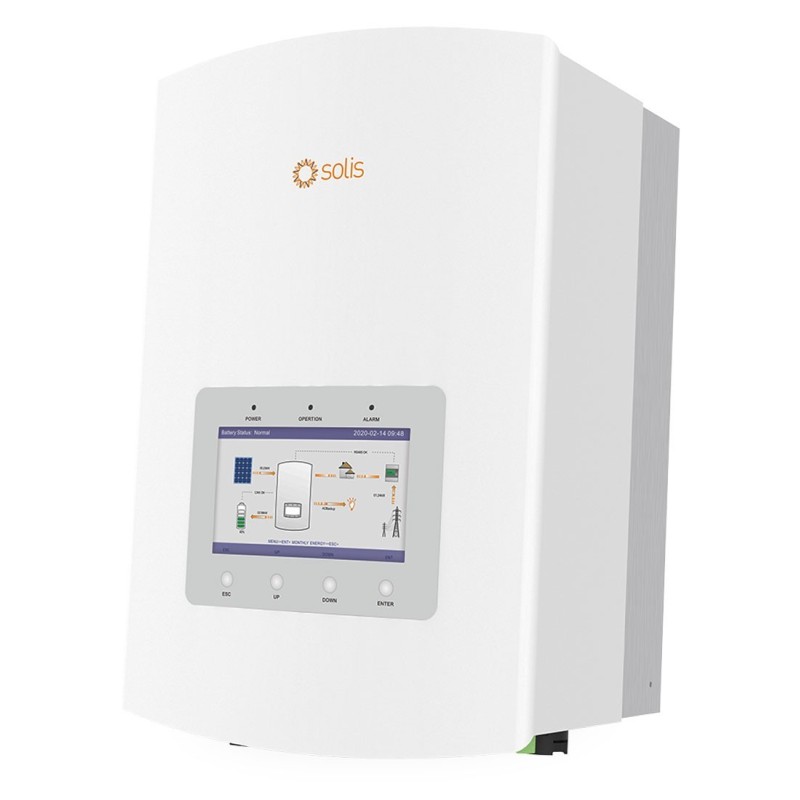

Solis S5-EH1P4.6K-L Single-phase Hybrid Inverter 4.6kW 8000W 2MPPT Backup
The S5-EH1P4.6K-L energy storage inverter is designed for residential PV energy storage system. 5kW backup power supports more critical loads. Backup switching time is less than 20 ms. Integrate multiple protections and fault monitoring to ensure the safety of batteries and equipment.
✓ Max. string input current 15A
✓ Uninterrupted power supply, 20ms reaction
✓ 5kW backup power to support more important loads
✓ Multiple working modes to make maximize selfconsumption, increase benefit
✓ Higher charge-discharge efficiency, improving the economic benefits
✓ AFCI protection, proactively reduces fire risk
✓ Fanless design, long lifespan
✓ Compatible with lithium & lead-acid batteries, increased more choice in different markets
✓ Intelligent EMS function, improving battery's reliability
✓ With high-frequency isolation technology, making system safer and long lifespan
✓ 24-hour fully intelligent energy management, Realtime grasp of PV plant status
✓ Remotely control & upgrade function, making digital power plant maintenance at your fingertips
Technical specifications
DC input
ecommended photovoltaic power: 8 kW
Absolute maximum voltage: 600 V
Rated Voltage: 330 V
Starting Voltage: 120 V
MPPT Voltage Range: 90-520V
Maximum input current: 15 A / 15 A
Maximum short circuit current: 22.5 A / 22.5 A
Maximum MPPT number/Number of strings: 2/2
Battery
Battery type: Li-ion / Lead-acid;
Battery voltage range: 42 - 58 V;
Battery capacity: 50 - 2000 Ah;
Max. charge / discharge power: 5 kW;
Max. charge / discharge current: 100 A;
Communication: CAN.
Output AC (Back-up)
Rated output power: 5 kW
Max. apparent output power: 7 kVA, 10 sec
Back-up switch time: <20 ms
Rated output voltage 1/N/PE, 220 V / 230 V
Rated frequency: 50 Hz / 60 Hz
Rated output current: 23 A / 22 A
THDv (@linear load): <2%
Input AC (Grid side)
Input voltage range: 187-265 V
Max. input current: 31.5 A / 30 A
Frequency range: 45-55 Hz / 55-65 H
Output AC (Grid side)
Rated output power: 4.6 kW
Max. apparent output power: 4.6 kVA
Operation phase: 1/N/PE
Rated grid voltage: 220 V / 230 V
Rated grid frequency: 50 Hz / 60 Hz
Rated grid output current: 20.9 A / 20 A
Max. output current: 21 A
Power factor: >0.99 (0.8 leading - 0.8 lagging)
THDi: <2%
Efficiency
Maximum efficiency: 97.1%
EU efficiency: 96.5%
Protection
DC reverse-polarity protection: Yes
Short circuit protection: Yes
Output over current protection: Yes
Surge protection: DC Type II / AC Type II
Ground fault monitoring: Yes
Integrated AFCI (DC arc-fault circuit protection): Yes (1)
Protection class/Over voltage category: I/II
General data
Dimensions (WxHxD): 333x505x249 mm
Weight: 18.30 kg
Topology: Hight frequency isolation (for Battery)
Operating environment temperature range: -25 ~ +60°C
Degree of protection: IP65

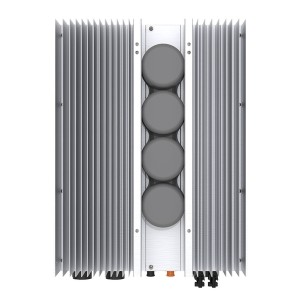

Cooling method: Natural convection
Maximum operating altitude: 4000m
Safety/EMC standards: IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-3/
Grid connection standard: G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA

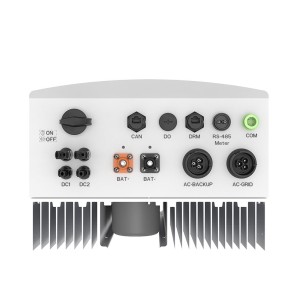

Characteristics
DC connection: MC4 connector
AC connection: Quick connect plug
Screen: 7.0" LCD color screen display
Communication: RS485, Optional: Wi-Fi, GPRS
