2-fold Junction Y-connector parallel MMF and FFM MC4

2-fold Junction Y-connector parallel MMF and FFM MC4

2 Y-type drop cable connectors for convenient use. The MC4 male and female connectors have a stable self-locking system and is easy to insert and remove. Quick and easy assembly process and simple removal of caps without the use of any additional tools.

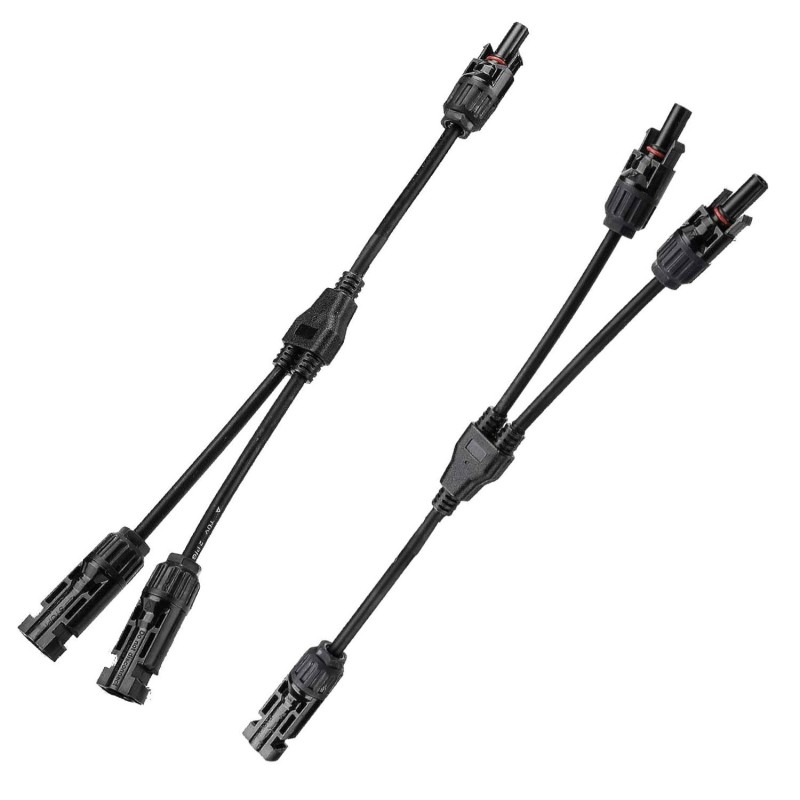

A pair of Y-type male female solar cable connectors, one female to double male (F/M/M) and one male to double female (M/F/F), suitable for solar power station, photovoltaic cable and PV junction box.
Very high and low temperature resistance. Y-branch parallel connector adopts crimp connection terminal, with good abrasion resistance and excellent softness.
Contact material: copper, tinned with excellent aging and UV resistance, can be used in harsh environments.

Technical data:
- Cable specification: 4mmq (AWG12);
- Rated voltage: 1000 V;
- Rated current: 30 A;
- Protection grade: IP57;
- Operating temperature: -40 °C + 85 °C;
- Insulation material: PPO + PA;
- Consulting-material: copper, tinned;
- Flame grate: UL94-VO;
- Securety level: II;
- Connectivity: ≤0,2 mmΩ.
