6kW 6880W Single Phase On-Grid photovoltaic kit Solis Inverter Battery Ready

6kW 6880W Single Phase On-Grid photovoltaic kit Solis Inverter Battery Ready

The grid-connected photovoltaic kit, also known as ON-GRID photovoltaic kit, is designed to be connected directly to the electrical grid. This type of photovoltaic system allows you to use the solar energy generated by the photovoltaic panels to directly power electrical appliances in your home or building where the system is installed. In addition, in the event of excess energy production, the energy can be fed into the electrical grid to obtain credits or compensation.

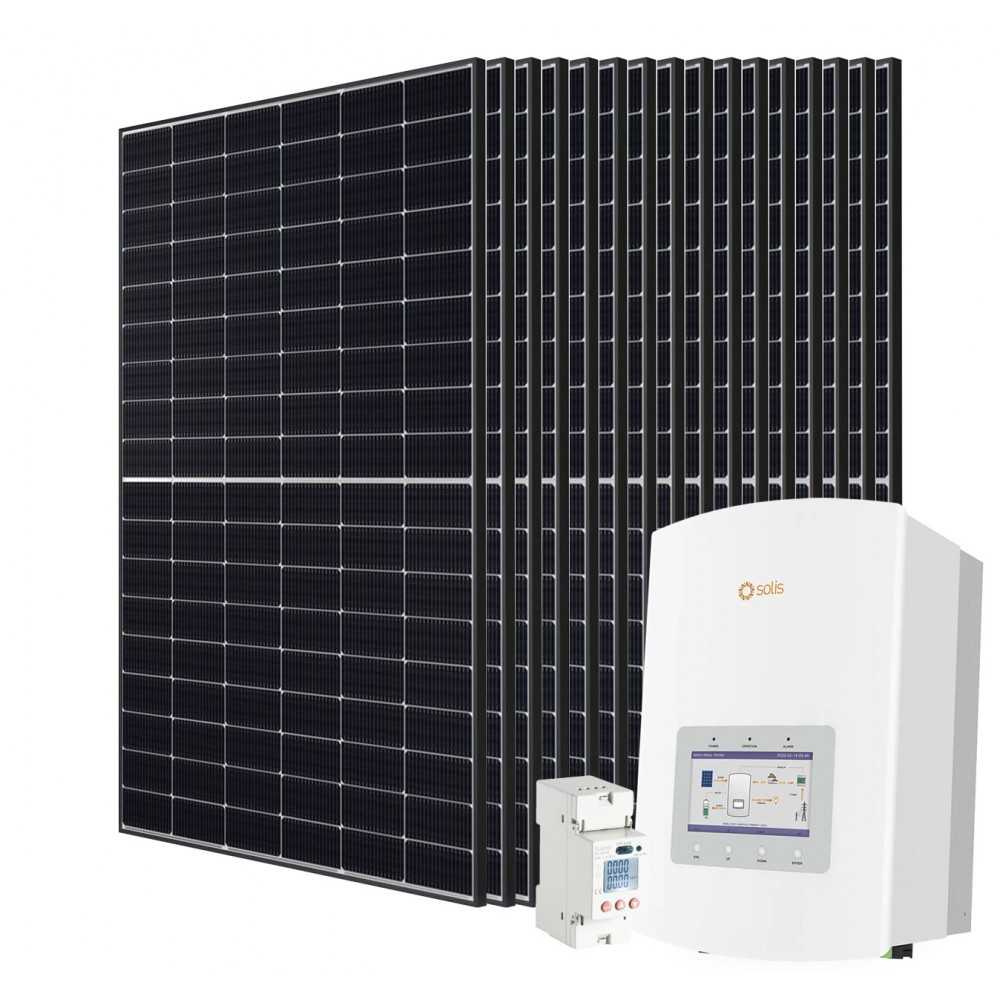

The kit is made by:
- n°16 430W monocrystalline photovoltaic modules #N151000000P8;
- n°1 Solis S5-EH1P6K-L 6kW 8000W Single-Phase Hybrid Inverter 2MPPT Backup #S5EH1P6KL;
- n°1 Solis-1P-Meter 220V 60A RS485 Single-phase meter for Solis string inverter #S1PMETER.

n°16 Monocrystalline 430W photovoltaic panels

Classic, but with revolutionary changes! The unique structure of the high-efficiency HPBC cells sets a new standard for photovoltaic technology. The Explorer series is perfectly suited for both domestic and commercial use. The 430W LONGi Hi-MO6 LR5-54HTH solar module is a monocrystalline solar module with new generation HPBC (Hybrid Passivated Back Contact) technology that ensures a high level of module efficiency. The efficiency of HPBC cells exceeds 25%.
In terms of reliability, the HPBC cell adopts full back welding technology to effectively improve the micro-crack resistance of the modules. At the same time, Hi-MO X6 can carry out active safety and intelligent optimization management through the prefabricated intelligent optimizer.
The LONGi Hi-MO6 solar module is certified for use with wind and snow loads of 2400-5400 Pa. The module has a 3.2 mm thick tempered front glass with high light transmission. The frame is made of black anodized aluminum alloy.
Technical specifications:
- Model: LR5-54HTH-430M;
- Power (Pmax): 430 Wp;
- Voltage (Vmp): 32.84 V;
- Max Current (Imp): 13.10 A;
- Open Circuit Voltage (Voc): 39.3 V;
- Short-circuit current (Isc): 14.15 A;
- Cell efficiency: 22.0 %;
- Operating temperature: -40°C - +85°C;
- Max. system voltage: DC1500V (IEC/UL);
- Cell type: monocrystalline;
- Number of cells: 108 (6 x 18);
- Frame color: Black;
- Weight: 20.8 kg;
- Size: 1722x1134x30 mm;
- Length of connection cable: 1200 mm, 4 mmq;
- Degree of protection junction box: IP68, 3 diodes.

n°1 Solis S5-EH1P6K-L 6kW 8000W Single-Phase Hybrid Inverter 2MPPT Backup

The S5-EH1P6K-L energy storage inverter is designed for residential PV energy storage system. 5kW backup power supports more critical loads. Backup switching time is less than 20 ms. Integrate multiple protections and fault monitoring to ensure the safety of batteries and equipment.
✓ Max. string input current 15A
✓ Uninterrupted power supply, 20 ms reaction
✓ 5kW backup power to support more important loads
✓ Multiple working modes to make maximize selfconsumption, increase benefit
✓ Higher charge-discharge efficiency, improving the economic benefits
✓ AFCI protection, proactively reduces fire risk
✓ Fanless design, long lifespan
✓ Compatible with lithium & lead-acid batteries, increased more choice in different markets
✓ Intelligent EMS function, improving battery's reliability
✓ With high-frequency isolation technology, making system safer and long lifespan
✓ 24-hour fully intelligent energy management, Realtime grasp of PV plant status
✓ Remotely control & upgrade function, making digital power plant maintenance at your fingertips

Technical specifications
DC input
ecommended photovoltaic power: 8 kW
Absolute maximum voltage: 600 V
Rated Voltage: 330 V
Starting Voltage: 120 V
MPPT Voltage Range: 90-520V
Maximum input current: 15 A / 15 A
Maximum short circuit current: 22.5 A / 22.5 A
Maximum MPPT number/Number of strings: 2/2
Battery
Battery type: Li-ion / Lead-acid;
Battery voltage range: 42 - 58 V;
Battery capacity: 50 - 2000 Ah;
Max. charge / discharge power: 5 kW;
Max. charge / discharge current: 100 A;
Communication: CAN.
Output AC (Back-up)
Rated output power: 5 kW
Max. apparent output power: 7 kVA, 10 sec
Back-up switch time: <20 ms
Rated output voltage 1/N/PE, 220 V / 230 V
Rated frequency: 50 Hz / 60 Hz
Rated output current: 23 A / 22 A
THDv (@linear load): <2%
Input AC (Grid side)
Input voltage range: 187-265 V
Max. input current: 34.5 A / 33 A
Frequency range: 45-55 Hz / 55-65 H
Output AC (Grid side)
Rated output power: 5 kW
Max. apparent output power: 6.6 kVA
Operation phase: 1/N/PE
Rated grid voltage: 220 V / 230 V
Rated grid frequency: 50 Hz / 60 Hz
Rated grid output current: 27.3 A / 26.1 A
Max. output current: 30 A
Power factor: >0.99 (0.8 leading - 0.8 lagging)
THDi: <2%
Efficiency
Maximum efficiency: 97.1%
EU efficiency: 96.5%
Protection
DC reverse-polarity protection: Yes
Short circuit protection: Yes
Output over current protection: Yes
Surge protection: DC Type II / AC Type II
Ground fault monitoring: Yes
Integrated AFCI (DC arc-fault circuit protection): Yes (1)
Protection class/Over voltage category: I/II
General data
Dimensions (WxHxD): 333x505x249 mm
Weight: 18.30 kg
Topology: Hight frequency isolation (for Battery)
Operating environment temperature range: -25 ~ +60°C
Degree of protection: IP65
Cooling method: Natural convection
Maximum operating altitude: 4000m
Safety/EMC standards: IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-3/
Grid connection standard: G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
Characteristics
DC connection: MC4 connector
AC connection: Quick connect plug
Screen: 7.0" LCD color screen display
Communication: RS485, Optional: Wi-Fi, GPRS

n°1 Solis-1P-Meter 220V 60A RS485 Single-phase meter for Solis string inverter

Solis-1P-Meter is a device designed for energy measurement and monitoring in photovoltaic PV systems.
Real-time Energy Measurement
Solis-1P-Meter accurately measures the energy generated by the PV system in real-time. This allows users to monitor the precise amount of energy being produced at any given moment.
Remote Monitoring
The device is equipped with remote monitoring capabilities, enabling users to access energy production data from anywhere using a mobile application or online platform. This feature provides convenience and accessibility for monitoring PV system performance remotely.
Data Visualization
Solis-1P-Meter provides detailed data visualization, including graphs and reports showing daily, weekly, monthly, and yearly energy production. It also displays other relevant information such as voltage, current, and power, giving users comprehensive insights into their PV system's performance.
Alarm and Notifications
Users can configure the device to send alerts and notifications in case of system issues or anomalies in energy production. This proactive notification system helps users address any issues promptly, ensuring optimal performance and reliability of the PV system.
Integration
Solis-1P-Meter is designed to seamlessly integrate with other energy monitoring systems and management devices. This integration allows users to have a unified and comprehensive view of their energy performance and facilitates better decision-making for system optimization.
Simple Installation and Configuration
The device is designed for easy installation and configuration, minimizing the time and effort required to set up energy monitoring for the PV system. This user-friendly approach enhances the overall user experience and reduces setup complexities.

Features:
- Model: DDSD1352;
- Grid topology: 1P+N;
- Rated voltage: 220V;
- Input current: 10(60) A;
- RS485 (MODBUS-RTU);
- Operating temperature: -25°C ~ 55°C;
- LCD display;
- DIN 35 mm;
- Size (LxWxH): 36x89x62 mm.
Meter compatible with models:
- Solis-Mini-(0.7-3600)-4G
- S5 & S5-GR1P(0.7-3.6)K-M
- Solis-1P(2.5-6)K-4G
- S6 & S5-GR1P(2.5-6)K & Plus
- Solis-1P(7-8)K-5G
