Camper Boat Kit N0 All 12V 400W + LiFePO4 200Ah + SmartSolar MPPT 100/30 + Cable Kit Storage 2560Wh

Camper Boat Kit N0 All 12V 400W + LiFePO4 200Ah + SmartSolar MPPT 100/30 + Cable Kit Storage 2560Wh

€2,005.41 Save 35%
€1,303.52 VAT included
Shipped within 8 working days from EU warehouse

N0 All 12V 400W Boat RV Camper Van Photovoltaic Kit complete with two 200W modules, MPPT 30A Charge Controller, WANROY LiFePO4 Battery 12V 200Ah BMS, 12/12V 30A 360W DC-DC Charger Isolated, Battery Charger 12V 15A and Solar Cable Kit 2x5m-6mmq with F/M MC4 connectors for stand-alone PV systems.

Reference
N151030201005
In Stock
Visitatore

Camper Boat Kit N0 All 12V 400W + LiFePO4 200Ah + SmartSolar MPPT 100/30 + Cable Kit Storage 2560Wh

N0 All 12V 400W Camper Kit complete with two 200W photovoltaic modules, SmartSolar MPPT 100/30 30A Solar Charge Controller Victron Energy, WANROY LiFePO4 Lithium Battery 12V 200Ah with a BMS charge management and monitoring system, Victron Energy Orion-Tr Smart 12/12V 30A 360W DC-DC Charger Isolated, Victron Blue Smart 12/15/1 Charger 12V 15A IP22 1 wall outlet with Bluetooth and Solar Cable Kit 2x5m-6mmq with F/M MC4 connectors for stand-alone PV systems, remote houses, camper vans, boats, industrial applications, lighting systems, road signs, TVCC systems and much more.

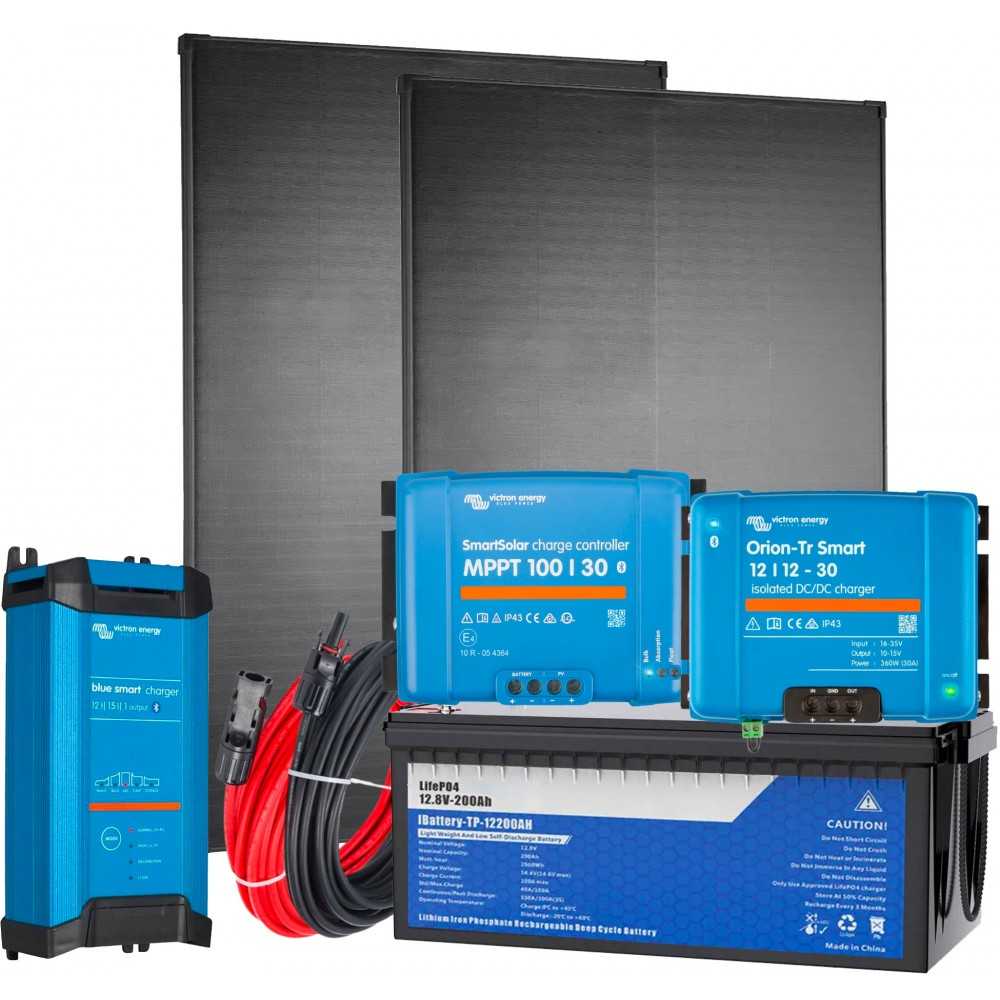

The kit is made by:
2 - 200W 12V monocrystalline silicon photovoltaic panels #N52330050179;
1 - Victron Energy SmartSolar MPPT 100/30 30A Solar Charge Controller #UF21678K;
1 - WANROY LiFePO4 Lithium Battery 12V 200Ah with BMS #N150520017375;
1 - Victron Energy Orion-Tr Smart 12/12V 30A 360W DC-DC Charger Isolated #UF23149S;
1 - Victron Energy Blue Smart Series Battery Charger 12V 15A 1 output IP22 #N52421020520;
1 - Solar Cable Kit 2x5m-6mmq with F/M MC4 connectors #N151230750281.

n°2 - 200W 12V monocrystalline silicon photovoltaic panels

Designed for the rural electrification, data survey, telecommunication and special applications. Thanks to its versatility, the panel is very popular and used both in developing countries as well as the European market. Furthermore every single cell and module produced have been tested and checked several times throughout the manufacturing process. The interconnections between panels are easy, practical and optimized for every configuration and voltage. Robust construction and heavy duty anodized aluminium frame design makes this module suitable, safe, simple and fast to be installed in many situations.
Prevent the loss of electricity: used on the roof of the car, charge the car battery at any time. Can prevent the car battery from losing electricity, and solve the situation that the car cannot be fired due to the battery loss caused by the long-term parking of the vehicle.
Elettrodomestici di bordo: quando si utilizzano gli elettrodomestici di bordo, la potenza originale della batteria dell'auto non si perde (audio per auto, navigatore, registratore di guida, aspiratore, ventilatore per auto, frigorifero per auto, cellulare, ecc.).

Features:
- High module conversion efficiency.
- The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 22%.
- Excellent performances even during low solar radiation (cloudiness, morning or evening).
- Solar-grade tempered prismatic glass.
- High-quality cells and partial-cell design lower series resistance and reduce power degradation.
- Strict and continuous quality controls during all the production phases up to shipment.
- A-grade solar cells.
- Anti-corrosion EVA effectively protects the battery panel.
- Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
- Lightweight and flexible features can make it seamlessly integrated into your vehicle.
- The integrated bypass-diodes allow the panel to work when partially shaded.
- IP67 rated junction box, reliable cables and standard MC4 connectors improve the stability.

Technical data:
- Model: SZ-200-36M;
- Peak power: 200 W;
- Cell type: Monocrystalline;
- Cell Efficiency: 22%;
- Cell configuration: 36 monocrystalline silicon cells;
- Vmp: 18.15 V;
- Imp: 11.02 A;
- Voc: 21.57 V;
- Isc: 11.69 A;
- Maximum system voltage: 500 V;
- Output tolerance: 0±3%;
- Cable: 700 mm/2.5 mm2;
- Connector type: MC4/MC4 compatible;
- Model structure: Aluminum frame, glass, EVA, black backsheet;
- Junction box classified ≥IP67;
- Working temperature: -40°C ~ +80°C;
- Size: 1100x890x30 mm;
- Weight: 11.60 kg.
Mechanical Data:
Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃.

Note:
Pv module provided with cable MC4 connectors.
If the distance between the PV module and charge controller is less than 10 mt, we recommend using 4 mm2 cable;
If the distance between the PV module and charge controller is more than 10 mt, we recommend using 6 mm2 cable.

n°1 - Victron Energy SmartSolar MPPT 100/30 30A Solar Charge Controller

Ultra-fast Maximum Power Point Tracking (MPPT): Especially in case of a clouded sky, when light intensity is changing continuously, an ultra fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers.
Load output: Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a preset voltage.
BatteryLife: intelligent battery management. The BatteryLife algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%.
Resin encapsulated electronics. Day/night timing and light dimming option.
Outstanding conversion efficiency: No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F). No cooling fan.
Advanced Maximum Power Point Detection in case of partial shading conditions: If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPT’s tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Flexible charge algorithm: Fully programmable charge algorithm, and eight preprogrammed algorithms, selectable with a rotary switch.
Extensive electronic protection: Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection

Technical Specifications:
Battery voltage: 12/24V auto detected
Maximum output current: 30 A
Maximum PV power: 440W(12V) 880W (24V)
Maximum PV open circuit voltage: 100V
Maximum efficiency: 98%
Self-consumption: 100mA
Operating temperature: -30°C ÷ +60°C
Protection class: IP 43 (electronic components) - IP22 (connections)
Weight kg (lbs): 1,3 (2.9)
Size: 130x186 x70 mm (5.1x7.3x2.8 inches).

n°1 - WANROY LiFePO4 Lithium Battery 12V 200Ah with BMS

Made with the safest lithium iron phosphate battery technology, the Wanroy LiFePO4 12V 200Ah Batteries offer exceptional durability and a longer life cycle. What is surprising is the possibility of carrying out over 3000 charge and discharge cycles, guaranteeing use for at least 10 years. Equipped with a battery management system (BMS), it is able to operate efficiently while ensuring safety and reliability.
Lighter, smaller, more powerful
The Wanroy Batterie LiFePO4 12V 200Ah is lighter, more compact and more powerful! The slim design makes it light and practical, while its core holds long-lasting and powerful energy. With a high capacity of 100 amps/hour, it will accompany you freely without fearing energy exhaustion anymore.
The importance of the battery management system (BMS)
To protect your battery pack, ensure a stable energy supply and offer you excellent energy management, our Battery Management System (BMS) is here to support you. From everyday needs to special situations, our BMS offers comprehensive protection for lithium battery packs, ensuring a stable case for your power needs.

•    Integrated battery management system
•    After 3000 cycles with 80% DOD, 80% capacity still remains
•    Lifespan of at least 15 years without the need for maintenance
•    Fully-fledged replacement for lead-acid batteries
•    Eco-friendly, lead-free, acid-free
•    Compatible with Victron Energy, Growatt, Green Cell, etc.

Smart long-term solution
Despite the higher price, LiFePo4 batteries are characterized by much lower operating costs, which means that the purchase pays for itself very quickly. Over its lifetime, a LiFePo4 battery costs more than 100% less than a standard AGM battery, making it a worthwhile investment and a smart long-term solution.

Electrical performance:
Battery technology: LiFePO4 (Lithium Iron Phosphate)
Nominal tension: 12 V
Capacity (Ah): 200 Ah
Maximum continuous load power: 1280 W
Nominal energy: 2560 Wh
Capacity: 100%
Cycle time: >3000 cycles
Lifespan: >15 years
Charge/Discharge performance:
Charging voltage: 14.4 V (maximum 14.6 V)
Maximum continuous charge/discharge current: 100 A
Peak discharge current @10S: 250 A
Performance in temperature:
Discharge Temperature: -20 ~ +60 °C
Charge Temperature: 0 ~ +45 °C
Storage Temperature: -5 ~ +35 °C
High Temperature Cut-Off: 65 °C
Mechanical performance:
Terminal Type: M8
Terminal Torque: 80 ~ 100 in-lbs (9 ~ 11 N-m)
Terminal pole: F12 (M8 internal thread)
Case Material: ABS
Enclosure Protection: IP65
Dimension (LxWxH): 500x240x220 mm
Weight: 23 kg.

n°1 - Victron Energy Orion-Tr Smart 12/12V 30A 360W DC-DC Charger Isolated

The Orion-Tr Smart DC-DC charger isolated is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.
The Orion-Tr Smart charger is suitable for both lead acid and lithium batteries. This model is 360W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.
Bluetooth Smart enabled
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.
Fully programmable
- Battery charge algorithm (configurable) or fixed output.
- Smart alternator compatibility: engine running detection mechanism.
Adaptive 3-stage charge algorithm: bulk – absorption – float
• For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.
• For lithium batteries absorption time is fixed, default 2 hours.
• Alternatively, a fixed output voltage can be chosen.
Remote on-off A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
High temperature protected The output current will reduce at high ambient temperature.
IP43 protection When installed with the screw terminals oriented downwards.
Screw terminals No special tools needed for installation.
Input fuse (not replaceable)
Features:
Model: Orion-Tr SMART 12/12-30 Isolated;
Input voltage range(1): 10-17V;
Under-Voltage Shutdown: 7V;
Under voltage restart: 7.5V;
Rated output voltage: 12.2V;
Output voltage regulation range: 10-15V;
Output voltage tolerance: +/- 0.2V;
Output Noise: 2mV rms;
continuous current output at nominal output voltage and 40 ºC: 30 A;
Maximum output current (10 sec.) at nominal output voltage minus 20 %: 40 A;
Short circuit output current 60A;
Continuous power output at 25ºC: 430W;
Continuous output power at 40ºC: 360W;
Efficiency: 87%;
Without load current at the load input: < 80 mA;
Standby current < 1mA;
Galvanic Isolation: 200 VDC between input, output and case;
Operating temperature range: -20 to +55 ºC (3 % reduction per °C above 40 °C);
Humidity: Max. 95% non-condensing;
DC connection: Screw terminals;
Maximum cable cross section: 16 mm² (AWG6);
Weight: 1.8kg (3lbs);
Dimensions HxWxD: 130x186x70 mm (5.1 x 7.3 x 4.0 inches);
Protection category: IP43 (electronic components), IP22 (connection area);
Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5.
n°1 - Victron Energy Blue Smart Series Battery Charger 12V 15A 1 output IP22

The Blue Smart IP22 Charger is the new professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
The battery is charged, smartly... to perfect condition
The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and a longer life.
Recovery of deeply-discharged 'dead' batteries
Unlike other brands, the Blue Smart IP22 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.
Check the status of your battery remotely
The Blue Smart IP22 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app.
Specifications:
Model: 12/15 IP22 - 1 Output
Input voltage range: 180-265V AC / 45-65Hz
Charge voltage absorption: 12V Normal 14,4V, High 14,6V, Li-ion 14,2V
Charge voltage Float: 12V Normal 13,8V, High 13,8V, Li-ion 13,35V
Charge voltage Storage: 12V Normal 13,2V, High 13,8V, Li-ion 13,5V
Charge current: 15 A
Weight kg (lbs): 1.4 (3.1)
Size: 235x108x65 mm (9.2 x 4.2 x 2.6 inches)

n°1 - Solar Cable Kit 2x5m-6mmq with F/M MC4 connectors

Cable kit made of black 6 mm² 5 meter photovoltaic cable, red 6 mm² 5 meter photovoltaic cable, MC4 female and male connectors. Specifically designed for the creation of quick and safe connections in the field of photovoltaic applications with the most common inverter and junction boxe. They are made with tinned copper contacts and PPO housing. Resistant to mechanical and climatic stress and resistant to UV rays. The cables and connectors are supplied pre-wired.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
