BYD Battery-Box Premium HVM 11.0 11.04kWh 4 lithium Box-Batteries with BMS

BYD Battery-Box Premium HVM 11.0 11.04kWh 4 lithium Box-Batteries with BMS

€10,634.80 Save 43%
€6,061.84 VAT included
Shipped within 8 working days from EU warehouse

BYD Battery-Box Premium HVM 11.0 11.04kWh Storage system for intelligent energy management and back-up optimization, it is a perfect choice for residential solar systems, 1228x585x298mm, 167kg.

Reference
KR3531402
In Stock
Visitatore

BYD Battery-Box Premium HVM 11.0 11.04kWh 4 lithium Box Batteries with BMS

The Battery-Box Premium HVM is made of 4 high voltage lithium batteries connected in series, the 2.76 kWh 51.2 V each one BMS control module and the battery module support base to obtain a usable capacity of 11.04 kWh. Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVM allows a maximum capacity of 66.2 kWh. Ability to scale by adding HVM modules or parallel HVM stacks later.
• Capable of High-Powered Emergency-Backup and Off-Grid Functionality
• Highest Efficiency Thanks to a Real High-Voltage Series Connection
• The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use
• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power
• Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters
• Two Distinct Modules to Cover the Complete Range of System Sizes
• Highest Safety Standards like VDE 2510-50
Lithium iron phosphate batteries are the safest batteries on the market.
- The maximum working temperature is the one released in case of damage to the battery and is the lowest temperature among the different chemistries of lithium ion batteries.

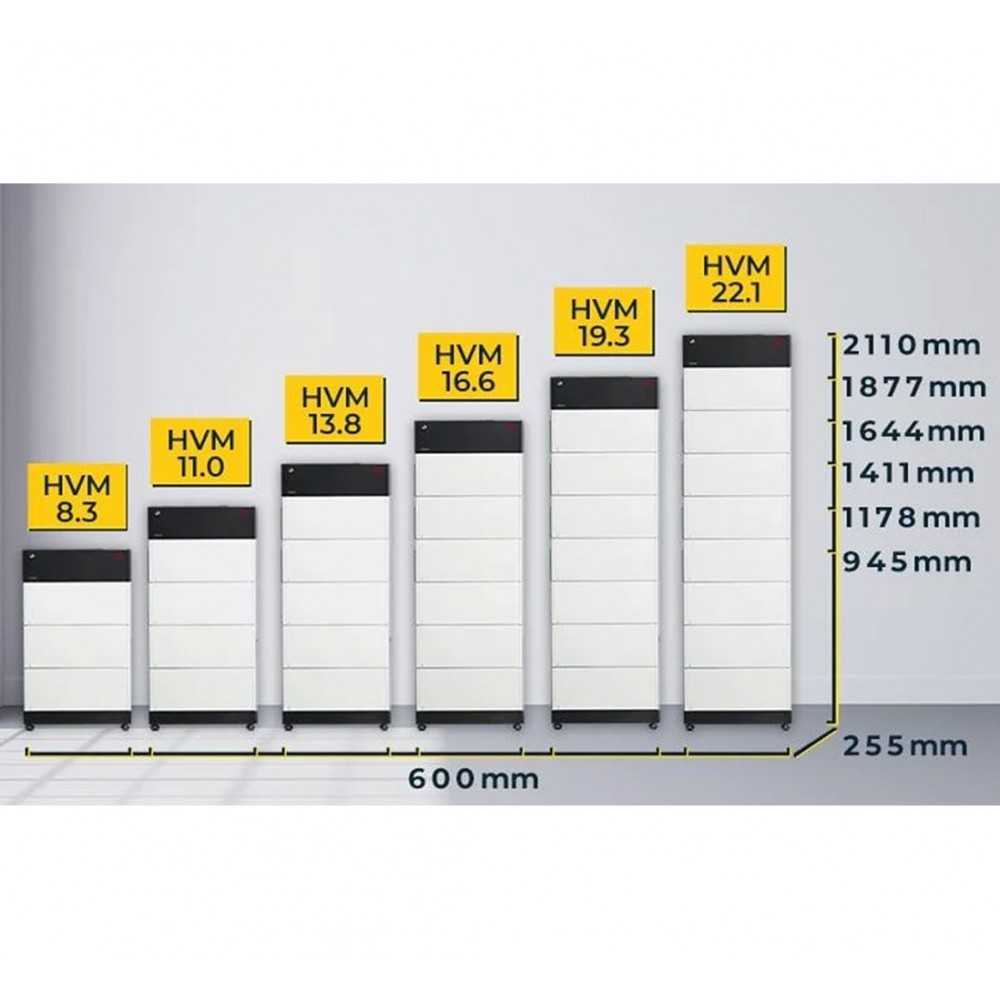

NOTE: The BYD HVM battery is made of a minimum of 3 HVM + BMS modules to a maximum of 8 HVM + BMS modules.

Features
Model: HVM 11.0;
Battery module: HVM (2.76 kWh, 51.2 V, 38 kg);
Number of modules: 4;
Available Energy: 11.04 kWh;
Maximum Output Current: 50 A;
Peak Output Current: 75 A, 3s;
Rated Voltage: 204.8V;
Operating Voltage: 160~236 V;
Dimensions (H/W/D): 1228x585x298 mm;
Weight: 167 kg.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.

VAT RELATED 10%

VAT RELATED 10%

Download (1.11M)

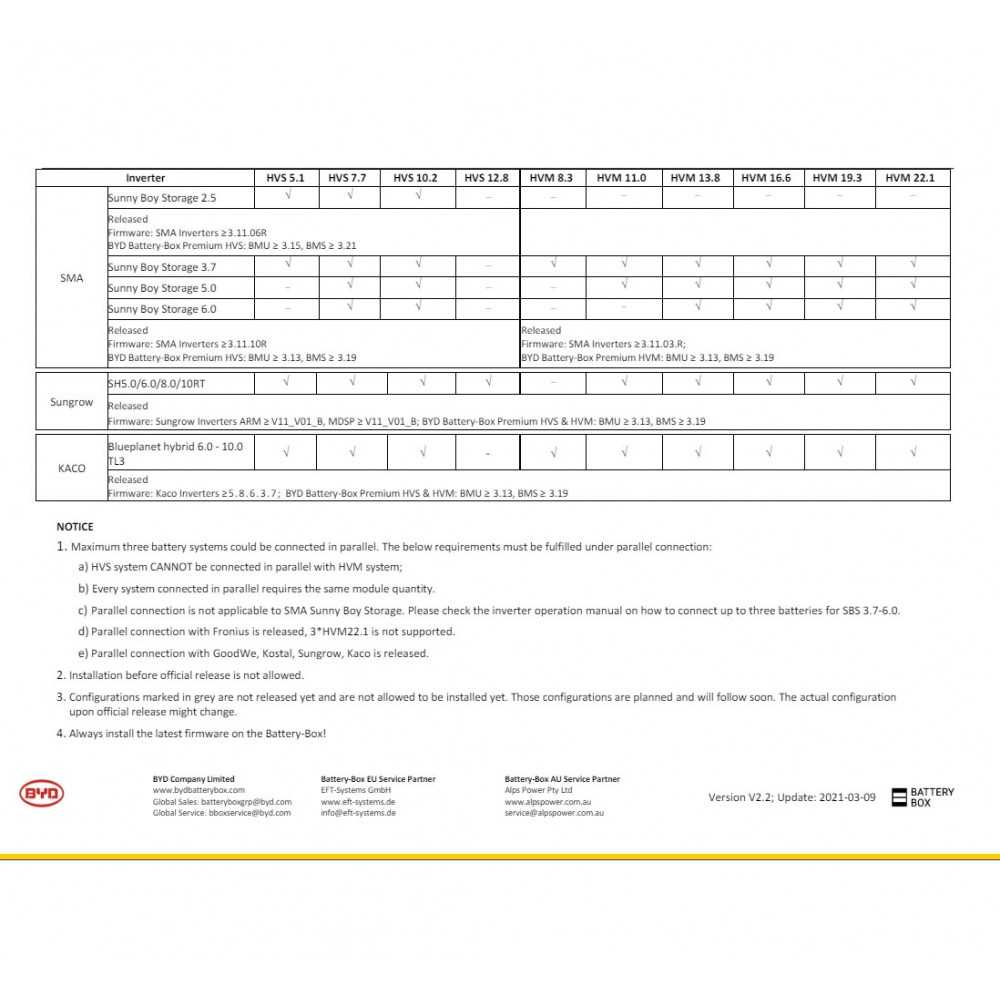

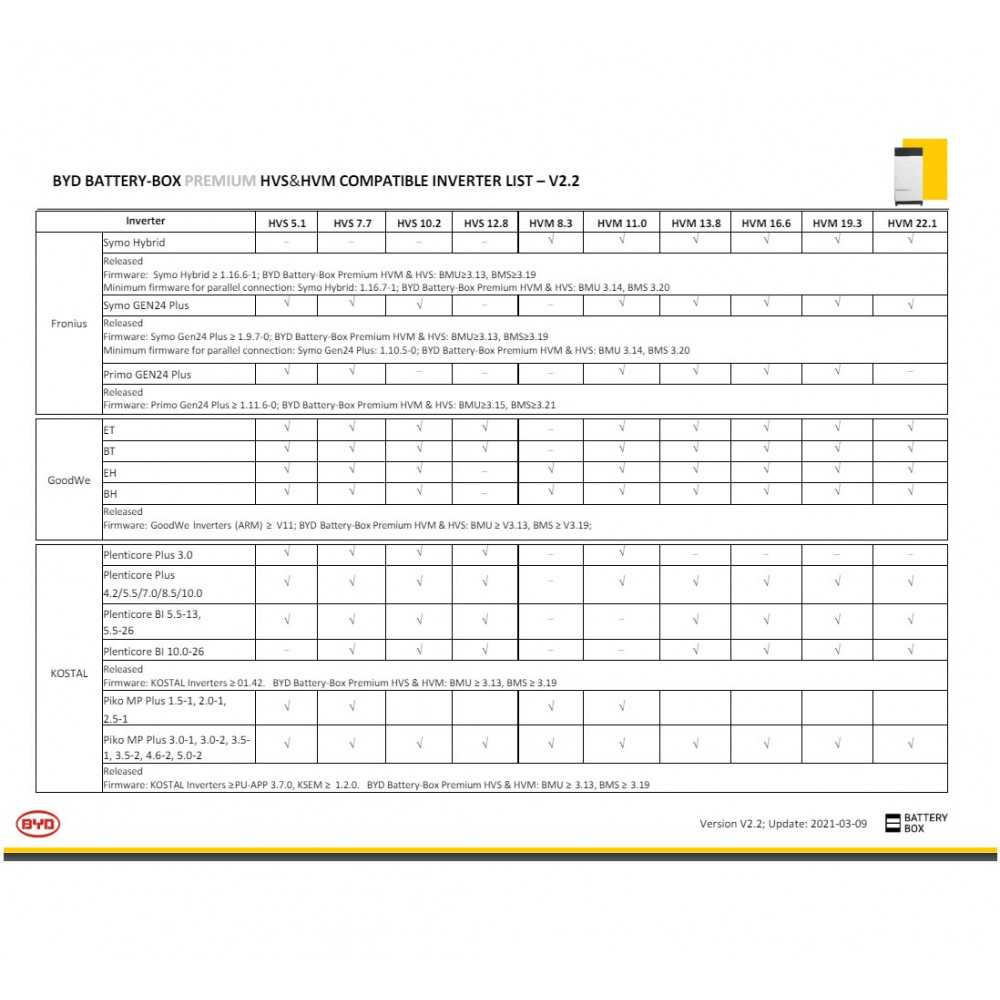

Datasheet BYD HVS HVM

BYD Battery-Box Premium HVS 5.1-12.8 HVM 8.3-22.1 Lithium Box-Batteries with BMS

Download (348.19k)
