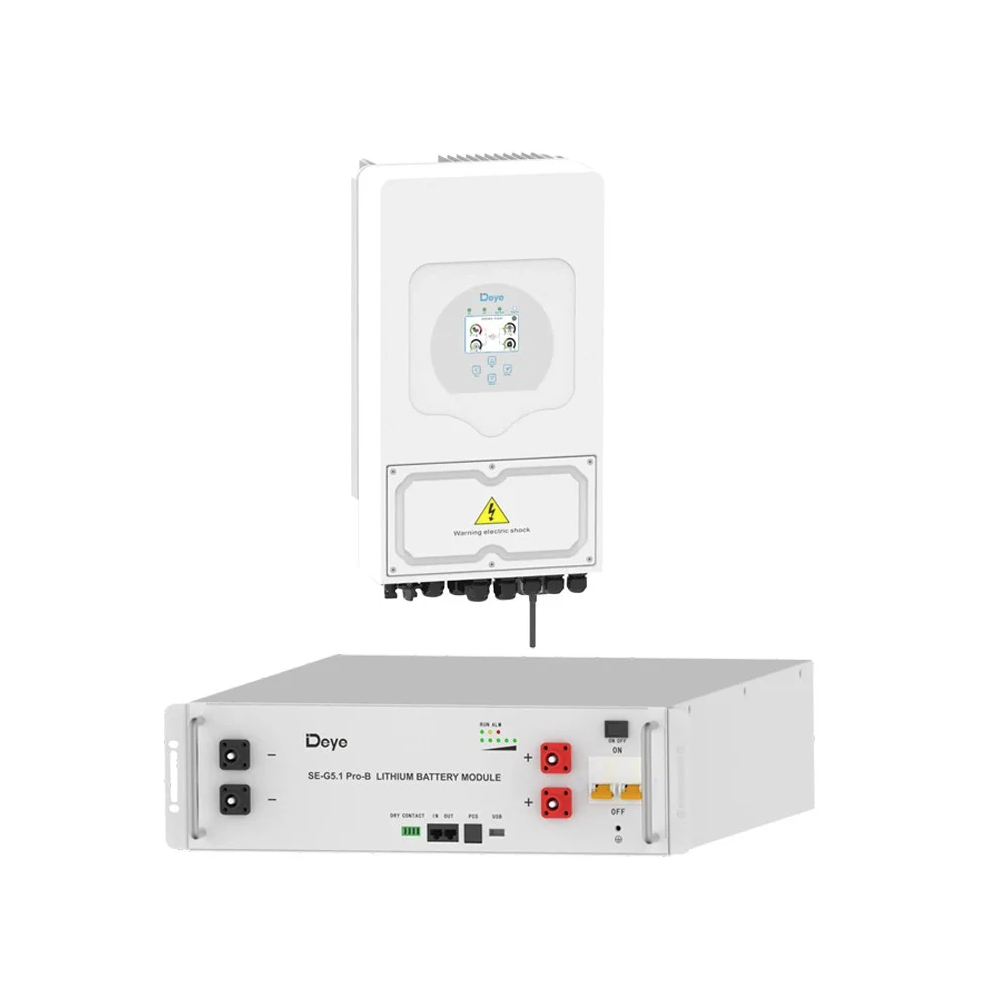

DEYE Storage system 5.12kWh inverter 6kW SG03LP1 + 1 SE-G5.1 Pro-B

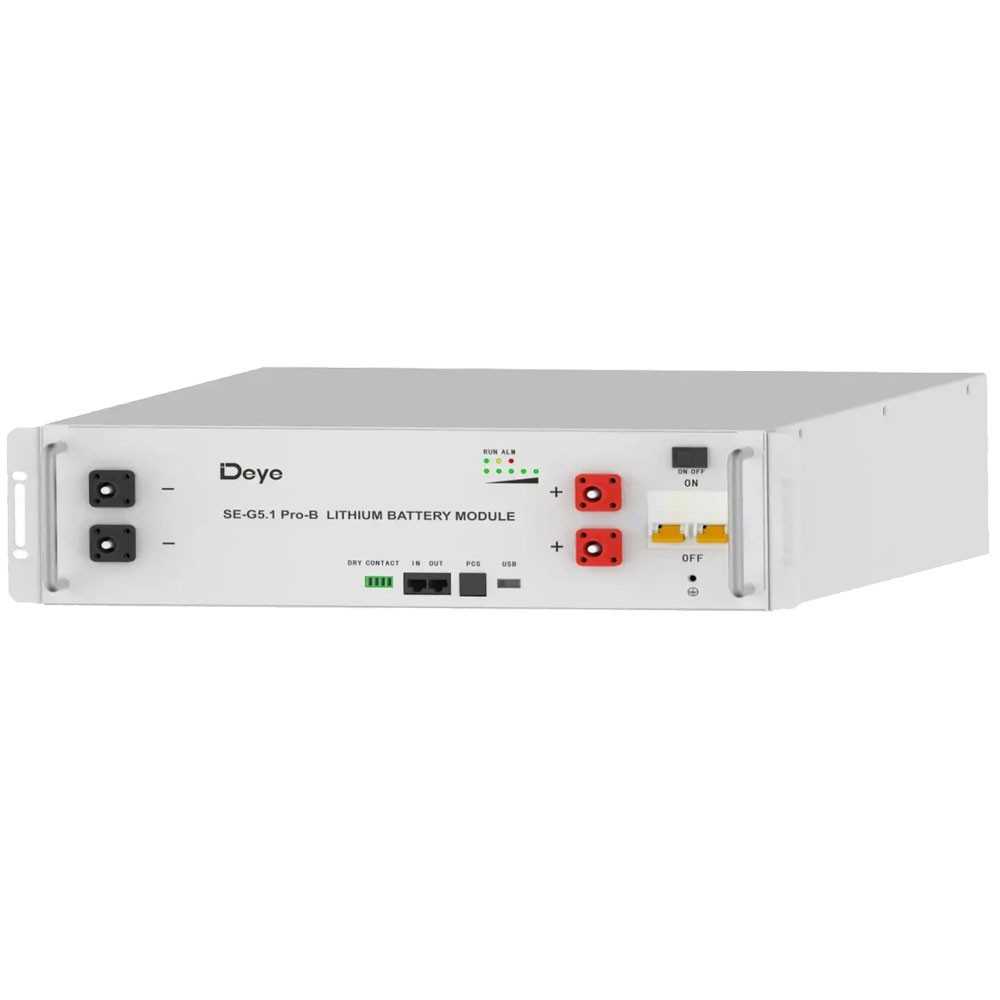

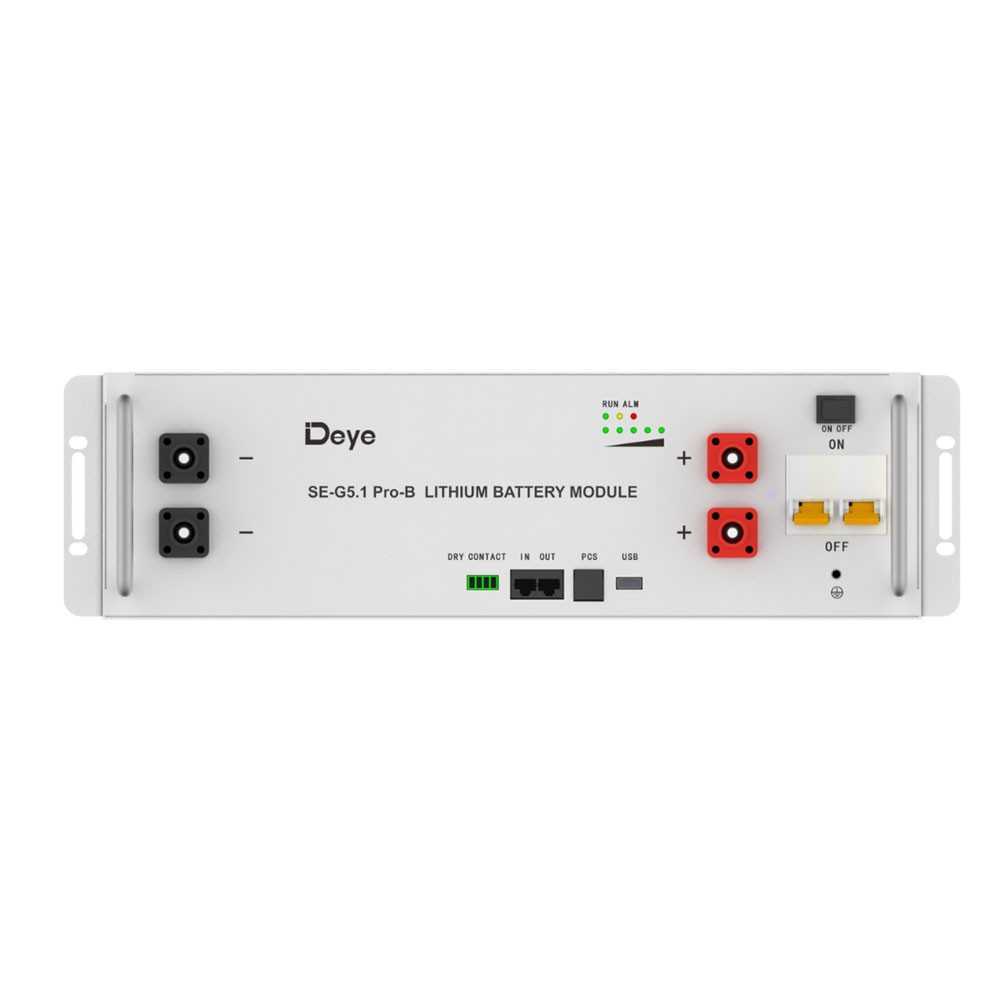

Deye SE-G5.1Pro-B 5.12kW 51.2V LiFePO4 Battery with BMS

The SE-G5.1Pro-B is a high-performance energy storage solution that uses storage lithium batteries for homes and small to medium-sized buildings. It has a long lifespan, fast charging, and a compact design.
Introducing the remarkable SE-G5.1 Pro-B, an advanced lithium iron phosphate (LiFePO4) battery meticulously engineered for both residential and commercial energy storage applications. This innovative battery stands out in the market for its outstanding safety features, impressive efficiency, and long operational lifespan. Designed to meet the growing demand for sustainable energy solutions, the SE-G5.1 Pro-B offers a reliable and high-performance option for increasing self-consumption and optimizing energy usage.
The SE-G5.1 Pro-B lithium iron phosphate battery is an exceptional choice for those looking for a powerful, efficient, and sustainable energy storage solution. Its combination of safety, performance, and flexibility makes it ideally suited to meet the challenges of modern energy consumption, empowering users to optimize their energy resources and contribute to a sustainable future.

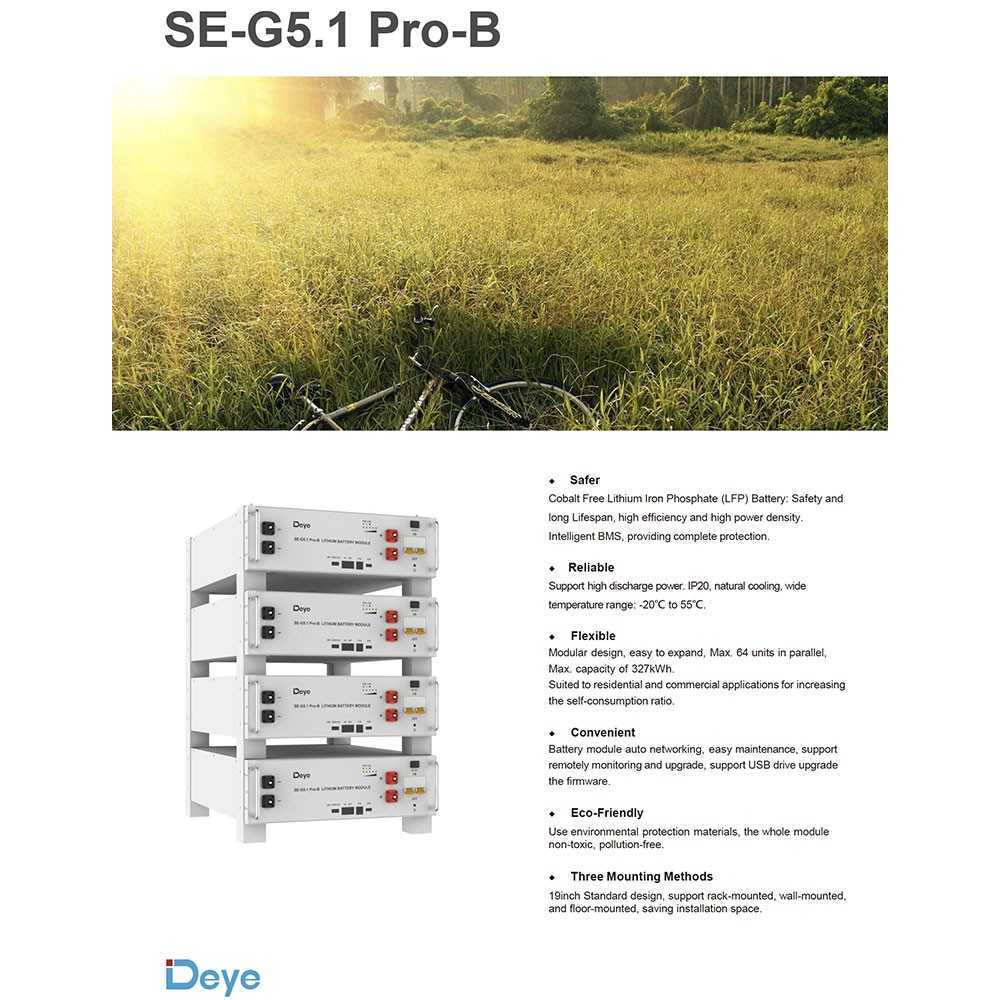

◆ Safer
Cobalt Free Lithium Iron Phosphate (LFP) Battery: Safety and long Lifespan, high efficiency and high p ower density. Intelligent BMS, providing complete protection.
◆ Reliable
Support high discharge power. IP20, natural cooling, wide temperature range: 20°C to 55°C
◆ Flexible

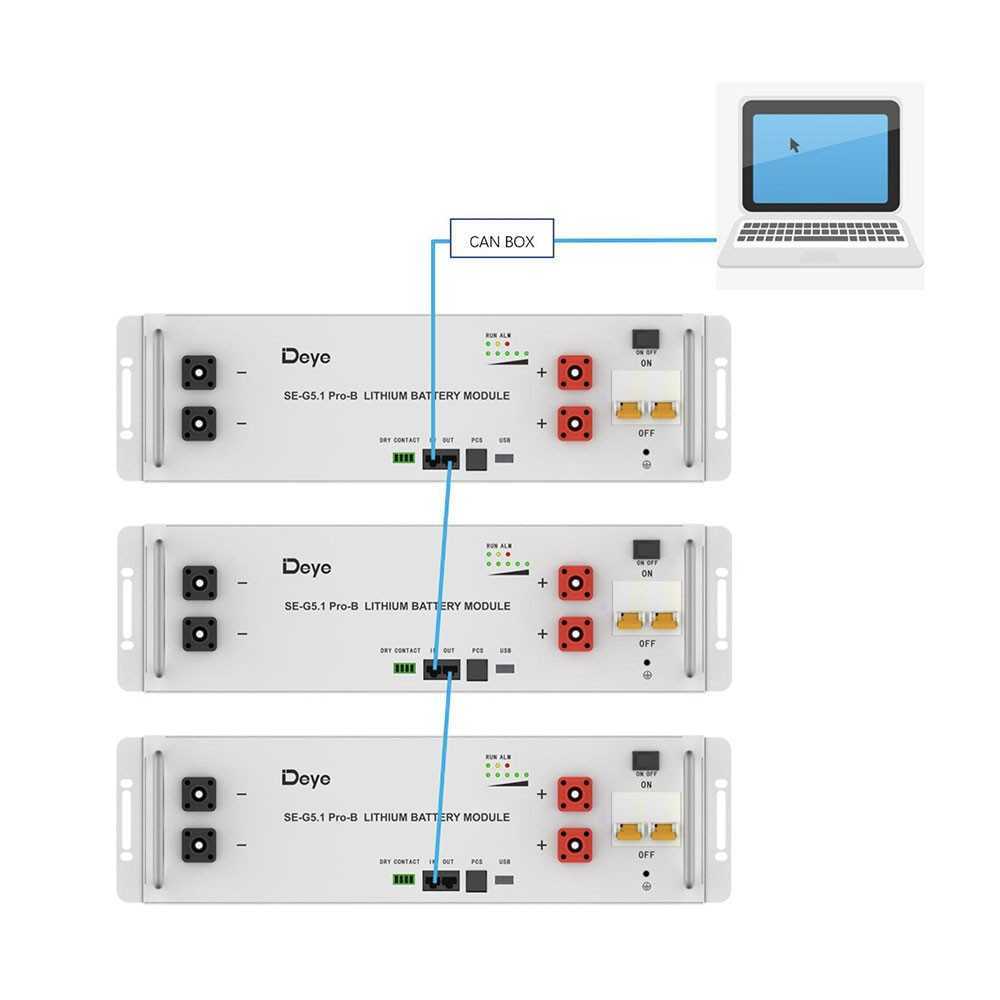

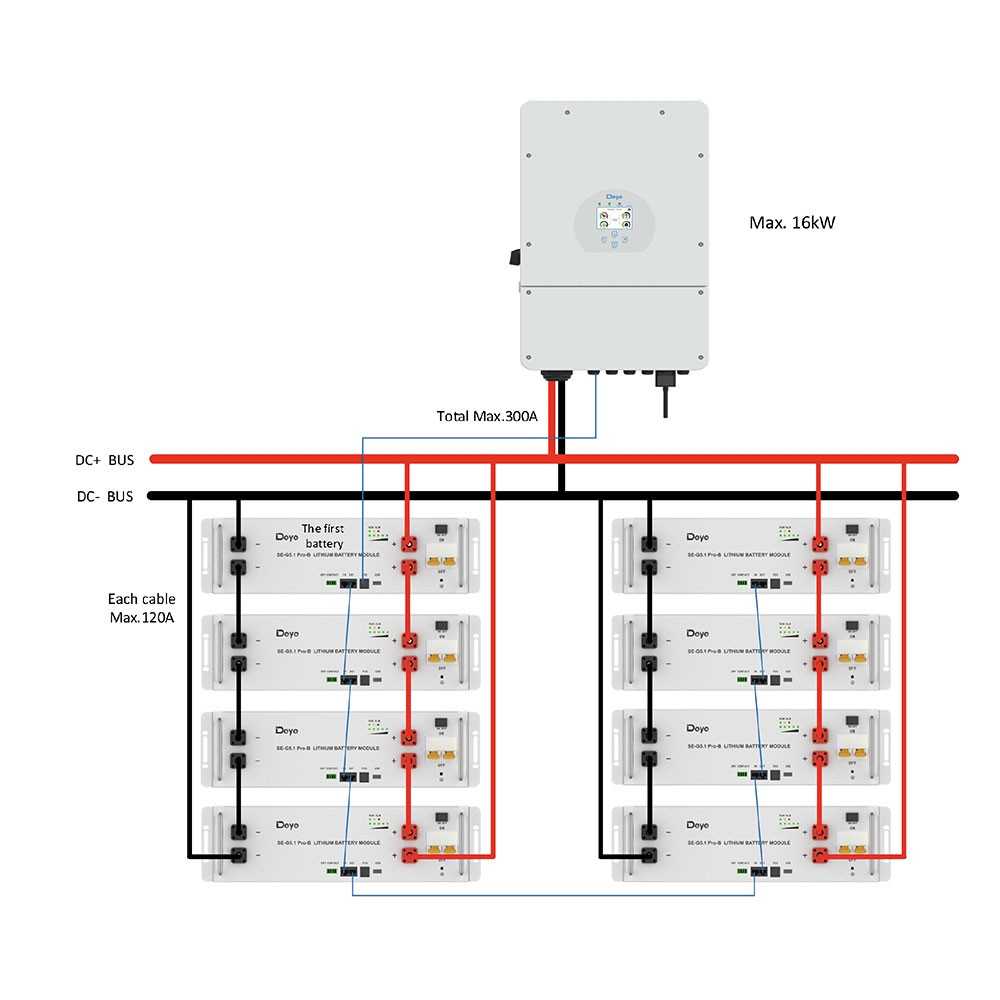

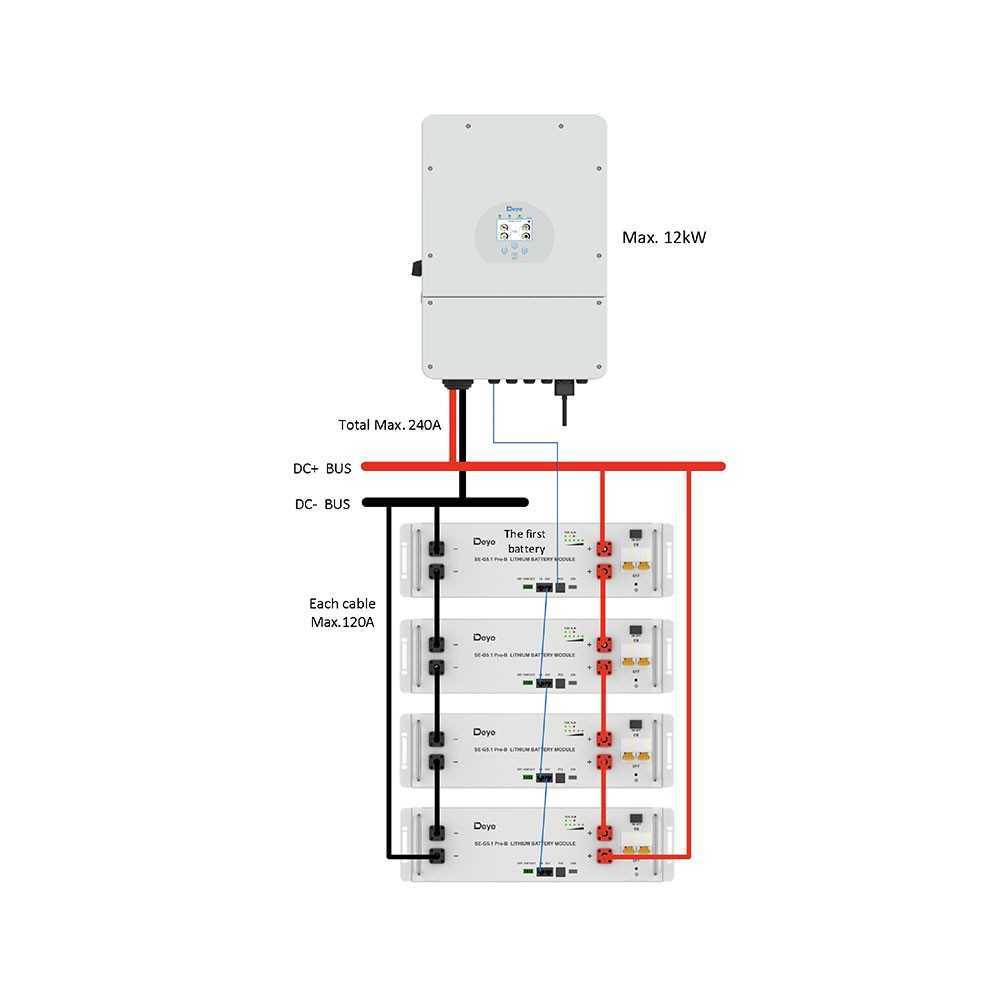

Modular design, easy to expand, Max. 64 units in parallel, Max. capacity of 327kWh. Suited to residential and commercial applications for increasing the self consumption ratio.
◆ Convenient
Battery module auto networking, e asy maintenance, support remotely monitoring and upgrade, s upport USB drive upgrade the firmware.
◆ Eco-Friendly
Use environmental protection materials, the whole module non toxic, pollution free

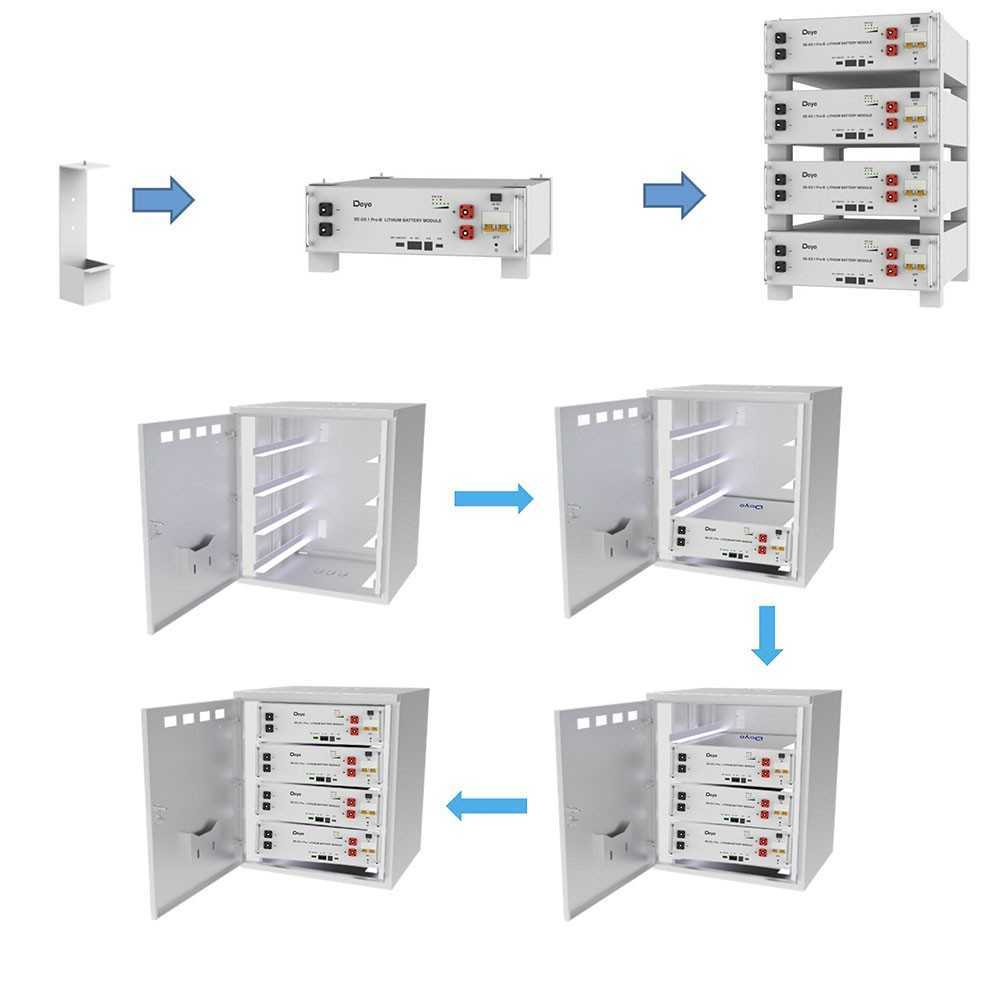

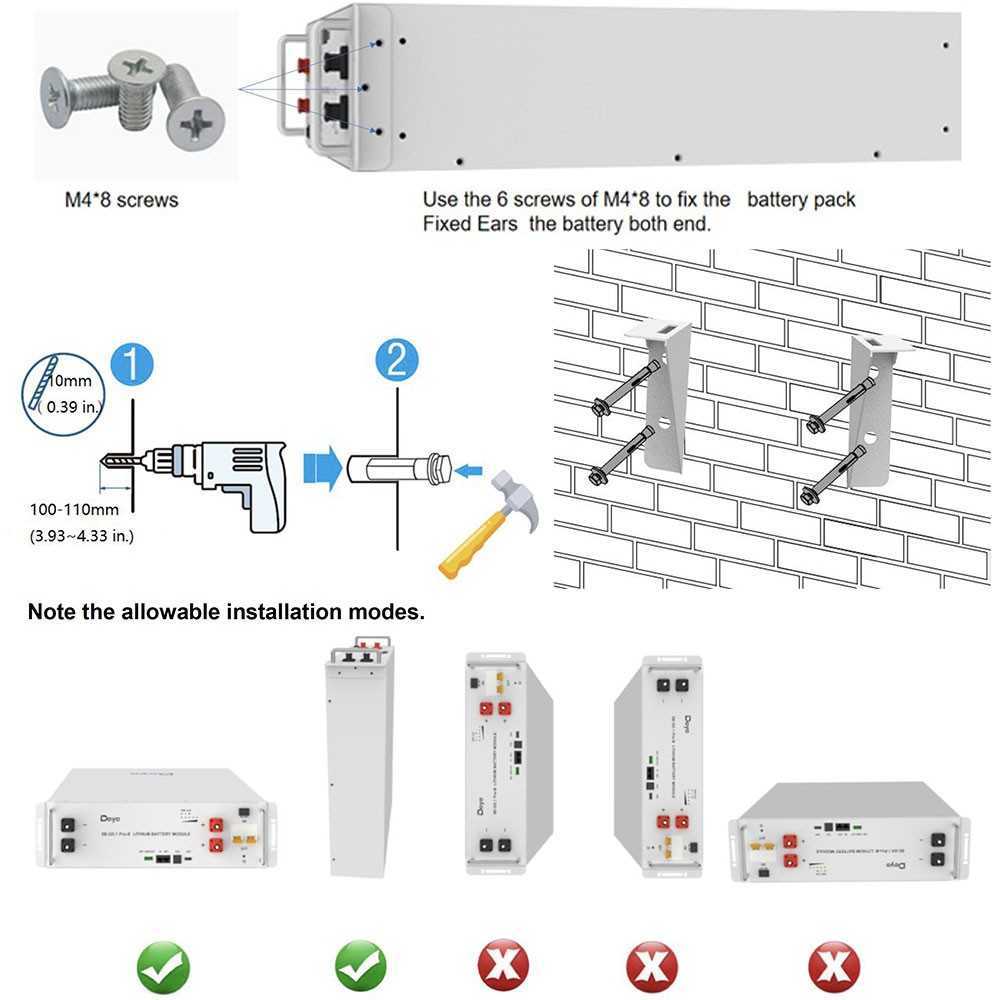

◆ Three Mounting Methods

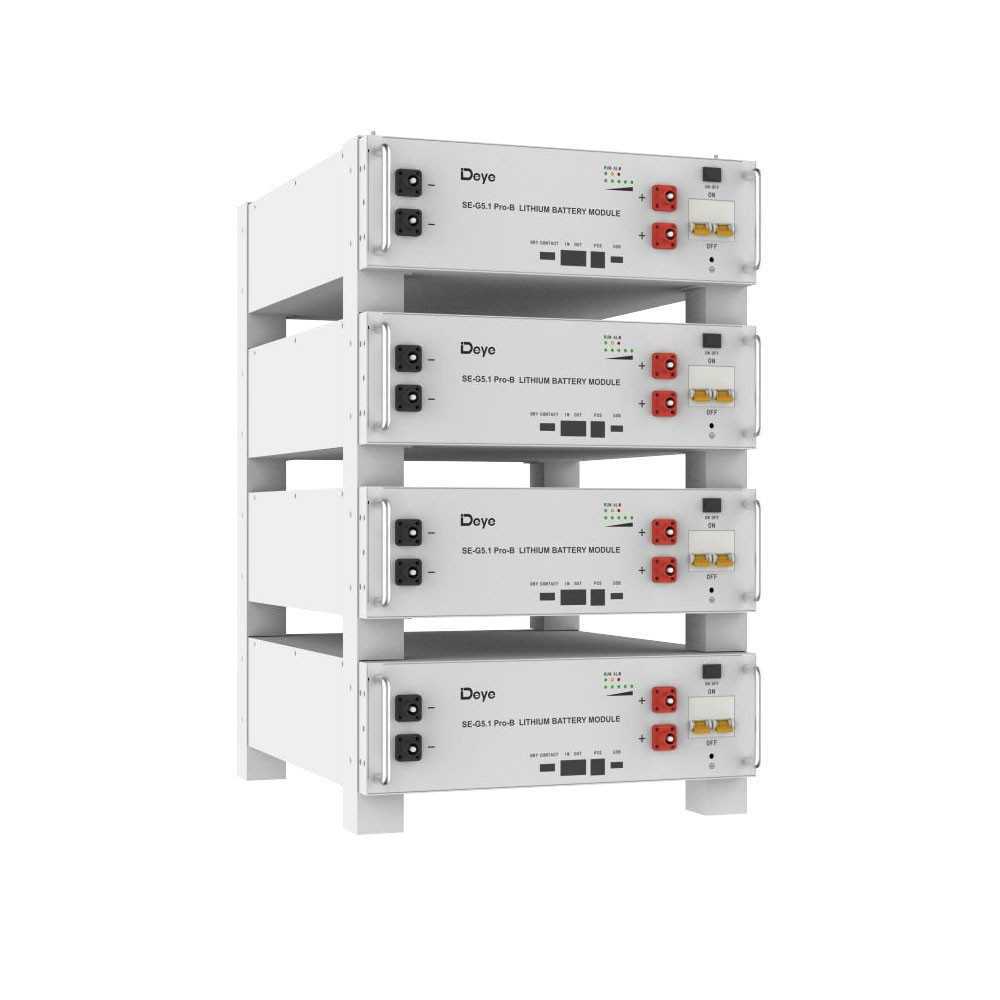

19inch Standard design, support rack mounted, wall mounted, and floor mounted, saving installation space.

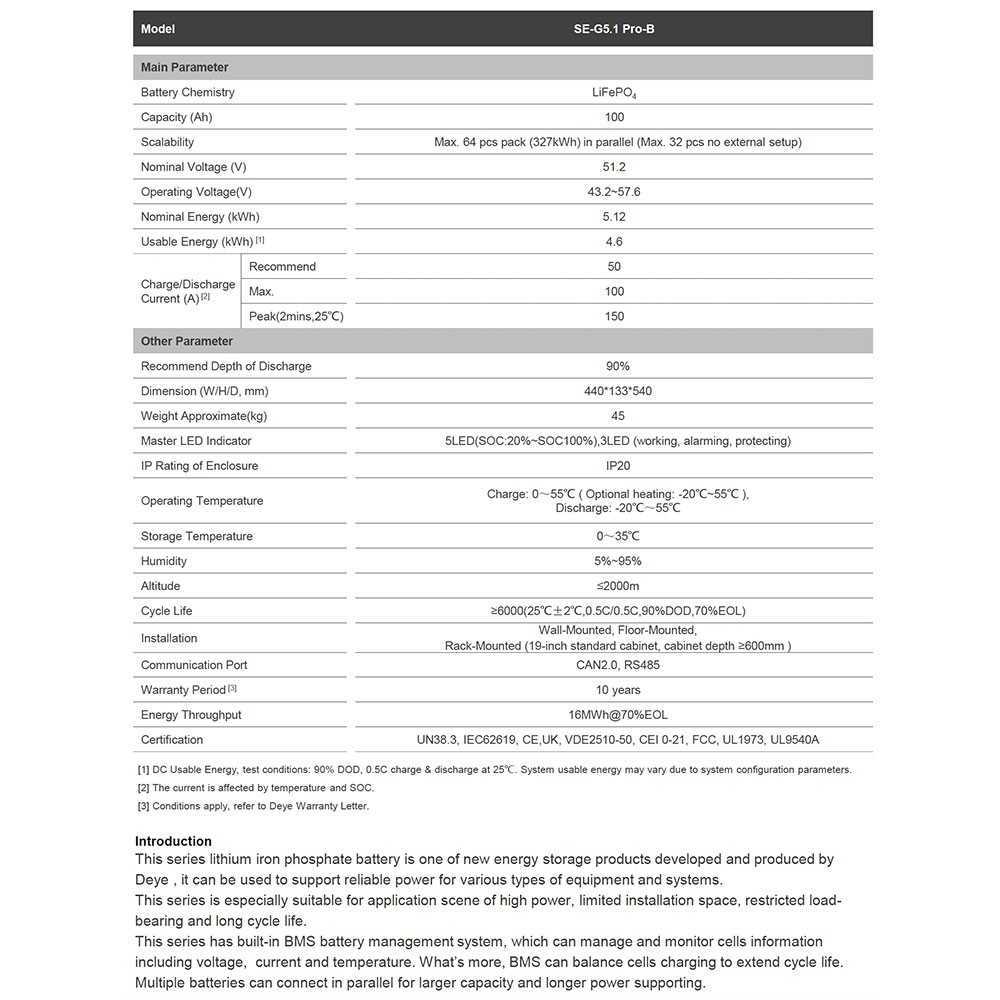

Technical data
Model: SE-G5.1 Pro-B
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Capacity: 100 Ah
Nominal Energy: 5.12 kWh
Usable Energy: 4.6 kWh
Charge/Discharge Current:
- Recommend: 50 A
- Max: 100 A
- Peak (2 mins, 25°C): 150 A
Dimensions (W/H/D): 440x133x540 mm
Weight: Approximately 45 kg
Cycle Life: Exceeding 6000 cycles at a temperature of 25°C, with a 90% depth of discharge
Scalability: Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup)
Nominal Voltage: 51.2 V
Operating Voltage: 43.2~57.6 V
Recommend Depth of Discharge: 90%

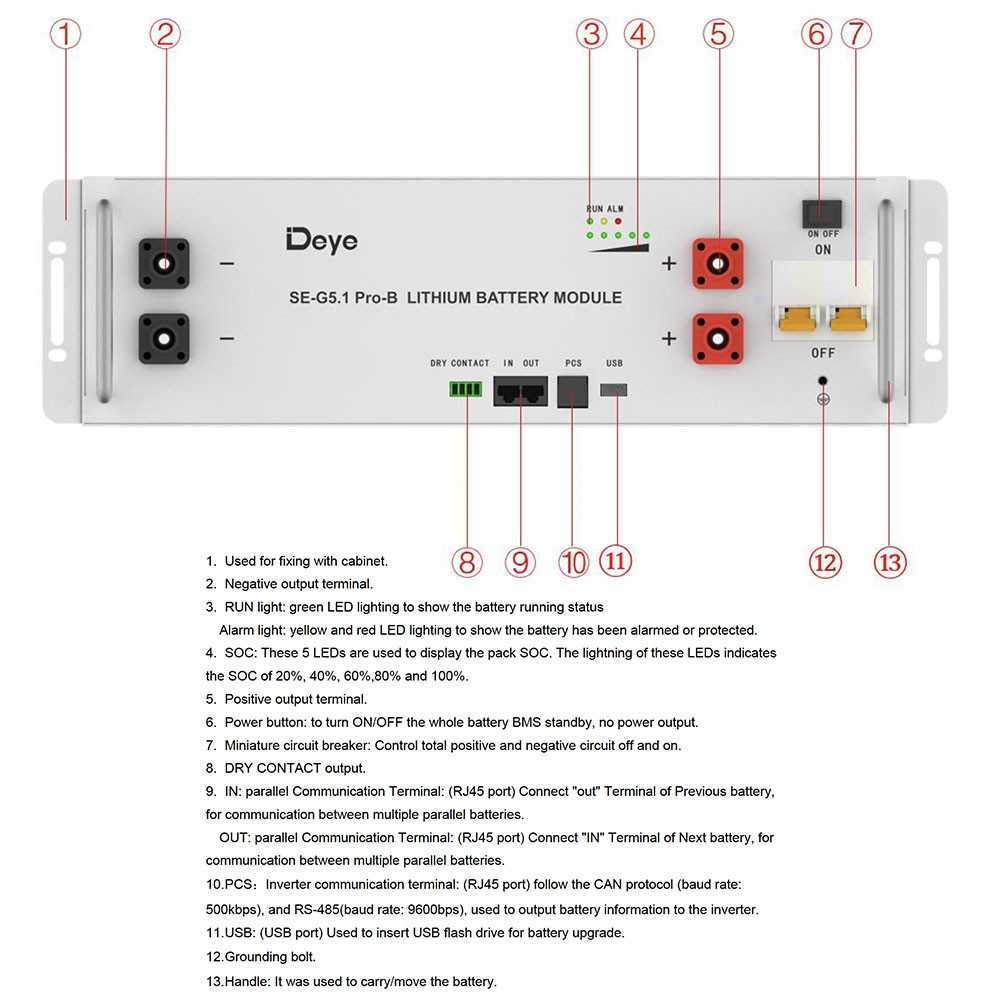

Master LED Indicator: 5 LED (SOC:20%~SOC100%), 3 LED (working, alarming, protecting)
IP Rating of Enclosure: IP20
Operating Temperature:
- Charge: 0~55 ℃ (Optional heating: -20~55 °C
- Discharge: 20~55 °C
Storage Temperature: 0~35 °C
Humidity: 5%~95%
Altitude: ≤2000m

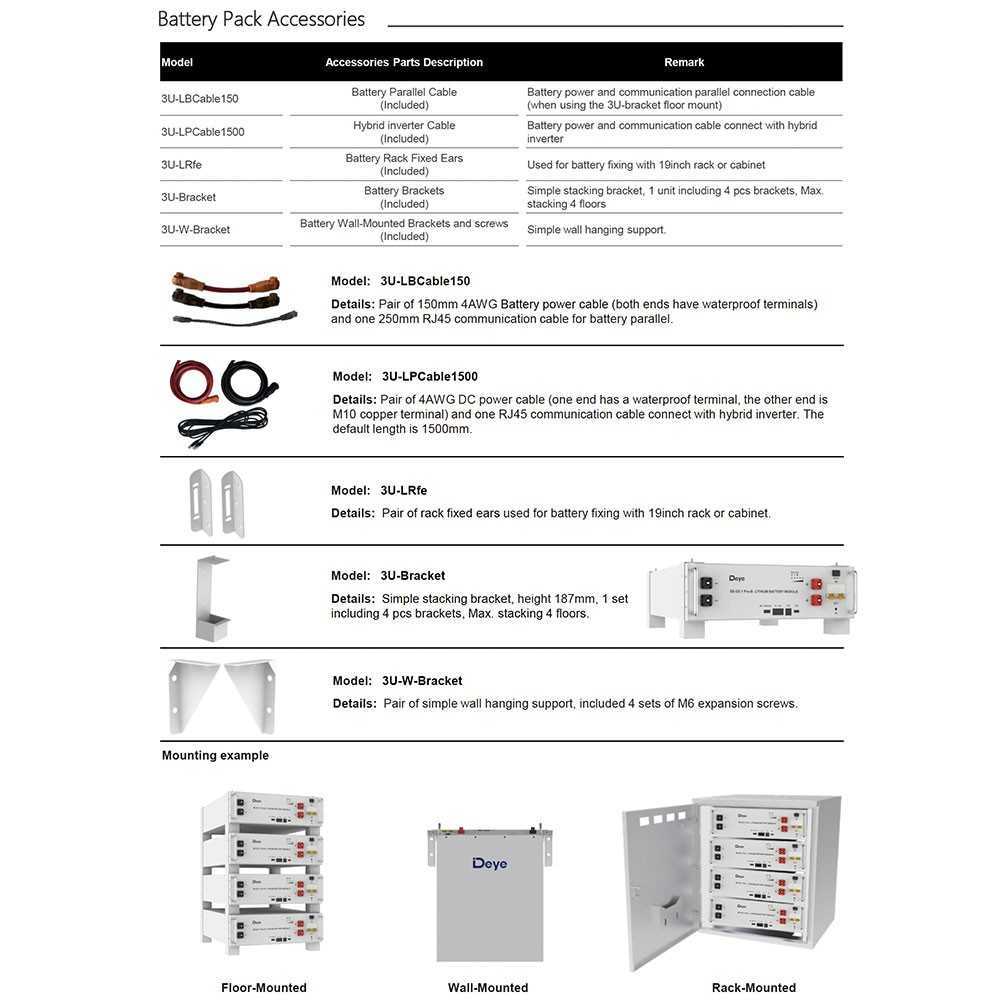

Installation: Wall Mounted, Floor Mounted, Rack Mounted (19 inch standard cabinet, cabinet depth ≥600 mm )
Communication Port: CAN2.0, RS485
Warranty Period: 10 years
Energy Throughput: 16MWh@70%EOL
Certification: UN38.3, IEC62619, CE, UK, VDE2510 50, CEI 0 21, FCC, UL1973, UL9540A

Certifications: The SE-G5.1 Pro-B has met, and continues to uphold, a variety of rigorous safety and performance standards, holding multiple certifications such as UN38.3, IEC62619, CE, and UL1973. These certifications provide assurance to users about the reliability and safety of their energy storage solutions.

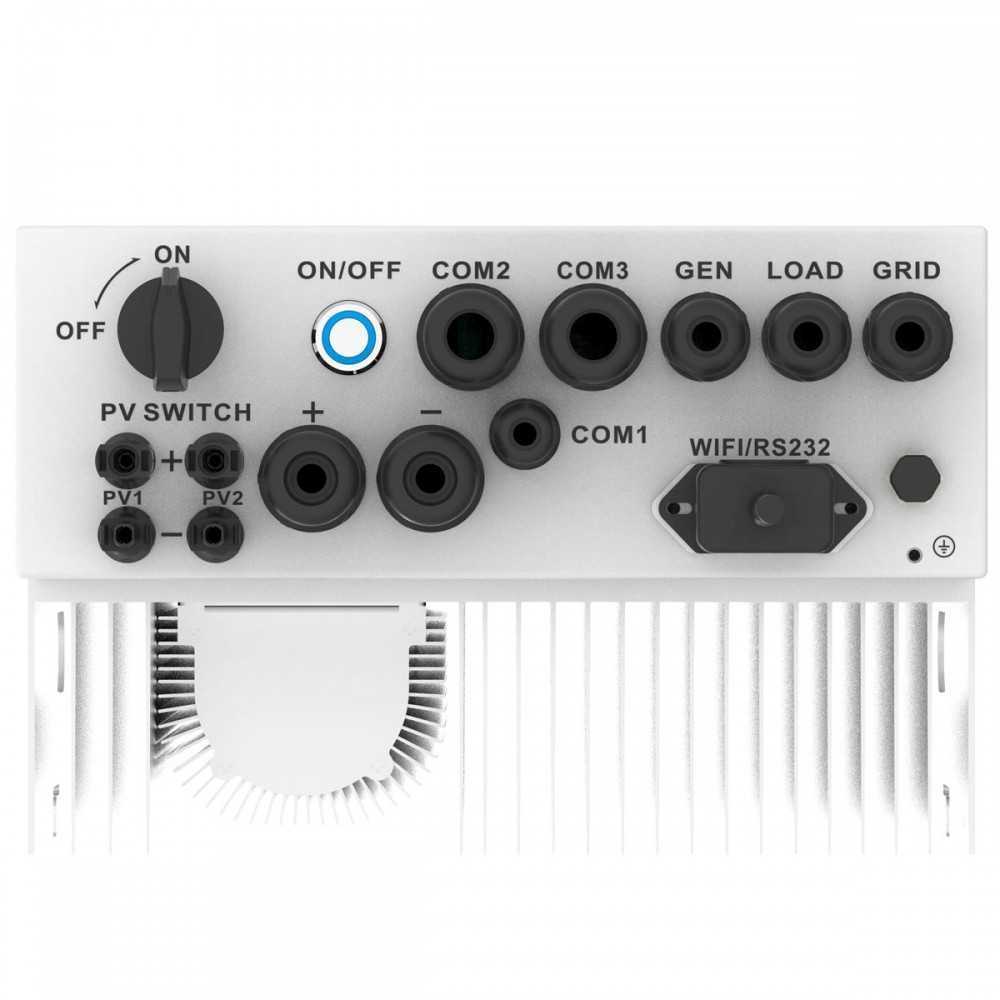

Deye SUN-6K-SG03LP1-EU 6kW Single-Phase Hybrid Inverter LV CEI-021

Deye SUN-6K-SG03LP1-EU hybrid PV inverter is suitable for residential PV systems, maximizing the self-consumption rate of solar energy and increasing energy independence.

During the day, the PV system generates electricity which is initially supplied to the loads. Then, the excess energy will charge the battery. Finally, the stored energy can be released when the loads need it.

The battery can also be charged by a diesel generator to ensure uninterrupted power supply in the event of a grid blackout.

With the intelligent monitoring platform, Deye SUN 6K SG03LP1 EU inverters support immediate remote shutdown in the event of an accident.

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.

• Colorful touch LCD, IP65 protection degree

• AC couple to retrofit existing solar system

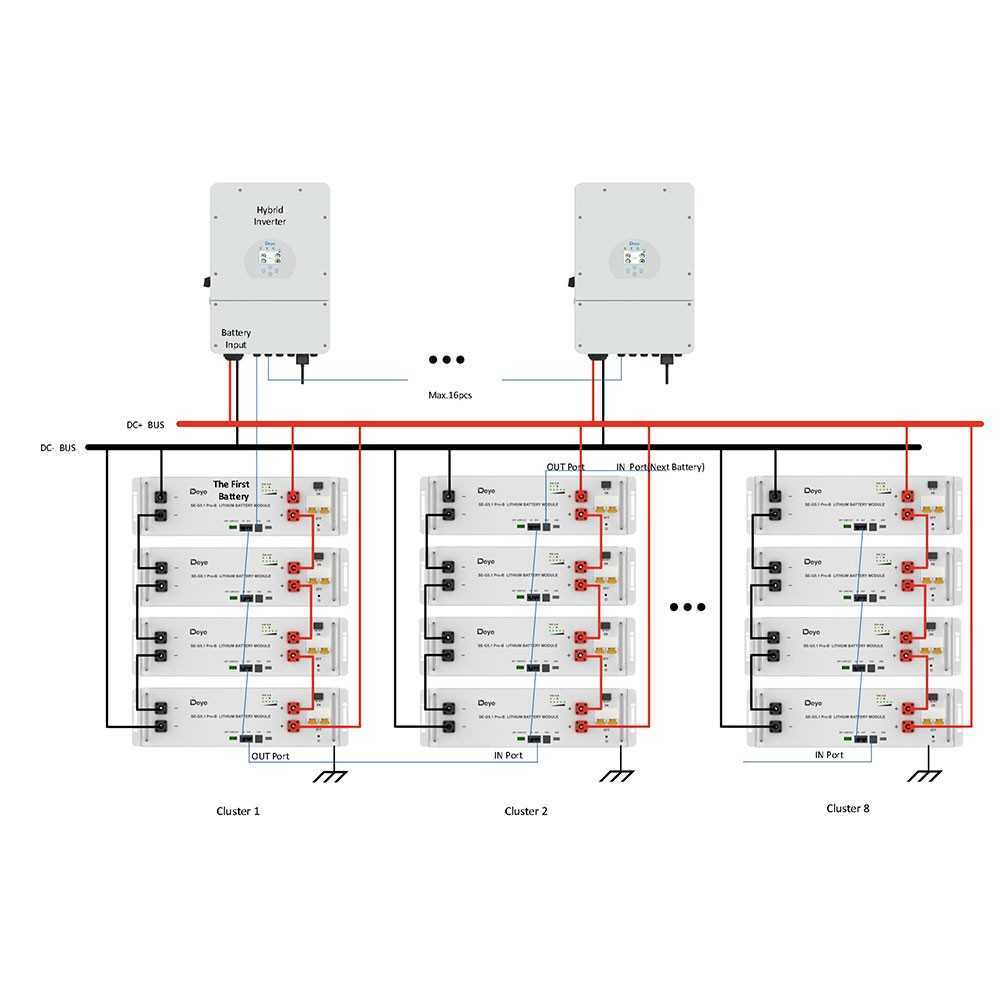

• Max. 16 pcs parallel for on-grid and off-grid operation, support multiple batteries parallel

• Max. charging/discharging current of 135A

• 6 time periods for battery charging/discharging

• Support storing energy from diesel generator

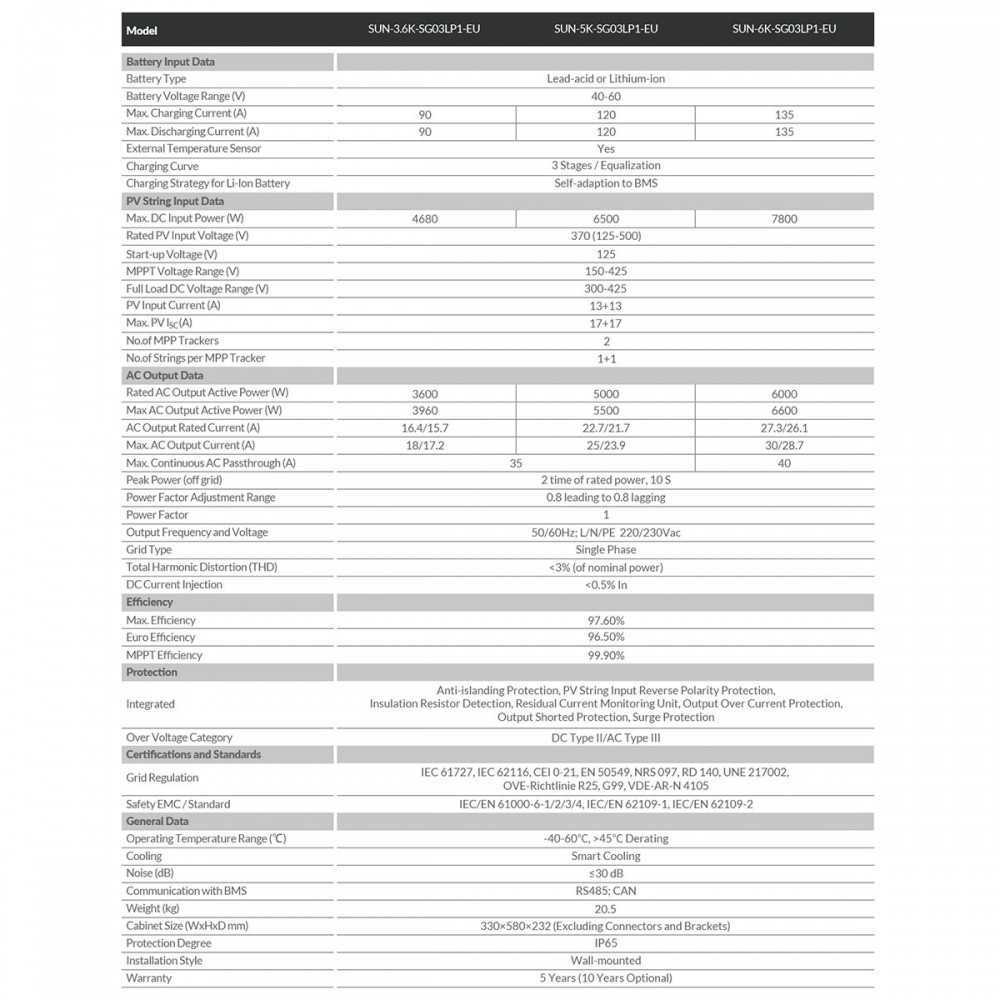

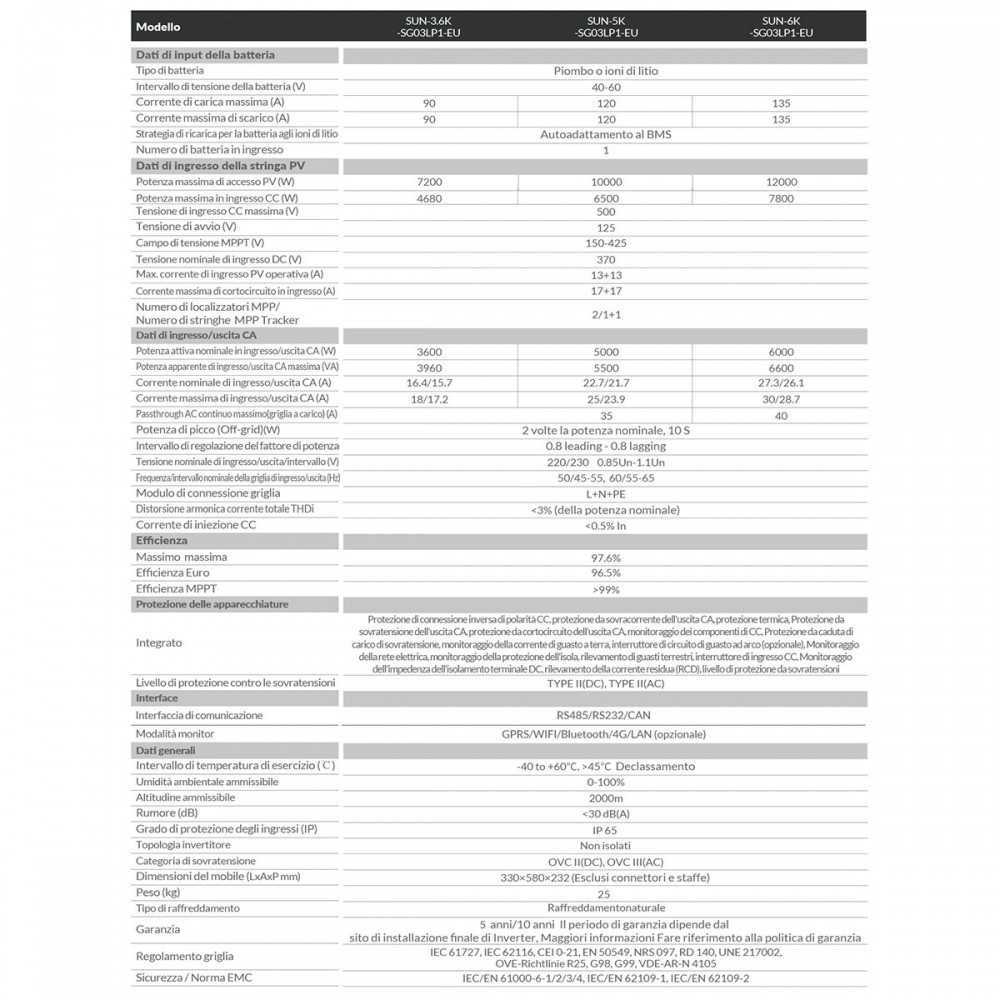

TECHNICAL SPECIFICATIONS

Model: SUN-6K-SG03LP1-EU

Battery Input Data

Battery Type: Lead Acid or Lithium Ion

Battery Voltage Range: 40-60 V

Maximum Charge Current: 135 Ah

Maximum Discharge Current: 135 Ah

External Temperature Sensor: Yes

Charging Curve: 3 stages/ equalization

Charging Strategy for Lithium Ion Battery: Self-adaptation to BMS

Number of Input Battery: 1

PV String Input Data

Maximum PV Access Power: 12000 W

Maximum DC Input Power: 7800 W

Maximum DC Input Voltage: 500 V

Starting Voltage: 125 V

MPPT Voltage Range: 150-425 V

Nominal DC Input Voltage: 370 V

Max. Operating PV Input Current: 13+13 A

Maximum Input Short Circuit Current: 17+17 A

Number of MPP Trackers/Number of MPP Tracker Strings: 2/1+1

AC Output Data

Rated AC Input/Output Active Power: 6000 W

Maximum AC Input/Output Apparent Power: 6600 WA

Rated AC Input/Output Current: 27.3/26.1 A

Maximum AC Input/Output Current: 30/28.7 A

Maximum Continuous AC Passthrough(grid on load): 40 A

Peak Power (Off-grid): 2 times rated power, 10 S

Power Factor Adjustment Range: 0.8 leading - 0.8 legging

Rated Input/Output Voltage/Range: 220/230 V 0.85Un-1.1Un

Rated Input/Output Grid Frequency/Range: 50/45-55, 60/55-65 Hz

Grid Connection Module: L+N+PE

Grid Type: Single-Phase

Total Current Harmonic Distortion THDi: <3% (of rated power)

DC injection current: <0.5% In

Efficiency

Maximum: 97.6%

Euro efficiency: 96.5%

MPPT efficiency: <99%

Protection

Integrated: Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection

Over Voltage category: TYPE II(DC), TYPE II(AC)

Interface

Communication Interfase: RS485//RS232/CAN

Monitor Mode: GPRS/WIFI/Bluetooth/4G/LAN(optional)

General Data

Operating Temperature Range: -40 to +60℃, >45℃ Derating

Cooling Type: Smart Cooling

Noise: <30 dB

Communication with BMS: RS485/CAN

Cabinet Dimensions (WxHxD): 330×580×232 mm (Excluding connectors and brackets)

Weight: 25 kg

Ingress Protection Rating: IP 65

Installation style: wall-mounted

Warranty: 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy

Grid Regulation: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105

Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
