DEYE Storage system 10.24kWh Inverter 6kW SG05LP1 + 2 SE-F5-PRO-C

DEYE 10.24kWh Storage System with Deye SE-F5-PRO-C LiFePO4 Batteries and Deye SUN-6K-SG05LP1-EU-AM2-P Hybrid Inverter

Energy Independence Survival Kit for Maximum Protection Against Power Outages
The DEYE 10.24 kWh Energy Storage System is a complete and advanced energy management solution designed to provide reliable backup power, greater energy independence, and maximum efficiency for residential photovoltaic installations.
This system combines two DEYE SE-F5 Pro-C LiFePO4 lithium batteries, each with a capacity of 5.12 kWh, providing a total storage capacity of 10.24 kWh, together with the DEYE SUN-6K-SG05LP1-EU-AM2-P 6 kW single-phase hybrid inverter. The result is a reliable and intelligent energy storage solution capable of optimizing solar energy usage while ensuring continuous power availability.
The inverter supports up to 12,000 W of photovoltaic panels, allowing efficient battery charging even under low solar irradiation conditions while maximizing energy production throughout the year.

Key Benefits
Complete energy storage and emergency backup solution
Total storage capacity: 10.24 kWh
Continuous power supply during grid outages
Operation both connected to the grid and in OFF-GRID mode
Compatible with up to 12,000 W of solar panels
Safe, stable, and long-lasting LiFePO4 battery technology
Integrated intelligent BMS for battery monitoring and protection
Optimized solar self-consumption
Dual MPPT technology for maximum photovoltaic energy production
Increased energy independence and reduced reliance on the utility grid
Ideal for homes, holiday properties, and backup power applications
Advanced Technology for Energy Security

Reliable Energy When You Need It Most
The DEYE 10.24 kWh Energy Independence Survival Kit is the ideal solution for homeowners looking to increase energy self-sufficiency, protect against power outages, and maximize the benefits of their photovoltaic system.
A professional, reliable, and scalable solution designed to deliver energy security, efficiency, and independence in every situation.

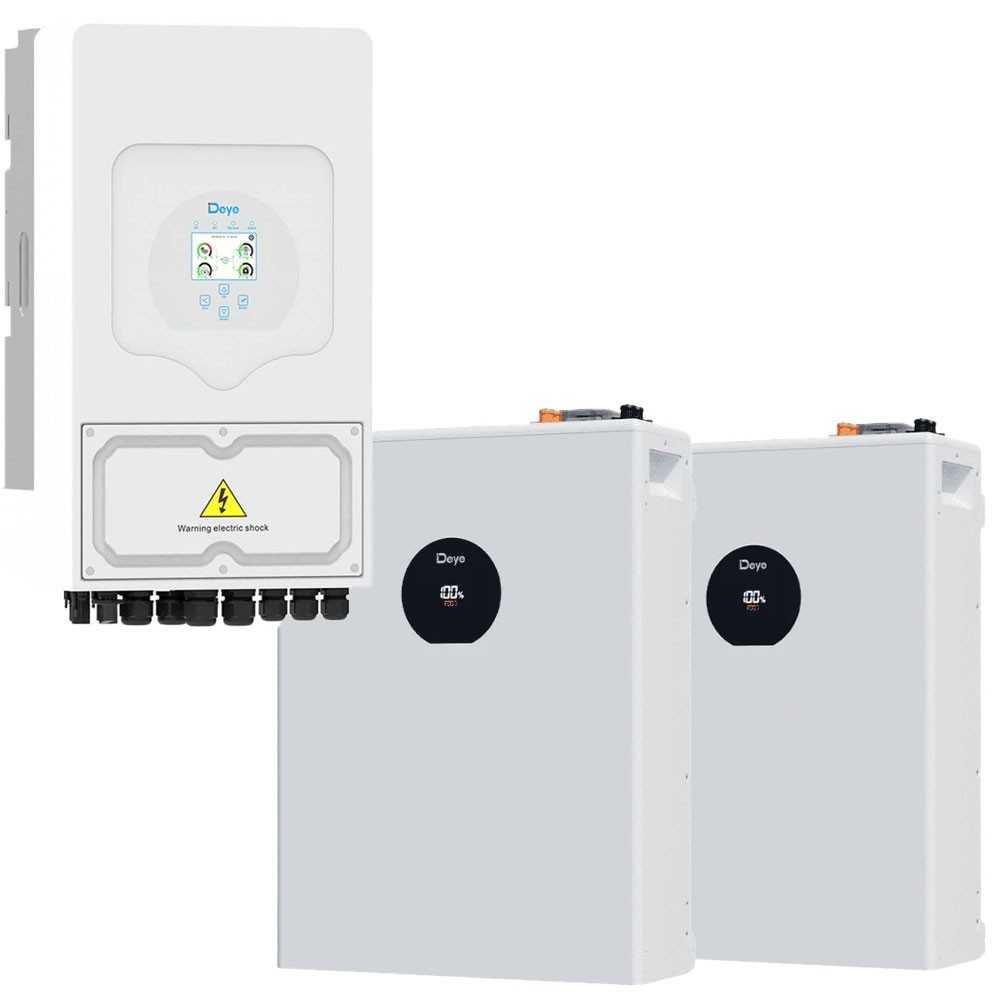

Kit Contents:
- 2 Deye SE-F5-PRO-C 5.12kW 51.2V LiFePO4 Lithium Batteries #DE-SEF5PRO;
- 1 Deye SUN-6K-SG05LP1-EU-AM2-P OFFGRID 6kW 12000W 2 MPPT Single-Phase Hybrid Inverter #DE6KSG05LP1EU.

2 - Deye SE-F5-PRO-C 5.12kW 51.2V LiFePO4 Batteries with BMS

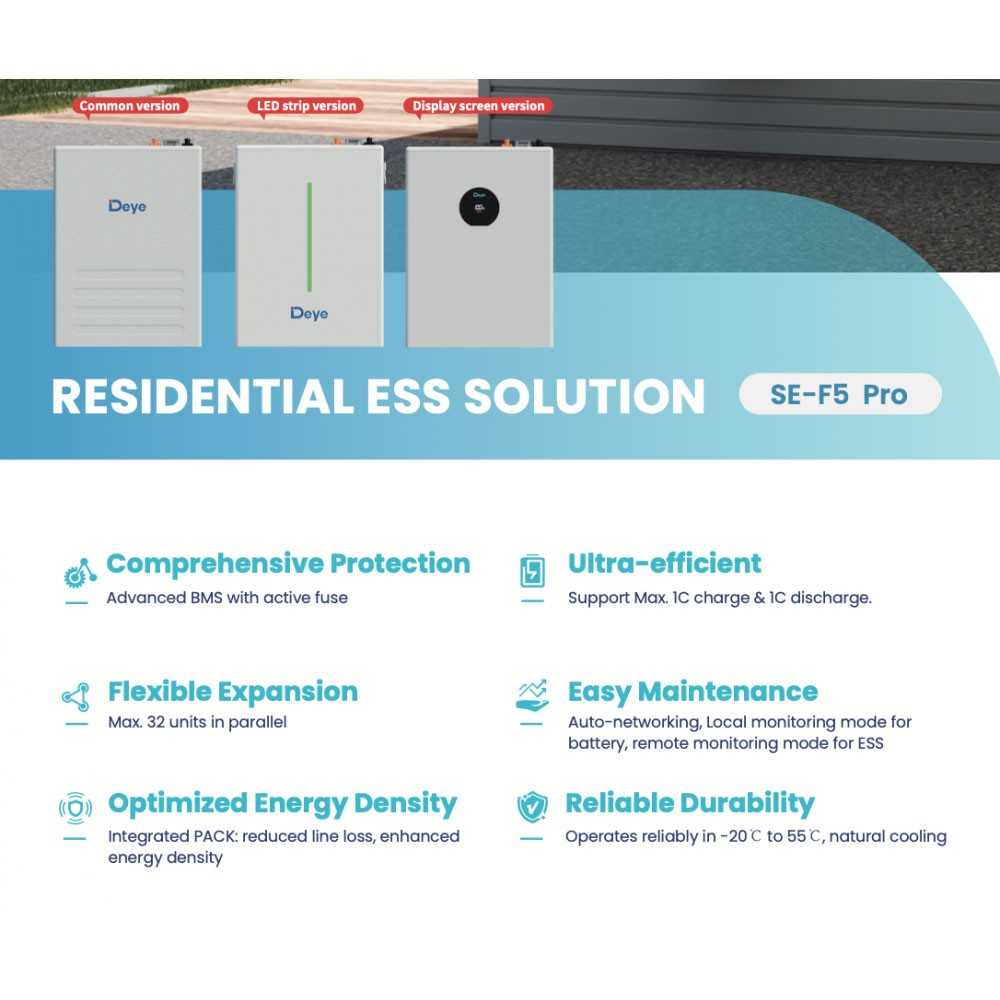

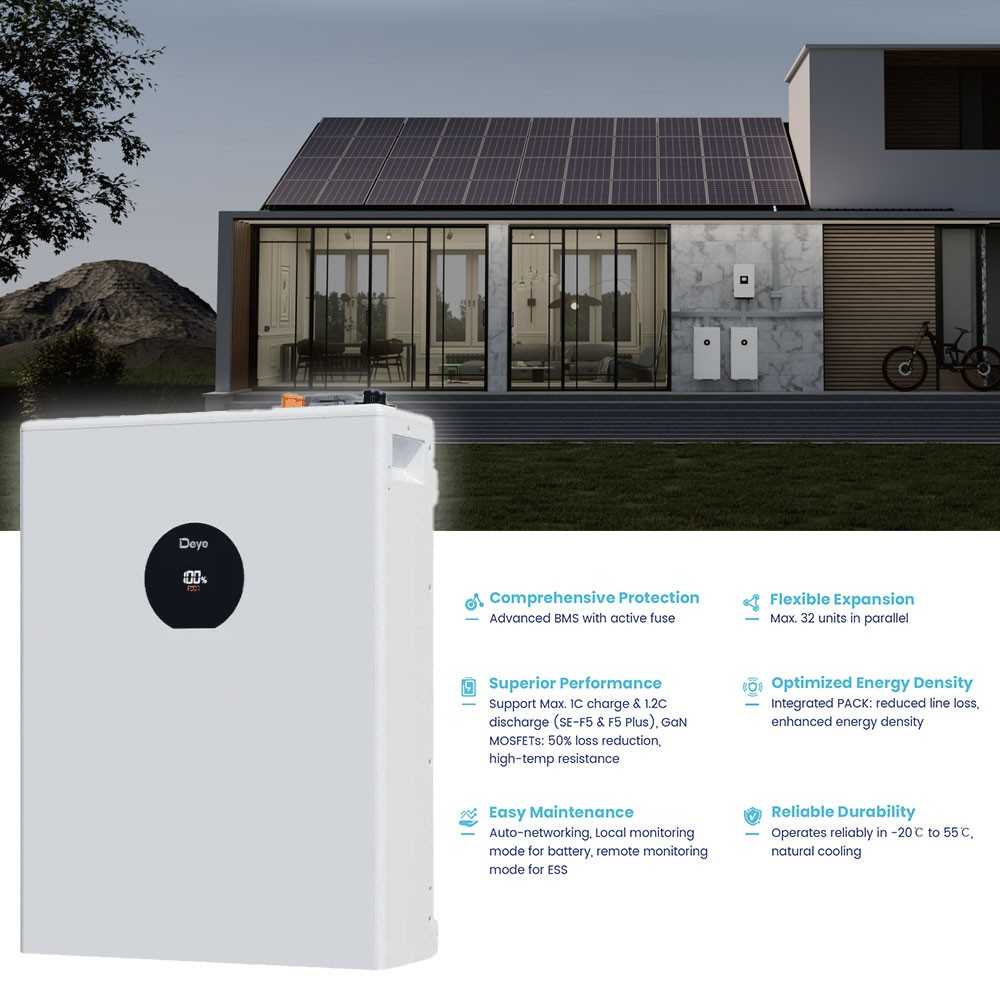

The DEYE SE-F5 Pro-C is a LiFePO4 (Lithium Iron Phosphate) battery specifically designed for residential and commercial energy storage systems. Thanks to its outstanding reliability, long service life, and advanced integrated battery management system, it is an ideal solution for maximizing solar self-consumption and ensuring a continuous and stable power supply.
With a nominal capacity of 5.12 kWh and a depth of discharge of up to 90%, the battery allows maximum utilization of stored energy while delivering high performance and efficient energy management.
LiFePO4 technology provides exceptional safety standards, excellent thermal stability, and a significantly longer lifespan compared to conventional lithium-ion batteries. Its robust construction, service life of more than 6,000 charge/discharge cycles, and international safety certifications make it a reliable choice for modern photovoltaic energy storage projects.
The Ideal Solution for Energy Independence
The DEYE SE-F5 Pro-C is the perfect choice for users seeking a reliable, efficient, and scalable energy storage system. Thanks to its high expansion capability and advanced LiFePO4 technology, it helps optimize solar self-consumption, increase energy independence, and intelligently manage energy flows within residential and commercial installations.
A professional solution designed to deliver long-term performance, safety, and reliability.

Key Features
Lithium Iron Phosphate (LiFePO4) technology
Nominal energy capacity: 5.12 kWh
Capacity: 100 Ah
Nominal voltage: 51.2 V
Depth of Discharge (DoD): up to 90%
More than 6,000 charge/discharge cycles
Intelligent integrated BMS for monitoring and protection
Quick and easy installation
Compatible with modern inverters and photovoltaic systems
Smart monitoring of operating parameters

Benefits
High Discharge Power
The battery supports discharge currents of up to 100 A continuous and 150 A peak, making it suitable for powering high-demand electrical loads.
Maximum Use of Stored Energy
With a depth of discharge of up to 90%, a larger portion of the stored energy can be utilized without compromising battery longevity.
Expandable System

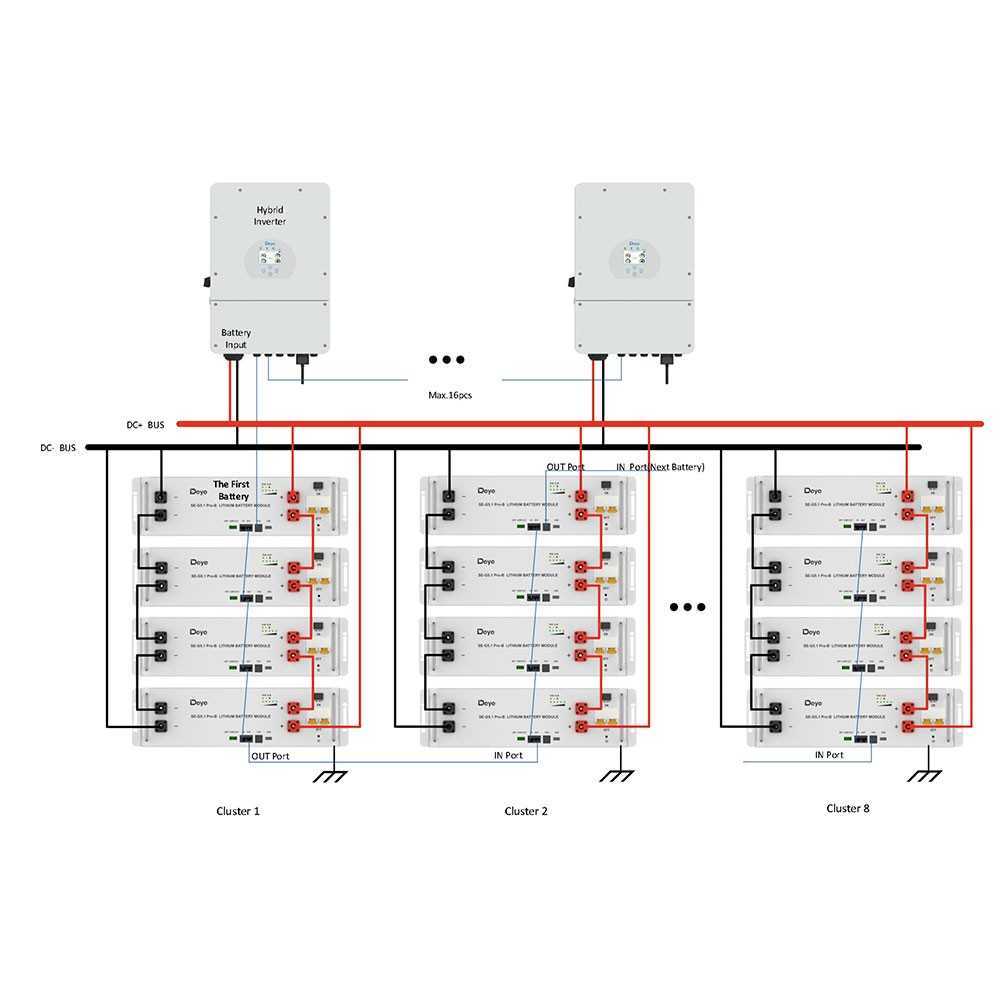

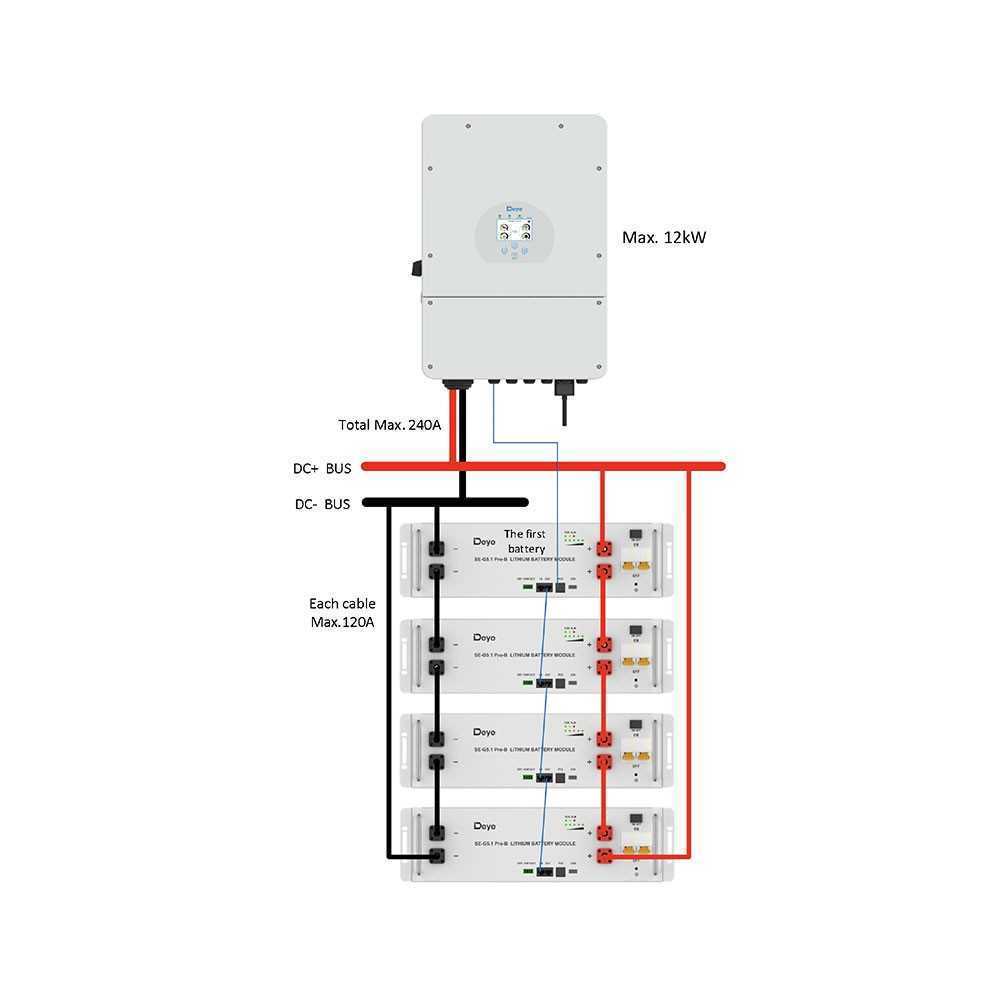

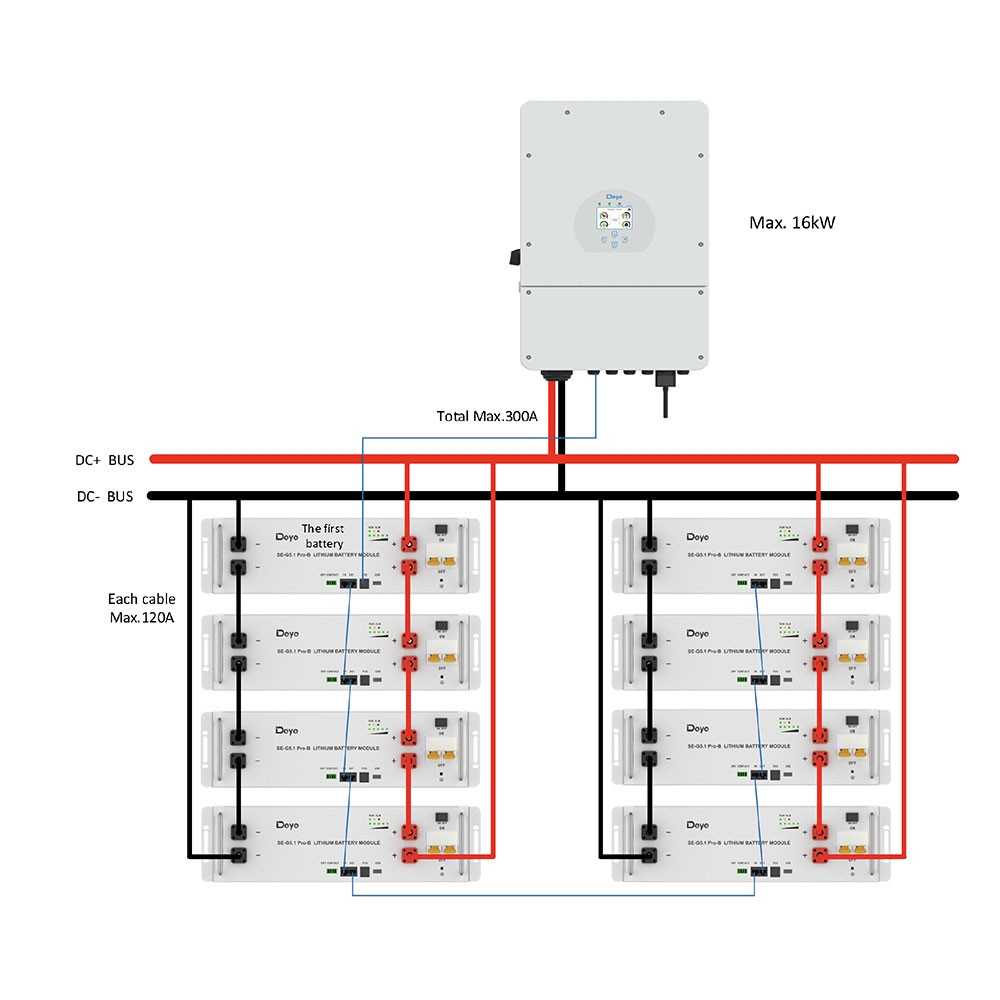

Up to 32 batteries can be connected in parallel, allowing the creation of larger and scalable energy storage systems that can grow according to future energy requirements.
Advanced Safety
The integrated Battery Management System (BMS) continuously monitors voltage, current, and temperature, protecting the battery against overcharging, deep discharge, overcurrent, and overheating.
Long Service Life
With more than 6,000 life cycles, the DEYE SE-F5 Pro-C represents a durable and cost-effective investment for long-term energy storage applications.

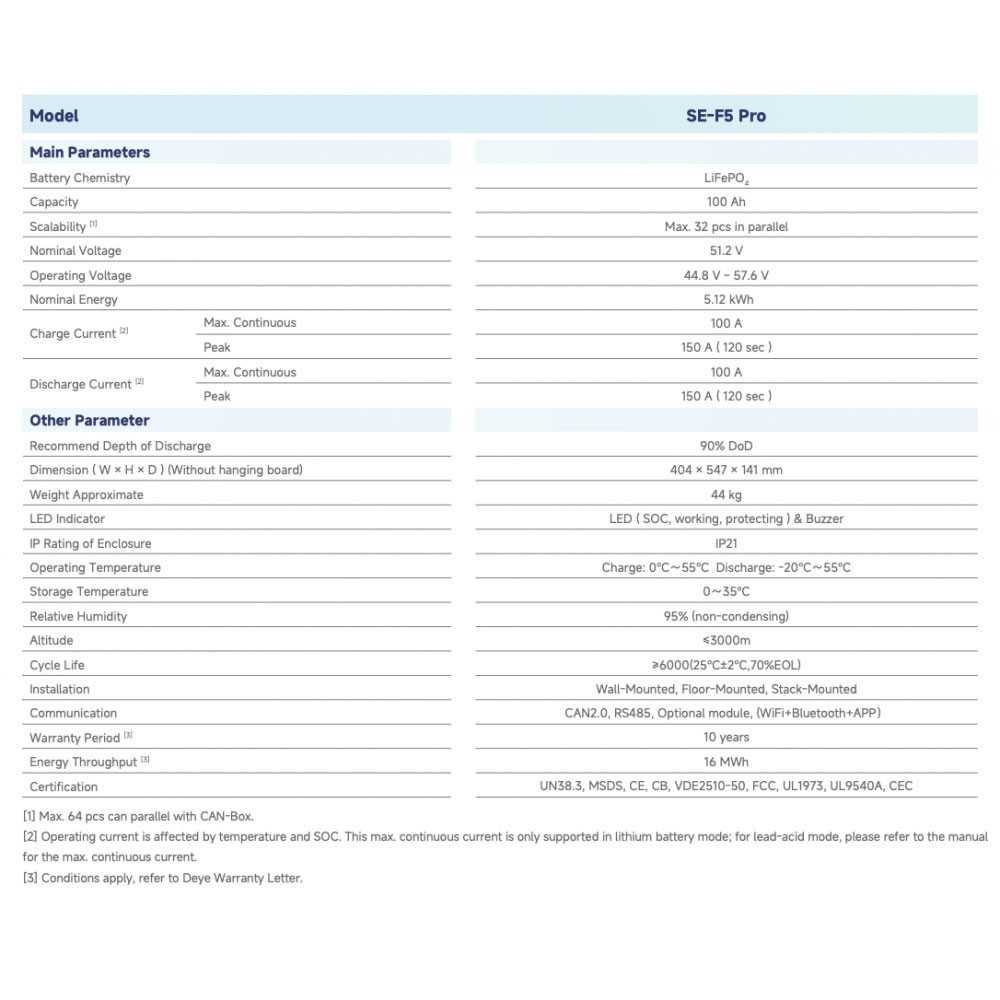

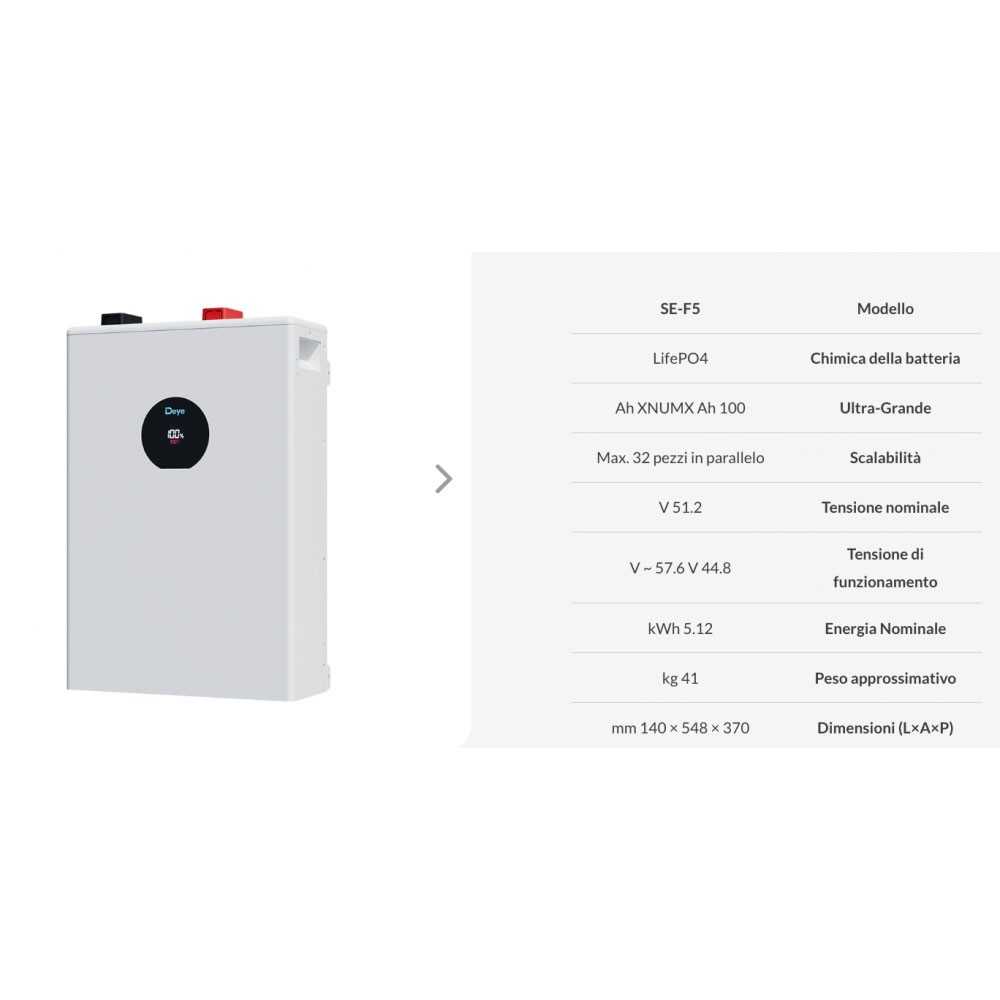

Technical data

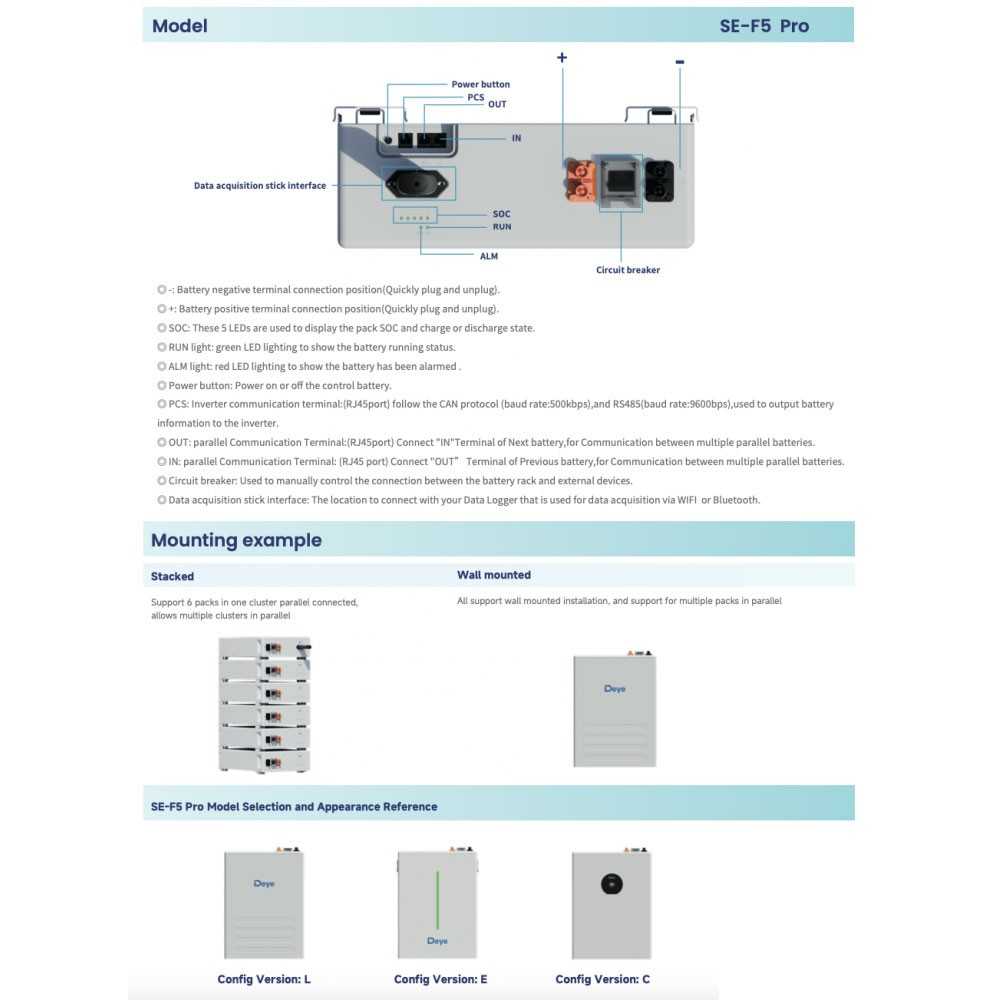

Model: SE-F5 Pro-C
Battery Chemistry: LiFePO4 (Lithium Iron Phosphate)
Capacity: 100 Ah
Scalability: Max. 32 units in parallel
Electrical Data
Nominal Voltage: 51.2 V
Operating Voltage: 44.8 V – 57.6 V
Nominal Power: 5.12 kWh
Physical Data
Approximate Weight: 44 kg
Dimensions (W × H × D): 547 × 404 × 141 mm
Certifications and Safety
Certifications: UN38.3, MSDS, CE, CB, VDE2510-50, CEC

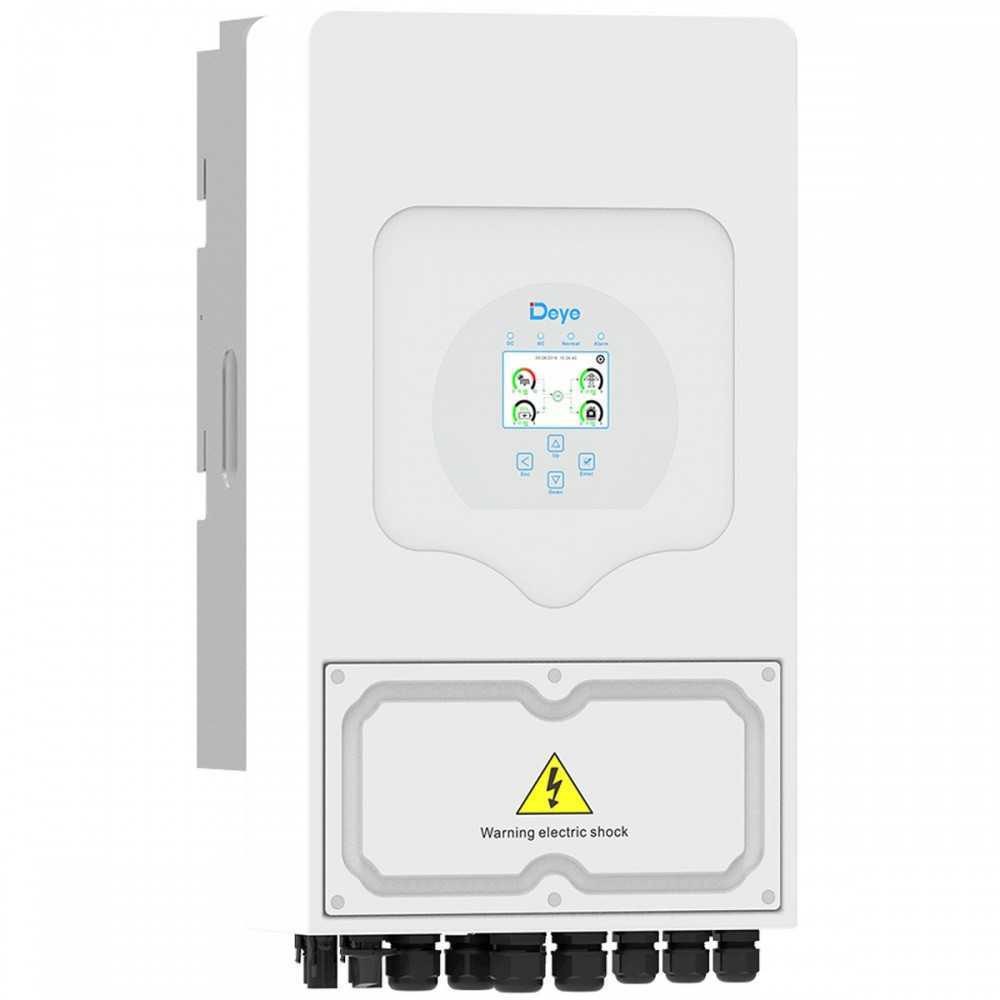

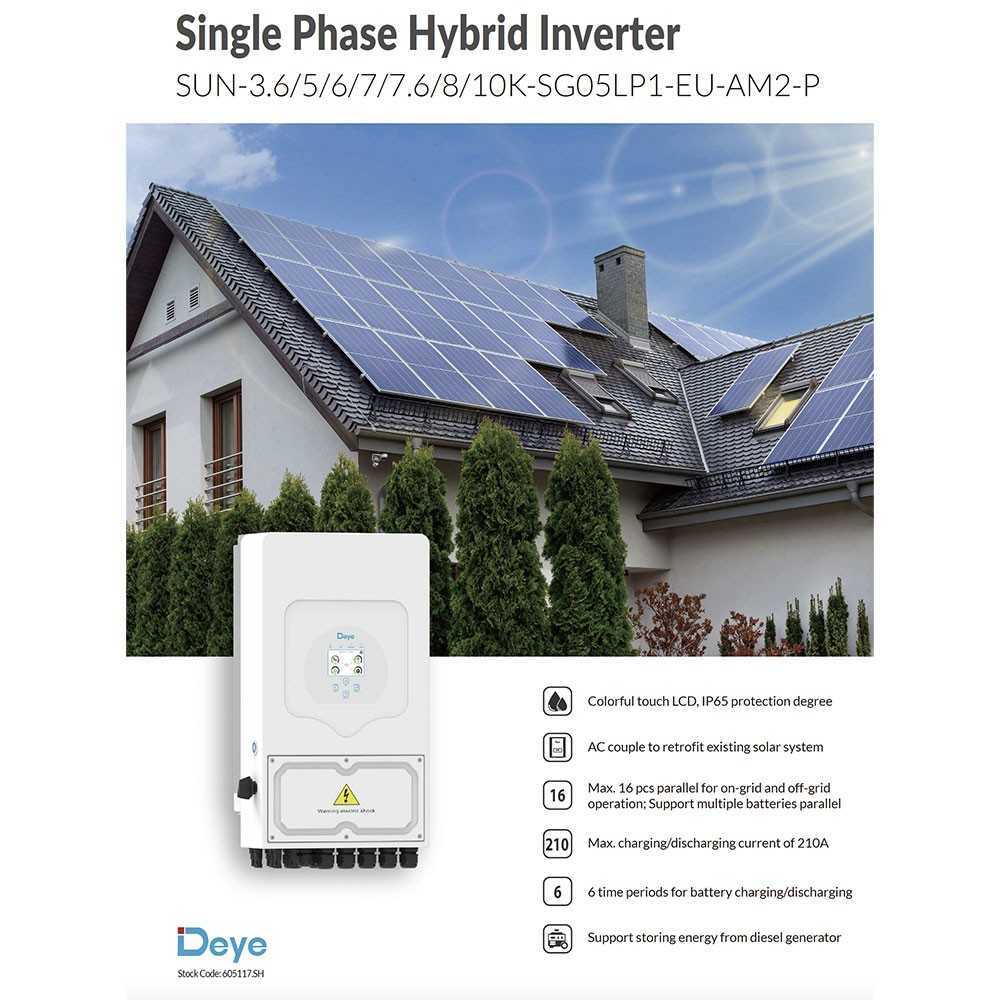

1 - Deye SUN-6K-SG05LP1-EU-AM2-P 6kW Single-Phase Hybrid Inverter LV CEI-021

Deye SUN-6K-SG03LP1-EU-AM2-P hybrid PV inverter is suitable for residential PV systems, maximizing the self-consumption rate of solar energy and increasing energy independence.
During the day, the PV system generates electricity which is initially supplied to the loads. Then, the excess energy will charge the battery. Finally, the stored energy can be released when the loads need it.
The battery can also be charged by a diesel generator to ensure uninterrupted power supply in the event of a grid blackout.

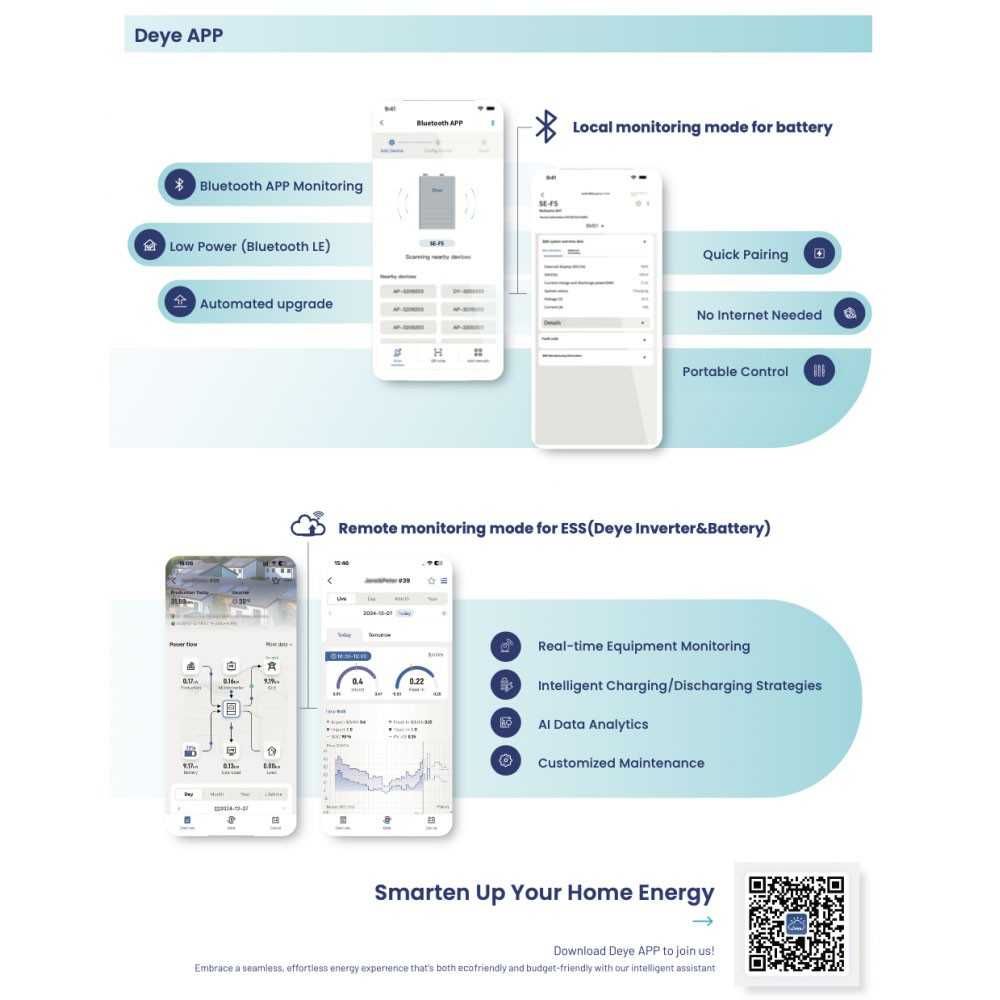

With the intelligent monitoring platform, Deye SUN 6K SG05LP1 EU AM2-P inverters support immediate remote shutdown in the event of an accident.
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.

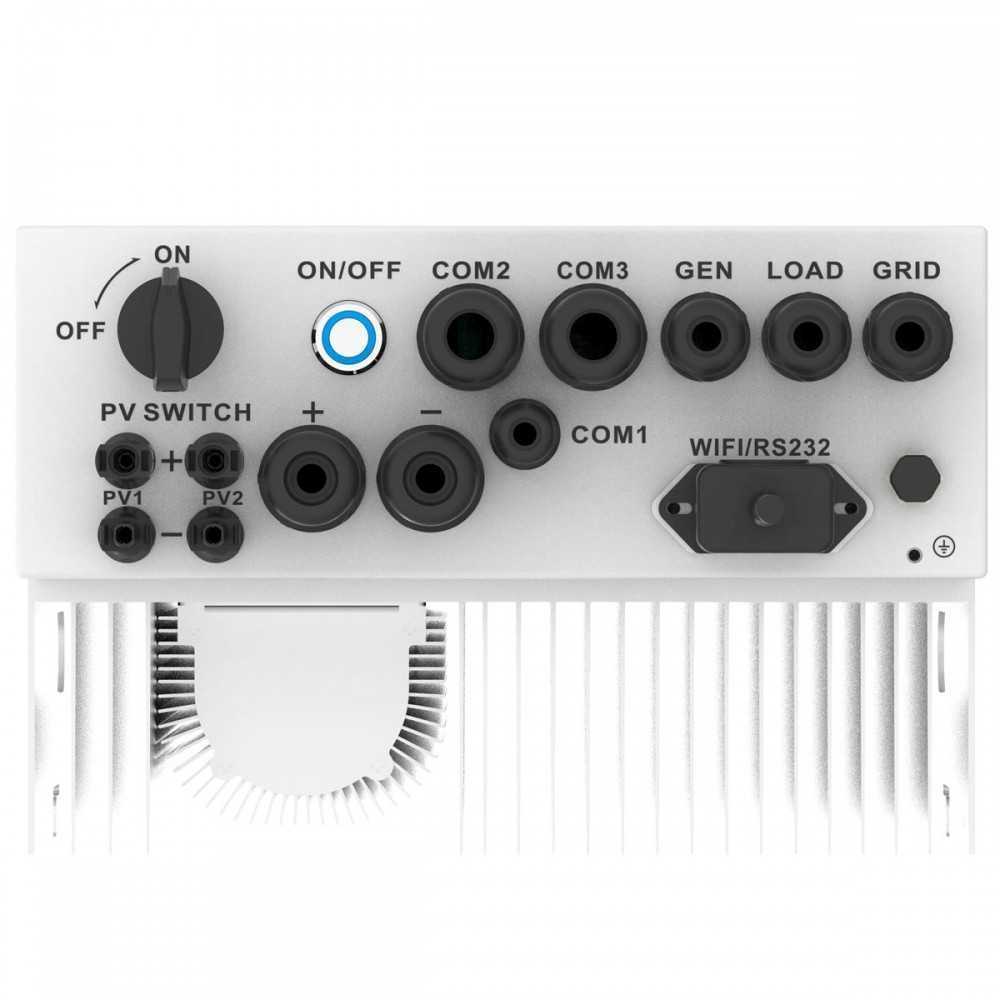

• Colorful touch LCD, IP65 protection degree
• AC couple to retrofit existing solar system
• Max. 16 pcs parallel for on-grid and off-grid operation, support multiple batteries parallel
• Max. charging/discharging current of 190A
• 6 time periods for battery charging/discharging
• Support storing energy from diesel generator

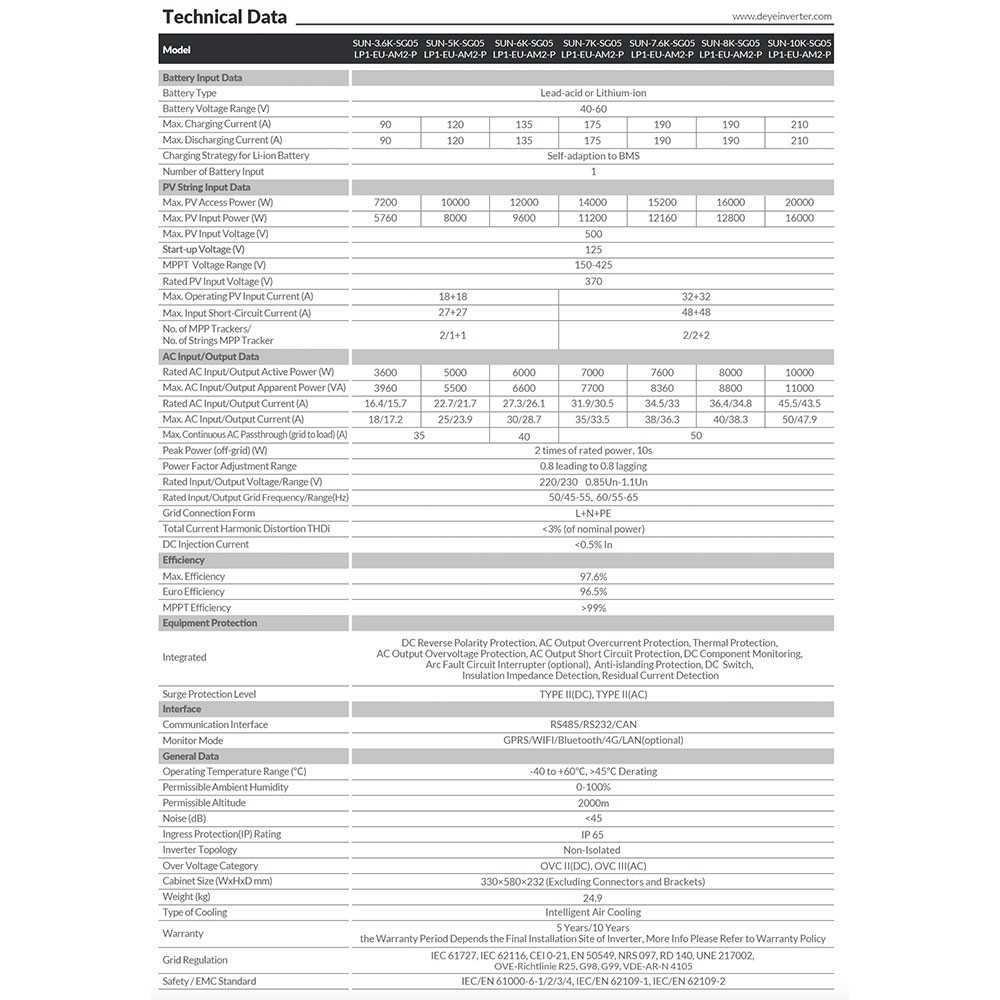

TECHNICAL SPECIFICATIONS
Model: SUN-6K-SG05LP1-EU-AM2-P
Battery Input Data
Battery Type: Lead Acid or Lithium Ion
Battery Voltage Range: 40-60 V
Maximum Charge Current: 135 Ah
Maximum Discharge Current: 135 Ah
External Temperature Sensor: Yes
Charging Curve: 3 stages/ equalization
Charging Strategy for Lithium Ion Battery: Self-adaptation to BMS
Number of Input Battery: 1
PV String Input Data
Maximum PV Access Power: 12000 W
Maximum DC Input Power: 9600 W
Maximum DC Input Voltage: 500 V
Starting Voltage: 125 V
MPPT Voltage Range: 150-425 V
Nominal DC Input Voltage: 370 V
Max. Operating PV Input Current: 18+18 A
Maximum Input Short Circuit Current: 27+27 A
Number of MPP Trackers/Number of MPP Tracker Strings: 2/1+1
AC Output Data
Rated AC Input/Output Active Power: 6000 W
Maximum AC Input/Output Apparent Power: 6600 WA
Rated AC Input/Output Current: 27.3/26.1 A
Maximum AC Input/Output Current: 30/28.7 A
Maximum Continuous AC Passthrough(grid on load): 40 A
Peak Power (Off-grid): 2 times rated power, 10 S
Power Factor Adjustment Range: 0.8 leading - 0.8 legging
Rated Input/Output Voltage/Range: 220/230 V 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range: 50/45-55, 60/55-65 Hz
Grid Connection Module: L+N+PE
Grid Type: Single-Phase
Total Current Harmonic Distortion THDi: <3% (of rated power)
DC injection current: <0.5% In
Efficiency
Maximum: 97.6%
Euro efficiency: 96.5%
MPPT efficiency: <99%
Protection
Integrated: Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection
Over Voltage category: TYPE II(DC), TYPE II(AC)
Interface
Communication Interfase: RS485//RS232/CAN
Monitor Mode: GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range: -40 to +60℃, >45℃ Derating
Cooling Type: Smart Cooling
Noise: <30 dB
Communication with BMS: RS485/CAN
Cabinet Dimensions (WxHxD): 330×580×232 mm (Excluding connectors and brackets)
Weight: 24.9 kg
Ingress Protection Rating: IP 65
Installation style: wall-mounted
Warranty: 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy

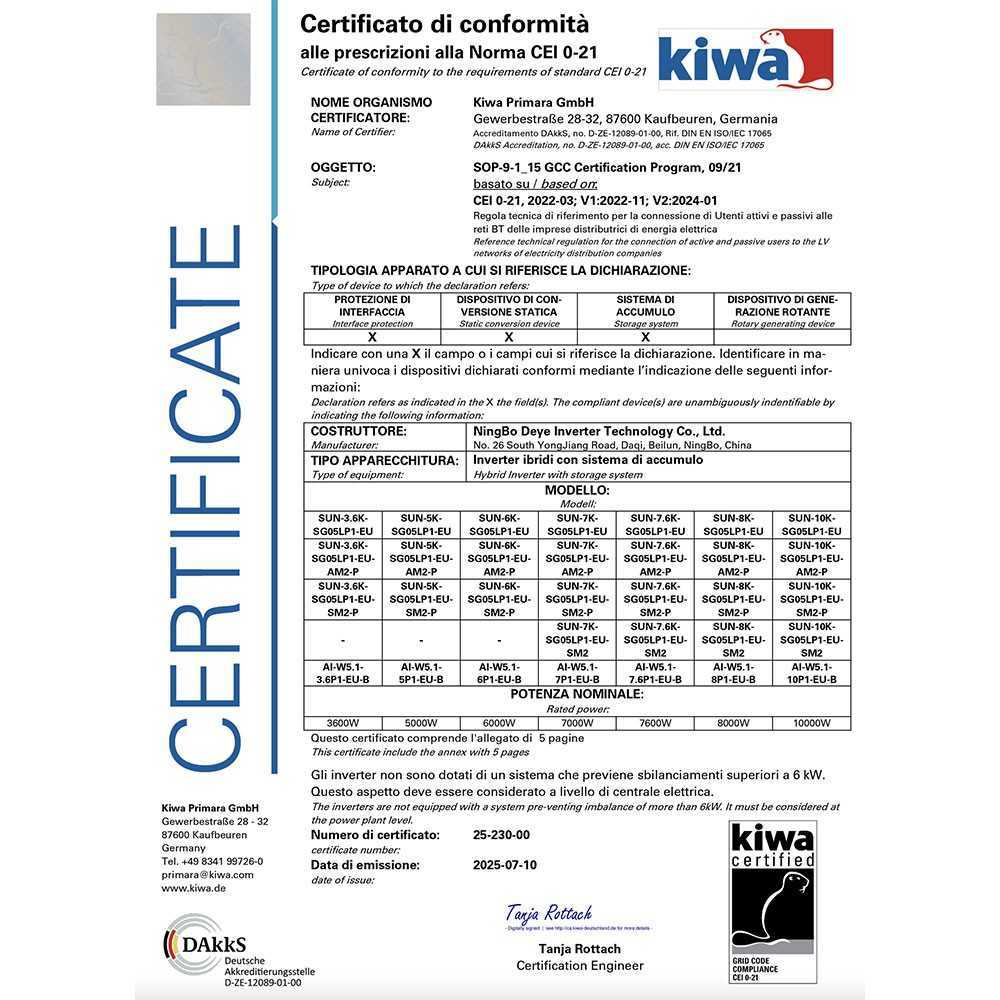

Grid Regulation: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105
Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
