Victron Energy Quattro 48/5000/70-50 Inverter 48V 5kW Battery Charger 70A

Victron Energy Quattro 48/5000/70-50 Inverter 48V 5kW Battery Charger 70A

Similar to the MultiPlus-II, the Quattro-II is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.

Two AC Inputs & two AC Outputs

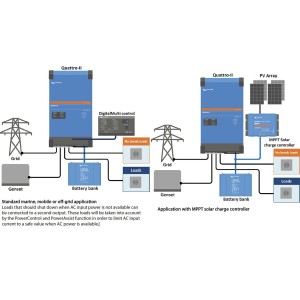

The Quattro-II can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro-II will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro-II takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro-II. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Unique PowerAssist feature
The Quattro-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Virtually unlimited power thanks to parallel operation
Up to 6 Quattros-II can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible.

Specifications:
PowerControl / PowerAssist: Yes
Transfer switch: 50A
Maximum AC input current: 50A
Weight: 30 kg
Dimensions (hxwxd): 560x328x148 mm
INVERTER
Input voltage range: 38-66V
Output voltage: 230 VAC ± 2%
Frequency: 50 Hz ± 0,1%
Cont. output power at 25°C: 5000 VA
Cont. output power at 25°C: 4000 W
Cont. output power at 40°C: 3700 W
Cont. output power at 65°C: 3000 W
Maximum apparent feed-in power: 5000 VA
Peak power: 9000 W
Maximum efficiency: 96%
Zero load power: 18 W
Zero load power in AES mode: 12 W
Zero load power in Search mode: 2 W
CHARGER
Charge voltage 'absorption': 57.6 V DC
Charge voltage 'float': 55.2 V DC
Storage mode: 52.8 V DC
Charge current house battery: 70 A
Battery temperature sensor: Yes
