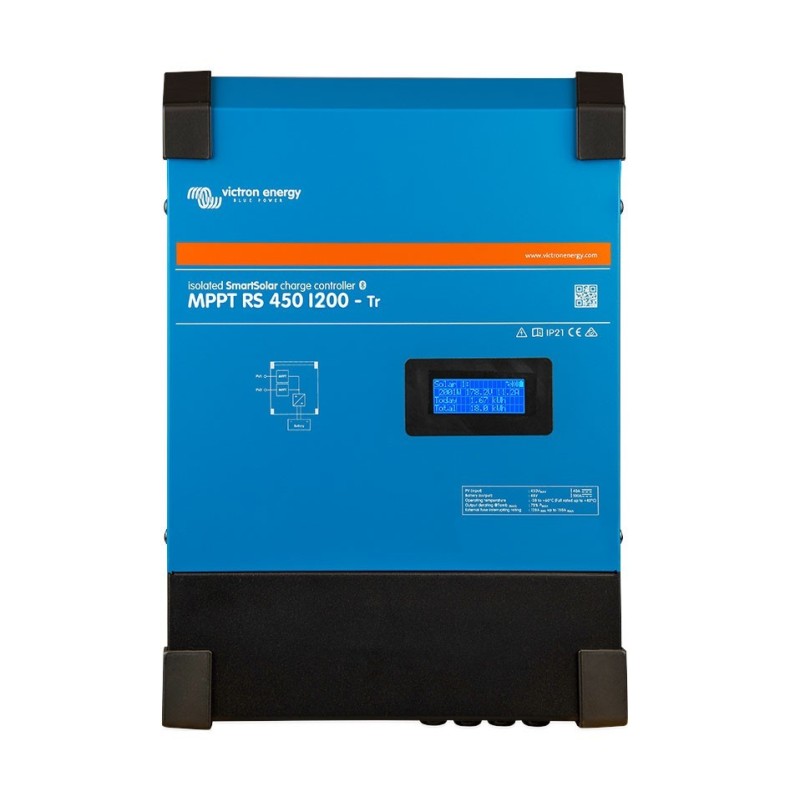

Victron SmartSolar MPPT RS 450/200 48V 11.52kW Charge Controller Isolated with Bluetooth

Victron SmartSolar MPPT RS 450/200-Tr 48V 11.52kW Isolated charge controller

The SmartSolar MPPT RS 48V 11.52kW solar charge controller is Victron's solution for systems with large series connected PV arrays charging 48V DC battery banks. This product is perfect for large off-grid, and grid connected battery systems.
Features include a wide 80-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve the safety and modernise the presentation in line with the latest suite of Victron products.

MPPT: Ultra Fast Maximum Power Point Tracking
The SmartSolar RS solar charge controller connects to a PV array of between 80 and 450 Volt Voc and will efficiently charge your 48V battery bank with either 200A.
The charge settings are fully programmable and can be set up for different battery chemistries, like lead-acid, lithium and more.

Setup and monitor with VictronConnect
The SmartSolar RS charge controller can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, historical data and trends.

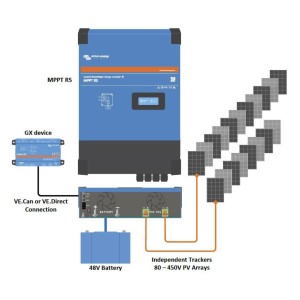

Daisy Chain Additional Units
The SmartSolar RS charge controller is equipped with VE.Can bus ports. This allows for communication with additional SmartSolar RS & VE.Can MPPT units. The additional units are simply “daisy chained” to each other with an RJ45 cable.
When connected to each other, all individual charge controllers, will synchronise their charge stages. They can also send their data, via the same cable, for monitoring to a GX device (such as the Cerbo GX).

Remote Monitoring and Control
If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers.
If your installation is connected to a GX device and the internet, Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; for free.
For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the  GlobalLink 520.

SmartSolar Display
The SmartSolar RS charge controller is equipped with a display on the front panel. The display reads battery volts, charge current and voltages from both array’s individually including instantaneous and total figures and unit status including any possible error codes.

I/O Connections
The SmartSolar RS charge controller is equipped with a programmable relay and options for remote temperature and voltage sensing. The remote input can accept the Victron smallBMS and other types of BMS with allow-to-charge signals.

Specifiche tecniche
Isolated MPPT SmartSolar RS: 450/200
Battery Voltage: 48V
Rated Charging Current: 200A
Maximum charge power: 11,5 kW a 57,6 V
"Absorption" charge voltage: Default: 57.6V (adjustable)
Trickle charge voltage: Default: 55.2V (adjustable)
Programmable voltage range: Minimum: 36V | Maximum: 60V (7)
Charging algorithm: Multi-step adaptive (adjustable)
Battery temperature sensor: Included
Maximum efficiency: 96%
Self-consumption: 15mA
SOLAR
PV Maximum DC Voltage: 450V
Starting Voltage: 120V
MPPT operating voltage range: 80 – 450V (1)
Number of plotters: 4
Maximum PV operating input current: 18A per tracker
PV short circuit current: 20A per tracker
Maximum output DC charging power: 4000W per tracker 11520W total
Maximum PV module size per tracker: 7200 Wp (450 V x 20 A)
PV insulation fault level: 100 kΩ
GENERAL
Synchronized parallel operation: Yes, up to 25 units with VE.Can
Programmable Relay: Yes
Protection: PV reverse polarity, Output short circuit, Over temperature
Data communication: VE.Direct port, VE.Can port and Bluetooth (6)
Bluetooth Frequency: 2402-2480MHz
Bluetooth power: 4dBm
General purpose analog/digital input port: Yes, 2x
Remote on-off: Yes
Operating temperature range: -40 to +60 °C (fan cooled)
Humidity (non-condensing): max 95%
CARCASS
Material and colour: steel, blue RAL 5012
Protection category: IP21
Battery connection: M8 bolts
PV input power terminals: 2.5…16 mm2
Weight: 13,7 kg
Dimensions: 487x434x146 mm
REGULATIONS
Safety: EN-IEC 62109-1, EN-IEC 62109-2
Country of Origin: Designed in the Netherlands, made in India
