Rolls 6CS21P 48V 46.22kWh Battery Bank C100 Series 5000

This item will be assembled to order and requires approximately 30-45 working days from date of order for shipping.

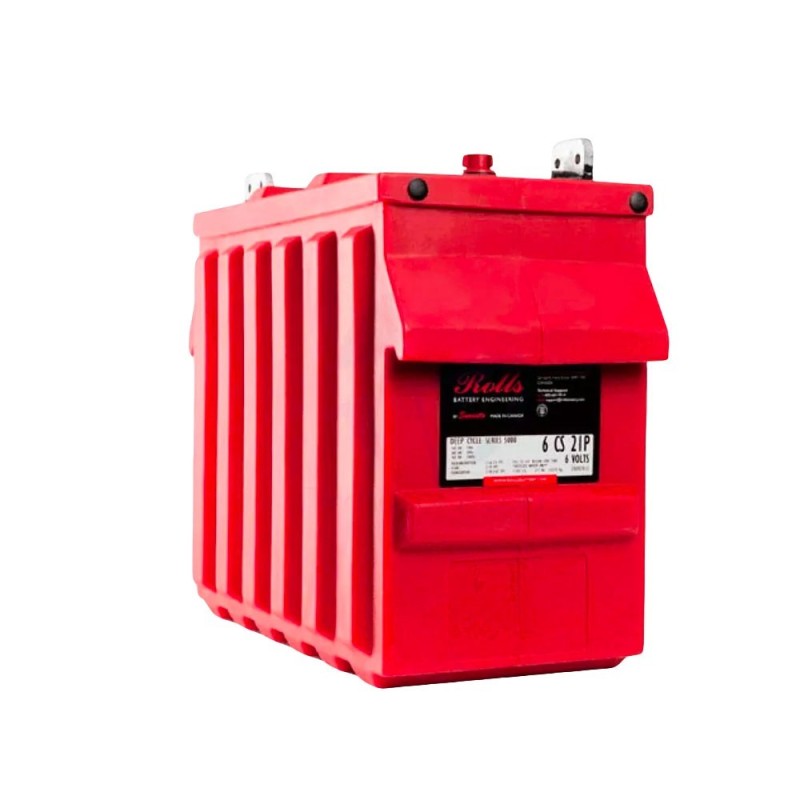

Rolls 6 CS 21P 48V 46.22kWh Battery Bank C100 Series 5000

Rolls flooded Lead-Acid battery bank 48 Volt has 8 units of Rolls 6 CS 21P 6 Volt 963 Ah C100 series 5000 each, for an energy storage of 46.22 kWh. Ideal for Off Grid Photovoltaic systems.
Technical features of individual units here below.

ADVANTAGES:
- Dual container modular construction.
- Coupling of thick plate design with highest density active material.
- Enveloped separators.
- Increased liquid reserve.
- Elimination of “Stray” current.
- No acid leakage.
- Easy “on-site” assembly/disassembly (no special tools or skills required).
- Significantly less connections, eliminating many points of failure, thus increasing charging efficiency.
- Sediment chamber removed allowing higher plates to be used in the same sized cell, thus yielding greater capacity.
- Unsurpassed cycling service, 10 year warranty - 15 years average life expectancy!
- Less maintenance.
- Link leads, terminal covers.

TECHNICAL FEATURES:
- Nominal voltage: 6;
- Actual Capacity (Ah/C100): 963;
- Dimensions (mm) LxWxH: 559x248x464;
- Weight wet kg: 123;
- Weight dry kg: 98;
- Number cycles with discharges at 100 %: 1500 cycles;
- Number cycles with discharges at 50%: 3200 cycles;
- Number cycles with discharges at 25 %:  5000 cycles.
