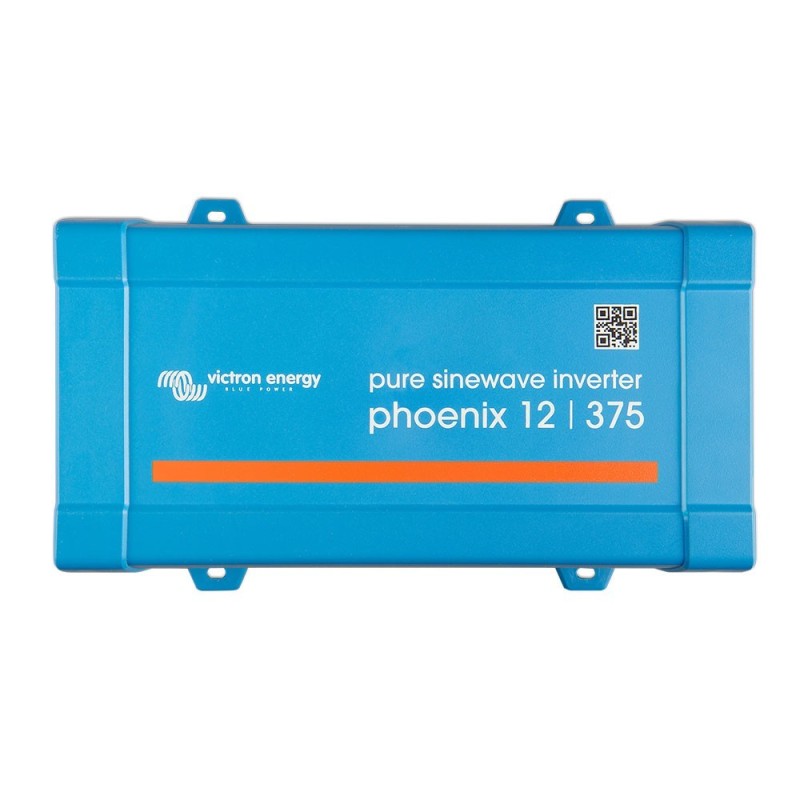

Phoenix Victron Energy 12V 375VA 700W VE.Direct pure sine wave inverter
Developed for professional duty, Phoenix pure sine inverters are suitable for the widest range of applications. The design criteria was to produce a true sine wave inverter with optimised efficiency without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load. A unique feature of the SinusMax technology is very high start-up power. Phoenix inverters, in fact, are well suited to power up difficult loads such as: refrigeration compressors, electric motors and similar applications. Conventional high frequency technology does not offer such extreme performance.
Aluminium epoxy powder coated case with drip shield, circuit board protection with an acrylic coating, forced cooling with temperature sensors, remote connector, battery cables (1.5 m), output short circuit protection, over temperature protection.
VE.Direct communication port can be connected to:
• A computer (VE.Direct to USB interface cable needed).

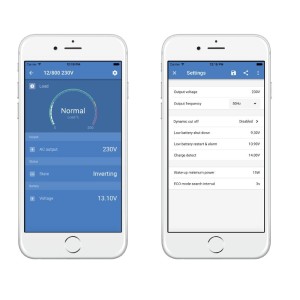

• Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed).
Fully configurable:
• Low battery voltage alarm trip and reset levels .
• Low battery voltage cut-off and restart levels .
• Dynamic cut-off: load dependent cut-off level.
• Output voltage 210 - 245V.
• Frequency 50 Hz or 60 Hz.
• ECO mode on/off and ECO mode sense level.
Monitoring:
• In- and output voltage, % load and alarms.
Available with various output sockets: Schuko, UK, AU/NZ, IEC-320 (male plug included), Nema 5-15R.
Specifications:
- Model: 12/375 VE. Direct;
- PInput voltage range: 9.2 - 17.0 V DC;
- Continuous output power: 375 VA;
- Peak Power: 700W;
- Alimentazione carico zero: 5.6 W;
- Potenza a vuoto per difetto in modalità ECO (intervallo di tentativi predefinito: 2,5 sec, regolabile): 0.9;
- Output: 230V AC ± 2% - 50 Hz ± 2%;
- Max Efficiency: 89%;
- Degree of protection: IP21;
- Size: 86x165x260 mm (3.4"x6.5"x10.2");
- Weight: 3.0 kg (6.6 lbs).
For further information, please refer to the technical datasheet.
