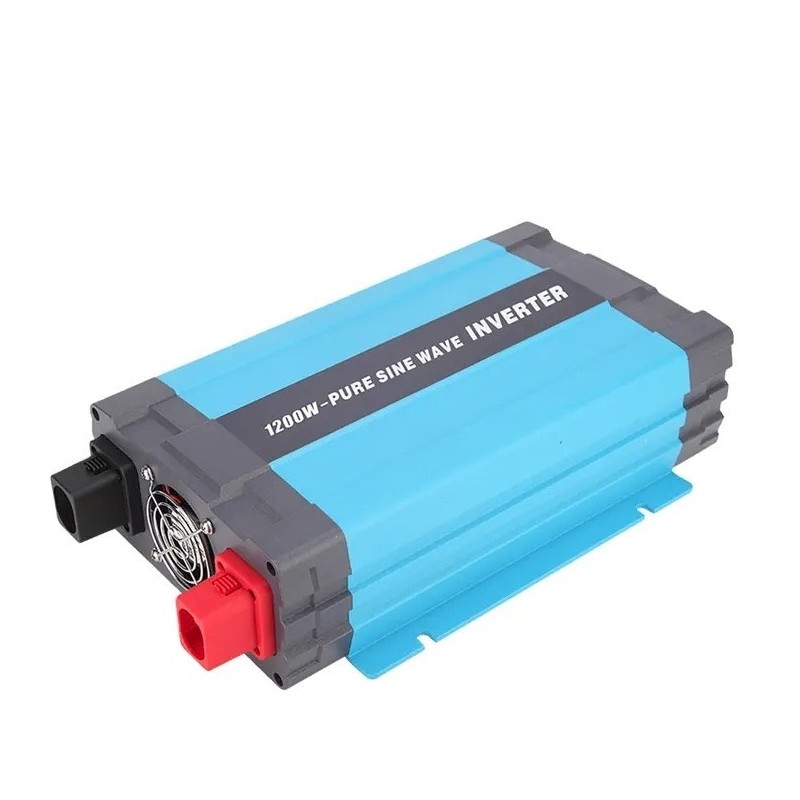

TopSolar 1200W 2400W 12VDC 230V AC Pure Sine Wave Inverter

TopSolar 1200W 2400W 12VDC 230V AC Pure Sine Wave Inverter

Suitable for all applications where 230 Vac loads are required from a low 12 Vdc voltage power source. This inverter has an harmonic distortion of less than 3% and can therefore power the most modern and sophisticated utilities.
It has a no load consumption of less than 0.53A, and in the event of the batteries reaching a voltage of about 10.6V it enters into protection mode to then switch off at 10.4V, thereby protecting the batteries from deep discharge.

Technical data:
- DC 12V to AC 230V;
- 1200W continuous power inverter;
- 2400W Surge power;
- No Load Curent Draw: < 0.53A;
- Pure sine wave output;
- Range Input Voltage: 10.8V-15.5V;
- Output voltage: 230V;
- Frequency: 50Hz;
- Low battery alarm: 10.6V± 0.4V;
- Low battery shut down: 10.4±0.4V;
- Soft Start;
- Dimensions: 320x160x77 cm;
- Weight: 2.65 kg.

WARNING
IF YOU INTEND TO USE INDUCTIVE LOADS IT IS NECESSARY TO CHOOSE AN INVERTER 5 TIMES MORE POWERFUL THAN THE APPLIED LOAD.  FOR EXAMPLE,  IF YOU WANT TO USE AN INDUCTIVE LOAD OF 1000W THEN A 5000W INVERTER IS NECESSARY.
