BYD Battery-Box HVM+ 8.3 8.28kWh 3 lithium Box-Batteries with BMS

BYD Battery-Box HVM+ 8.3 8.28kWh Modular High-Voltage Energy Storage System with BMS

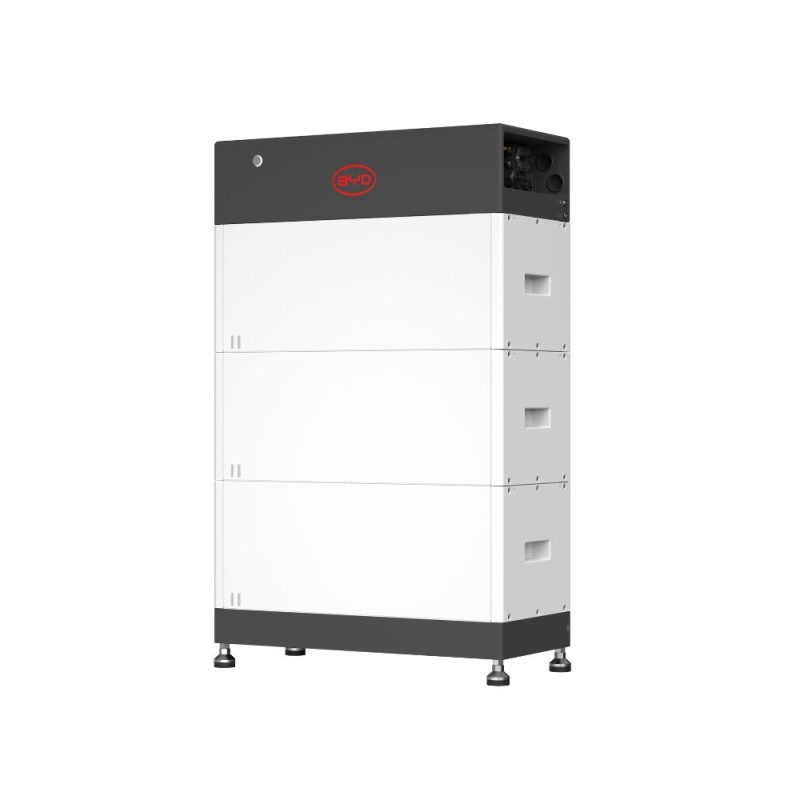

The BYD Battery-Box HVM+ is a modular high-voltage energy storage system consisting of 3 Lithium Iron Phosphate (LFP) battery modules, each rated at 2.76 kWh (51.2 V), connected in series, a Battery Management System (BMS), and a base unit, providing a total usable capacity of 8.28 kWh.
The system is fully modular and can be expanded by connecting up to 3 identical HVM+ battery towers in parallel, achieving a maximum storage capacity of 66.2 kWh, making it suitable for both residential and commercial energy storage applications.
The latest Battery-Box HVM+ generation introduces significant improvements over the previous HVM series. The new Battery Control Unit (BCU) is fully compatible with HVB, HVS+, and HVM+ battery modules, offering greater flexibility for new installations and future system expansions.
A new automatic State of Charge (SOC) balancing calibration eliminates the need for manual battery calibration during initial commissioning or when expanding the system.
Installation has also been simplified with new plug-in power and communication connectors for the BMS, significantly reducing installation time. System commissioning is carried out via a dedicated installer app, while an intuitive customer app allows end users to monitor system performance in real time.

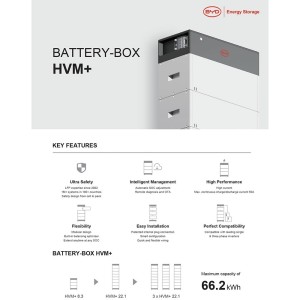

Key Features
Usable capacity: 8.28 kWh
Configuration with 3 × 2.76 kWh battery modules, BMS, and base
Cobalt-free Lithium Iron Phosphate (LFP) battery technology
Expandable up to 66.2 kWh (3 battery towers in parallel)
High efficiency through true high-voltage series connection
High-power backup and off-grid capability
Patented plug-in design with no internal wiring
Compatible with both single-phase and three-phase inverters
Automatic battery module calibration during installation or system expansion

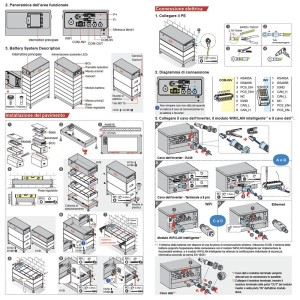

Fast installation thanks to plug-in connectors
Supports up to 5 battery modules per tower
Dedicated apps for system commissioning and performance monitoring
Complies with the highest safety standards, including VDE 2510-50

The BYD Battery-Box HVM+ is a high-performance, safe, and scalable energy storage solution designed to maximize self-consumption and provide reliable backup power for residential and commercial photovoltaic systems.

Important Notes

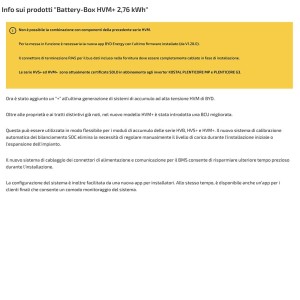

The Battery-Box HVM+ is not compatible with components from the previous HVM generation.
Commissioning requires the new BYD Energy App with the latest firmware installed (version 1.28.0 or later).

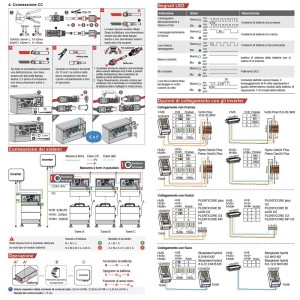

During installation, the supplied RJ45 data bus termination connector must be fully wired and properly installed.

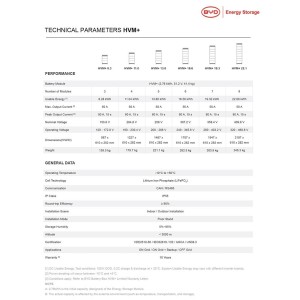

Features
Model: HVM+ 8.3;
Battery module: HVM+ (2.76 kWh, 51.2 V);
Number of modules: 3;
Available Energy: 8.28 kWh;
Maximum Output Current: 50 A;
Peak Output Current: 80 A, 15s;
Rated Voltage: 153.6 V;
Operating Voltage: 120 ~ 172.8 V;
Dimensions (H/W/D): 987x610x282 mm;
Weight: 138.3 kg.

The kit is made by:

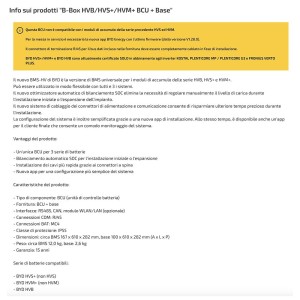

- 1 x BYD B-Box BCU HVM+/HVS+/HVM + Base
- 3 x BYD HVM+ storage modules

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
