6-way fuse holder for automotive flat fuses with LED display
The 6-way fuse holder from enables the professional distribution and protection of small and medium-sized consumers. It consolidates branch circuits and eliminates the clutter of inline fuses for electronics and other devices. In addition to the 6-pole fuse holder, it includes flat fuses from 5A-20A, type labels, and screws for mounting. The fuse holder is made of environmentally friendly PBT material with high mechanical strength, insulation, heat resistance, and flame retardancy
Flat fuses
The fuse holder contains 12 flat fuses, including 2x 5A, 2x 10A, 4x 15A, and 4x 20A. The fuses meet Offgridtec's high quality standards, have a long service life, and offer a wide, acceptable temperature range. The multifunctional labels supplied make it very easy to identify and connect the connected cables. The integrated LED indicators provide additional protection. If a fuse blows, the red LED lights up immediately, allowing you to quickly identify the fault and rectify it straight away.
High-quality workmanship

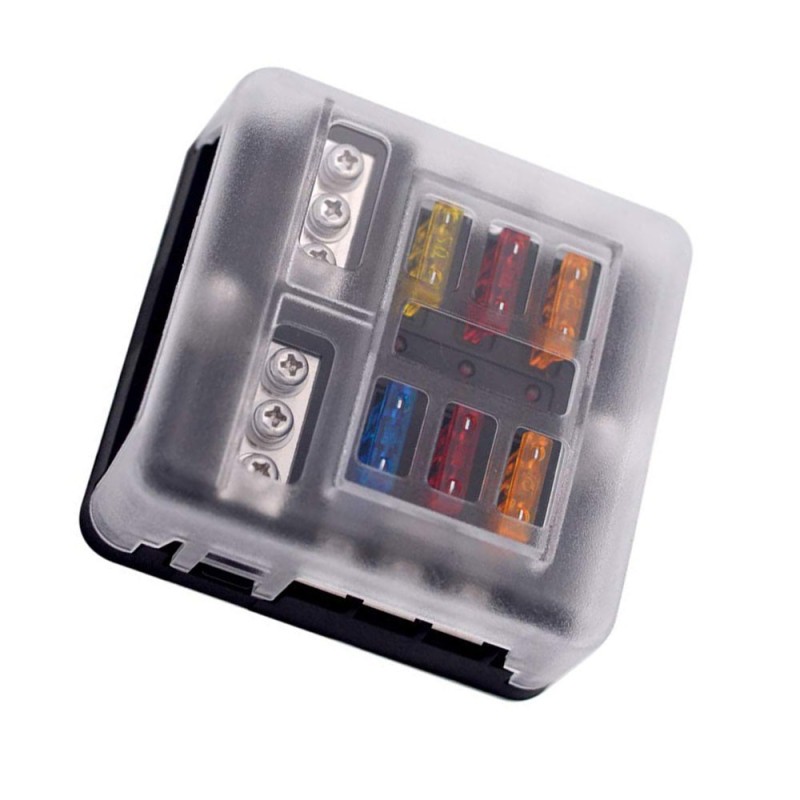

The clip-lock protective cover provides optimum protection for the fuse holder. The insulated cover with push-latch system can be easily opened by pressing it. The transparent design offers additional protection for your blade fuses. The holder is made of environmentally friendly PBT material with high mechanical strength, insulation, heat resistance, and flame retardancy. Problems such as cracks, deformation, burns, or short circuits are rare.

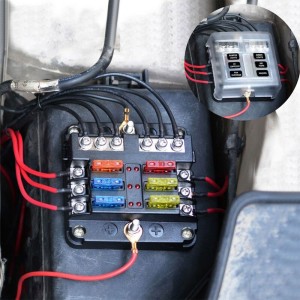

Assembly
The set also includes four stainless steel screws. These robust screws are corrosion-resistant and ensure long-lasting and secure installation. The input and output connections of the fuse holder are secured with quick-mounting screws and the fuse box is secured with the stainless steel screws, making installation easier and safer.
Technical data
- Weight: 176g

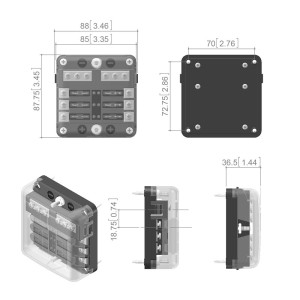

- Dimensions: 87.75 x 85 x 36.5 mm
- Input voltage: 12V-32V DC
- Input current: 100A
- Nominal power Output connections: max. 30A per circuit
- Number of circuits/fuse slots: 6
- Main cable connection: M5 threaded pin
- Main cable: 4-6 AWG
- Single line connection: M4 threaded bolt
- Single wire: 12-16 AWG
- Operating temperature: -30°C to +85°C

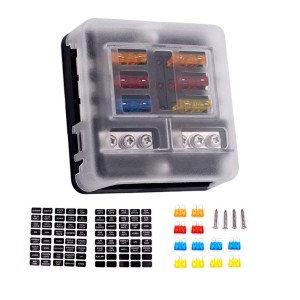

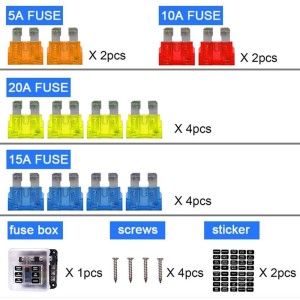

Scope of delivery:
1x 6-pin fuse holder
2x 5A fuse blade orange
2x 10A fuse sheet, red
4x 15A fuse sheet, blue
4x 20A fuse sheet, yellow
2x stickers
4x screws
