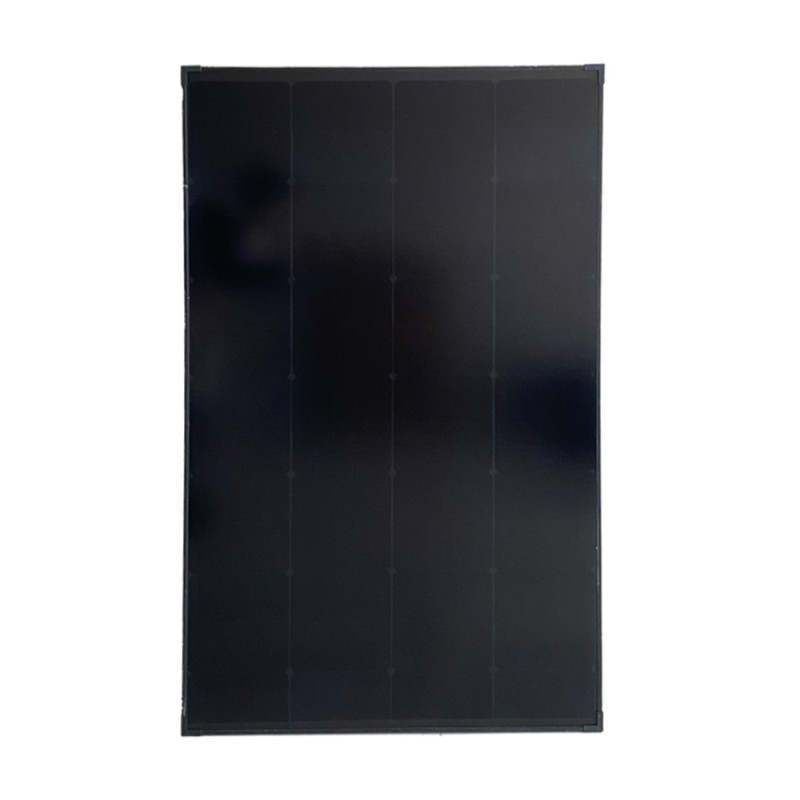

SZBC-200 200W 12V Back Contact Solar Panel for Vehicles and Off-Grid

High-efficiency 200W BC solar panel for vehicles and off-grid applications

The 200W BC (Back Contact) solar panel represents an advanced solution for mobile and off-grid solar generation. Thanks to Back Contact technology, it ensures greater efficiency, lower losses, and a cleaner, more efficient design. 200W panels are ideal for mobile systems thanks to their excellent balance between power and size.

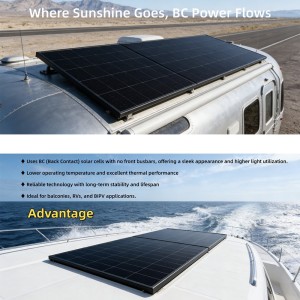

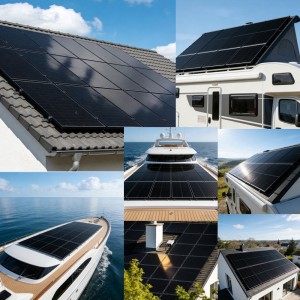

Lightweight and flexible structure, ideal for campers, vans, boats, and vehicle roofs. Easy installation, even on curved surfaces.

Advanced Back Contact Technology
High-efficiency Back Contact (BC) monocrystalline cells.
Greater energy production thanks to the absence of front contacts.
Lower power losses and improved durability.
Excellent performance even in less than optimal lighting conditions.
Performance and reliability
High energy conversion efficiency.
Low yield loss over time.
Good performance even at high temperatures.
Stable and consistent production.
Structure and materials
Highly transparent surface material for maximum solar collection.
Anti-corrosion EVA layer for module protection.
Structural structure resistant to wind, snow, and harsh environmental conditions.
Frame designed to prevent deformation and water accumulation.

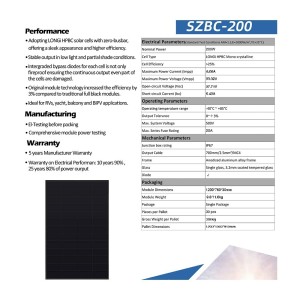

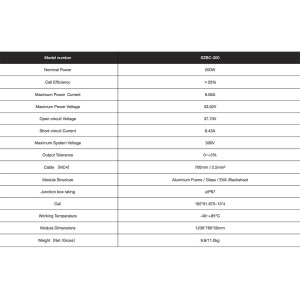

Technical data:
Model: SZBC-200;
Rated Power: 200 W
Cell Efficiency: >25%
Maximum Power Current: 6.06 A
Maximum Power Voltage: 33.02 V
Open Circuit Voltage: 37.70 V
Short Circuit Current: 6.43 A
Maximum System Voltage: 500 V
Output Tolerance: 0~+3%
MC4 Cable: 700 mm / 2.5 mm²
Module Construction: Aluminum Frame / Glass / EVA / Backing Sheet
Junction Box Protection Rating: ≥IP67
Cell: 182*91.875–13*4
Operating Temperature: -40~+85℃
Module Dimensions: 1230x760x30 mm
Weight: 11 kg
