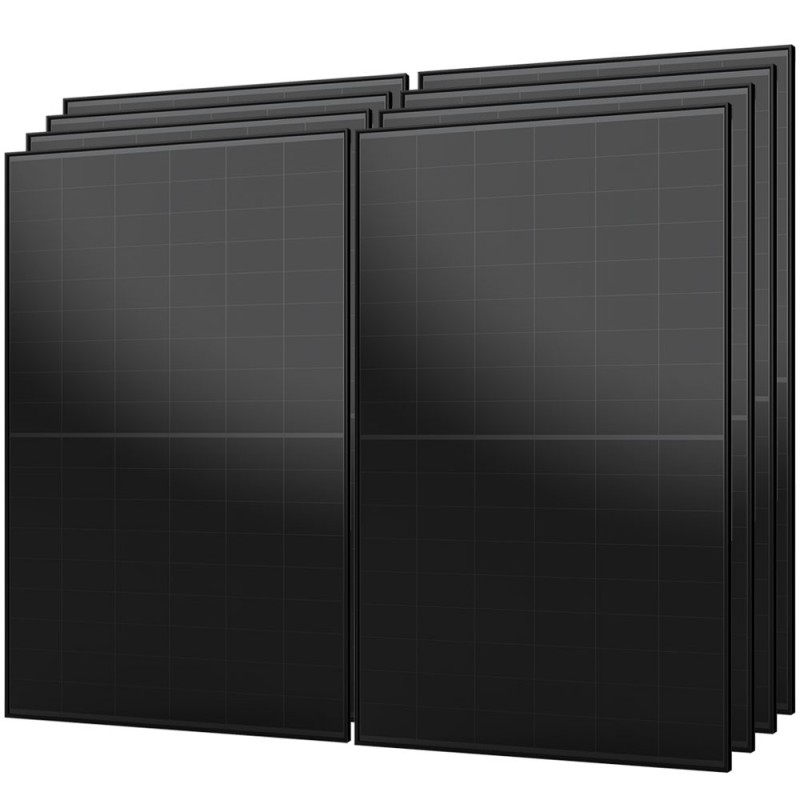

AIKO NEOSTAR AIKO-A-MCE54Mb 3S54 470W Mono-Glass Solar Panel min 8pcs

AIKO NEOSTAR AIKO-A-MCE54Mb 3S54 470W Single glass module

The 3S54 470W single-glass module AIKO-A-MCE54Mb AIKO NEOSTAR is a third-generation photovoltaic panel featuring advanced technology and high performance.
It is a monocrystalline all-black module (black frame, cells and backsheet), designed for residential and commercial applications where aesthetics, efficiency, and long-term durability are essential.
The series uses N-Type ABC All Back Contact cells, which ensure high efficiency, low degradation over time, and excellent performance even under challenging conditions.
One of the key advantages of this technology is the greater light absorption: with all electrical contacts positioned on the back of the cell, the front surface is completely unobstructed, allowing maximum irradiation capture and improved efficiency.
The module also offers enhanced resistance to high temperatures and micro-cracks, ensuring long-lasting reliability.
The AIKO-A-MCE54Mb solar module is certified to withstand wind and snow loads of 2400–5400 Pa.
It features a 3.2 mm high-transmittance tempered glass front layer and a black anodized aluminum alloy frame, designed to provide excellent mechanical strength and durability.

Second generation monocrystalline photovoltaic panel with improved performance compared to the previous series.
• Optimization of partial shading
• Better temperature coefficient
• Hotspot temperature limitation
• Resistance to micro-cracks
• Higher power
• Lower BOS
25-year product warranty and 30-year production warranty with a degradation of <1% after the first year and ≤0.35% from the 2nd to the 30th year

Technical specifications:
- Model: AIKO-A-MCE54Mb;
- Power (Pmax): 470 Wp;
- Voltage (Vmp): 34.30 V;
- Maximum Current (Imp): 13.71 A;
- Open Circuit Voltage (Voc): 40.70 V;
- Short Circuit Current (Isc): 14.72 A;
- Cell Efficiency: 23.5%;
- Operating Temperature: -40°C - +85°C;
- Max. System Voltage: DC1500 V (IEC/UL);
- Cell Type: Monocrystalline N-type;
- Number of Cells: 108 (6x18);
- Maximum Static Load on the Front Side (e.g., Snow and Wind): 5400 Pa;
- Maximum Static Load on the Rear Side (e.g., Wind): 2400 Pa;
- Hail resistance test: Ø40 mm, impact velocity 23 m/s;
- Output cable: 4 mm² (IEC), 12 AWG (UL) ±1200 mm;
- Protection rating: Junction box with separator, IP68, 3 diodes;
- Glass: Single-coated tempered glass, 3.2 mm;
- Backsheet: Highly weather-resistant backsheet;
- Frame: Black anodized aluminum;
- Dimensions: 1762 x 1134 x 30 mm;
- Weight: 20.6 kg.

Certifications:
- IEC 61730 (2016) IEC 61215 (2021)
- ISO 9001:2015 Quality Management System
- ISO 14001:2015 Environmental Management System
- ISO 45001:2018 Occupational Safety and Management System

Shipping from Italy minimum 8 pieces.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.

Delivery times 15 days from the order
