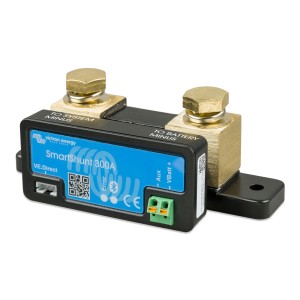

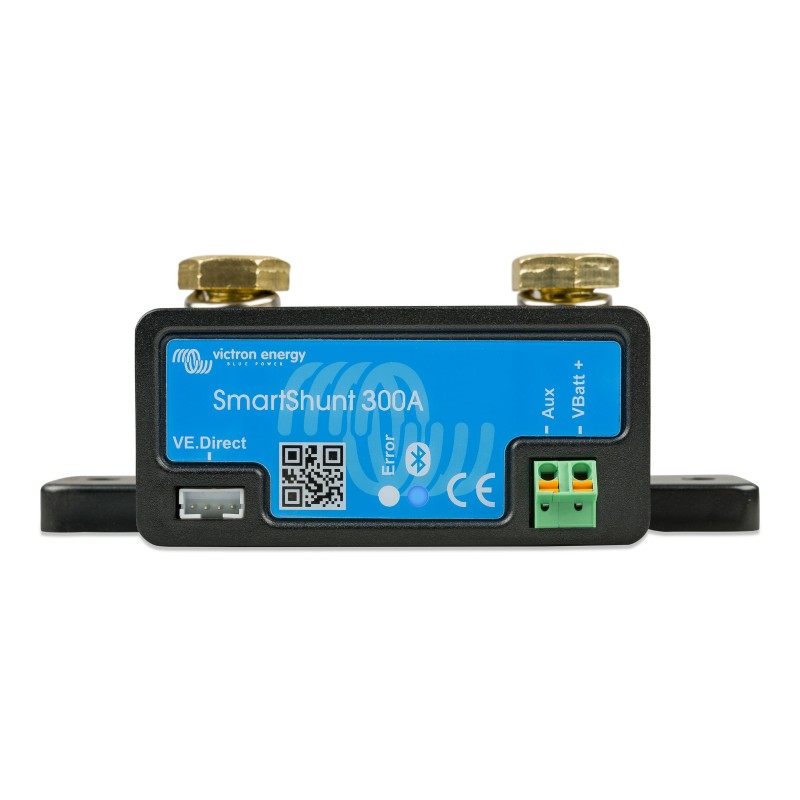

The Smart Battery Shunt
The SmartShunt is an all-in-one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Alternatively, the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used to monitor a second battery, for midpoint monitoring, or to connect a temperature sensor.
Differences compared to BMV-712 Battery Monitor
- No programmable visual and audible alarm.
- No programmable relay.

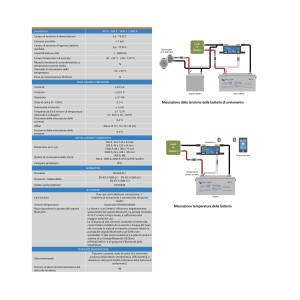

Technical data
SmartShunt: 300 A
Part number: shu050130050
Serial number: HQ2439QGVMW
Supply voltage range: 6.5 - 70 VDC
Current consumption: < 1 mA
Input voltage range, auxiliary battery: 6.5 - 70 VDC
Battery capacity (Ah): 1 - 9999 Ah
Operating temperature range: -40 +50 °C (-40 – 120 °F)
Measures second battery voltage, or temperature or midpoint: Yes
Temperature measurement range: -20 +50 °C
VE.Direct communication port: Yes
RESOLUTION AND ACCURACY
Current: ± 0.01 A
Voltage: ± 0.01 V
Ampere-hour: ± 0.1 Ah
State of charge (0 - 100%): 0.1 %
Remaining runtime: ± 1 min
Temperature (If optional temperature sensor is connected): ± 1 °C/°F (0 - 50°C or 30 - 120°F)
Current measurement accuracy: 0.4 %
Offset: Less than 10 mA
Voltage measurement accuracy: 0.3 %
INSTALLATION AND DIMENSIONS
Dimensions (H x W x D): 44x120x44 mm
Shunt connection bolts: M8
Protection category: IP21
ACCESSORIES
Cables (included): Two fused cables for "+" connection and starter battery or midpoint connection
Temperature sensor: Optional (ASS000100000)
Note regarding Bluetooth signal range: The shunt and electrical cables negatively affect the Bluetooth signal range. The resulting range of 10-15 meters, however, is sufficient in
most cases.
The proximity of other electrically conductive elements, such as the metal frame of a vehicle or the sea water surrounding the hull of a vessel, can reduce the range of the Bluetooth signal to an unacceptable level. In this case the solution is to equip the system with a VE.Direct Bluetooth Dongle (ASS030536011) and turn off the SmartShunt's Bluetooth.
STORED TRENDS
Data stored: Voltage, current, state of charge (%), and auxiliary battery input (battery temperature, or midpoint deviation or starter battery voltage).
Number of days trend data stored: 46
