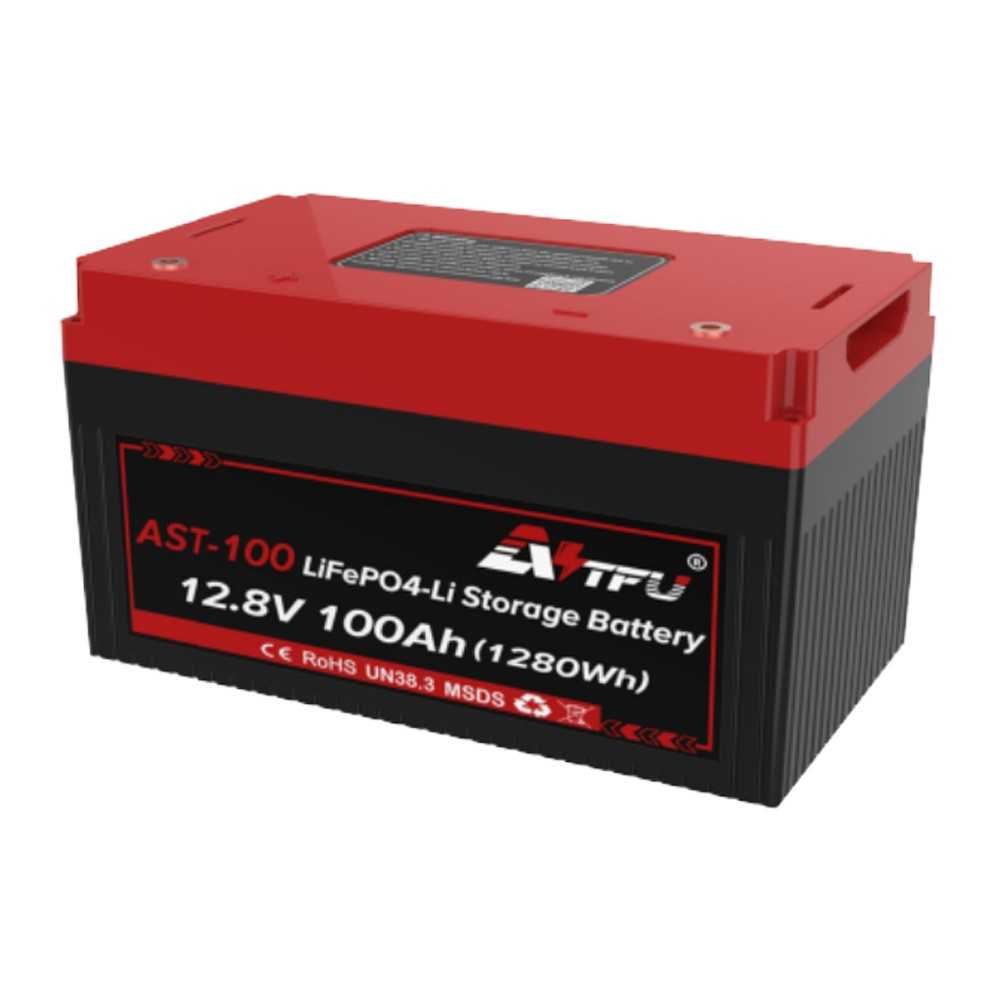

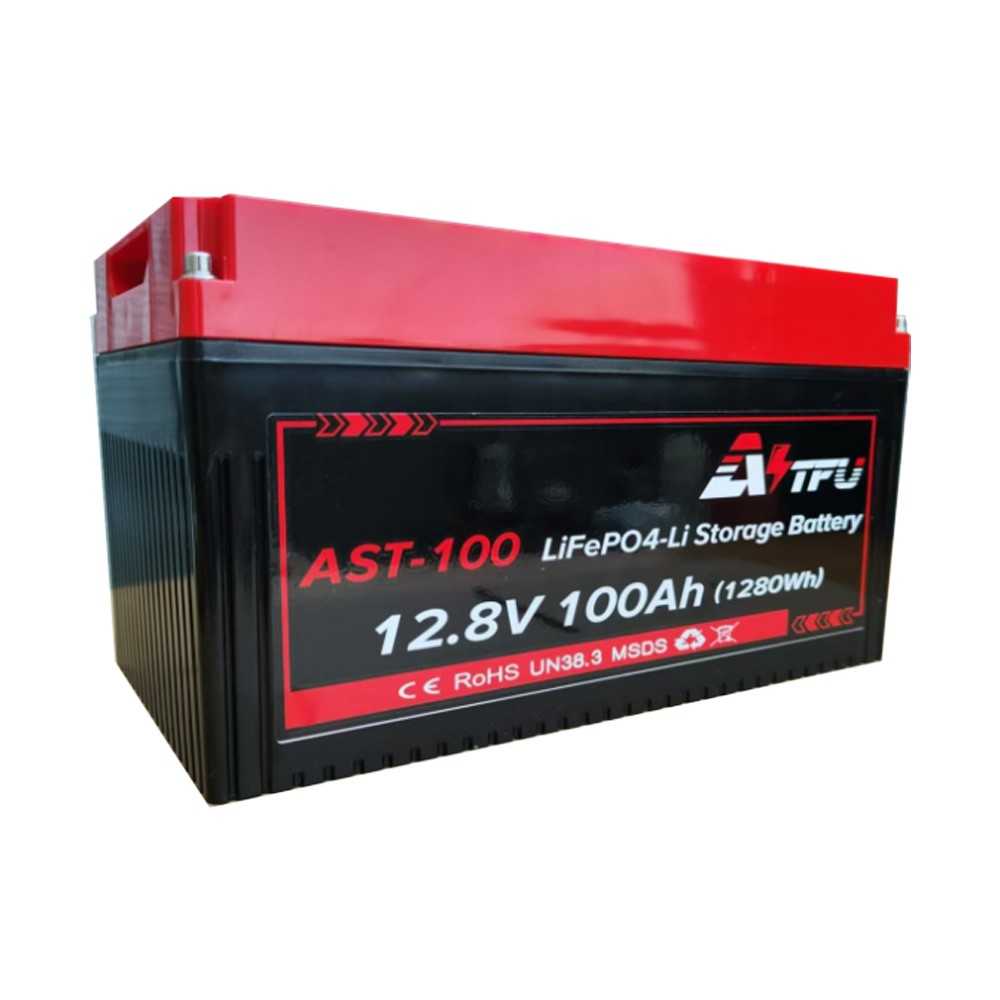

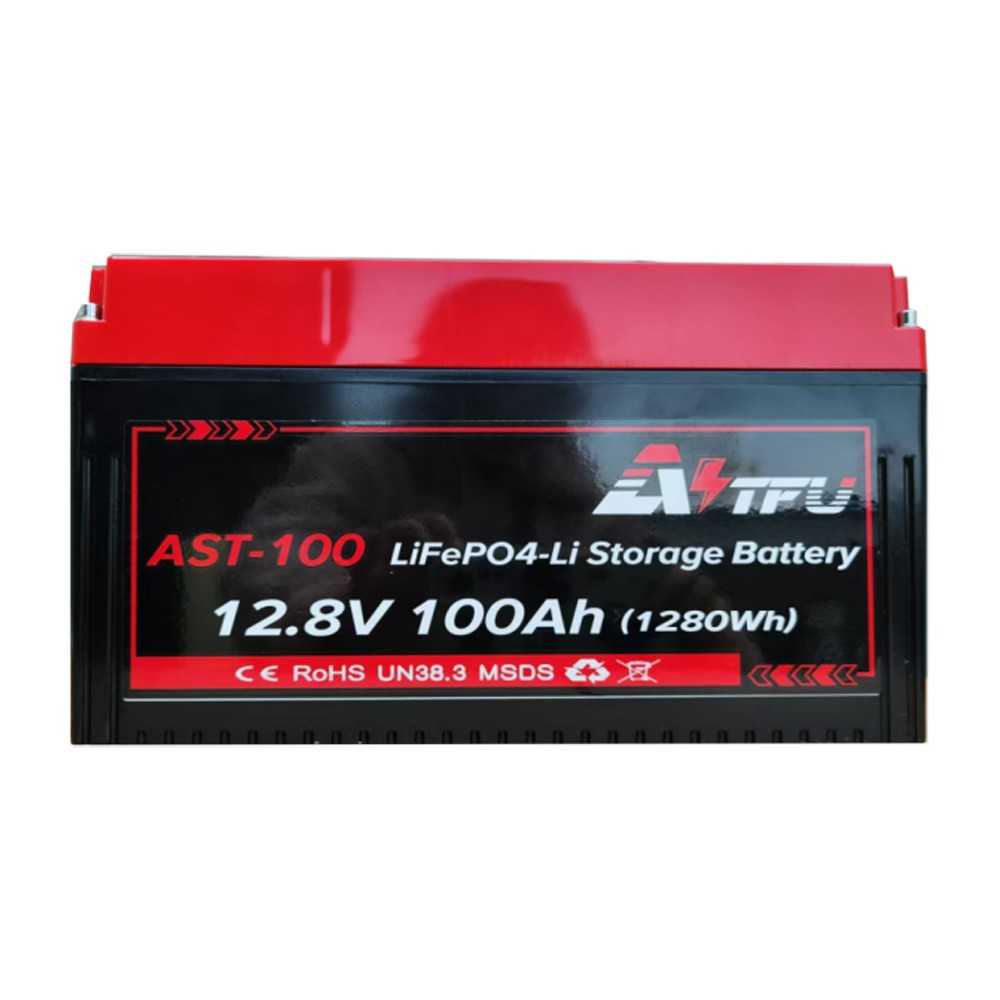

AST-100 12.8V 100A 1280Wh Lithium Battery Removable Series Connectable

AST-100 12.8V 100A 1280Wh Lithium Battery Removable Series Connectable

The AST-100 is a 12.8V – 100Ah lithium battery designed to offer high performance, reliability, and safety in advanced energy applications such as photovoltaic systems, RVs, and boats.
Made with advanced technology and high-quality components, it ensures intelligent energy management and long life.
Each cell has an individual QR code that, when scanned, allows you to find information about the cell on the website.

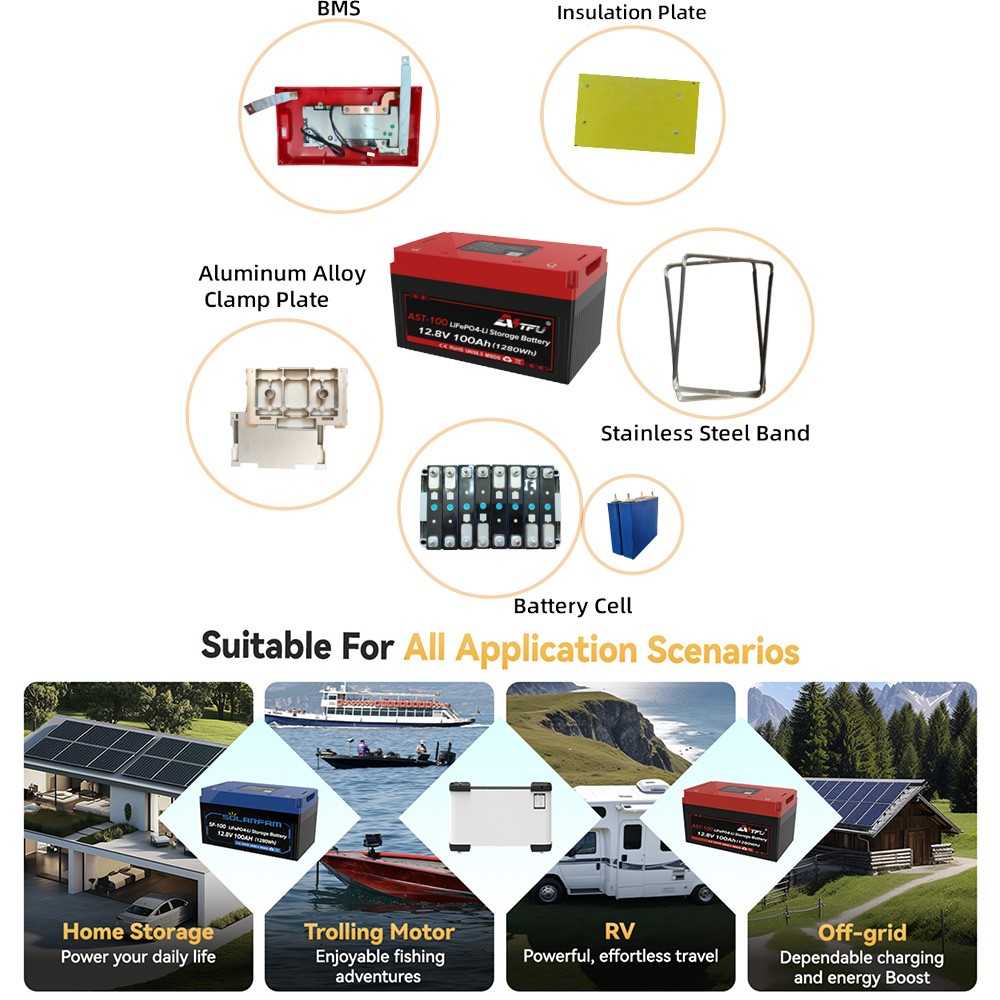

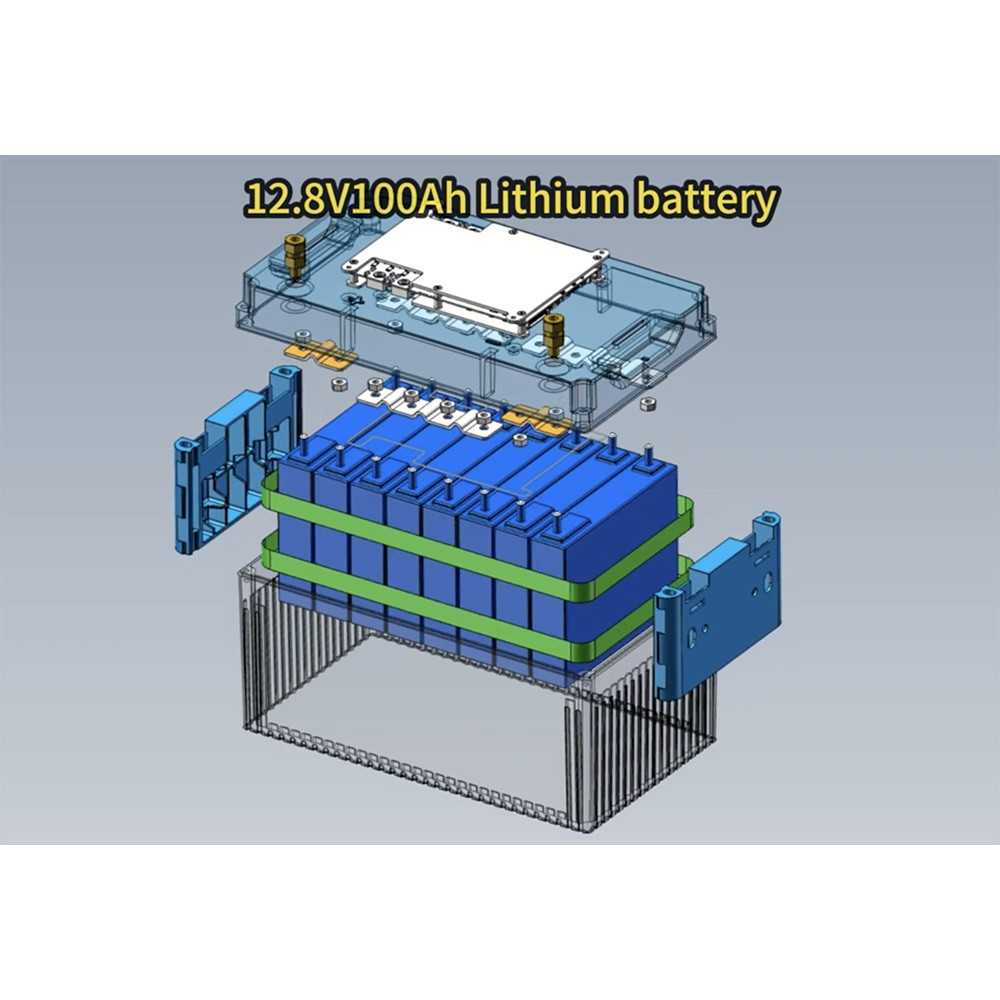

The assembly method involves positioning the cells with an aluminum alloy fixing plate, followed by securing the entire cell group with stainless steel clamps.

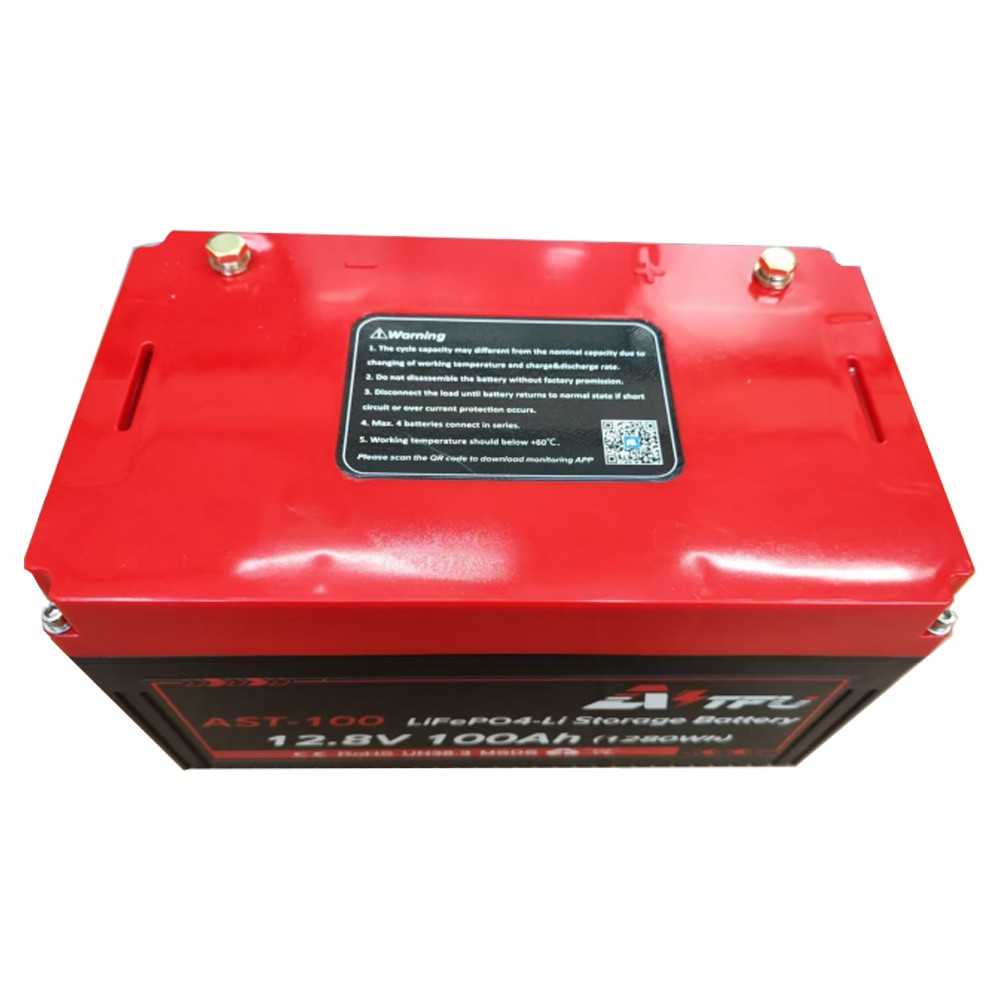

The AST battery with red cap can be connected in series, up to four units. Series connection allows for a system voltage of 24 V, 36 V, or 48 V.

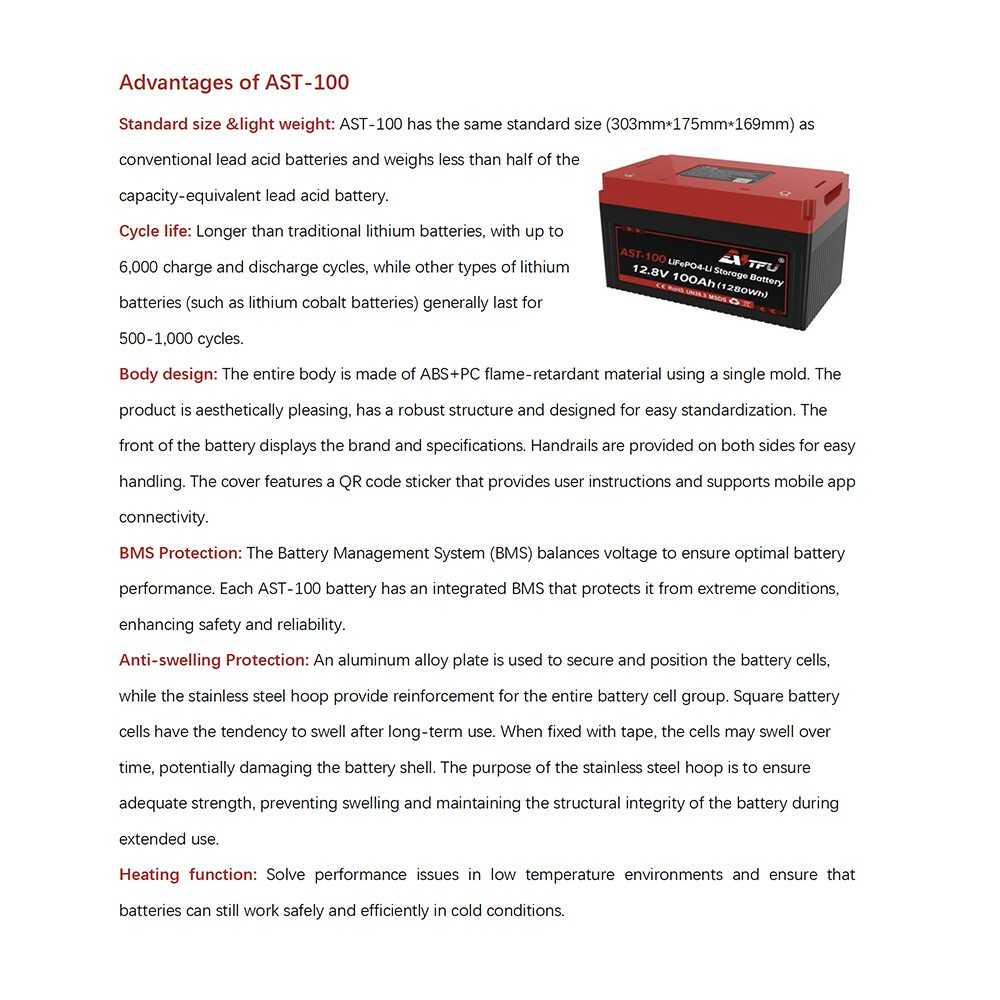

Longer than traditional lithium batteries, with up to 6,000 charge and discharge cycles, while other types of lithium batteries (such as lithium-cobalt batteries) typically last 500 to 1,000 cycles.

Technology and Construction
• Cells with individual QR codes for traceability and performance monitoring.
• Structure assembled with an aluminum alloy plate and secured with stainless steel clamps.
• Body made of flame-retardant ABS+PC, robust and durable.
• Compact and modular design for easy integration into energy systems.
Intelligent System and Connectivity
• Each battery integrates a QR code with Bluetooth and Wi-Fi connectivity. Users can scan it with their mobile phone to download an app.
• Real-time monitoring via mobile app.
• Complete monitoring of battery status (charge, voltage, performance)

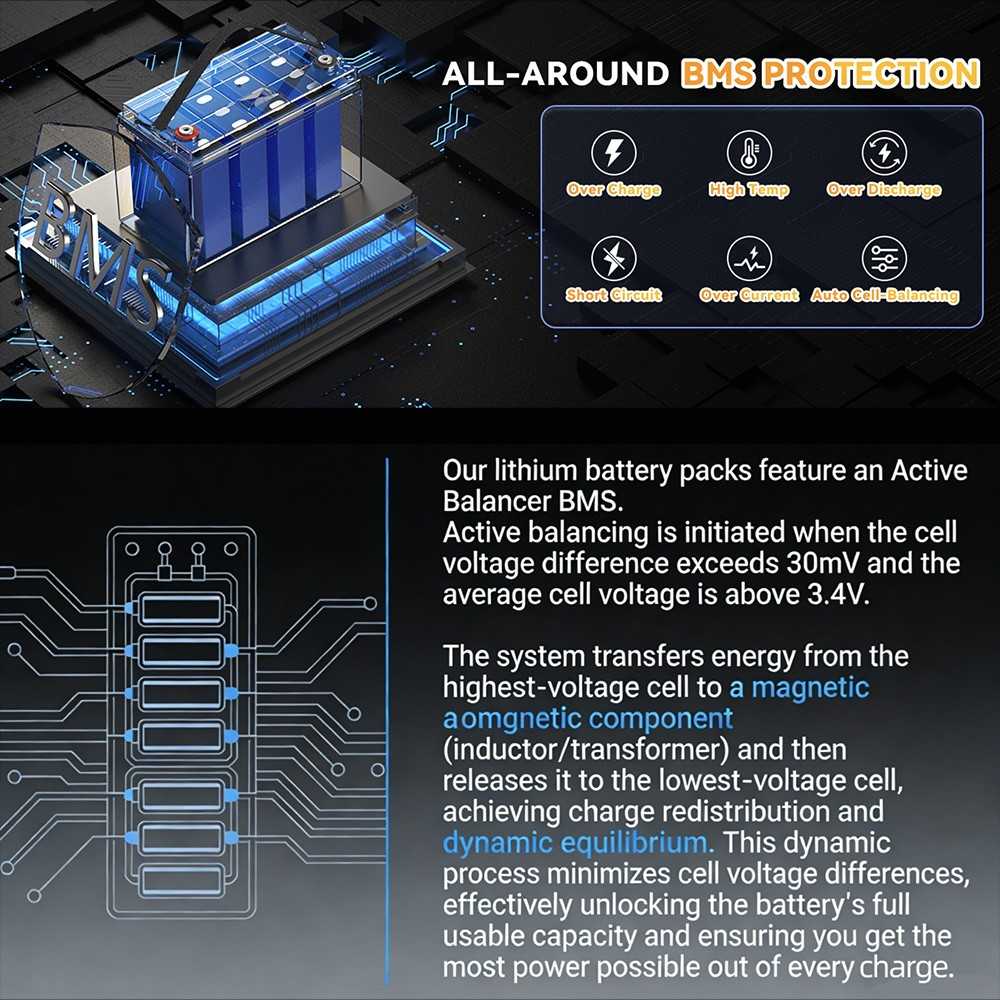

Safety and Management (BMS)
• Integrated BMS (Battery Management System)
Protection against:
- Overcharge
- Deep Discharge
- Overvoltage and Short Circuit

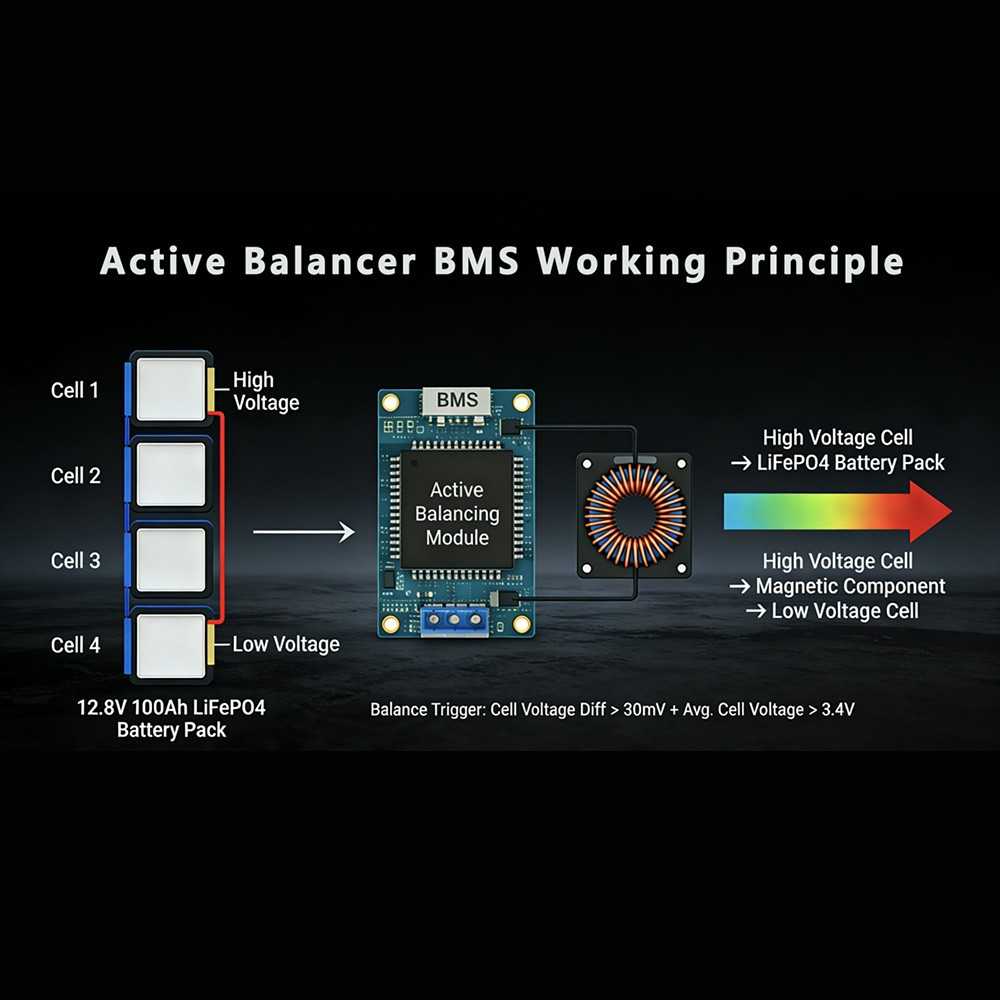

Active Cell Balancing:
- Transfers energy between cells to optimize capacity
- Improves efficiency and battery pack life

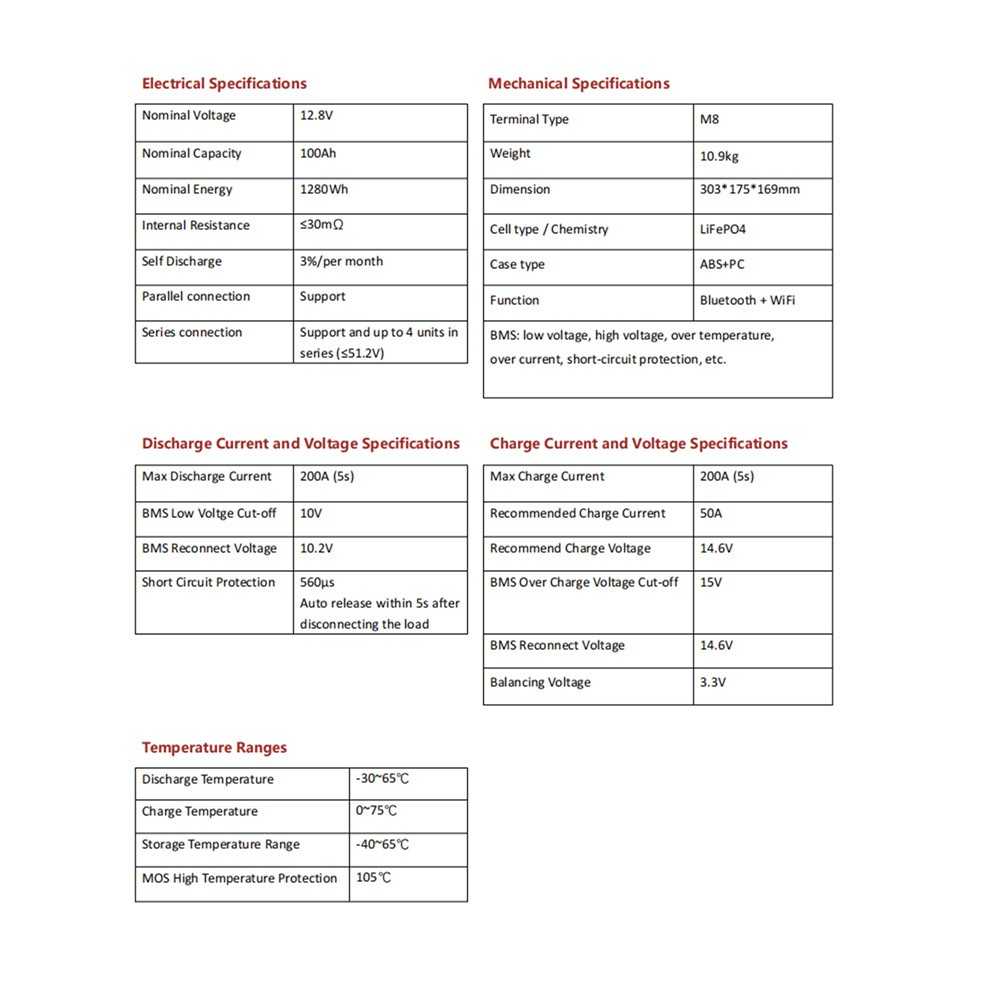

Electrical Specifications:
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Nominal Energy: 1280Wh
Internal Resistance: ≤30mΩ
Self Discharge: 3%/per month
Parallel connection: Support
Series connection: Support and up to 4 units in series (≤51.2V)
Mechanical Specifications:
Terminal Type: M8
Weight: 10.9kg
Dimension: 303x175x169mm
Cell type / Chemistry: LiFePO4
Case type: ABS+PC
Function: Bluetooth + WiFi
BMS: low voltage, high voltage, over temperature, over current, short-circuit protection, etc.
Discharge Current and Voltage Specifications:
Max Discharge Current: 200A (5s)
BMS Low Voltge Cut-off: 10V
BMS Reconnect Voltage: 10.2V
Short Circuit Protection: 560μs
- Auto release within 5s after
- disconnecting the load
Charge Current and Voltage Specifications:
Max Charge Current: 200A (5s)
Recommended Charge Current: 50A
Recommend Charge Voltage: 14.6V
BMS Over Charge Voltage Cut-off: 15V
BMS Reconnect Voltage: 14.6V
Balancing Voltage: 3.3V
Temperature Ranges:
Discharge Temperature: -30~65℃
Charge Temperature: 0~75℃
Storage Temperature Range: -40~65℃
MOS High Temperature Protection: 105℃
