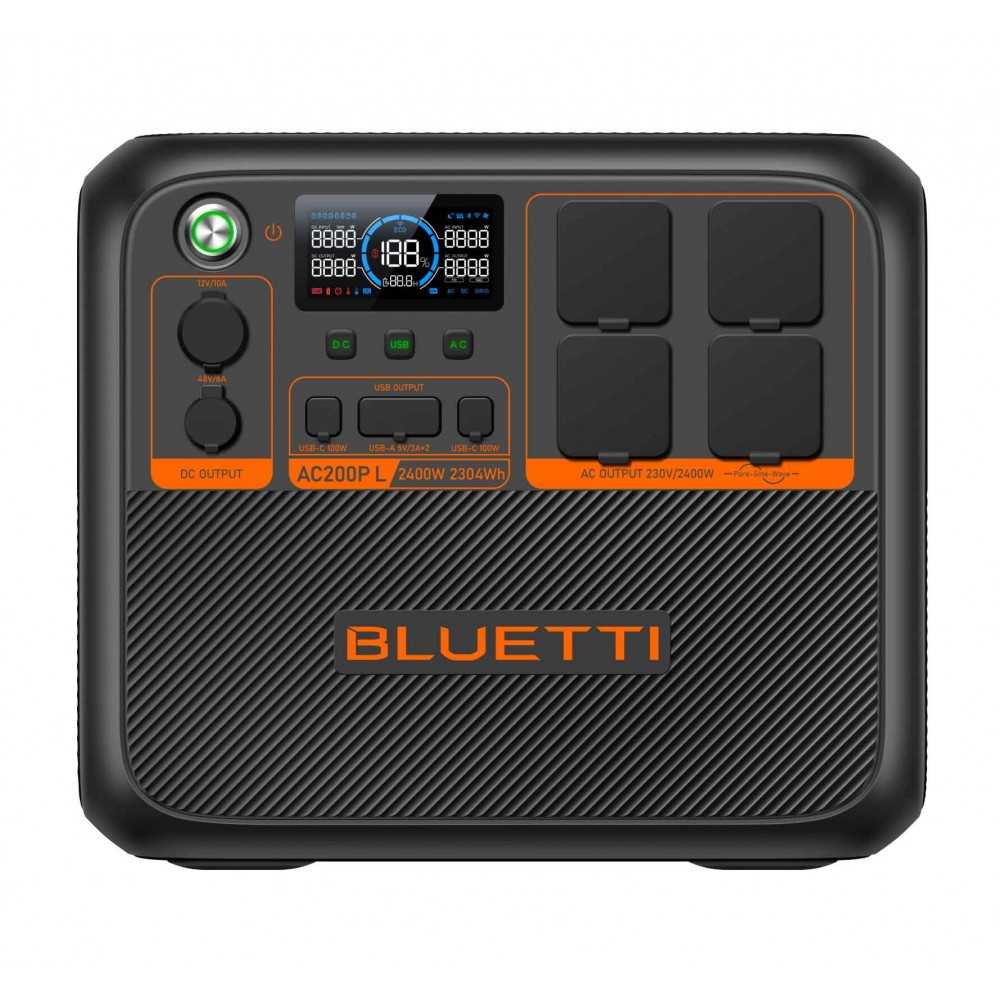

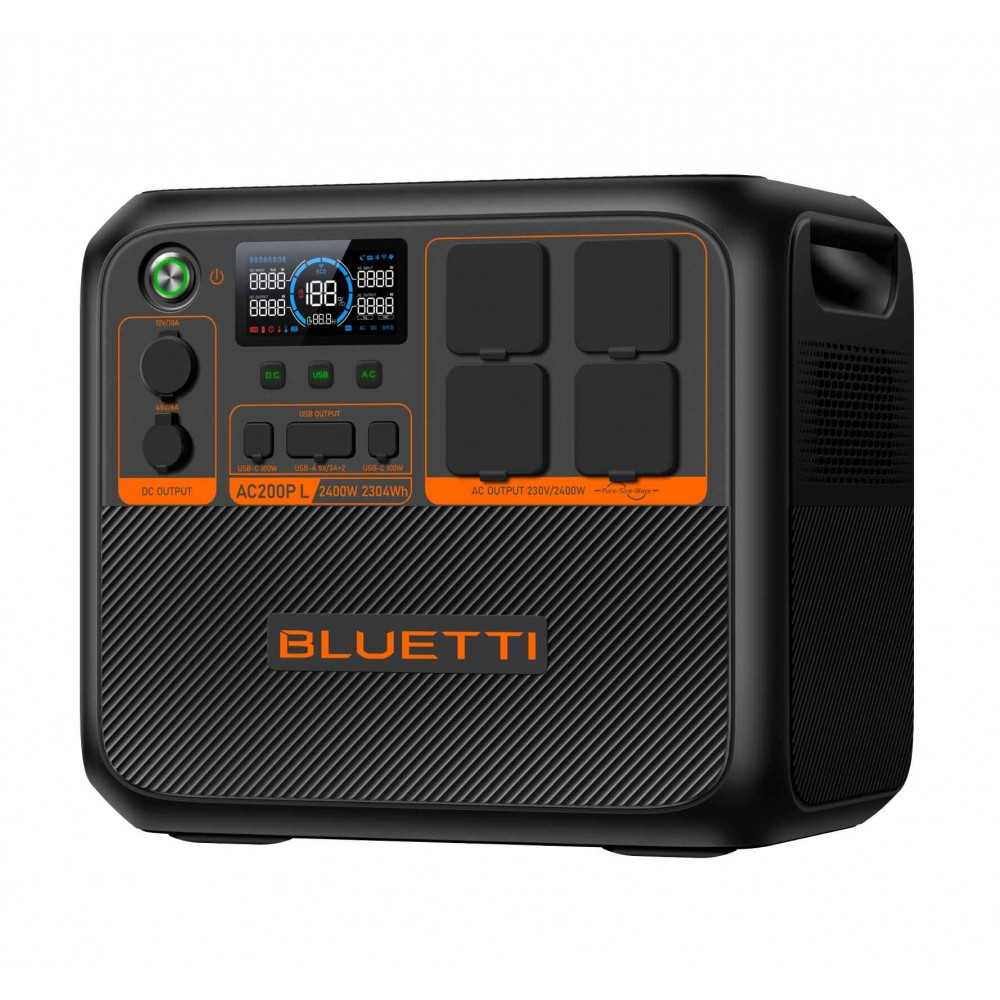

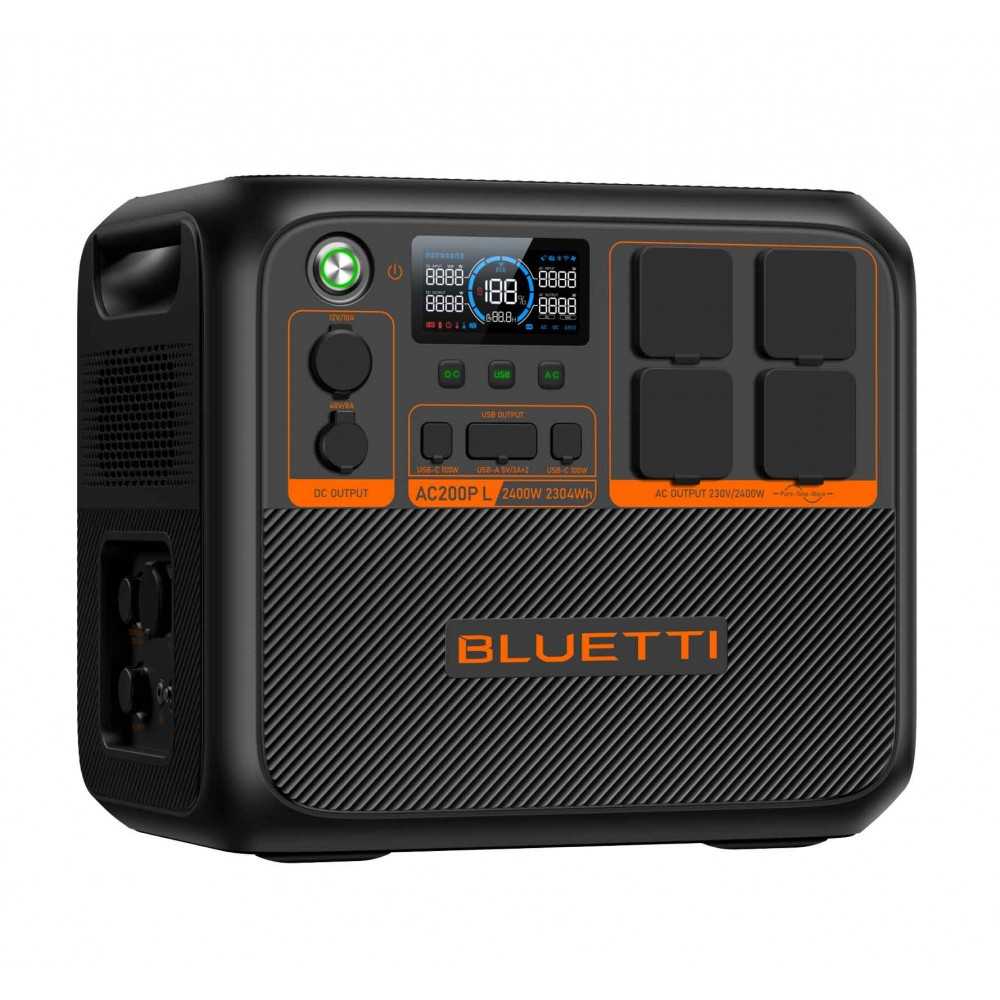

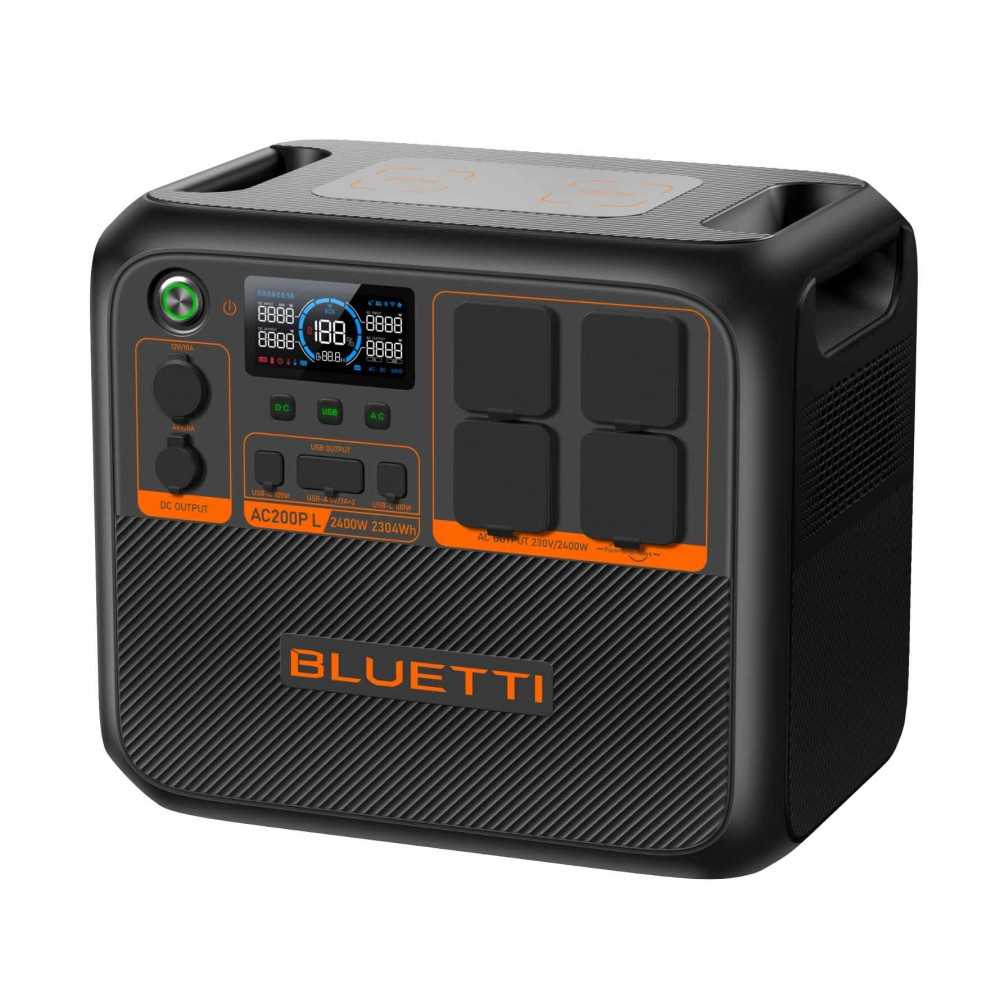

Bluetti AC200PL 2400W 2304Wh Expandable Power Station

Bluetti AC200PL 2400W 2304Wh Expandable Power Station

Ready for 99% of Your Devices
The AC200PL delivers a rated power of 2,400W, covering most loads in your RV or at home. Activate Power Lifting Mode via the BLUETTI app to take it even further, powering high-demand heating devices up to 3,600W.

• Get an ultra-fast charge to 80% in just 1 hour
• Expandable up to 8 kWh
• Fully compatible with B210P, B230, and B300 expansion batteries
• Provides 2,400W rated power, meeting the needs of various RV and home appliances

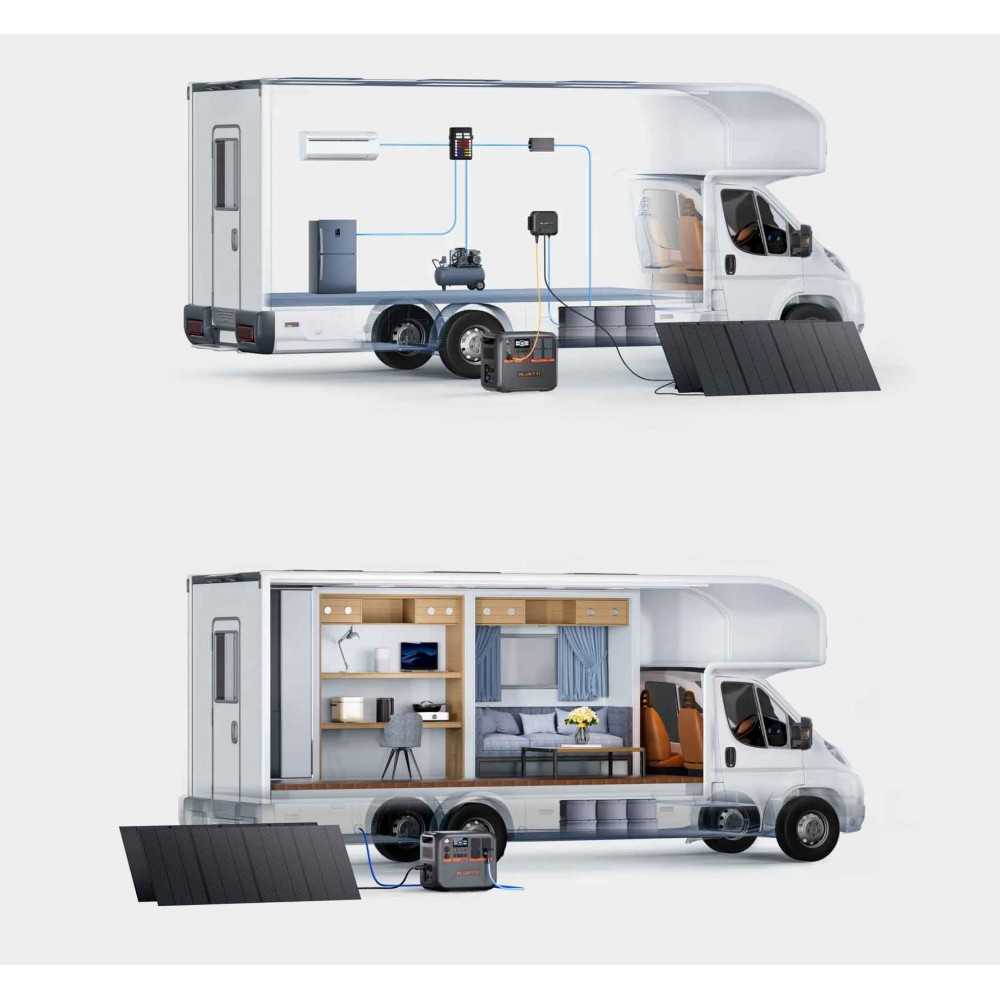

Your Plug-and-Play RV Power Solution
With the D40 voltage regulator*, a DC-DC charger designed exclusively for RVs, you can directly charge your 12V RV house batteries via the AC200PL, solar panels, or starter batteries. This ensures essential mobile-home appliances such as mini refrigerators, air conditioners, and tire pumps always have sufficient power.

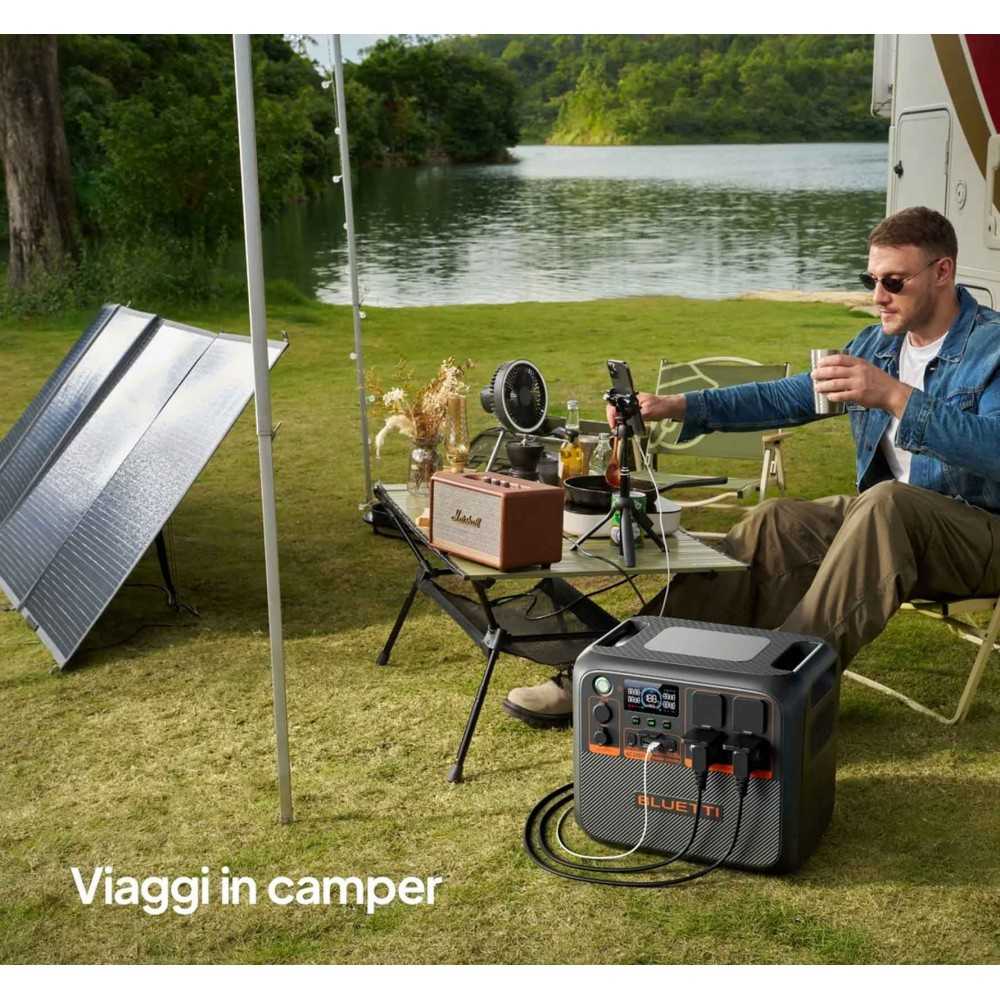

Power Your RV Anytime, Anywhere
Featuring a TT-30 port, the AC200PL can directly power your RV, making it a reliable energy source on wheels. Charge your laptop, phone, and camera while enjoying your meal in comfort and style.

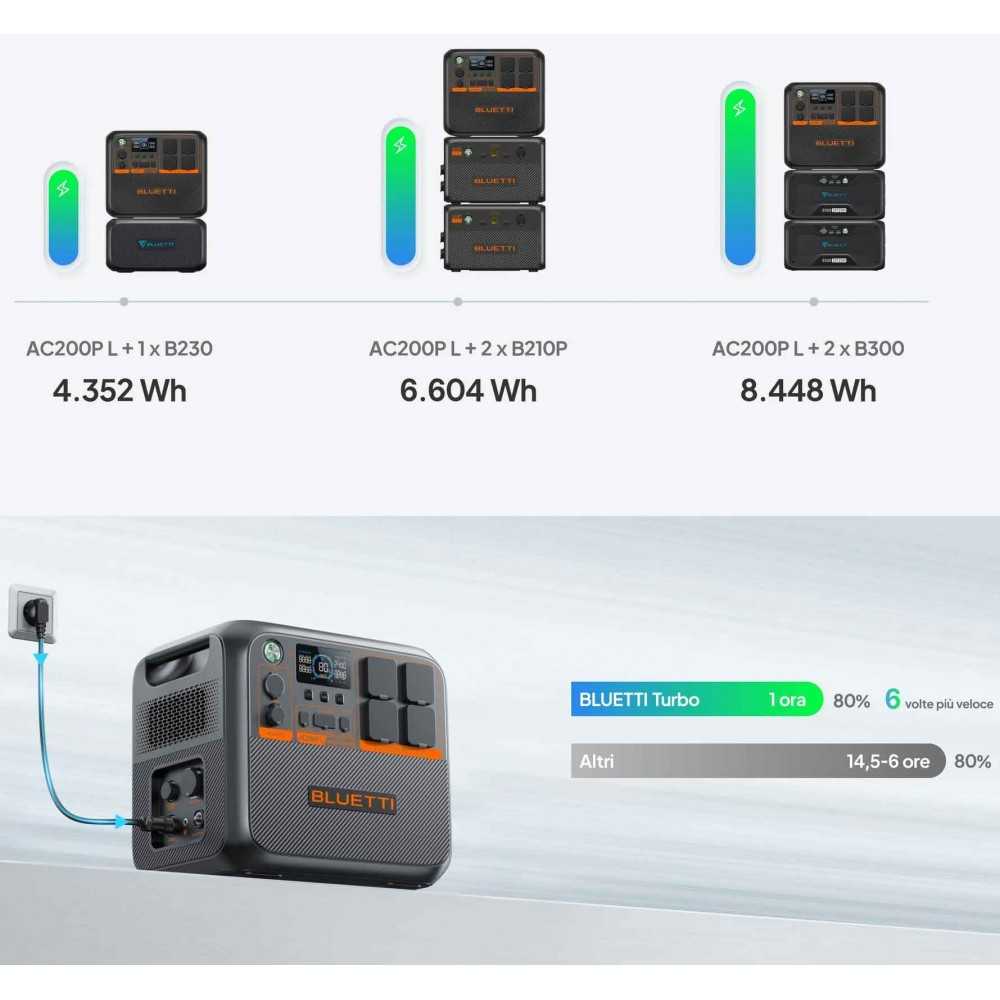

Expandable Capacity up to 8 kWh
The AC200PL is fully compatible with B210P, B230, and B300 expansion batteries, allowing you to customize capacity up to an impressive 8,448Wh. Unlocking virtually limitless power has never been easier.

Fastest Charging in the 2 kWh Power Station Class
With 2,400W Turbo Charging, reach 80% capacity in just 1 hour and achieve a full charge in only 1.5 hours. The AC200PL sets a new benchmark compared to most competitors on the market. Get powered up quickly for uninterrupted adventures.

Charge Your Way, Power Your Way
Recharge flexibly via AC outlets, solar panels, car chargers, generators, or lead-acid batteries. Stay powered and explore off-grid with confidence.

Technical Data:
BATTERY INFORMATION
Capacity: 2304 Wh (45 Ah)
Type: LiFePO4 (Lithium Iron Phosphate)
Life Cycles: Over 3,000 cycles to 80% of original capacity
Expiration Date: Recharge to 80% every 3-6 months
Management System: MPPT controller, BMS, etc.
OUTPUT
AC Outlets: 4 x 230 V/10.5 A - 2,400 W total
Inverter Type: Pure Sine Wave
Pulse Power: 2,500 W
USB-C Port: 2 x 100 W max.
USB-A port: 2 x 18 W (each port)
12 V DC socket: 1 x 12 V/10 A (regulated car socket)
48 V DC output: 1 x 48 V/8 A (RV output)
Wireless charging ports: 2 x 15 W
INPUT
AC power input (Turbo mode): 2,400 W maximum
Solar input: 1,200 W maximum, 12 V-145 V DC, 15 A
Car input: 12/24 V from cigarette lighter port
Maximum input: 2,400 W
CHARGE TIME
AC charging cable (950 W Turbo charging): ≈1.5 hours
Solar panel(s) (1,200 W): ≈2.5 hours (with bright sun, ideal orientation, and low Temperature)
GENERAL
Pass-through Charging: YES
Weight: Approximately 63.5 lbs / 28.8 kg

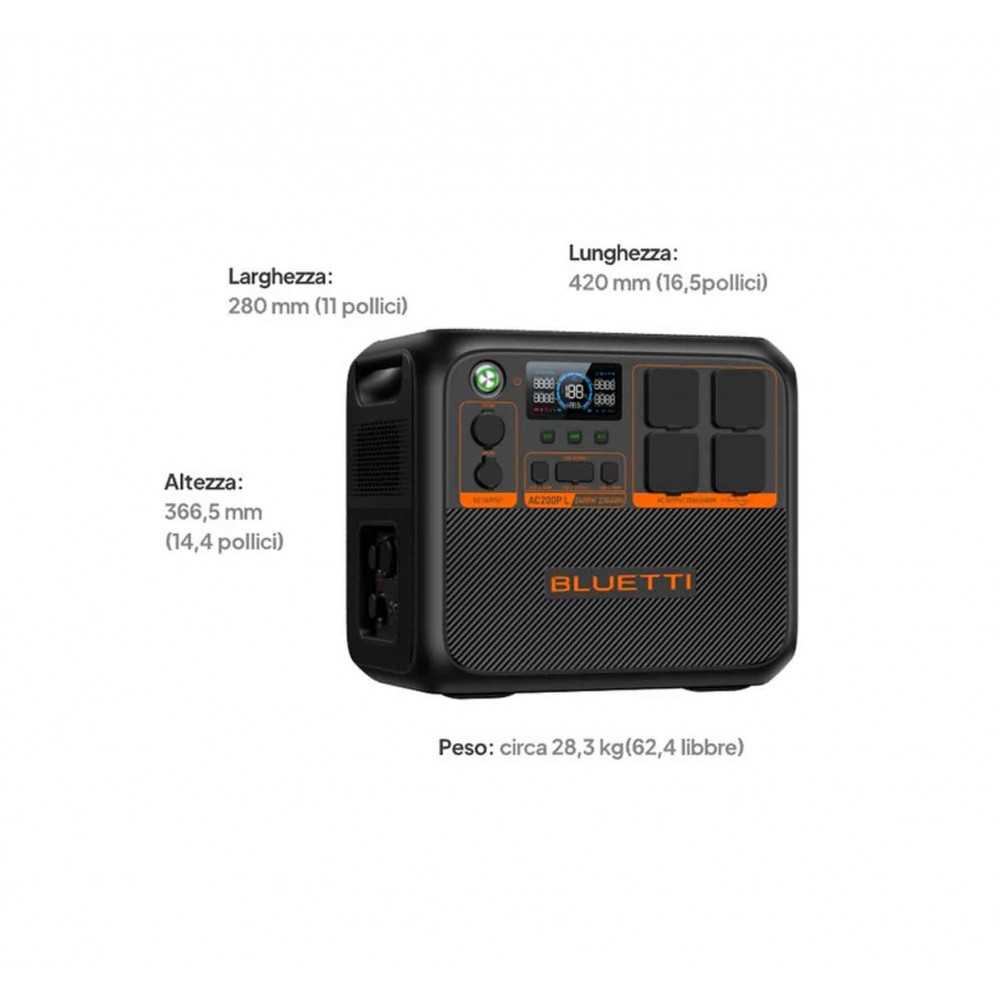

Dimensions (L × W × D): 420 mm × 280 mm × 366.5 mm / 16.5 in × 11 in × 14.4 in
Charging Temperature: 0°C-40°C / 32°F-104°F
Discharging Temperature: -20°C-40°C / -4°F-104°F
Storage Temperature: -20°C-40°C / -4°F-104°F
Certifications: UN38.3, UL, FCC, IC, CE, ROHS, TELEC, PSE, RCM, LOA
Warranty: 5 years
