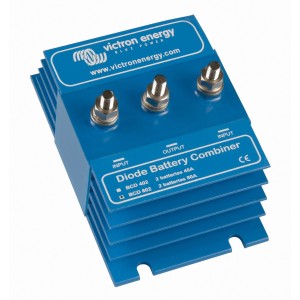

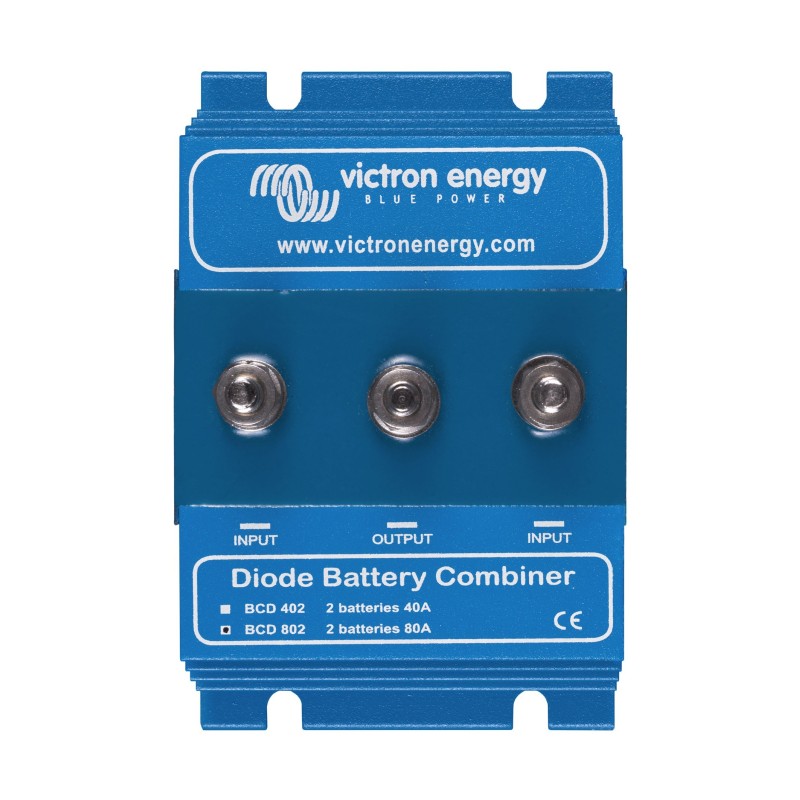

The Victron BCD 802 2 with 40A DC-performance is a diode battery combiner and is used to to supply important consumers with a stable DC-current. Thanks to these diodes this current can come from 2 sources, for example 2 battery circuits.
If one source is not sufficient the second one is used additionally.

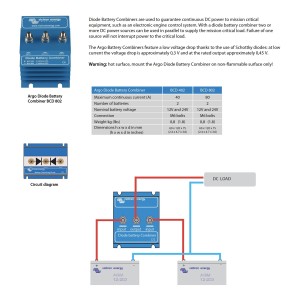

Diode battery combiners are used to ensure a constant DC-current for important consumers, for example an electronical motor-control-system. With help of these combiners two or more DC-sources can be connected parallely. If one source is not sufficient or if there is a failure power supply is not interrupted.
Argo battery combiners produce only a very small voltage loss due to the use of Schottky-diodes: voltage loss (low current) at ~ 0.3V and nominal output ~ 0.45V.

Specifications:
Model: BCD 802;
Maximum continuous current: 80 A;
Number of batteries: 2;
Nominal battery voltage: 12V and 24V;
Connection: M6 bolts;
Weight: 0,8 kg (1,8 lbs);
Dimensions HxWxD: 60x120x75 mm (2.4 x 4.7 x 3.0 inches).
