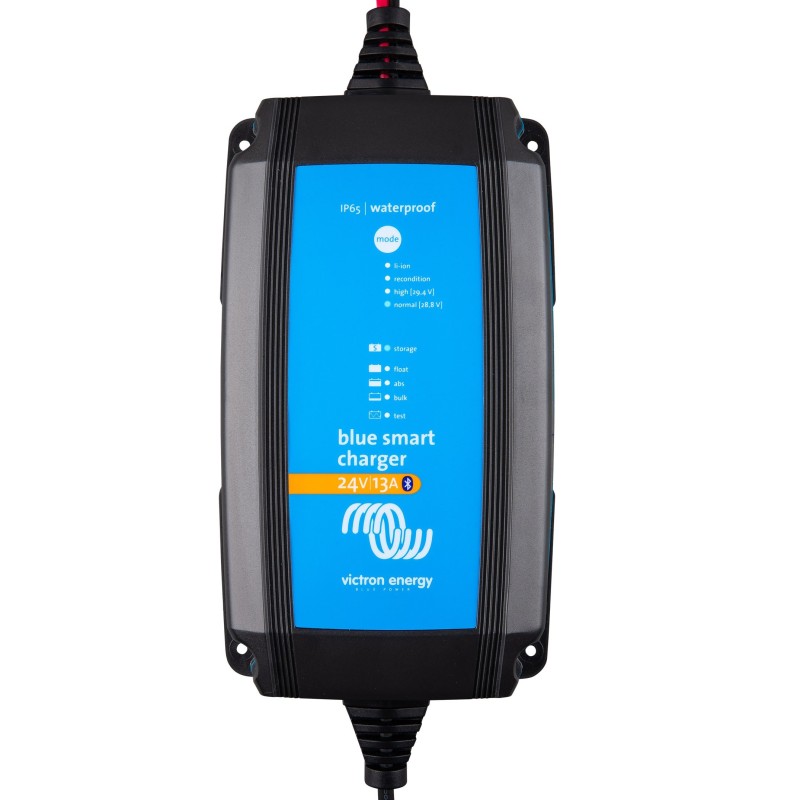

Victron Energy Blue Smart IP65 24/13 24V 13A Portable Battery Charger
The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
The battery is charged, smartly... to perfect condition
The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and a longer life.
Recovery of deeply-discharged 'dead' batteries
Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.
Connect the battery with ease
The charger comes with both crocodile clips and M8 eyelets - making it easy to connect to the battery. If you wish, you can leave it permanently connected.
Check the status of your battery remotely
The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app.
• Water, dust and chemical resistant
• Seven step smart charge algorithm
• Recovery of fully discharged ‘dead’ batteries
• Automatic power supply function
• Severe cold performance: down to -30°C
• Several other battery life enhancing features
• Low power mode to charge smaller batteries
• Li-ion battery mode
• Setup and configure, readout of voltage and current by Bluetooth Smart

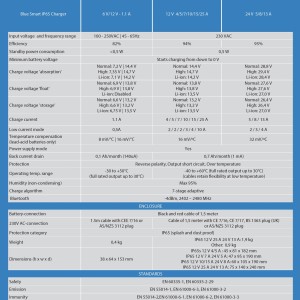

Specifications:
Model: Blue Smart Charger 24/13;
Input voltage and frequency range: 230VAC;
Efficiency: 95%;
Standby power consumption: 0.5W;
Maximum and minimum battery voltage: Start charging from 0V;
“Absorption” charging voltage:
- Normal: 28.8V
- High: 29.4V
- Li-ion: 28.4V
“Float” charging voltage:
- Normal: 27.6V
- High: 27.6V
- Li-ion: 27.0V
“Storage” charging voltage:
- Normal: 26.4V
- High: 26.4V
- Li-ion: 27.0V
Charging Current: 13 A;
Low Current Mode: 4 A;
Temperature compensation: 32 mV/ºC;
Power Mode: Yes;
Current losses: 0.7 Ah/month (1 mA);
Protection: Reverse polarity, Output short circuit, Over temperature;
Operating Temperature Range: -40 to +60°C (full output down to 30°C), (cables retain flexibility at low temperatures);
Humidity (non-condensing): Max 95%;
Charging algorithm: 7-stage adaptive;
Bluetooth: -4 dBm, 2402 – 2480 MHz.
CARCASS
Battery connection: 1.5 m black and red cable;
230V AC connection: 1.5 meter cable with (UK) CE 7/16, CE 7/17, BS 1363 or AS/NZS 3112 plugs;
Protection category: IP65 (protection against splashes and dust);
Weight: 1.9 kg;
Dimensions (HxWxD): 75x140x240 mm.
REGULATIONS
Safety: EN 60335-1, EN 60335-2-29
Emissions: EN 55014-1, EN 61000-6-3, EN 61000-3-2
Immunity: EN 55014-2,EN 61000-6-1, EN 61000-6-2, EN 61000-3-3

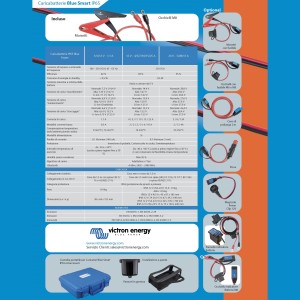

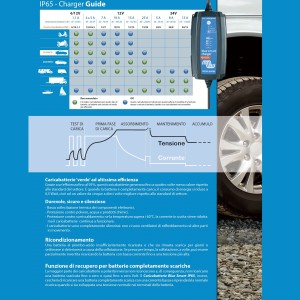

For further information, please refer to the technical datasheet and also images.
