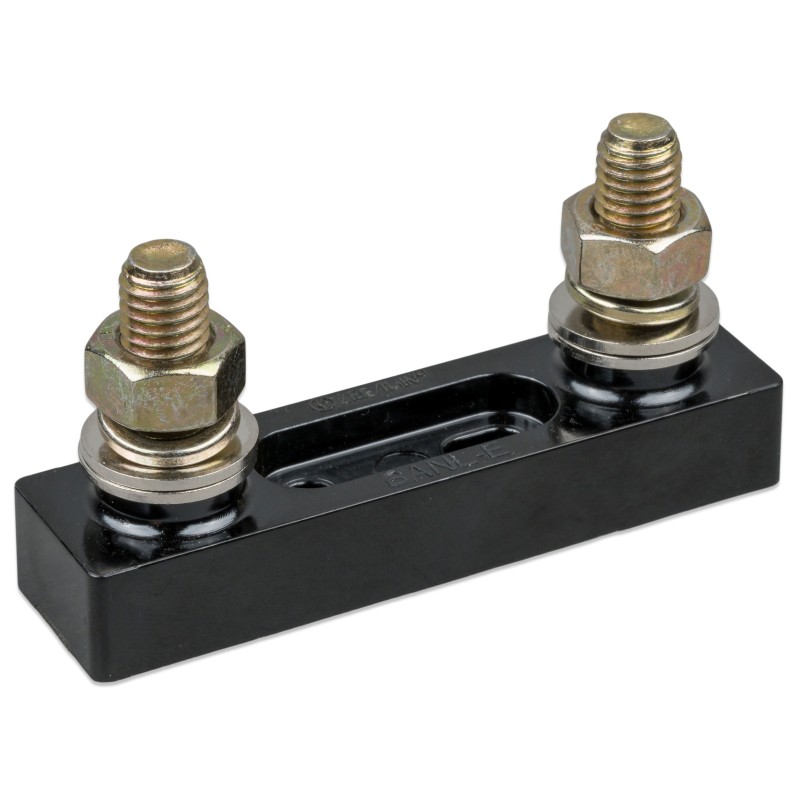

Victron BANL-E Fuse Holder for ANL-fuse 90x22mm 10mm Screw

Victron Energy BANL-E Fuse Holder for ANL-fuse
The BANLE fuse holder from Victron Energy (MPN CIP106100000) is used for the safe installation of DC ANL-Fuse strip fuses. The holder is equipped with nuts and snap rings to ensure the lowest possible contact resistance. ANL fuses can be used in circuits with a high operating voltage of up to 80V/DC.
Fuses of the ANL-Fuse type are strip fuses and are screwed directly to the holder to ensure optimal contact. Corresponding nuts and snap rings are already pre-assembled on the holder.

Area of application of the ANL fuses
Areas of application for ANL fuses are power networks with an operating voltage of up to 80V/DC, such as in many electric forklifts. But ANL fuses are also often used in the marine sector.

Features:
500A max. current at max. 80V DC
For ANL-Fuse type fuses
For safe installation with low contact resistance
Material: high-strength plastic mixture
Base 90x22x14 mm.
Height 46±2 mm.
On-centre spacing 60 mm.
Screw Ø10 mm.
