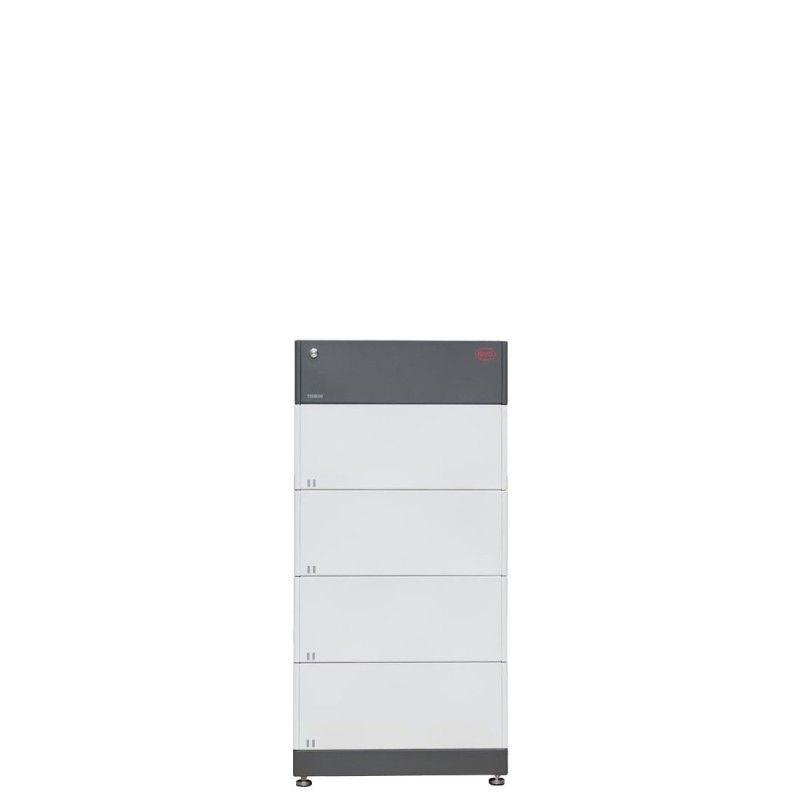

BYD Battery-Box Premium HVM 11.0 11.04kWh 4 lithium Box-Batteries with BMS

BYD Battery-Box Premium HVM 11.0 11.04kWh 4 lithium Box Batteries with BMS

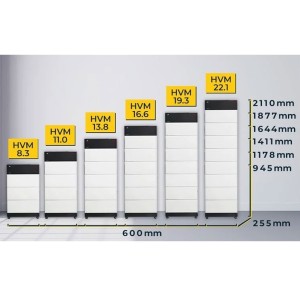

The Battery-Box Premium HVM is made of 4 high voltage lithium batteries connected in series, the 2.76 kWh 51.2 V each one BMS control module and the battery module support base to obtain a usable capacity of 11.04 kWh. Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVM allows a maximum capacity of 66.2 kWh. Ability to scale by adding HVM modules or parallel HVM stacks later.
• Capable of High-Powered Emergency-Backup and Off-Grid Functionality
• Highest Efficiency Thanks to a Real High-Voltage Series Connection
• The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use
• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power

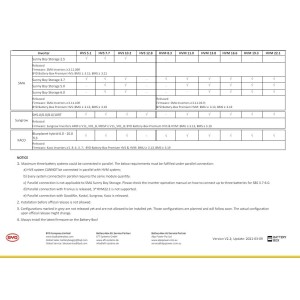

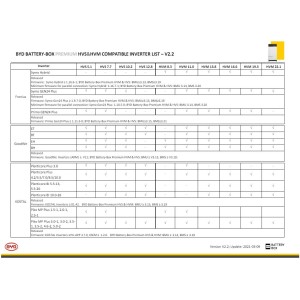

• Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters
• Two Distinct Modules to Cover the Complete Range of System Sizes
• Highest Safety Standards like VDE 2510-50
Lithium iron phosphate batteries are the safest batteries on the market.
- The maximum working temperature is the one released in case of damage to the battery and is the lowest temperature among the different chemistries of lithium ion batteries.

NOTE: The BYD HVM battery is made of a minimum of 3 HVM + BMS modules to a maximum of 8 HVM + BMS modules.

Features
Model: HVM 11.0;
Battery module: HVM (2.76 kWh, 51.2 V, 38 kg);
Number of modules: 4;
Available Energy: 11.04 kWh;
Maximum Output Current: 50 A;
Peak Output Current: 75 A, 3s;
Rated Voltage: 204.8V;
Operating Voltage: 160~236 V;
Dimensions (H/W/D): 1228x585x298 mm;
Weight: 167 kg.
