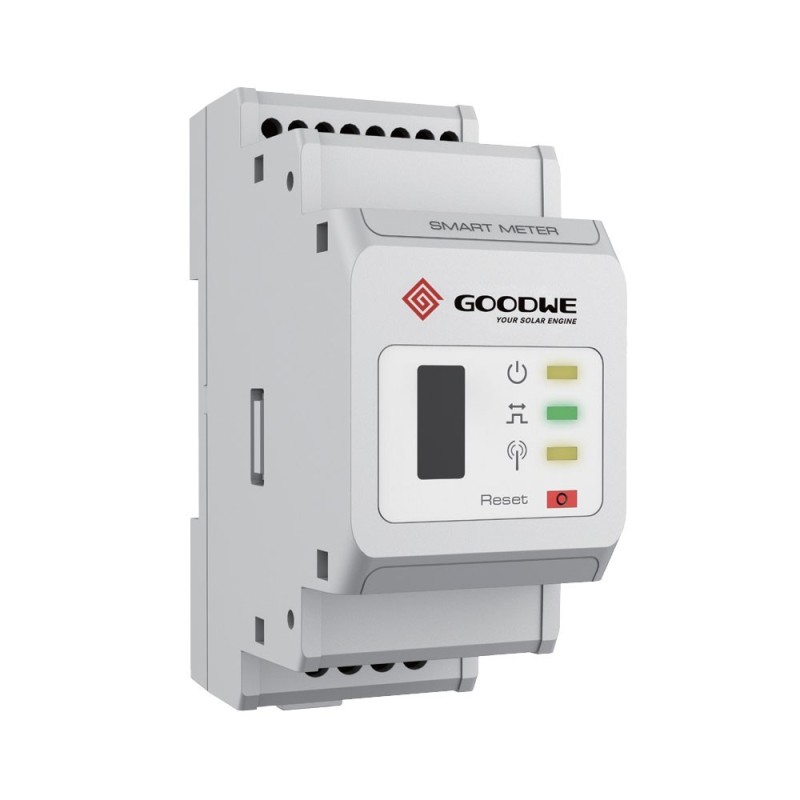

GoodWe GM3000 120A 40mA 3L+N/400Vac 3-Phase Smart Power Sensor
GoodWe Smart Meter is designed with high precision small dimensions, convenient operation and installation. It is available for three-phase grid system connection to detect voltage, current, power and energy, for working with inverters including SEMS systems for the purpose energy management.
To detect voltage, current, power and energy, and for working with inverters including SEMS systems for the purpose of energy management.
Technical Specification
Model: GM3000;
Application: Three-phase;
Nominal Voltage: 3L+N/400Vac;
Voltage Range: 0.7~1.2 Un;
Frequency: 50Hz/60Hz;
Current Input: External opening and closing CT access: 120A/40mA;
Self-Consumption: <3W;
Data Detection: Voltage, current, active power, reactive power, power factor, frequency;
Energy Calculation: Active/ Reactive Power Energy;
Voltage/Current: Class 1;
Active Power: Class 1;
Reactive Power: Class 2;
Communication with inverter: RS485;
Interface: 3 LED (power, energy consumption, communication), USB port, reset button;
Protection Class: IP20 (for indoor use);
Installation method: Mounting rack;
Operating Temperature: -20 ~ 60°C,
Operating Humidity: <95%, No condensation;
Altitude: <2000m;
Size (LxWxH): 36x85x66.5 mm;
Weight: ±420 g.
IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
