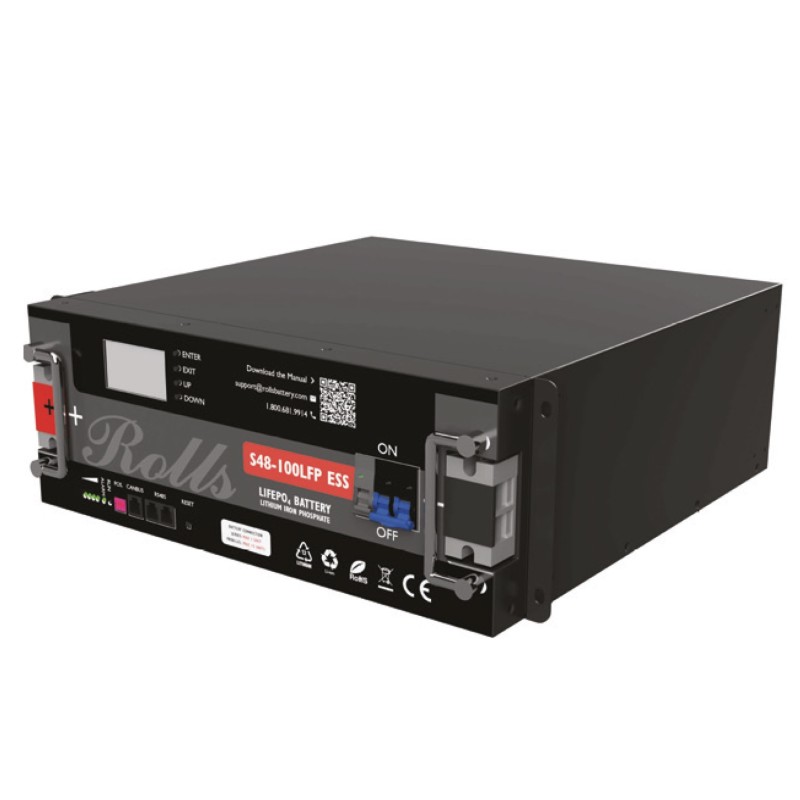

Rolls S48-100LFP ESS 48V 100Ah 5.12kWh LiFePO4 Battery

This article will be assembled to order and requires approximately 30-45 working days from date of order for shipping.

Rolls S48-100LFP ESS 48V 100Ah 5.12kWh LiFePO4 Battery

Rolls 48V 100Ah S-Series Lithium-Iron-Phosphate (LiFePO4) Energy Storage System (ESS) models offers a fully integrated and scalable energy storage solution with built-in LCD screen & controls, secondary protections in a rack-mount 19”(482mm) 4U case design. The optional Rolls LFP ESS modular cabinet allows up to 8-unit installation with topmount connectivity, including CAN bus, and locking casters, offering added safety in a custom, steamlined design.
Rolls UL1973-certified high performance S48-100LFP ESS offers a compact 48V 100Ah energy storage solution in a 4U case design for installation in standard 19” racking systems.
Featuring a customized BMS, primary and secondary operating protections, an integrated display & controls showing realtime state-of-charge and error indication, external breaker access, CAN BUS, RJ485 & PC Connectivity. For increased capacity, up to 16 units may be connected in parallel.
An optional Rolls LFP ESS Cabinet with fully integrated combiner boxes, top-mount connections, locking casters and modular construction for up to eight (8) 2U, 3U or 4U unit installation is also available.
• 19” rack compatible case design
• Integrated display with controls
• State-of-charge & error indication
• Customized BMS with operating protections
• CAN BUS & RJ485
• PC Connectivity
• Secondary protection
• External breaker access
• Optional modular 4U cabinet
• UL1973
• 3-year warranty

Technical data:
Model: S48-100LFP ESS
Voltage: 51.2V;
Rated capacity: 100Ah;
Rated capacity: 5,12kWh;
BCI: 4U
Terminal type: M8;
Lenght: 21.8” I 555 mm;
Width: 17.4” I 442 mm;
Height: 6.8” I 173 mm;
Weight: 111.3lbs | 50,5 kg.
