6kW 7200W Single-Phase On-Grid Photovoltaic Kit with Solis Inverter and Backup + Dyness 10.24kWh Battery

6kW 7200W Single-Phase On-Grid Photovoltaic Kit with Solis Inverter and Backup + Dyness 10.24kWh Battery

The grid-connected photovoltaic kit, also known as an ON-GRID photovoltaic system, is designed to connect directly to the public electricity grid. This type of system allows you to use the solar energy generated by photovoltaic panels to power electrical appliances in your home or building in real time.
When energy production exceeds consumption, the surplus is fed into the grid, enabling you to benefit from energy credits or financial compensation through net metering (where applicable).
The version with integrated energy storage allows you to store the solar energy in batteries, making it available even during nighttime or when sunlight is insufficient.

Key Benefits:
• Immediate self-consumption of solar energy
• Smart energy storage for later use
• Lower utility bills and reduced environmental impact
• Grid connection to export surplus energy
• Greater energy independence and usage flexibility

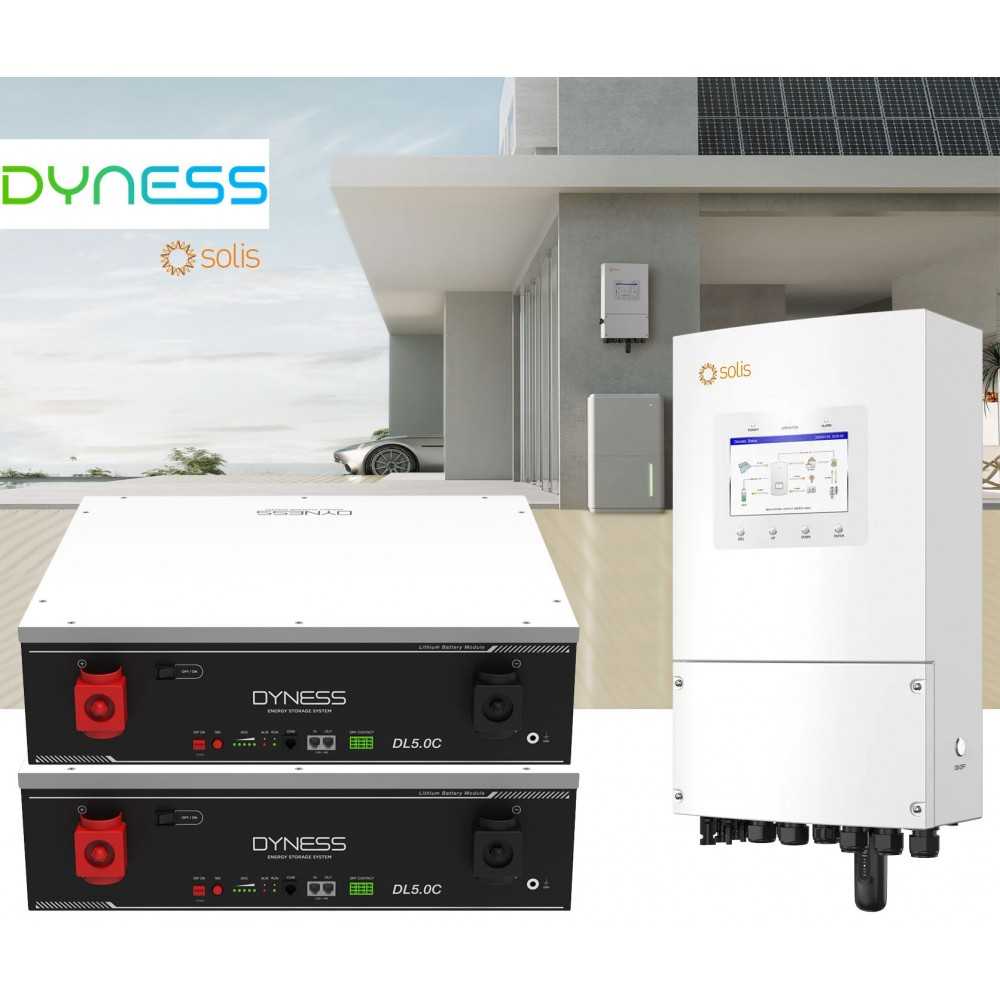

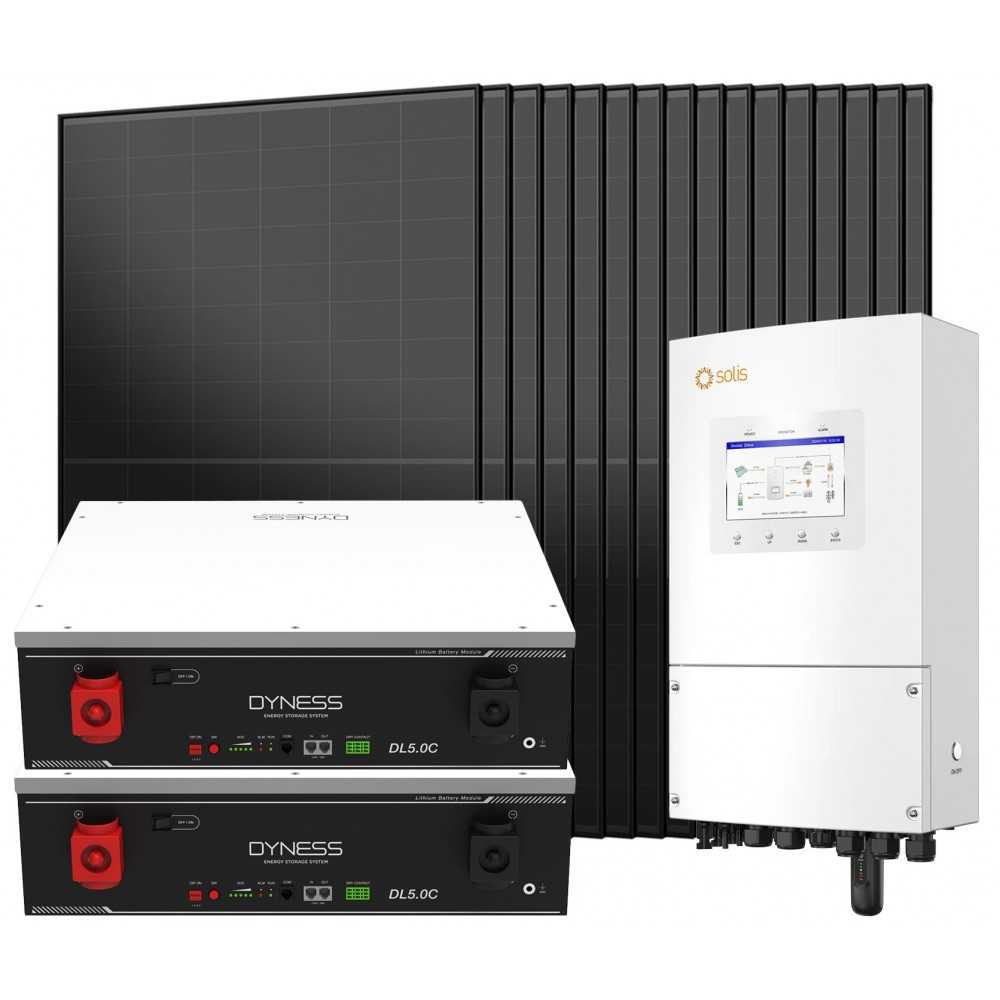

The kit is made by:
(16) Monocrystalline photovoltaic panel 450W or higher (Color and brand will be supplied according to current stock availability);
(1) Solis S6-EH1P6K-L-PLUS 6kW 12000W 2MPPT Backup Single-Phase Hybrid Inverter #S6EH1P6KLP;
(2) Dyness DL5.0C 5.12kW 51.2V LiFePO4 Lithium Battery #DYDL50C.

(16) Monocrystalline photovoltaic panel 450W or higher (Color and brand will be supplied according to current stock availability)

High-performance photovoltaic module with monocrystalline silicon cells, designed for residential, industrial, or off-grid systems. Ideal for maximizing energy production even in small spaces, thanks to the high efficiency of the cells.

Main Features:
• Rated power: 450W or more
• Technology: High-efficiency monocrystalline cells
• Positive tolerance: 0 / +5W for guaranteed maximum output
• Module efficiency: up to 23% (depending on the model)
• Anodized aluminum frame and anti-reflective tempered glass
• Weatherproof (snow and wind load, IP68 rating)
• Certifications: IEC 61215 / 61730, CE, TÜV, ISO

Recommended applications:
Residential photovoltaic systems (on-grid and off-grid)
Cabins, campers, vans, boats, residential containers
Storage systems (lithium or AGM batteries)

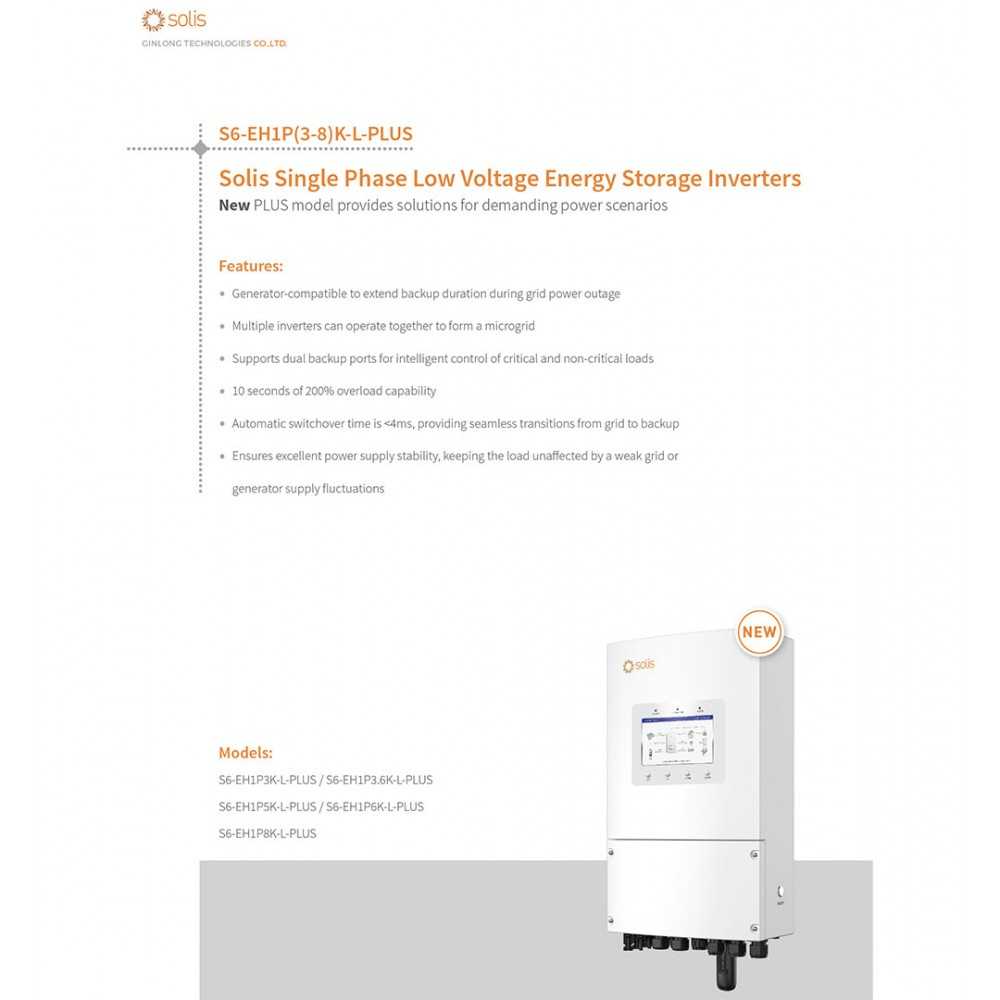

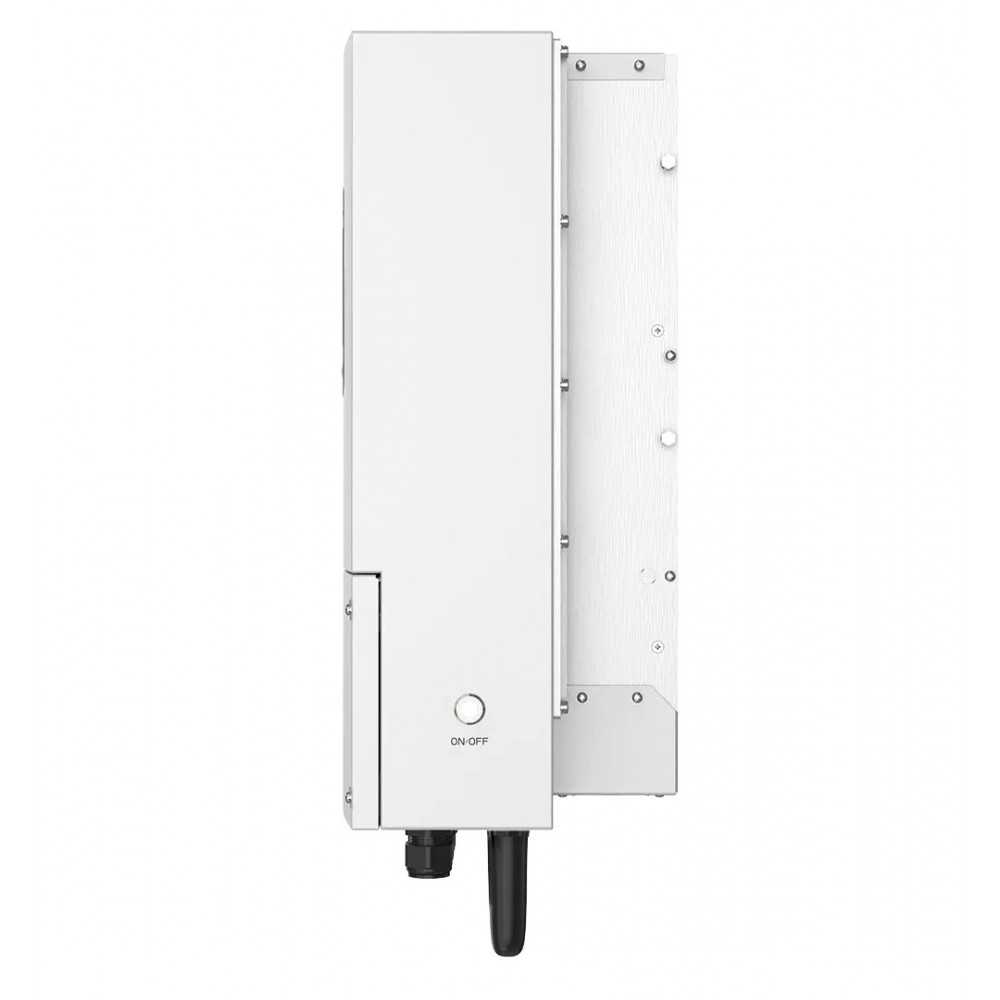

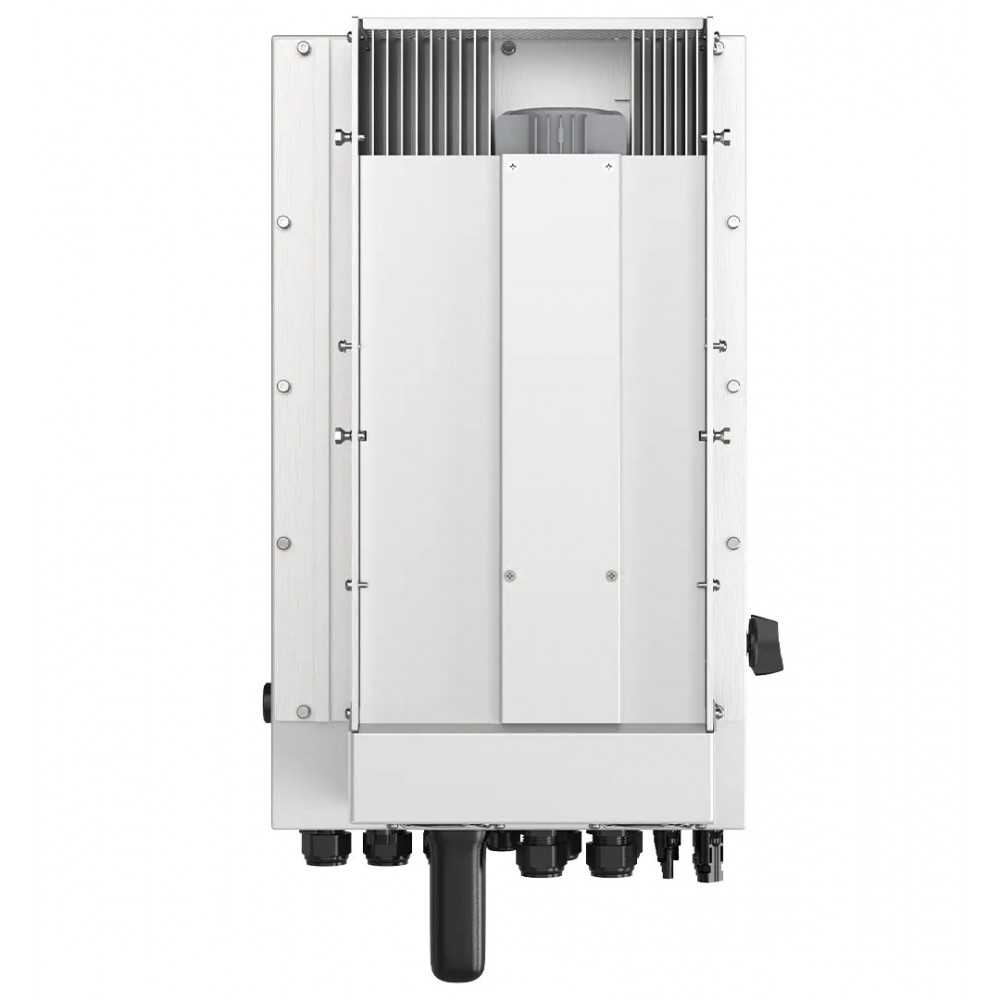

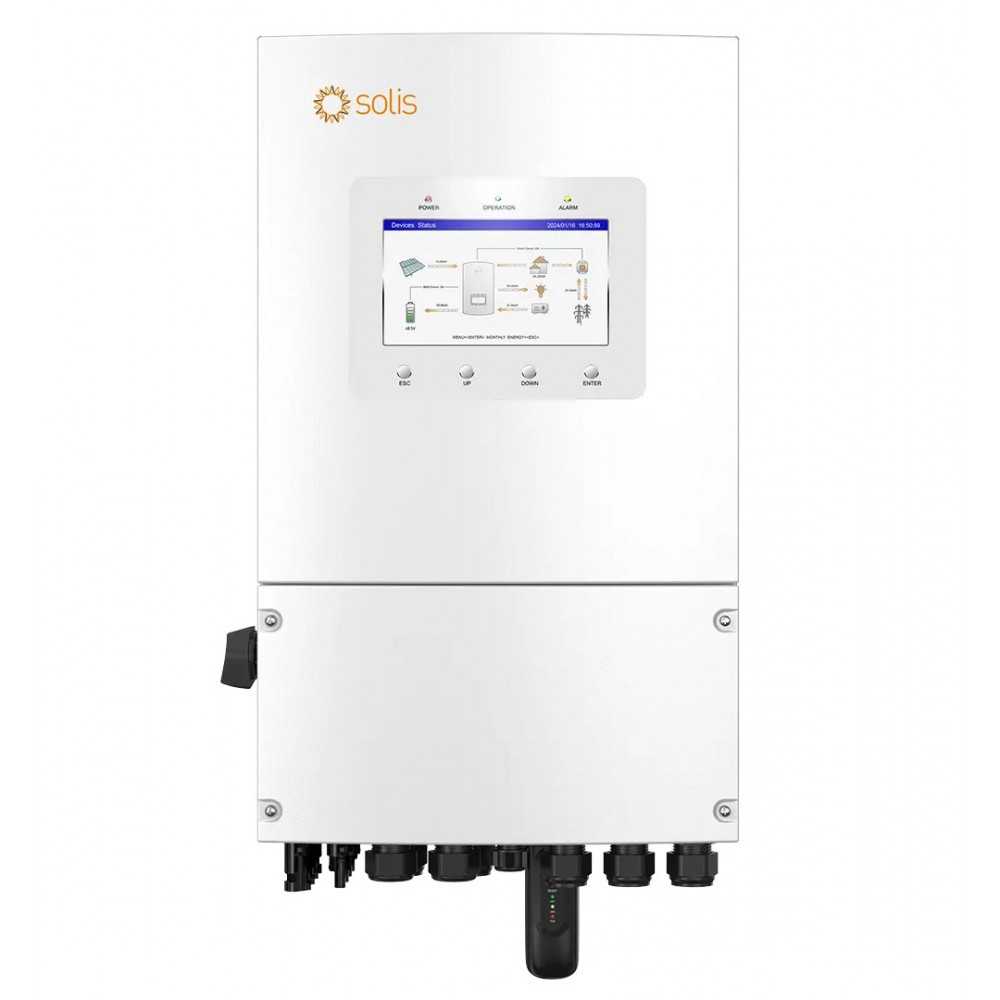

(1) Solis S6-EH1P6K-L-PLUS 6kW 12000W Single-Phase Hybrid Inverter 2MPPT Backup

S6-EH1P6K-L-PLUS series energy storage inverter is suitable for residential PV energy storage system, support up to 32A MPPT current input, suitable for various high power PV panels; 6-stage timed charge and discharge function, integrated battery treatment and protection functions, more friendly to batteries. And can support multiple inverters in parallel to form a single-phase or three-phase system with a maximum power of 48kW. With UPS switching and provides an independent generator interface to make energy applications more reliable. The product provides solutions for demanding power scenarios with residential energy storage systems.

• Generator-compatible to extend backup duration during grid power outage
• Multiple inverters can operate together to form a microgrid
• Supports dual backup ports for intelligent control of critical and non-critical loads
• 10 seconds of 200% overload capability
• Automatic switchover time is <4ms, providing seamless transitions from grid to backup
• Ensures excellent power supply stability, keeping the load unaffected by a weak grid or generator supply fluctuationsps

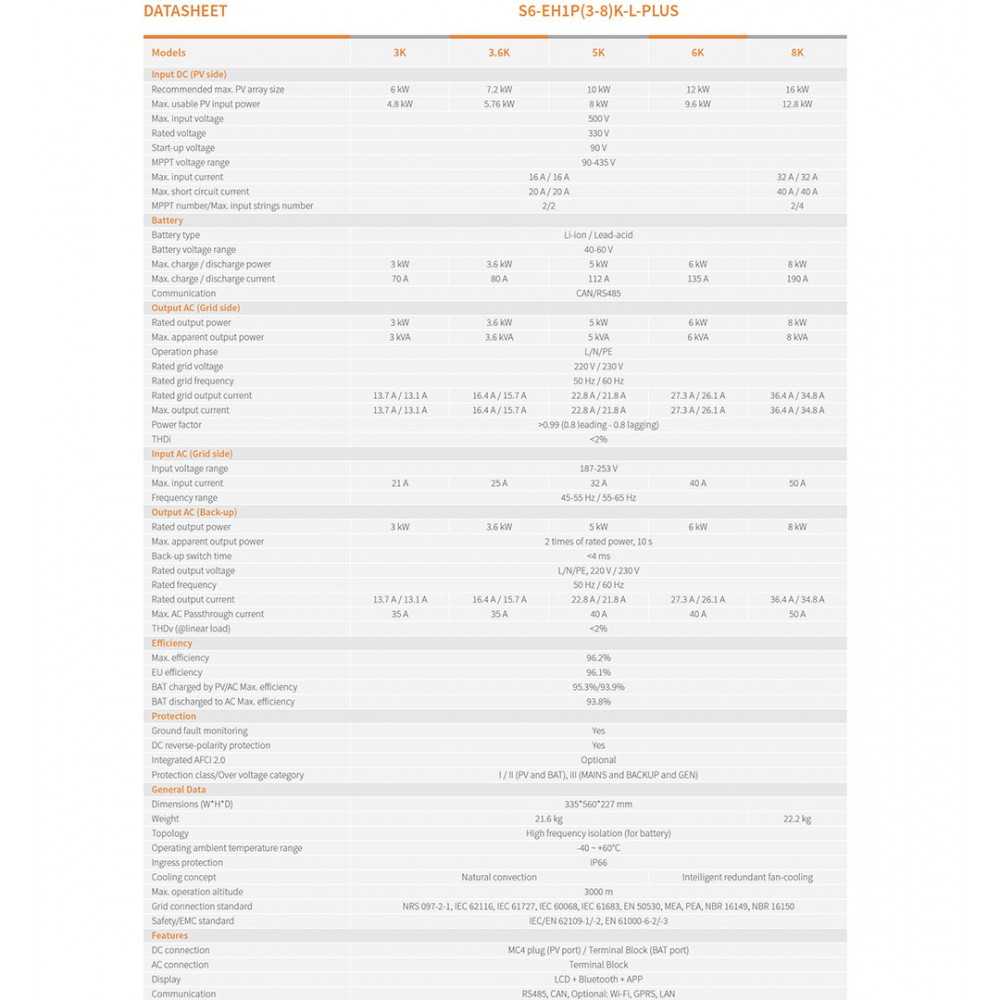

Technical specifications
DC input
Recommended photovoltaic power: 12 kW
Max. usable PV input power: 9.6 kW
Absolute maximum voltage: 500 V
Rated Voltage: 330 V
Starting Voltage: 90 V
MPPT Voltage Range: 90-435V
Maximum input current: 16 A / 16 A
Maximum short circuit current: 20 A / 20 A
Maximum MPPT number/Number of strings: 2/2
Battery
Battery type: Li-ion / Lead-acid;
Battery voltage range: 40 - 60 V;
Max. charge / discharge power: 6 kW;
Max. charge / discharge current: 135 A;
Communication: CAN/RS485
Output AC (Grid side)
Rated output power: 6 kW
Max. apparent output power: 6 kVA
Operation phase: L/N/PE
Rated grid voltage: 220 V / 230 V
Rated grid frequency: 50 Hz / 60 Hz
Rated grid output current: 27.3 A / 26.1 A
Max. output current: 27.3 A / 26.1 A
Power factor: >0.99 (0.8 leading - 0.8 lagging)
THDi: <2%
Input AC (Grid side)
Input voltage range: 187-253 V
Max. input current: 40 A
Frequency range: 45-55 Hz / 55-65 Hz
Output AC (Back-up)
Rated output power: 6 kW
Max. apparent output power: 2 times of rated power, 10 s
Back-up switch time: <4 ms
Rated output voltage: L/N/PE, 220 V / 230 V
Rated frequency: 50 Hz / 60 Hz
Rated output current: 27.3 A / 26.1 A
Max. output current: 40 A
THDv (@linear load): <2%
Efficiency
Maximum efficiency: 96.2%
EU efficiency: 96.1%
BAT charged by PV/AC Max. efficiency: 95.3%/93.9%
BAT discharged to AC Max. efficiency: 93.8%
Protection
Ground fault monitoring: Yes
DC reverse-polarity protection: Yes
Integrated AFCI: optional
Protection class/Over voltage category:I / II (PV and BAT), III (MAINS and BACKUP and GEN)
General data
Dimensions (WxHxD): 335x560x227 mm
Weight: 21.6 kg
Topology: Hight frequency isolation (for Battery)
Operating environment temperature range: -40 ~ +60°C
Degree of protection: IP66
Cooling method: Intelligent redundant fan-cooling
Maximum operating altitude: 3000m
Safety/EMC standards: IEC/EN 62109-1/-2, EN 61000-6-2/-3

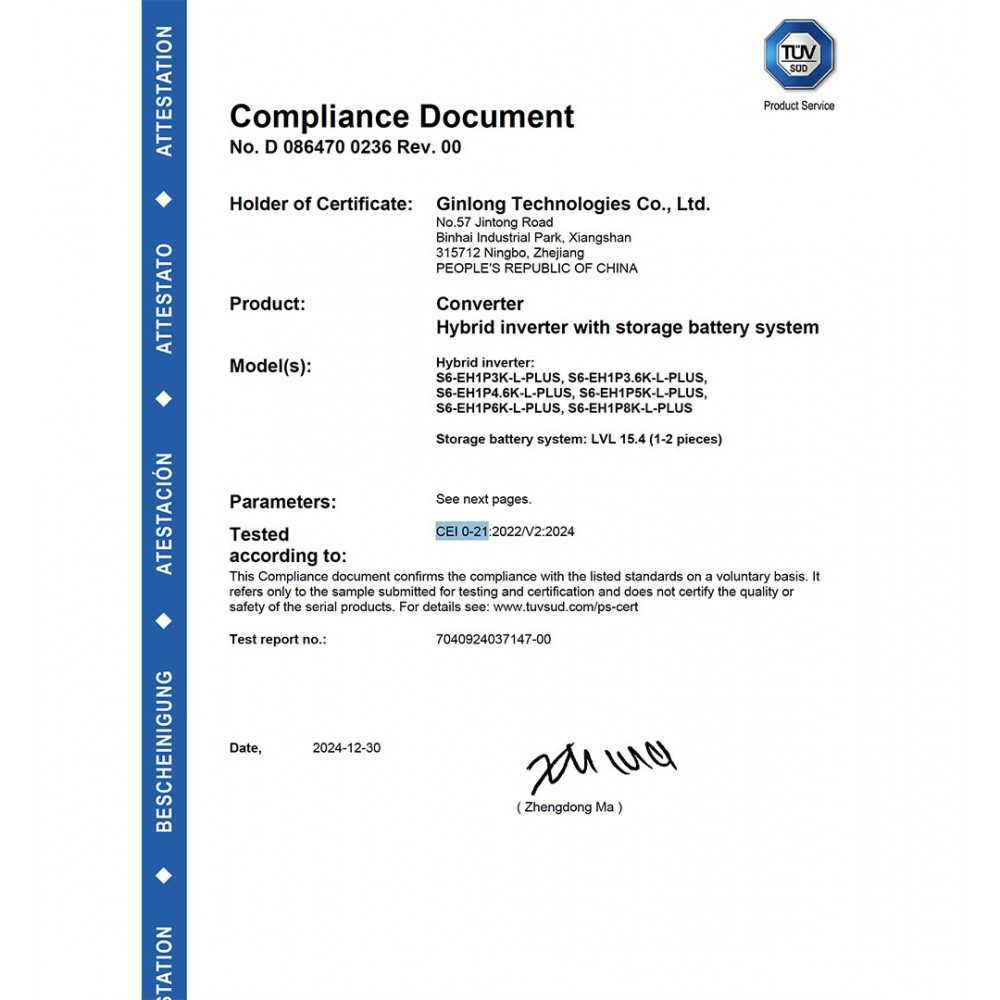

Grid connection standard: CEI 0-21, NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, NBR 16149, NBR 16150

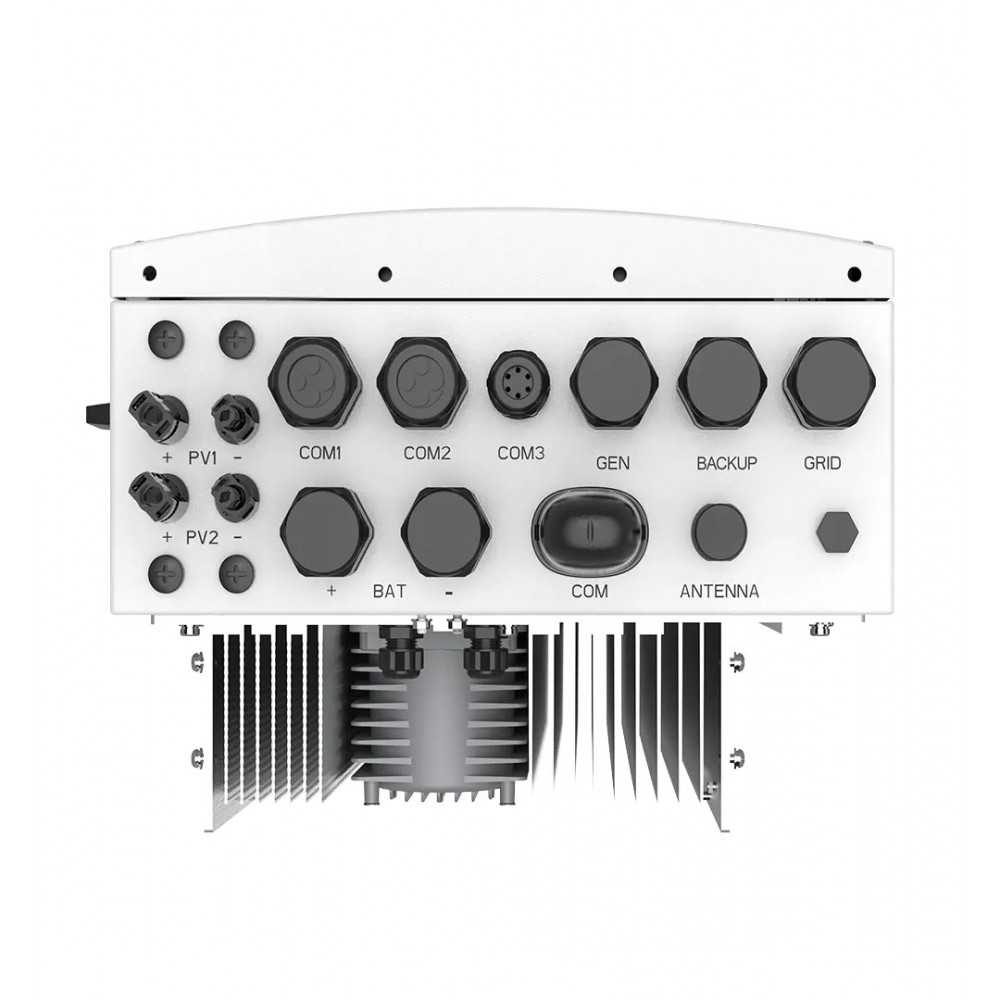

Characteristics

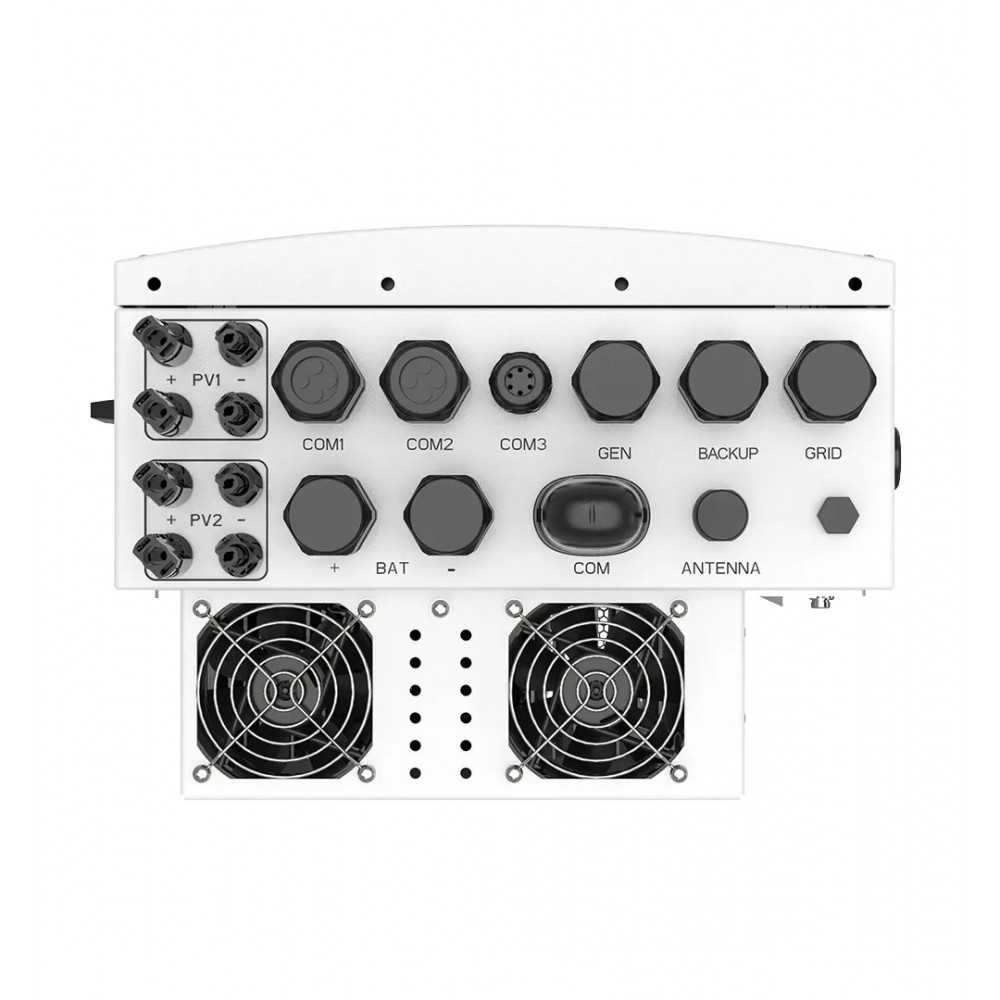

DC connection: MC4 plug (PV port) / Terminal Block (BAT port)
AC connection: Terminal Block
Screen: LCD + Bluetooth + APP
Communication: RS485, CAN, Optional: Wi-Fi, GPRS, LAN

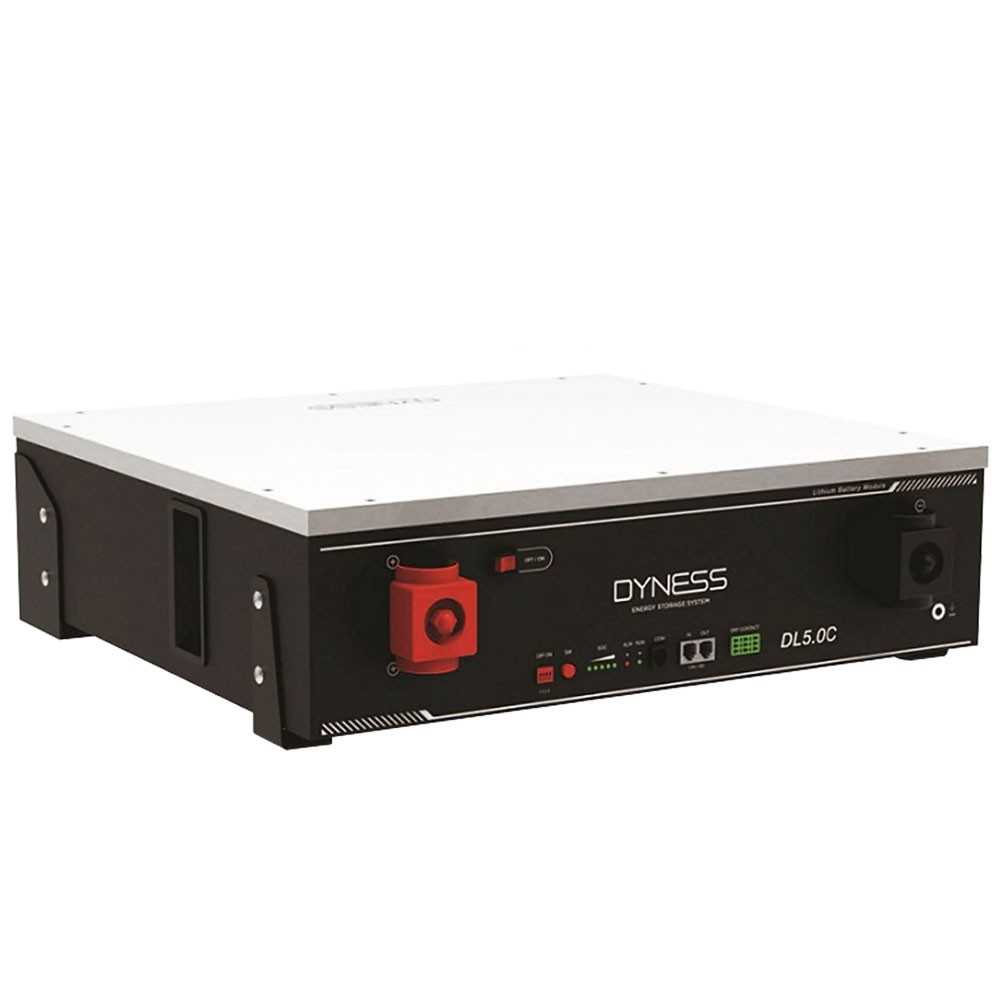

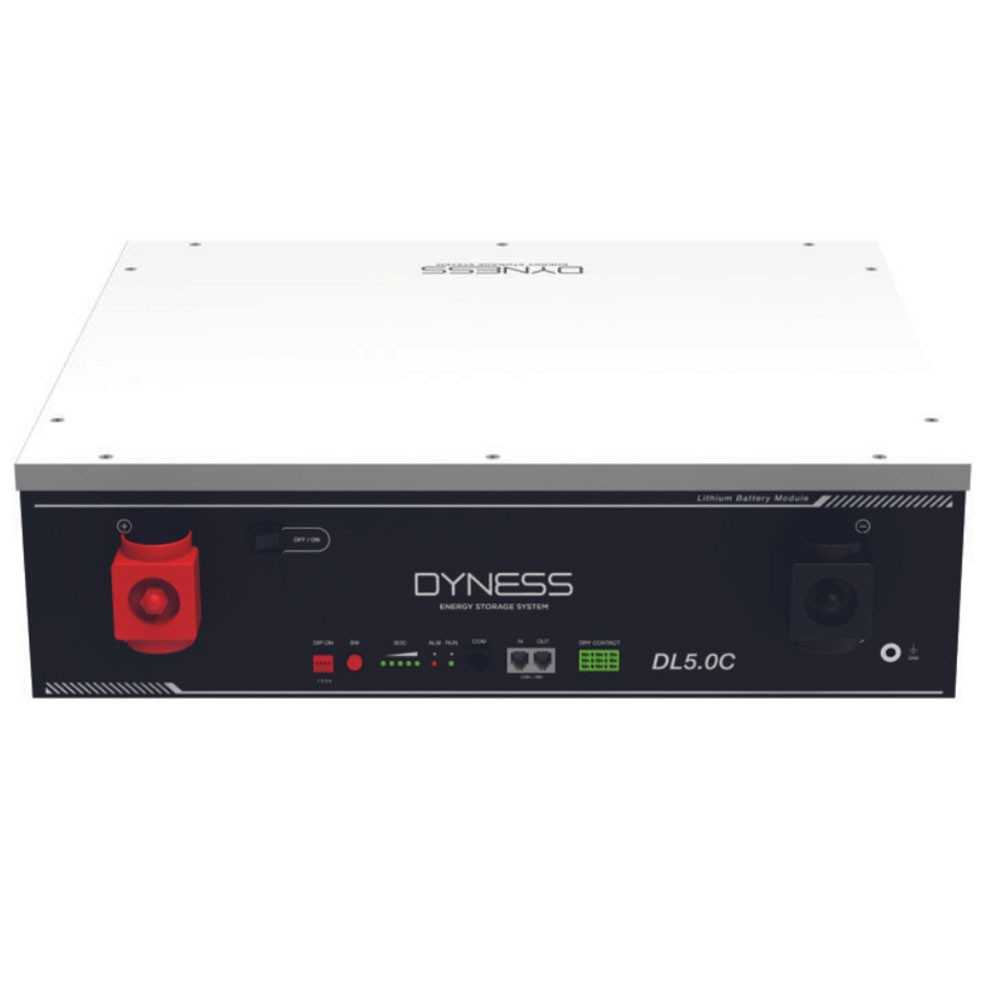

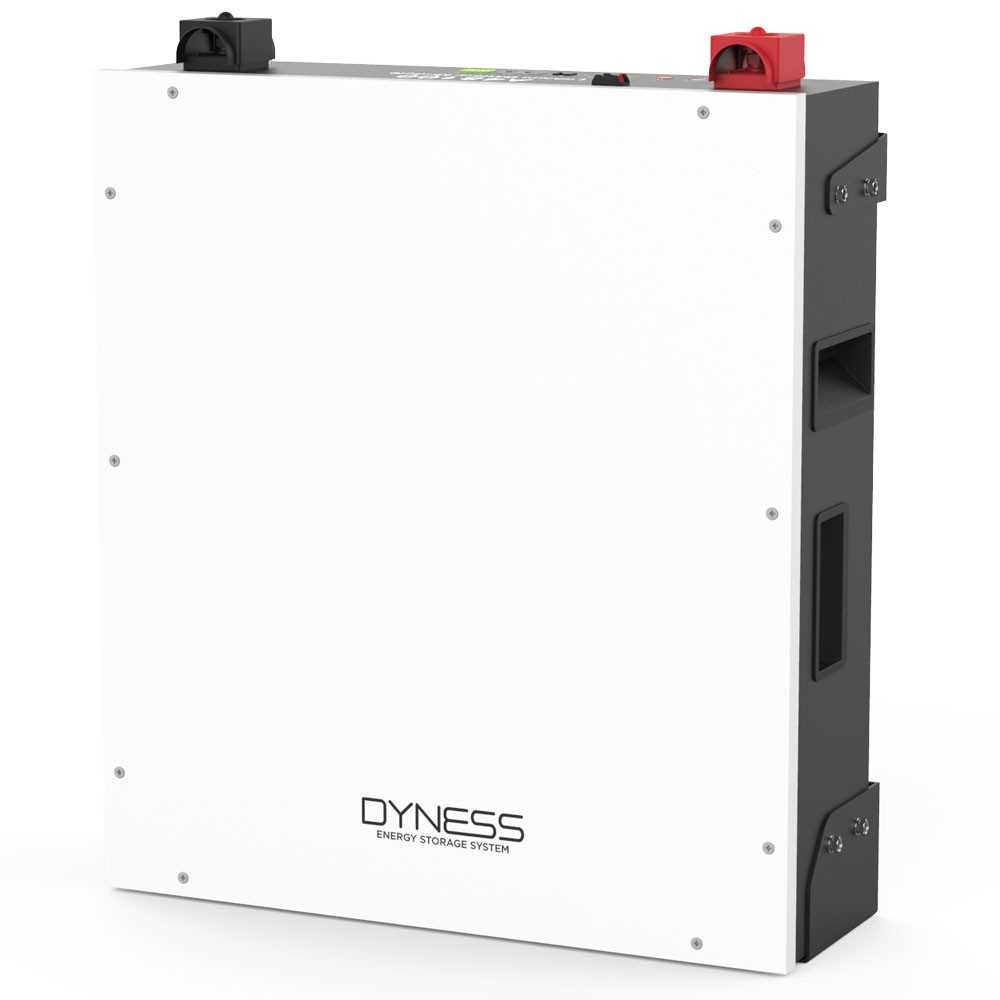

(2) Dyness DL5.0C 5.12kW 51.2V LiFePO4 Battery with BMS

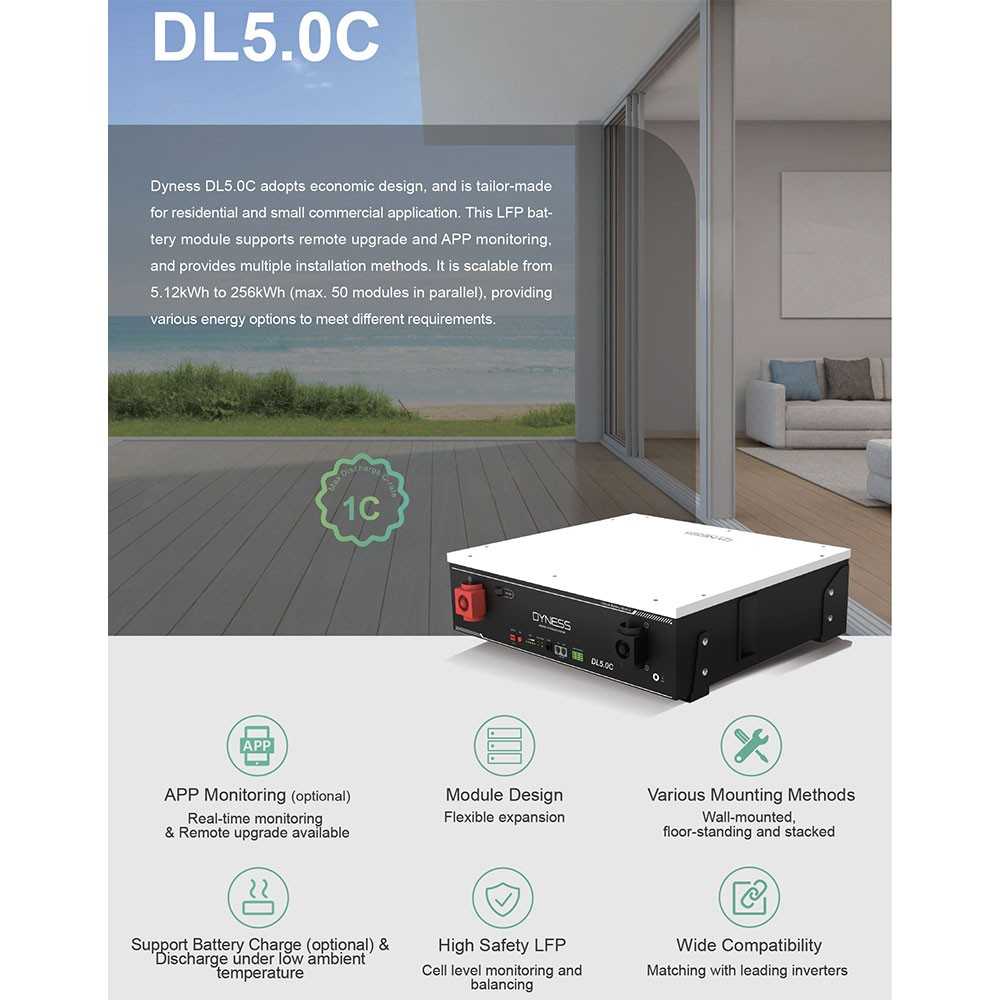

Dyness DL5.0C adopts economic design, and is tailor-made for residential and small commercial application. This LFP battery module supports remote upgrade and APP monitoring, and provides multiple installation methods. It is scalable from 5.12kWh to 256kWh (max. 50 modules in parallel), providing various energy options to meet different requirements.

APP Monitoring (optional) Real-time monitoring & Remote upgrade available
Module Design Flexible expansion

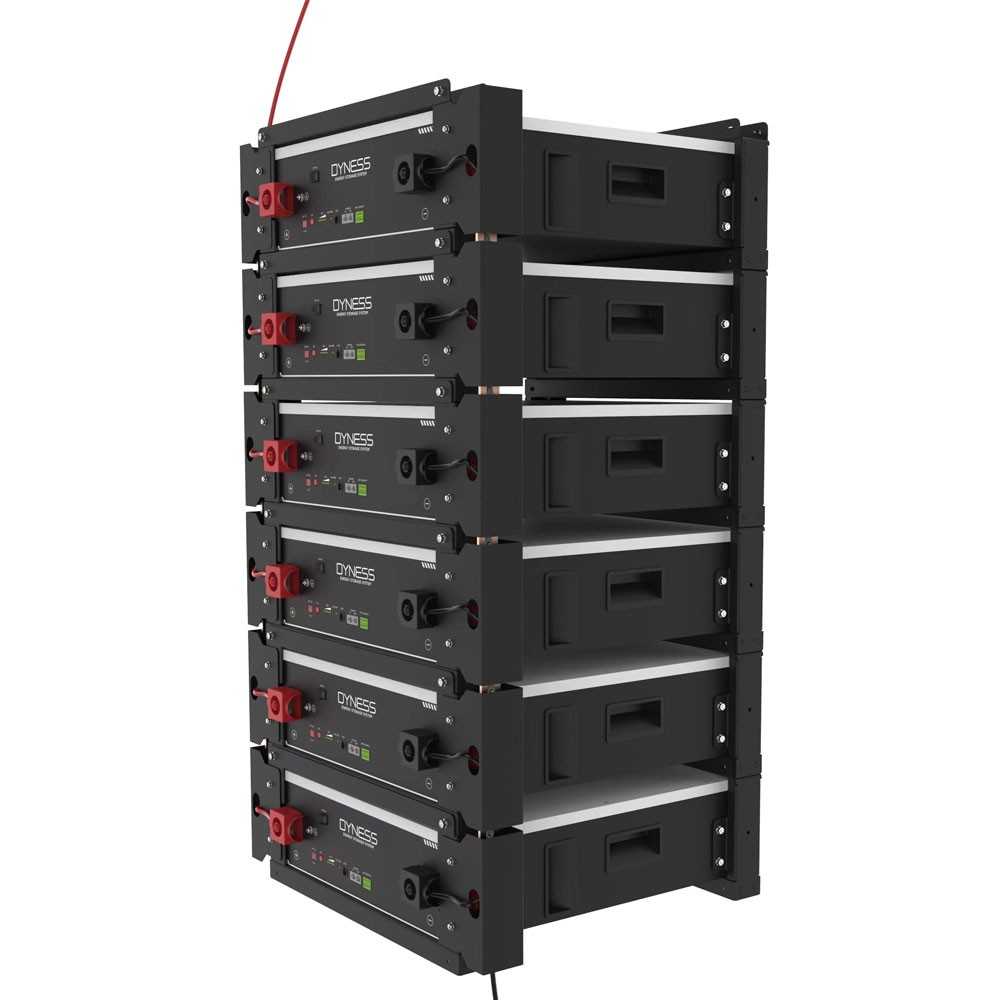

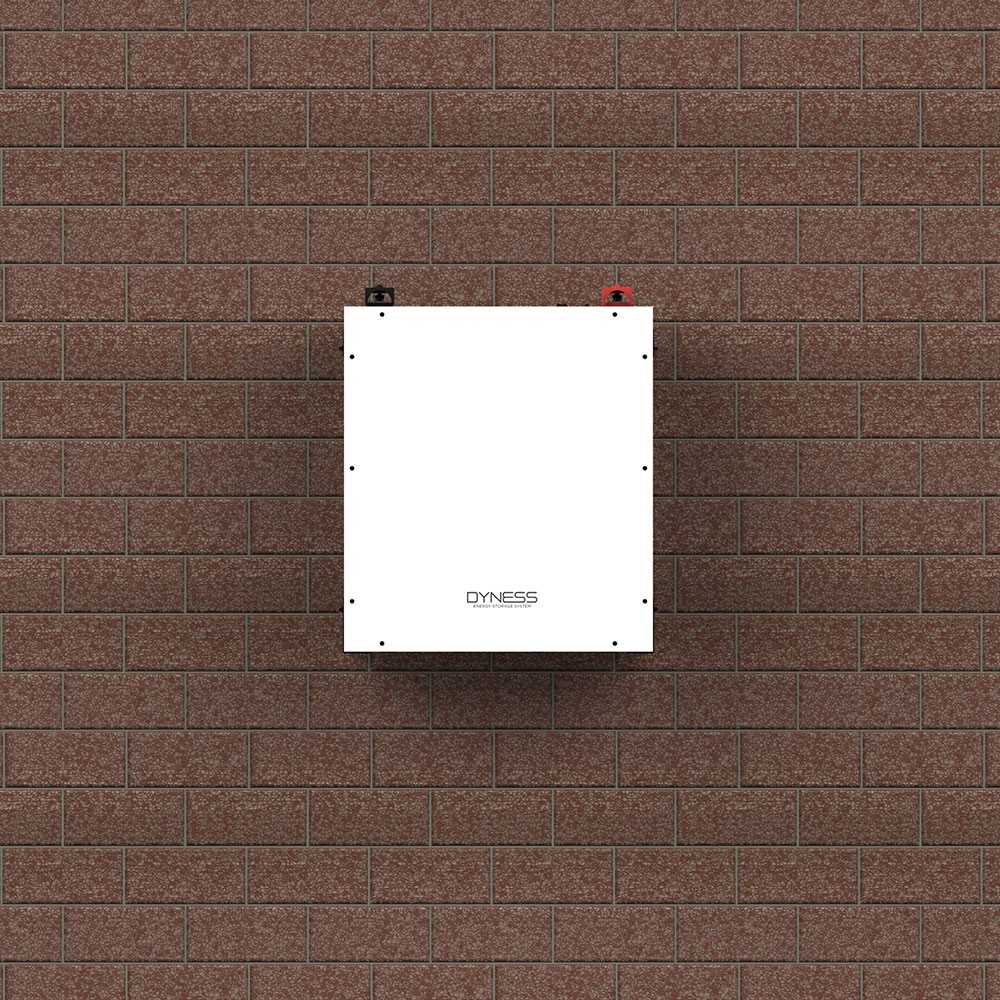

Various Mounting Methods Wall-mounted, floor-standing and stacked
High Safety LFP Cell level monitoring and balancing
Wide Compatibility Matching with leading inverters

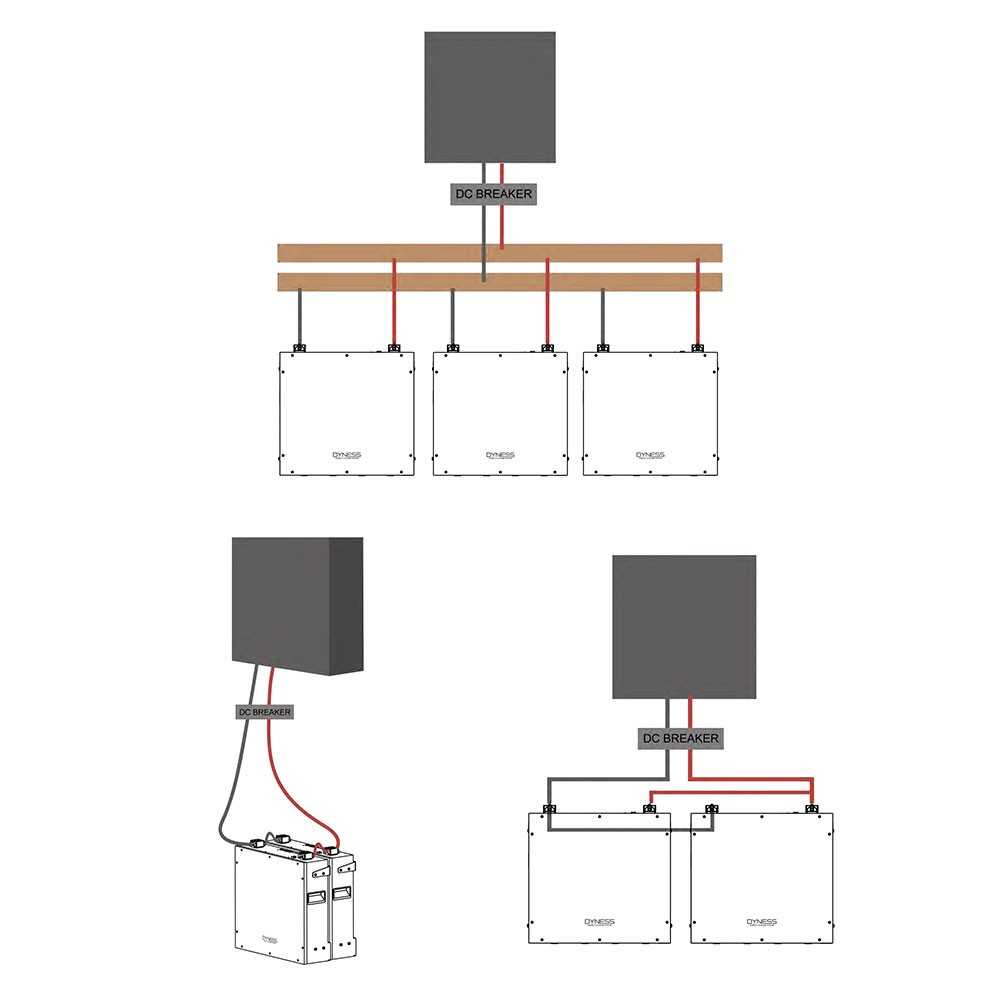

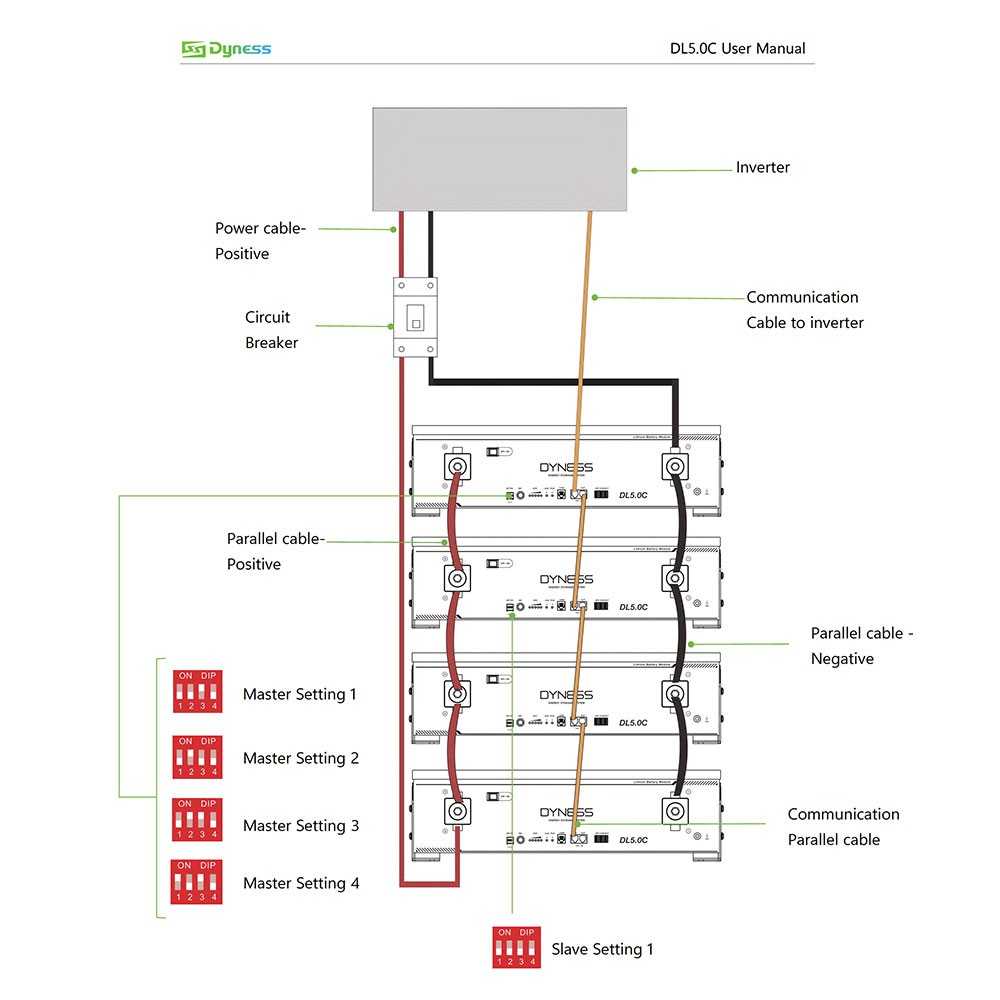

DL5.0C lithium iron phosphate battery system is a standard battery system unit, customers can choose a certain number of DL5.0C according to their needs, by connecting parallel to form a larger capacity battery pack, to meet the user's long-term power supply needs. The product is especially suitable for energy storage applications with high operating temperatures, limited installation space, long power backup time and long service life.
DL5.0C lithium iron phosphate battery energy storage system can provide energy storage for photovoltaic power generation users through parallel combination. Our product can store extra electricity into battery from photovoltaic power generation system in daytime and supply stable power to user’s equipment as power backup at nighttime or any time when needed. It can improve the efficiency of photovoltaic power generation and increase the electric power efficiency by peak load shifting.

DL5.0C energy storage product’s positive electrode materials are lithium iron phosphate, battery cells are managed effectively by BMS with better performance, the system’s features as below:
• Comply with European ROHS, Certified SGS, employ non-toxic, non-pollution environment-friendly battery.
• Anode materials are lithium iron phosphate (LiFePO4), safer with longer life span.
• Carries battery management system with better performance, possesses protection function like over-discharge, over-charge, over-current, abnormal temperature.
• Self-management on charging and discharging, Single core balancing function.
• Intelligent design configures integrated inspection module.
• Flexible configurations allow parallel of multi battery for longer standby time.
• Self-ventilation with lower system noise.
• Less battery self-discharge, then recharging period can be up to 10 months during the storage.
• No memory effect so that battery can be charged and discharged shallowly.
• With wide range of temperature for working environment, -20oC~ +55oC, circulation span and discharging performance are well under high temperature.
• Less volume, lighter weight.

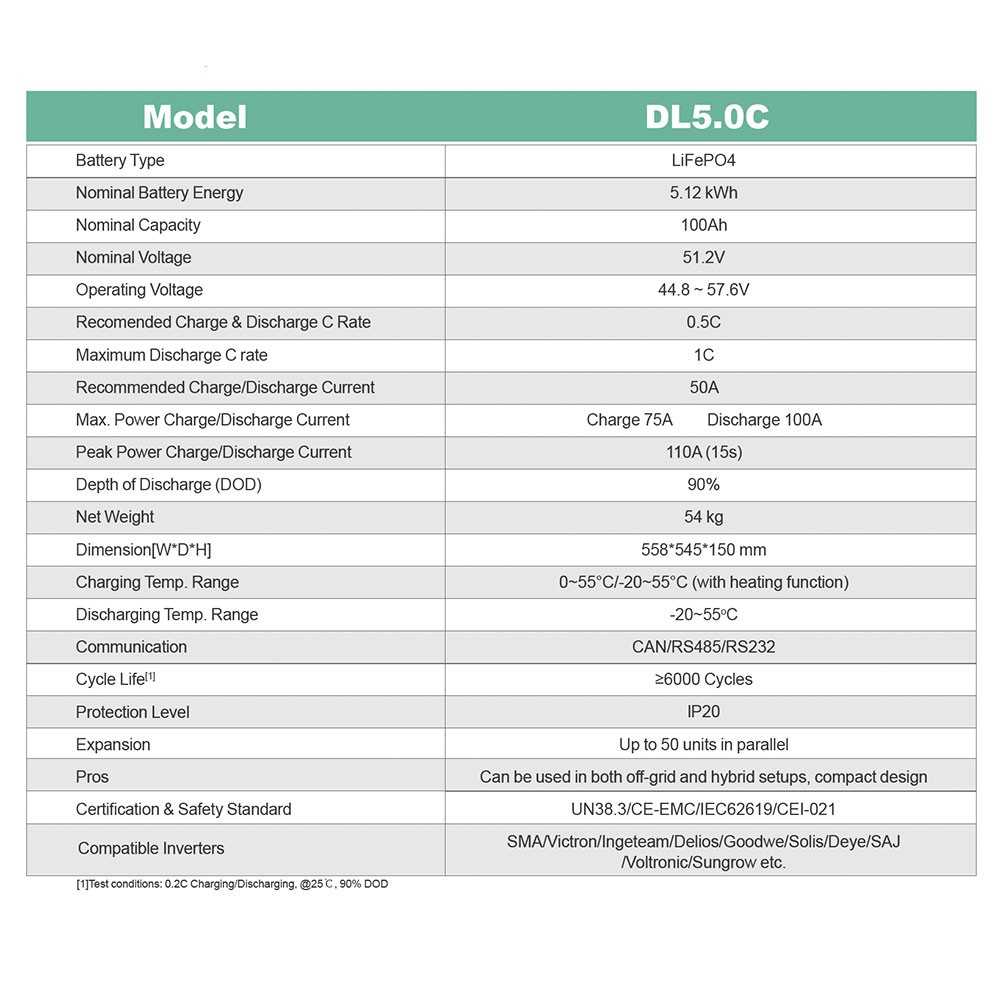

Technical data
Battery type: LiFePO4
Battery nominal energy: 5.12 kWh
Nominal capacity: 100 Ah
Nominal voltage: 51.2 V
Operating voltage: 44.8 ~ 57.6 V
Recommended C rate: 0.5C
Recommended charge/discharge current: 50 A
Maximum charge current: 75 A
Maximum discharge current: 100 A
Peak power Charge/discharge current: 110A (15s)
Depth of discharge (DOD): 90%
Net weight: 54 kg
Dimensions [LxWxH]: 558x545x150 mm
Charging Temperature Range: 0~55℃
Discharging Temperature Range: -20~55℃

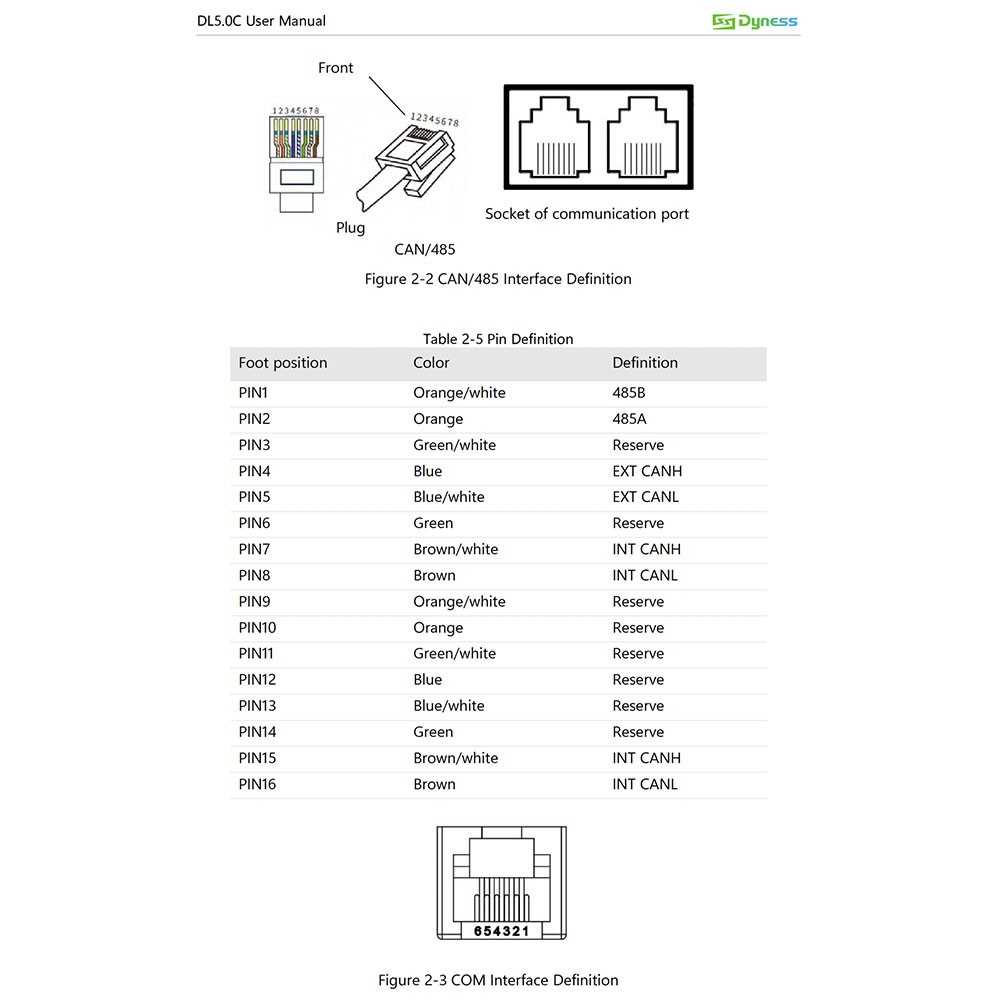

Communication: CAN/RS485/RS232
Life Cycle[1]: ≥6000 cycles
Protection Level: lP20
Expansion: Up to 50 units in parallel
Pros: Can be used in both off-grid and hybrid configurations, compact design
Certification and Safety Standards: UN38.3/CE-EMC/IEC62619/CEI-021
Compatible Inverters: SMA, Victron, Ingeteam, Delios, Goodwe, Solis, Deye, SAJ, Voltronic, Sungrow etc.

[1] Test Condition: 0.2C charge/discharge, @25℃, 90% DOD
