6kW 6880W Single Phase OnGrid Photovoltaic Kit with Huawei 7kW Battery Storage

6kW 6880W Single Phase OnGrid Photovoltaic Kit with Huawei 7kW Battery Storage

This grid-connected photovoltaic system with storage is designed to allow the use of solar energy generated by photovoltaic panels both for immediate self-consumption and for energy storage in batteries for future use. This system allows for maximizing the use of solar energy, ensuring greater independence from the traditional electricity grid and greater flexibility in the use of self-produced energy.

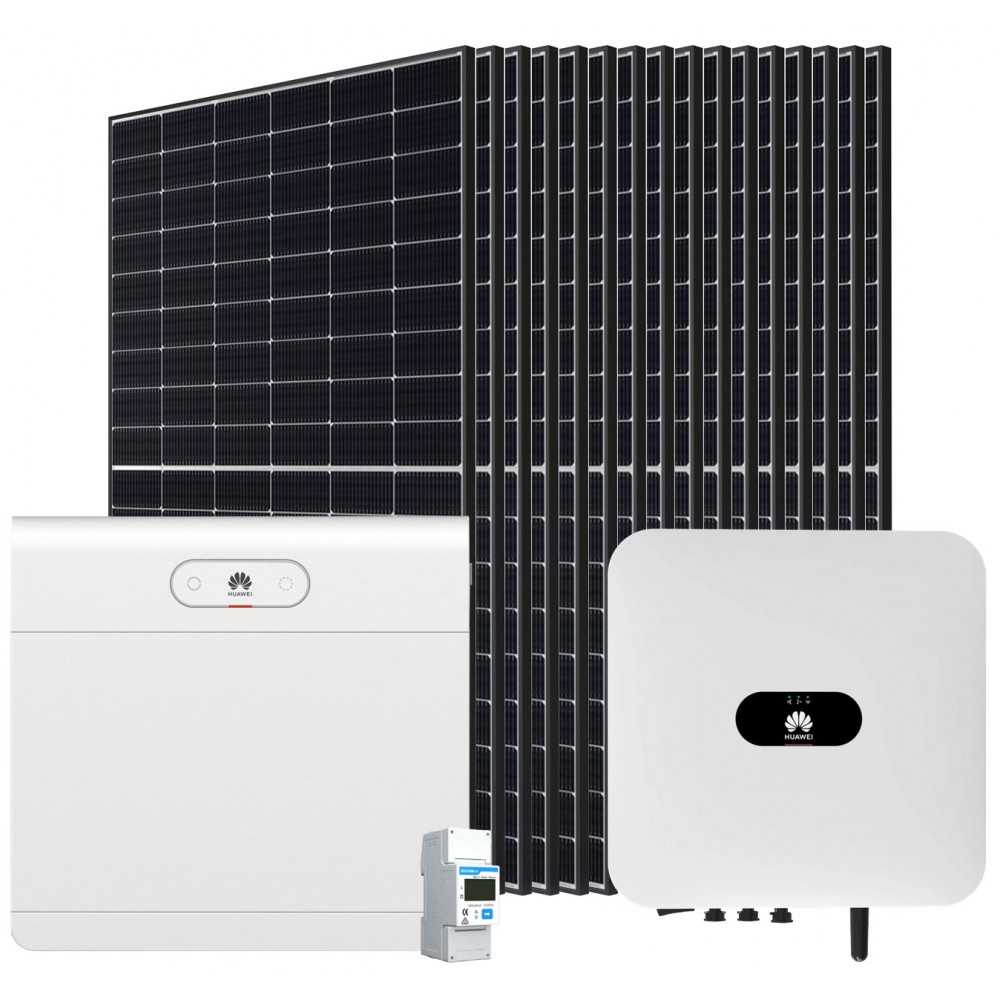

The kit is made by:
- n°16 430W monocrystalline photovoltaic modules #N151000000P8;
- n°1 Huawei SUN2000-6KTL-L1 6000/9000W 1-phase Hybrid Inverter #KR3533636;
- n°1 Huawei LUNA2000-7-S1 360V 7kWh Lithium Battery + High Voltage BMS Power Module #LUNA2000-7-S1;
- n°1 Huawei DDSU666-H 1-Phase Meter 100A Smart Power Sensor #KR3533568.

n°16 Monocrystalline 430W photovoltaic panels

Classic, but with revolutionary changes! The unique structure of the high-efficiency HPBC cells sets a new standard for photovoltaic technology. The Explorer series is perfectly suited for both domestic and commercial use. The 430W LONGi Hi-MO6 LR5-54HTH solar module is a monocrystalline solar module with new generation HPBC (Hybrid Passivated Back Contact) technology that ensures a high level of module efficiency. The efficiency of HPBC cells exceeds 25%.
In terms of reliability, the HPBC cell adopts full back welding technology to effectively improve the micro-crack resistance of the modules. At the same time, Hi-MO X6 can carry out active safety and intelligent optimization management through the prefabricated intelligent optimizer.
The LONGi Hi-MO6 solar module is certified for use with wind and snow loads of 2400-5400 Pa. The module has a 3.2 mm thick tempered front glass with high light transmission. The frame is made of black anodized aluminum alloy.
Technical specifications:
- Model: LR5-54HTH-430M;
- Power (Pmax): 430 Wp;
- Voltage (Vmp): 32.84 V;
- Max Current (Imp): 13.10 A;
- Open Circuit Voltage (Voc): 39.3 V;
- Short-circuit current (Isc): 14.15 A;
- Cell efficiency: 22.0 %;
- Operating temperature: -40°C - +85°C;
- Max. system voltage: DC1500V (IEC/UL);
- Cell type: monocrystalline;
- Number of cells: 108 (6 x 18);
- Frame color: Black;
- Weight: 20.8 kg;
- Size: 1722x1134x30 mm;
- Length of connection cable: 1200 mm, 4 mmq;
- Degree of protection junction box: IP68, 3 diodes.

n°1 Huawei SUN2000-6KTL-L1 6000/9000W 1-phase Hybrid Inverter

New generation of Huawei inverters for residential systems. Small, light and with an elegant design, the Huawei single-phase inverter will significantly enhance the efficiency of your home and maximize energy self-consumption. Battery Ready, optional Huawei Smart Luna 2000 or LG Chem RESU batteries.
- Very low weight and dimensions (size 365X365X156 mm, weight about 12kg)
- Efficiency up to 98.4%
- Possibility to manage the new Huawei SUN2000 450P optimizers without using the safety box
- Integrated charge controller for lithium batteries (e.g. LG Resu or Powermate Luna Huawei)
- Possibility of managing external loads (through smart plug with ZigBee interface) to maximize self-consumption
- Huawei SW platform for integrated management of inverters, optimizers, batteries and smart plugs
Smart Energy Center (Single-phase)
- AI-based Active Arc Protection (Compatible with Optimizer SUN2000-450W-P)
- Battery Ready for direct Plug&Play, no extra devices and no Retrofit required
- A 5KTL inverter allows for a full AC output power of 5kW plus a full power battery charge of 5kW.
- High efficiency inverter topology, maximum efficiency of 98.4%
Security On
- Active AI-based arc flash protection
- Locate the location of the arc flash fault
Superior Yield
- Up to 30% more energy thanks to optimizers
- Double the power available for battery charging
Best Experience
- Universal optimizer for more efficient management
- Self-mapping of modules in just 5 sec
Double power available for the battery
- 5kW for the AC + output
- 5kW for battery recharging

Technical specifications
Efficiency
- Max. efficiency: 98.4%;
- European Weighted Efficiency: 97.8%
PV string input data
- Max. input power: 9000 Wp;
- Max. input voltage: 600 V;
- MPPT operating voltage range: 90-560 V;
- Starting voltage: 100 V;
- Rated input voltage: 360 V;
- Max. input current for MPPT: 12.5 A;
- Max. short circuit current: 18 V;
- Number of MPPTs: 2;
- Max number of strings for MPPT: 1.
DC Battery input data
- Compatible battery: LG Chem RESU 7H_R / 10H_R;
   - Operating voltage range: 350 ～ 450 VDC;
   - Max operating current: 10A @7H_R / 15A @10H_R;
   - Maximum charge power: 3500W @7H_R / 5000W @10H_R;
   - Maximum discharge power @7H_R: 3500W;
   - Maximum discharge power @10H_R: 5000W;
- Compatible battery: HUAWEI Smart LUNA2000 ESS Battery 5kWh – 30kWh;
   - Operating voltage range: 350 ～ 560 VDC;
   - Max operating current: 15A;
   - Maximum charging power: 5000W;
   - Maximum discharge power: 5000W.
Network Output Data (on-grid)
- Connection to the mains: Single-phase;
- Rated Output Power: 6000 W;
- Max. apparent power from mains: 6000 VA;
- Nominal output voltage: 220/230/240 Vac;
- Rated network frequency AC side: 50/60Hz;
- Max. AC side output current on mains: 27.3A;
- Adjustable power factor: 0.8 capaci... 0.8 induct;
- Max. total harmonic distortion: <3%.
AC side output data (Box-Bo backup, opt.)
- Max. apparent power: 5000 VA;
- Max. output current: 22.7A;
- Rated output voltage: 220V/230V;
- Adjustable power factor: 0.8 capac... 0.8 induct.
Protection
- PV insulation resistance detection: Yes;
- Residual current monitoring: Yes;
- DC Reverse Polarity Protection: Yes;
- Anti-isolation protection: Yes;
- AC side overcurrent protection: Yes;
- AC Side Short Circuit Protection: Yes;
- DC/AC side overvoltage protection: Yes, compatible with TYPE II protection class according to EN / IEC 61643-11;
- AFCI Arc Fault Protection: Yes;
- Reverse charging of the battery from the network: Yes
General data
- Operating temperature range: -25 ~ +60°C;
- Relative humidity: 0 ~ 100%;
- Max. operating altitude: 0 ~ 4,000m (decrease over 2,000m);
- Cooling method: Natural convection;
- Display, user interface: LED indicators; integrated WLAN + FusionSolar APP;
- Communication: RS485, WLAN via WLAN module integrated in the inverter Ethernet via Smart Dongle-WLAN-FE (optional); 4G / 3G / 2G via Smart Dongle-4G (optional);
- Weight: 12 kg;
- Dimensions (W×H×D): 365x365x156 mm;
- Night power consumption: <2.5W;
- Ingress protection degree: IP65.
- Compatible optimizer: with DC MBUS SUN2000-450W-P
- Safety: EN/IEC 62109-1, EN/IEC 62109-2
- Network connection standards: G98, G99, EN 50549-1, CEI 0-21, VDE-AR-N-4105, AS 4777.2, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727, IEC62116

n°1 Huawei LUNA2000-7-S1 360V 7kWh Lithium Battery + High Voltage BMS Power Module

The LUNA2000 7 kWh lithium battery from the manufacturer HUAWEI is a modular battery for single-phase and three-phase self-consumption systems with HUAWEI inverters. This module has 7 kWh of useful energy and the BMS (Battery Management System) to function as an interface with the inverter to which it is connected. It is possible to control up to 3 modules with the single BMS.
Unparalleled performance and silence
The separate temperature control system, thanks to the insulating material, ensures that the cells and energy optimizers work reliably in the hot and cold compartments respectively, shielding them from excessive heat and eliminating the need for a noisy fan. Quiet operation at 29 dB ensures peace of mind.
The fastest charging you can imagine
Independent management at the module level allows fast charging at 3.5 kW for each battery module and a maximum input and output power of 10.5 kW for each energy storage system. An improvement regarding performance and efficiency.
Water protection
The improved IP66 water protection rating allows for maximum safety even at an underwater depth of 40cm for 72 hours*, better managing floods, rain and melting snow.
High resistance to impacts and crushing
The high-strength cabinet resists up to 5T of pressure, and is sturdy enough to withstand even an external crush or an unexpected impact inside a garage. It's great both inside and out.
Cell level management
Real-time temperature management with 4 sensors per 8 cells ensures a 4x increase in accuracy, for stable operation and active protection, thanks to instant analysis of battery data and 24/7 pre-alarm on 7.
Protection thanks to active pressure release
Active pressure release technology is advanced emergency protection to reduce oxygen concentration and eliminate combustion sources for fire prevention, safeguarding the solar energy storage system from the first second of use.
Simple installation
Thinking of our installers, we have made the use of communication or power cables unnecessary: just attach the battery modules. Intelligent door detection with internal temperature sensors saves effort and cuts installation time in half.
One-step commissioning
Installers need just a few clicks to complete the installation and start commissioning in virtually one step. The FusionSolar app is the most hands-on wizard for implementing your entire system.

Technical data:
Power module: LUNA2000-10KW-C1;
Number of power modules: 1;
Battery module: LUNA2000-7-E1;
Battery module energy: 6.9 kWh;
Number of battery modules: 1;
Battery usable energy: 6.9 kWh;
Max. charging & discharging power: 3.5 kW;
Operating voltage range (single-phase system): 350 ~ 560 V;
Operating voltage range (three phase system): 600 ~ 980 V.
Communication
Display: SOC status indicator, LED indicator;
Communication: RS485/FE/CAN.
General Specification
Dimensions (WxDxH): 590x255x510 mm;
Weight (Floor stand toolkit included): 80 kg;
Power module dimension (WxDxH): 590x255x150 mm;
Power module weight: 10 kg
Battery module dimensions (WxDxH): 590x255x360 mm;
Battery module weight: 68 kg (110.2 lb);
Installation: Floor stand (standard), Wall mount (optional);
Operating temperature: –20°C to +55°C (–4°F to +131°F);
Max. operating altitude: 4,000 m (13,123 ft.) (Derating above 2,000 m);
Environment: Outdoor / Indoor;
Relative humidity: 5% ~ 95%;
Cooling: Natural convection;
IP rating: IP 66;
Noise emission: < 29 dB;
Cell technology: Lithium-iron phosphate (LiFePO4);
Scalability: Max. 4 systems in parallel operation;
Compatible inverters: SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-8/10K-LC0, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-12/15/17/20/25K-MB0.
Standards Compliance (More Available Upon Request)
Certificates: CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3, ISO13849, REACH, RoHS.
Ordering and Deliverable Part
Available for ordering: LUNA2000-7-E1, LUNA2000-10KW-C1, Wall Mounting Bracket for LUNA2000-7/14/21-S1.

n°1 Huawei DDSU666-H 1-Phase Meter 100A Smart Power Sensor

Huawei Solar single-phase meter equipped with LCD display. To be used for the connection between the single-phase Huawei SUN2000 inverter and the batteries. It allows to measure the flow of electricity in photovoltaic systems. Calculate and record the input and output data from the energy grid.
•  Class 1 measurement accuracy
•  LCD display, easy to set and check
•  Overall power consumption ≤1 W

Technical Specification
Model: DDSU666-H
Power Grid type: Single-phase 1P2W
Input voltage: 176Vac ~ 288Vac
Power Consumption: ≤0.8W
Current: 0~100A
Measurement Accuracy Class: 1
Communication
Interface: RS485
Baud rate: 9,600bps
Communication protocol: Modbus-RTU
Operating temperature: -25°C ~ 60°C
Operating Humidity: 5%RH ~ 95%RH(non-condensing)
Dimensions (LxWxD): 100x36x65.5mm
Mounting Type: DIN35 Rail
Weight (including cables): 1.2 kg
