PREMIUM ETFE-AL V2 100W 23V Off-Grid Semi-Flexible Solar Panel

PREMIUM ETFE-AL V2 100W 23V Off-Grid Semi-Flexible Solar Panel

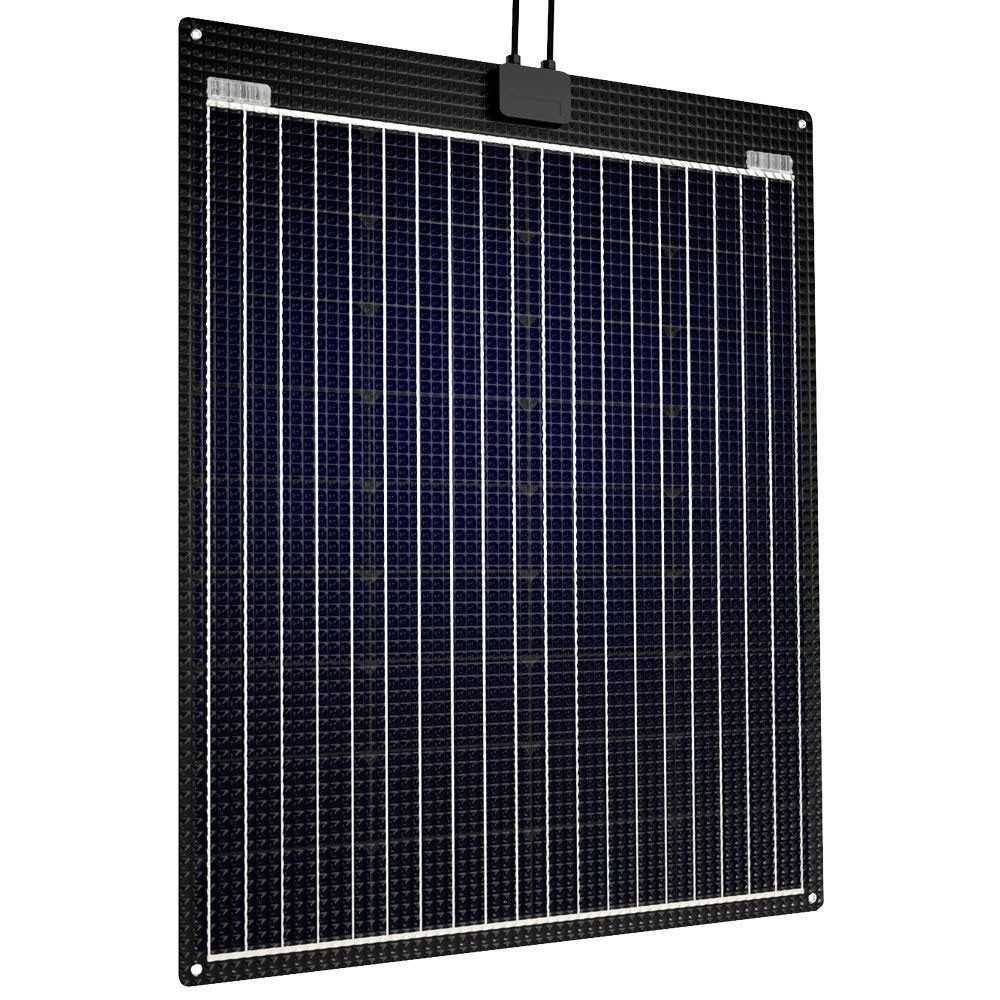

The Offgridtec ETFE-AL V2 100W semi-flexible solar panel (MPN 018425) combines an innovative aluminum and ETFE construction with high-efficiency monocrystalline solar cells.
With a module voltage of 23V, this solar panel is a versatile solution for a wide range of off-grid applications. Its durable ETFE coating, weather-resistant construction, and semi-flexible design make it particularly suitable for motorhomes, campervans, boats, yachts, and mobile solar systems.
The V2 is the improved version of the previous ETFE-AL 100W solar panel (MPN 011045). It features upgraded solar cells and advanced 11-busbar technology, designed to improve light absorption and reduce power losses under partial shading conditions.

Key Features
Rated power: 100 Wp
High-efficiency monocrystalline solar cells
Cell efficiency up to 22.3%
Double-layer ETFE front surface
Improved slip resistance
Walkable surface
High light transmission for improved long-term energy yield
Durable ETFE surface for protection against hail
Saltwater resistant, ideal for marine applications
Advanced 11-busbar technology
2 bypass diodes to minimize power losses under partial shading
Integrated aluminum backsheet
Semi-flexible design: up to 10° bending along the long side
12-month warranty

Double-Layer ETFE Construction
The front of the module features two superimposed ETFE layers, providing excellent protection for the solar cells while ensuring high light transmission over many years of use.
The improved structure of the outer ETFE layer significantly increases slip resistance, making the panel walkable.
Compared with conventional coatings used on flexible solar panels, ETFE maintains its transparency more effectively over time, reducing clouding and helping preserve the panel's long-term energy output.
The durable ETFE front surface also provides strong protection against hail and is fully resistant to saltwater, making the panel particularly suitable for marine environments.
The integrated aluminum backsheet adds structural stability and helps reduce the risk of cell cracking caused by improper handling or installation.

Advanced 11-Busbar Technology
The panel uses modern 11-busbar technology, with eleven conductive tracks responsible for efficiently collecting and transferring the electrical current generated by the solar cells.
This configuration provides reliable current flow even at higher loads while helping to minimize heat-related losses.
The efficient distribution of electrical power contributes to improved module performance, higher overall efficiency, and optimized energy yield.

High-Efficiency Monocrystalline Solar Cells
Monocrystalline solar cells are manufactured using a uniform single-crystal structure, allowing sunlight to be converted into electrical energy with high efficiency.
Compared with other photovoltaic technologies, monocrystalline cells offer a higher power density, making them especially suitable for installations where available surface area is limited.
The cells used in the ETFE-AL V2 achieve an efficiency of up to 22.3%, delivering excellent performance in a compact format.

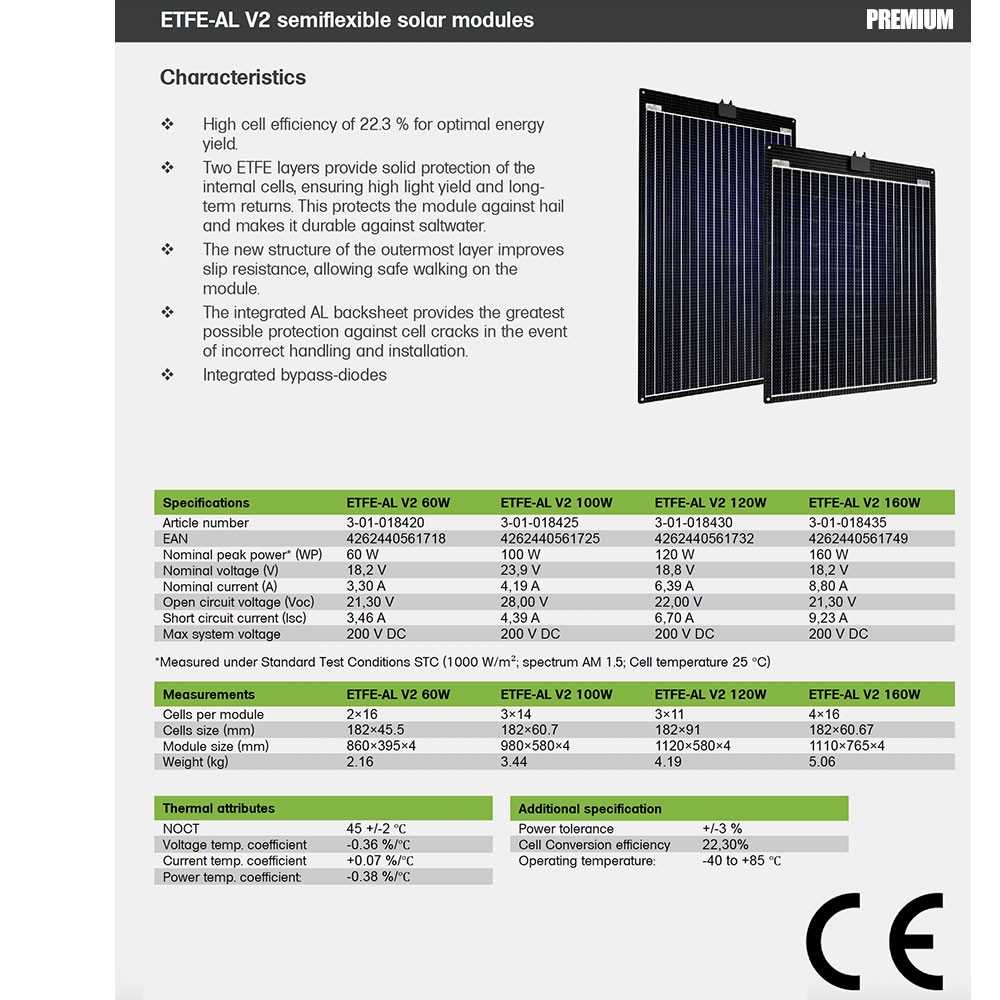

Technical Specifications
Maximum power (Pmax): 100 Wp
Voltage at maximum power (Vmp): 23.9 V
Current at maximum power (Imp): 4.19 A
Open-circuit voltage (Voc): 28 V
Short-circuit current (Isc): 4.39 A
Maximum system voltage: 200 V
Cell efficiency: 22.3%
Cell technology: Monocrystalline
Busbar technology: 11 busbars
Bypass diodes: 2 integrated
Material: Aluminum / ETFE
Dimensions: 980 × 580 × 4 mm
Weight: 3.44 kg
Operating temperature: -40°C to +85°C
Walkable: Yes
Maximum bending: 10° along the long side
Saltwater resistant: Yes
Warranty: 12 months

Ideal Applications
Thanks to its combination of low weight, ultra-slim 4 mm profile, semi-flexible construction, and saltwater resistance, the Offgridtec ETFE-AL V2 100W solar panel is ideal for:
Motorhomes and RVs
Campervans and caravans
Boats and yachts
Slightly curved roofs and surfaces
Mobile solar systems
Off-grid installations where weight and available space are important

The Offgridtec ETFE-AL V2 100W solar panel is a compact, durable, and efficient solution for reliable solar power generation in mobile, marine, and off-grid applications.
