DAS SOLAR DAS-DH96NE.A 450W BW Double glass Topcon single-sided photovoltaic module with silver frame

DAS SOLAR DAS-DH96NE.A 450W BW Double glass Topcon single-sided photovoltaic module with silver frame

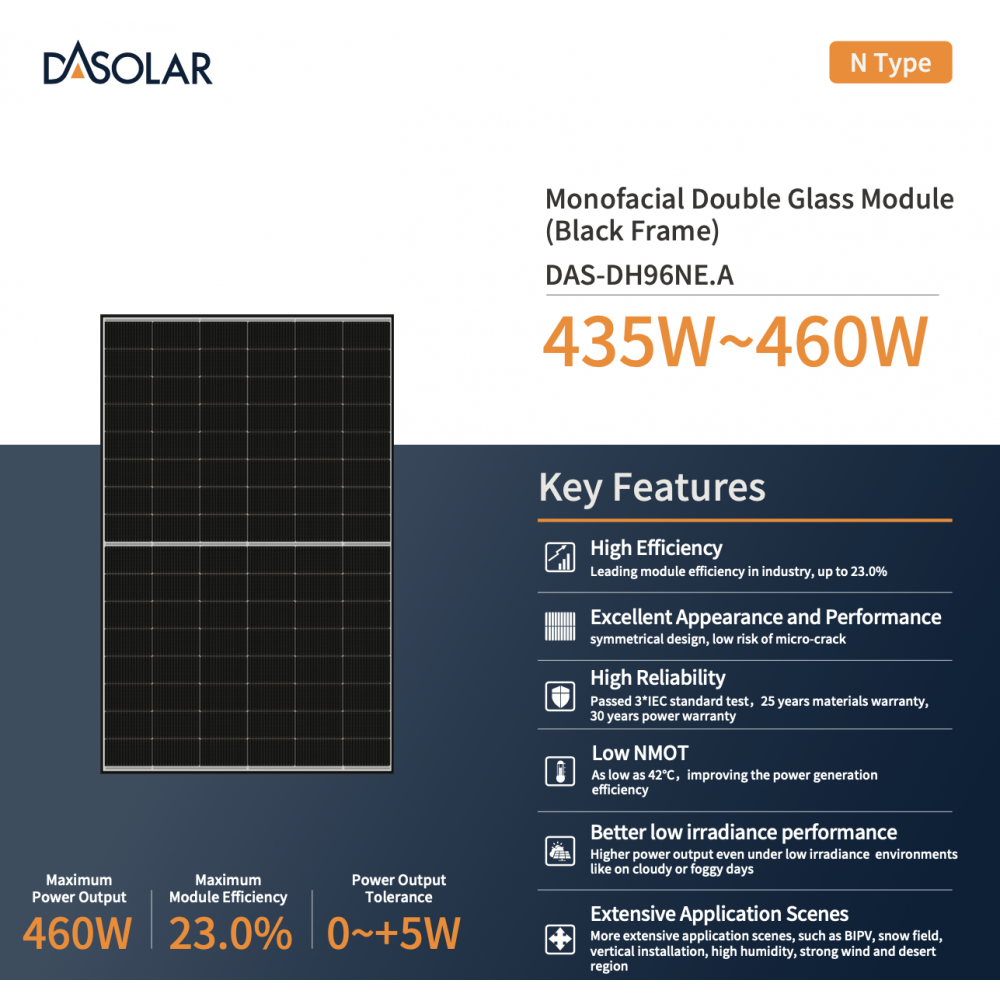

Key Features

Conversion efficiency
Our industry-leading module power contributes to a conversion efficiency of 23.2%.

Excellent product appearance and performance
Two-sided double-glazed modules, symmetrical structural design, low risk of hidden cracks.

Better low irradiance performance
Higher power output even under low irradiance environments like on cloudy or foggy days

High reliability

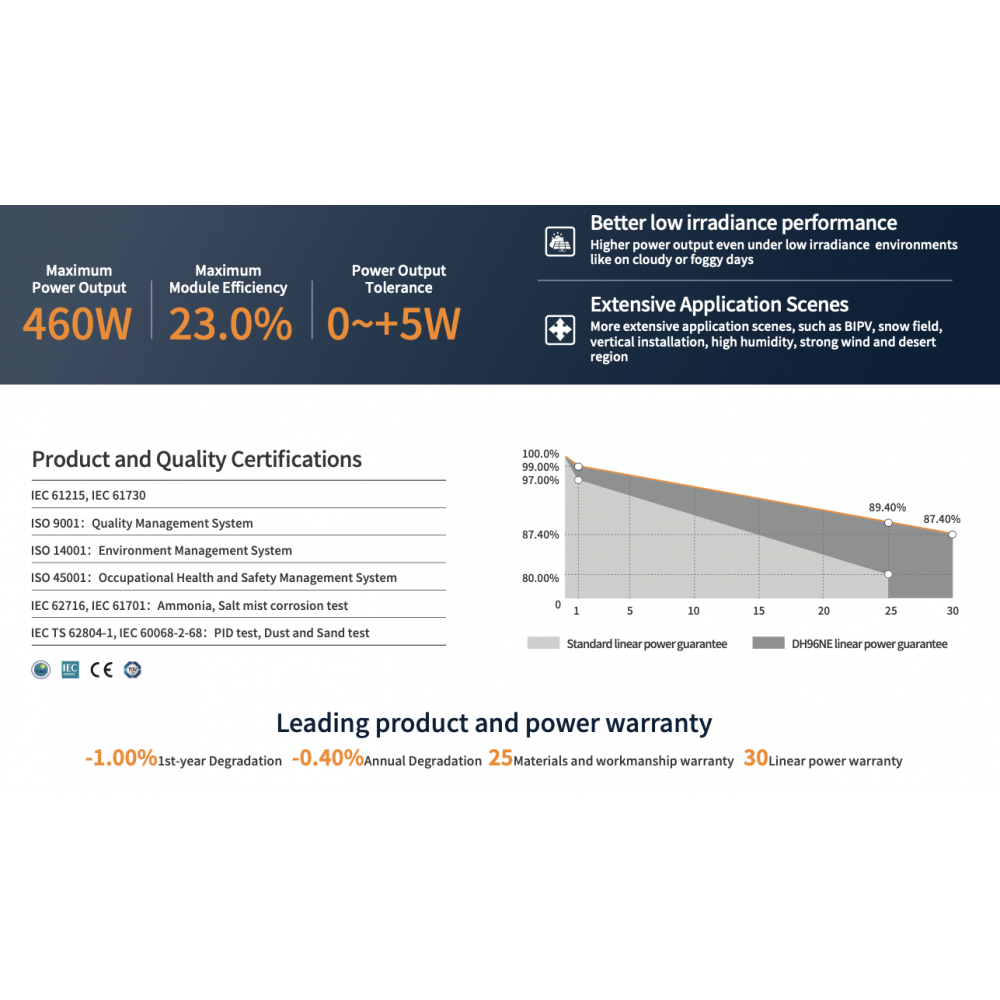

3-fold IEC new standard tests passed, 15-year material warranty, and 30-year power warranty.

Extensive application Scenes
Preferred modules for surface and industrial and commercial power plants.

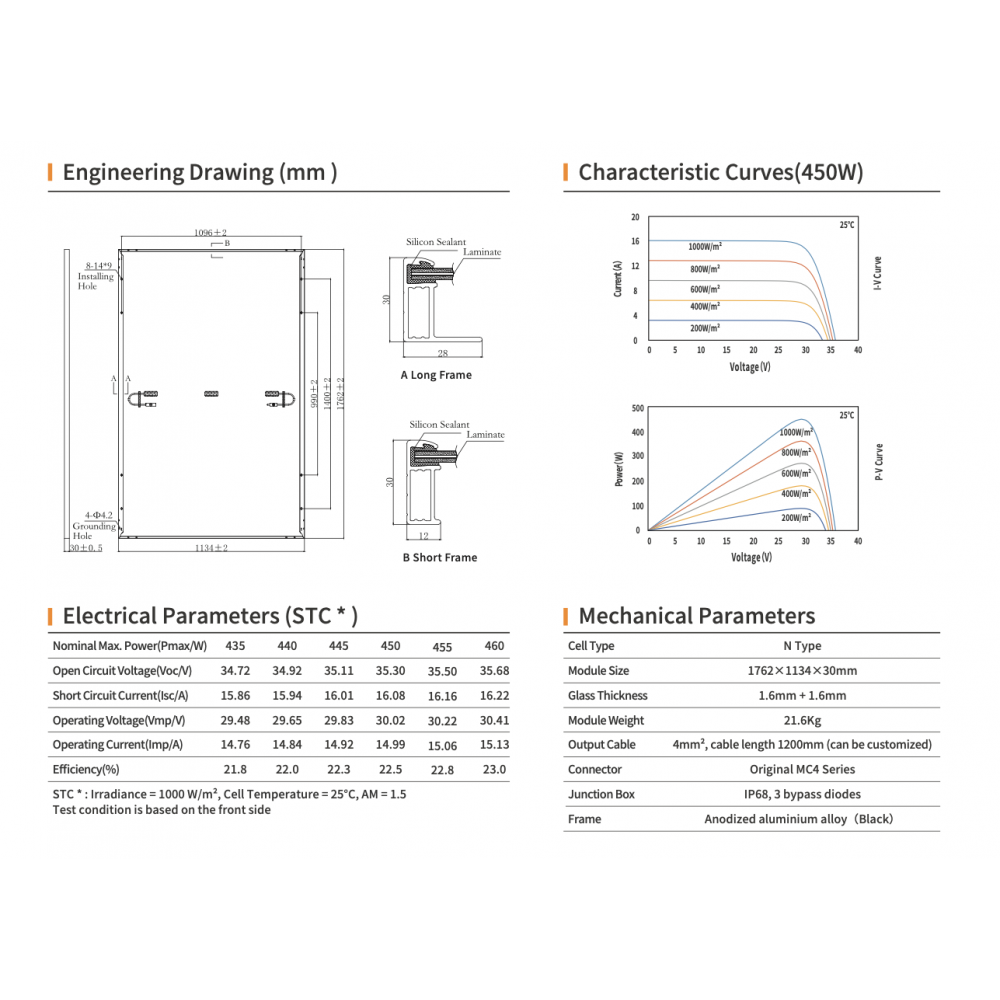

Product Features:

- Rated power Pmax: 450 Wp

- Cell type: monocrystalline

- Bifacial: no

- Cell contact: 16 busbars

- Frame type: framed

- Frame color: black

- Backsheet color (cell side): white

- Maximum system voltage: 1500 V

- Connector type: MC4 EVO 2

- Cable length: 1.2 m

- Glass thickness: 1.6 mm (front) / 1.6 mm (back)

- Maximum surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)

- Dimensions: 1762 x 1134 x 30 mm (L x W x H)

- Weight: 21.6 kg

- Warranty: 30-year performance warranty and 25-year product warranty

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
