12V 300W RV/Boat Kit + 100Ah LiFePO4 + MPPT 100/30 SmartSolar + Cable Kit

12V 300W RV/Boat Kit with 100Ah LiFePO4 Battery SmartSolar MPPT 100/30 Cable Kit

12V 300W RV/Boat Kit complete with 150W photovoltaic module, LiFePO4 12V 100Ah Lithium Battery 12,8v 1280Wh TopSolar Built-in Smart BMS, Victron Energy SmartSolar MPPT 100V 30A Solar Charge Controller and Solar Cable Kit 2x5m-4mmq with F/M MC4 connectors for stand-alone PV sy-stems, remote houses, camper vans, boats, industrial applications, lighting systems, road signs, TVCC systems and much more.

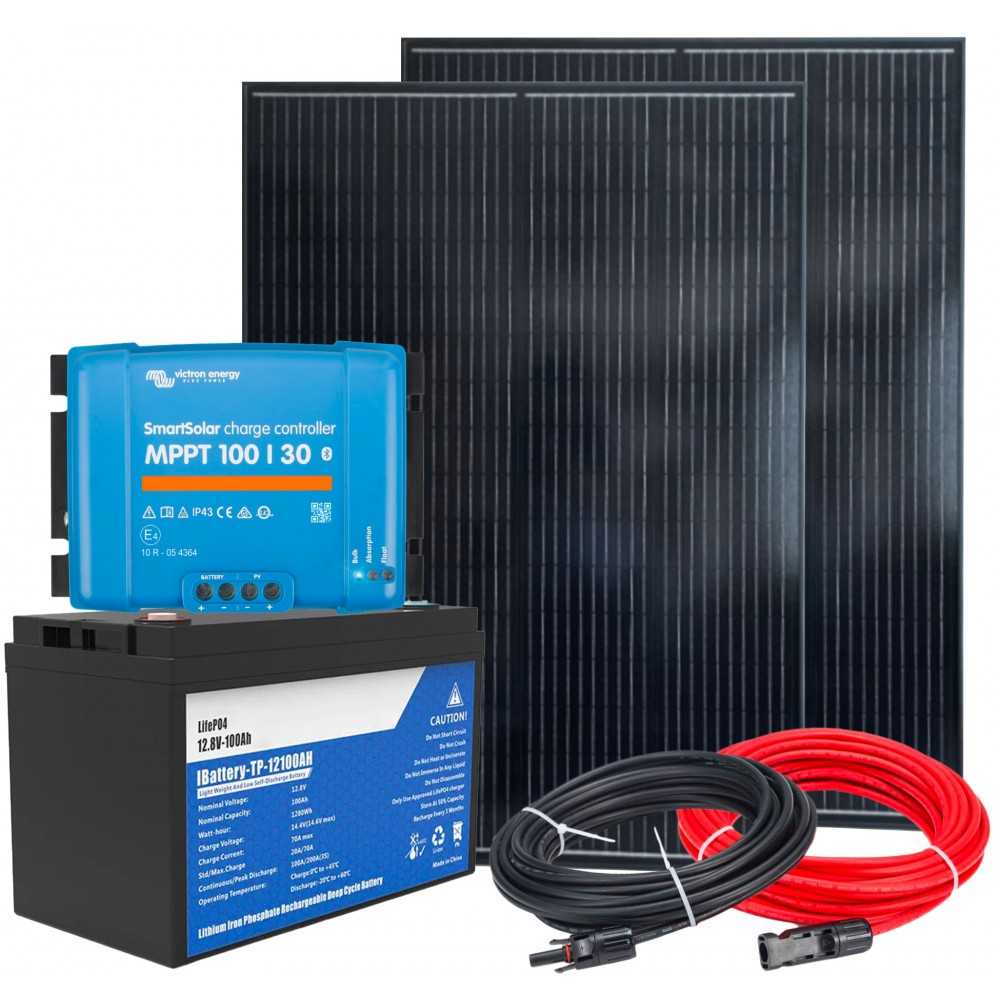

The kit is made by:
2 - 150W 12V Monocrystalline Photovoltaic Modules #N150030050183;
1 - Victron Energy SmartSolar MPPT 100V 30A Solar Charge Controller #UF21678K;
1 - Solar Cable Kit 2x5m-4mmq with F/M MC4 connectors #N151230750280;
1 - LiFePO4 12V 100Ah Lithium Battery 12,8v 1280Wh TopSolar Built-in Smart BMS #N51120050948.

150W 12V Monocrystalline Photovoltaic Module Solar Panel
Designed for the rural electrification, data survey, telecommunication and special applications. Thanks to its versatility, the panel is very popular and used both in developing countries as well as the European market. Furthermore every single cell and module produced have been tested and checked several times throughout the manufacturing process. The interconnections between panels are easy, practical and optimized for every configuration and voltage. Robust construction and heavy duty anodized aluminium frame design makes this module suitable, safe, simple and fast to be installed in many situations.
Prevent the loss of electricity: used on the roof of the car, charge the car battery at any time. Can prevent the car battery from losing electricity, and solve the situation that the car cannot be fired due to the battery loss caused by the long-term parking of the vehicle.
Elettrodomestici di bordo: quando si utilizzano gli elettrodomestici di bordo, la potenza originale della batteria dell'auto non si perde (audio per auto, navigatore, registratore di guida, aspiratore, ventilatore per auto, frigorifero per auto, cellulare, ecc.).

Features:
- High module conversion efficiency.
- The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 22%.
- Excellent performances even during low solar radiation (cloudiness, morning or evening).
- Solar-grade tempered prismatic glass.
- High-quality cells and partial-cell design lower series resistance and reduce power degradation.
- Strict and continuous quality controls during all the production phases up to shipment.
- Anti-corrosion EVA effectively protects the battery panel.
- Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
- Lightweight and flexible features can make it seamlessly integrated into your vehicle.
- The integrated bypass-diodes allow the panel to work when partially shaded.
- IP67 rated junction box, reliable cables and standard MC4 connectors improve the stability.

Technical data:
- Peak power: 150W;
- Cell type: Monocrystalline;
- Cell Efficiency: 22%;
- Cell configuration: 36 monocrystalline silicon cells;
- Vmp: 18.56V;
- Imp: 8.09A;
- Voc: 21.76V;
- Isc: 8.58A;
- Maximum system voltage: 500V;
- Output tolerance: ±3%;
- Cable: 700 mm / 2.5 mm²;
- Connector type: MC4 / MC4 compatible;
- Model structure: Aluminum frame, glass, EVA, white backsheet;
- Junction box classified ≥IP67;
- Working temperature: -40°C ~ +80°C;
- Size: 1045x768x30 mm;
- Weight: 8.4 kg.

Note:
Pv module provided with cable MC4 connectors.
If the distance between the PV module and charge controller is less than 10 mt, we recommend using 4 mm² cable;
If the distance between the PV module and charge controller is more than 10 mt, we recommend using 6 mm² cable.

LiFePO4 12V 100Ah Lithium Battery 12,8V 1280Wh TopSolar Built-in Smart BMS
The Smart BMS LiFePO4 battery is definitely the best alternative to 12V lead-acid batteries because they have a stable supply voltage even under heavy load. Offering the advantages of lithium: light weight, stable voltage, high cycle count. It can directly store more than 96% of the supplied energy. High performance even in extreme conditions. Deep and constant discharge and recharge efficiency.
The battery charge monitoring system (commonly called Battery Management System or BMS) allows intelligent management of the range and safety of an e-mobility vehicle, in turn reducing power costs. The BMS manages the entire array of lithium cells (single cells or entire battery packs), establishing a safe operating area, i.e. a safety area within which the battery pack guarantees the best technical and energy performance. The BMS is basically an electronic system for the complete control of all the diagnostic and safety functions for the management of the voltage on board the vehicle and the balancing of the electric charge.
The fields of application of lithium batteries are diverse, especially for stationary or mobile use. In particular, mobile homes, solar boats, electric boats, electric scooters, golf cars or even electromobiles/wheelchairs and cleaning machines are increasingly equipped.
Series and parallel connection for 12V, 24V, 36V, 48V applications.

Electrical performance:
Rated Voltage: 12.8V
Nominal Capacity: 100Ah
Capacity @ 20A: 300 minutes
Energy: 1280Wh
Resistance: ≤25mΩ @ 50% SOC
Auto Discharge: <3% / Month
Cells: Prismatic cell 3.2V 100Ah
Life Cycle: >4000
Application: 12V installation, 4Pcs parallel, 4Pcs max connection in series (12-24-48V)
Exhaust performance:
Reconnect Voltage: >10V
Low Voltage Disconnect Recommended: 10V
Discharge Breakdown Voltage: >10V (50 ~ 150ms)
Charging performance:
Operating voltage range: 11.2V ~ 14.4V ± 0.2V
Constant charge current: 20A(0.2C)
Maximum charge current: 50A
Constant discharge current: 50A(0.5C)
Maximum discharge current: 100A
Balance Voltage: <14V
Temperature performance:
Charging temperature: 0 to 45℃
Discharge temperature: -20 to 60℃
Storage temperature: 0 to 45℃
Mechanical performance:
Terminal Type: M8
Terminal Torque: 80 ~ 100 in-lbs (9 ~ 11 N-m)
Case Material: ABS
Enclosure Protection: IP65
Dimensions (L x W x H): 330x172x223 mm
Weight about 11 kg
Compliance:
Guarantee: European, as per the regulation in force on the date of sale.

Victron Energy SmartSolar MPPT 100V 30A Solar Charge Controller
Ultra-fast Maximum Power Point Tracking (MPPT): Especially in case of a clouded sky, when light intensity is changing continuously, an ultra fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers.
Load output: Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a preset voltage.
BatteryLife: intelligent battery management. The BatteryLife algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%.
Resin encapsulated electronics. Day/night timing and light dimming option.
Outstanding conversion efficiency: No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F). No cooling fan.
Advanced Maximum Power Point Detection in case of partial shading conditions: If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPT’s tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Flexible charge algorithm: Fully programmable charge algorithm, and eight preprogrammed algorithms, selectable with a rotary switch.
Extensive electronic protection: Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection

Technical Specifications:
Battery voltage: 12/24V auto detected
Maximum output current: 30 A
Maximum PV power: 440W(12V) 880W (24V)
Maximum PV open circuit voltage: 100V
Maximum efficiency: 98%
Self-consumption: 100mA
Operating temperature: -30°C ÷ +60°C
Protection class: IP 43 (electronic components) - IP22 (connections)
Weight kg (lbs): 1,3 (2.9)
Size: 130x186 x70 mm (5.1x7.3x2.8 inches)

Solar Cable Kit 2x5m-4mmq with F/M MC4 connectors
Cable kit made of black 4 mm² 5 meter photovoltaic cable, red 4 mm² 5 meter photovoltaic cable, MC4 female and male connectors. Specifically designed for the creation of quick and safe connections in the field of photovoltaic applications with the most common inverter and junction boxe. They are made with tinned copper contacts and PPO housing. Resistant to mechanical and climatic stress and resistant to UV rays. The cables and connectors are supplied pre-wired.
