48V 4500W Photovoltaic Kit with 6kW 230V Inverter and 5.12kWh LiFePo4 Batteries Off Grid Isolated House Cabin

48V 4500W Photovoltaic Kit with 6kW 230V Inverter and 5.12kWh LiFePo4 Batteries Off Grid Isolated House Cabin

Complete Solution for Energy Independence
The 4500W 48V Off-Grid Photovoltaic Kit is a complete solution for generating, storing, and managing electricity in remote homes, cabins, shelters, campers, boats, and all installations not served by the public electricity grid.
The system consists of 10 450W monocrystalline photovoltaic panels, a 6200VA All-in-One Off-Grid hybrid inverter with integrated MPPT regulator and the Dyness DL5.0C LiFePO4 5.12kW 51.2V lithium battery with BMS. for a total storage capacity of 5.12 kWh.
Thanks to the advanced LiFePO4 battery technology and intelligent energy management, the kit guarantees reliability, safety, and energy autonomy even in the most demanding situations.

Recommended Applications
Mountain huts and shelters
Isolated, off-grid homes
Agricultural and rural facilities
Energy backup systems
Campers and mobile homes

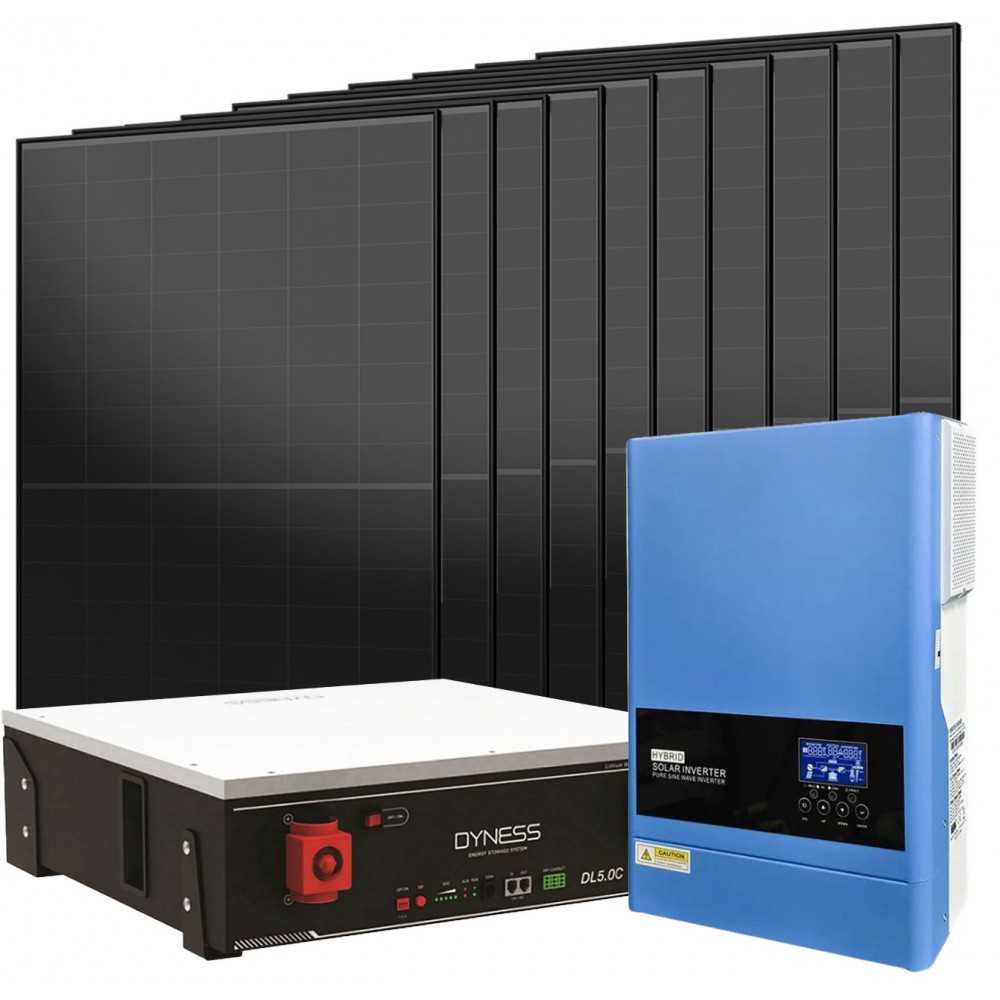

The kit includes:
(10) 450W photovoltaic solar panels #N150000001 or higher
(1) Inverter 48V 6200VA Hybrid Inverter Blue 230V MPPT 120A 500Vdc for 6400W photovoltaic #N150422022024;
(1) Dyness DL5.0C 5.12kW 51.2V LiFePO4 lithium battery with BMS.

No. 10 - 450W Monocrystalline Silicon Solar Panel

The module can harness both direct and reflected solar radiation, increasing energy production in the most favorable installations. Ideal for residential and commercial photovoltaic systems and storage systems, the 450W solar panel is a high-end solution that combines efficiency, durability, and an elegant design that integrates seamlessly with any type of roof.

Main Features
Rated Power: 450 Wp
Open Circuit Voltage (Voc): 40.30 V
Working Voltage (Vmp): 32.99 V
Short Circuit Current (Isc): 14.41 A
Working Current (Imp): 13.64 A
Dimensions: 1762 x 1134 x 30 mm
Weight: 22 kg
Number of Cells: 108 (6 x 18)

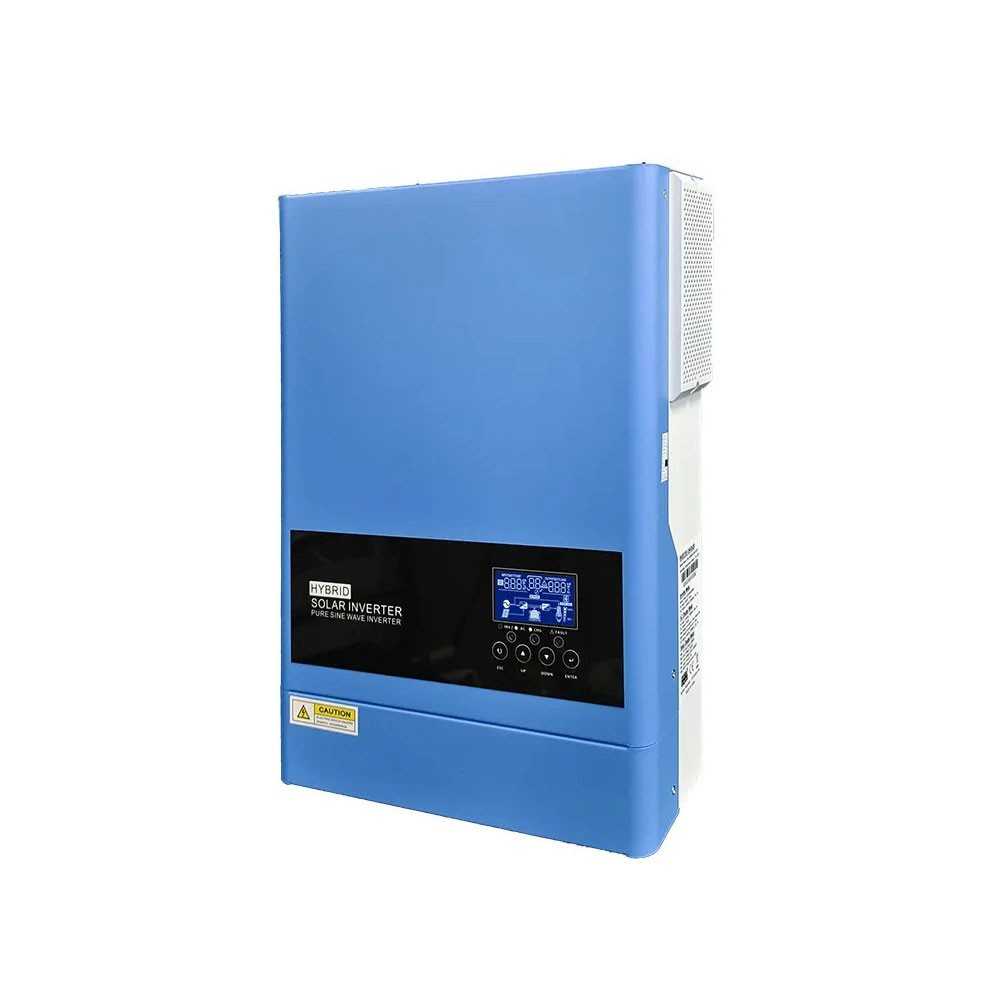

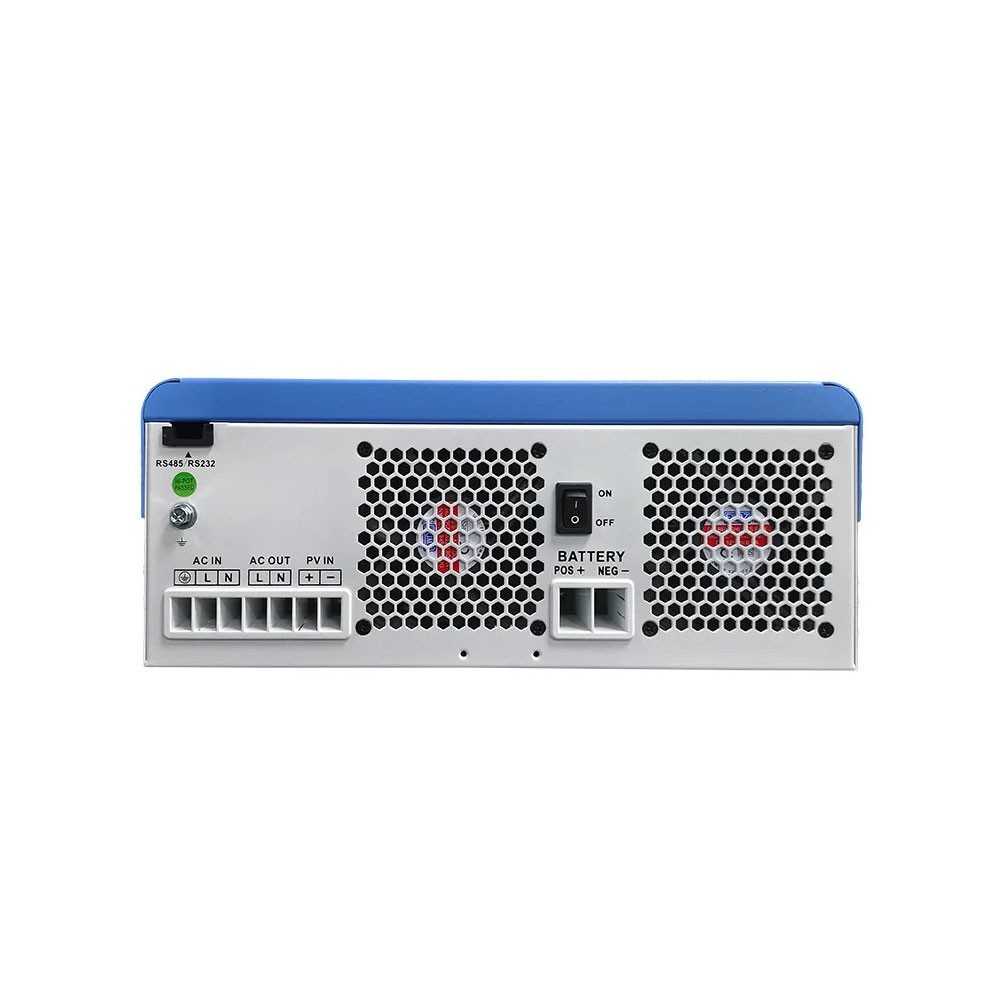

No. 1 - Inverter 48V 6200VA Hybrid Inverter Blue 230V MPPT 120A 500Vdc for 6400W photovoltaic

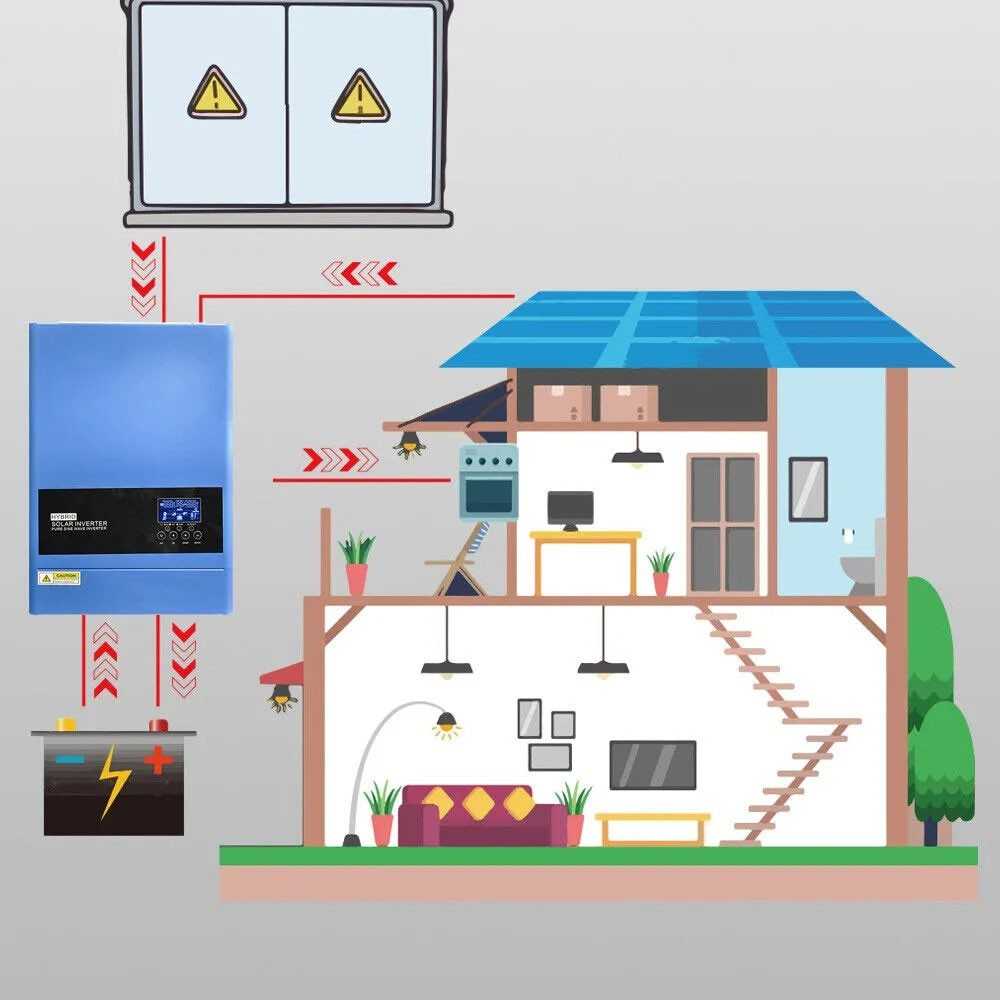

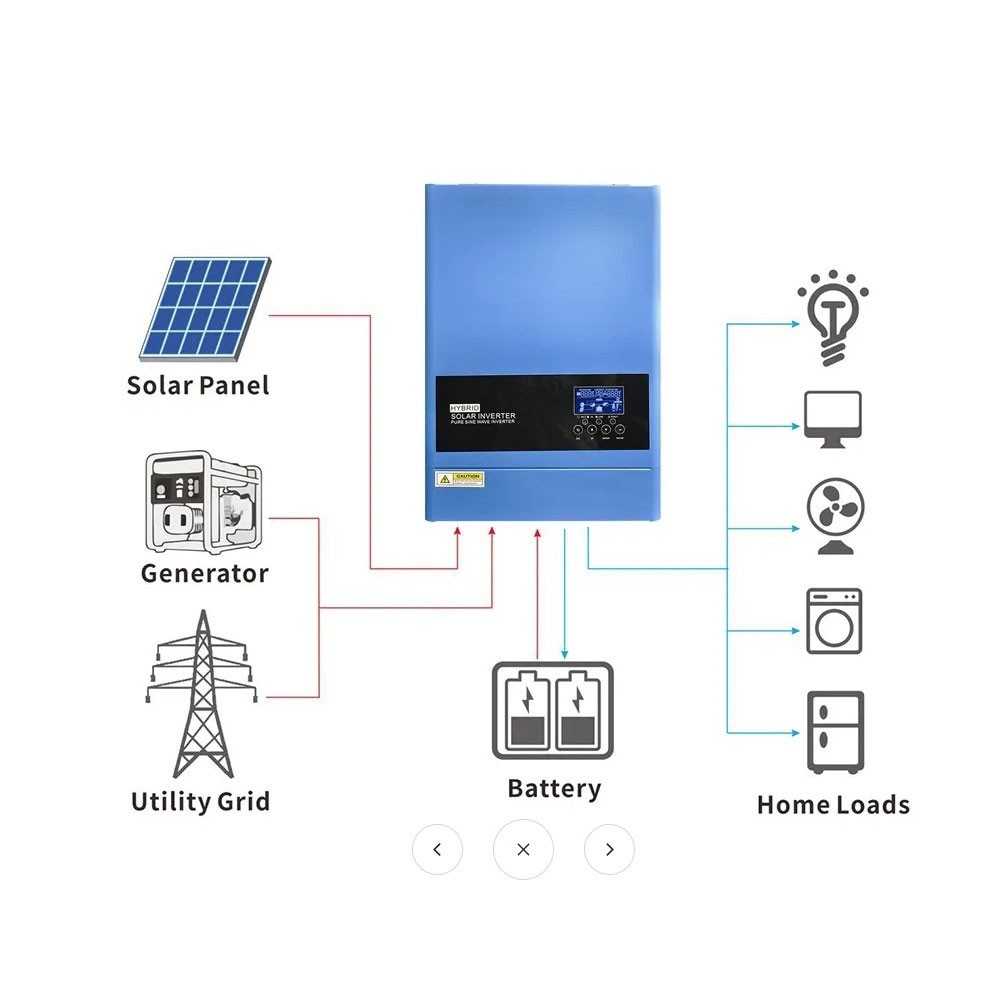

This inverter with display allows you to create an OFF GRID photovoltaic system of up to 6000w for recharging the 48V battery bank and using 230V alternating current with additional 230V AC input for emergency generator or network manager. The ALL in ONE inverter is the simplest system for creating an off-grid system with automatic exchange with the mains (or emergency generator), all components that usually make up a classic stand-alone photovoltaic system (charge regulator, inverter, control unit exchange and battery charger). With this inverter you will always be able to use renewable sources, therefore solar energy, energy stored in the battery and only in the event of the absence of the two renewables, the inverter automatically switches to the AC emergency input of the generator or network manager; This system allows you to have maximum savings on your bill or even completely eliminate the connection with the network operator.
Ideal for stand-alone or hybrid photovoltaic systems with AC mains or generator input.

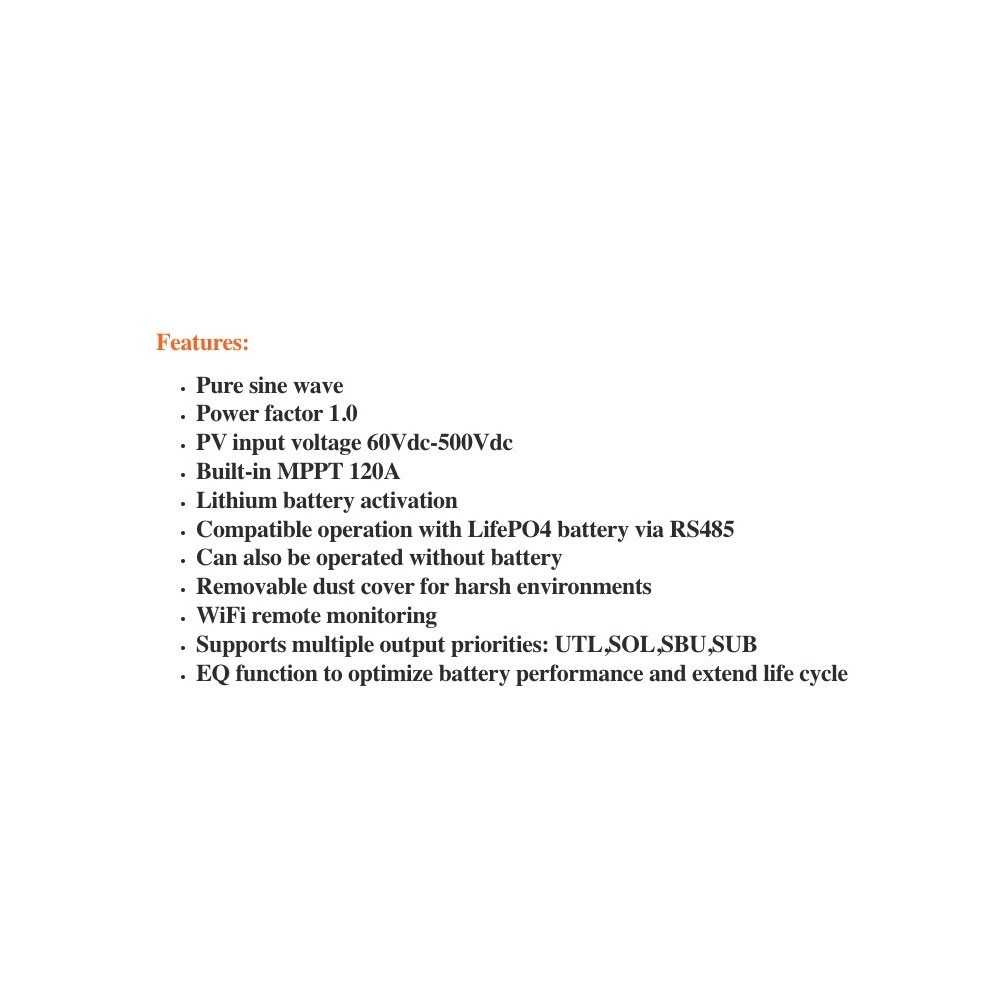

Main features
• Pure Sine Wave.
• Built-in Wi-Fi for mobile monitoring (Android/Iphone app available).
• Removable LCD control module with multiple communications.
• Supply the load from the grid or PV, even if the battery is not available.
• Configurable AC/PV output usage timer and priority.
• Integrated MPPT Solar Controller.
• High efficiency pure sine wave inverter (PF=1).
• Wide PV input range (120V DC - 500V DC) 120A MPPT SCC.
• Increase to 2X continuous power for 5 seconds for engine loads.
• Automatic switch-on in case of AC power failure.
• Overload and short circuit protection.
• 3-stage intelligent battery charger to optimize battery performance.
• Automatic restart while AC is recovering.

Technical characteristics
Inverter output
- Continuous Power: 6200VA/5500W;
- Peak Power: 12000VA/10000W;
- Wave Type: Pure Sine Wave;
- AC Voltage Regulation: ±5%;
- Inverter Efficiency (Peak): 90-93%;
- Transfer Time: 15ms (for Personal Computers), 20ms (for home loads).
AC input
- Voltage: 230 Vac;
- Selectable voltage range: 170∼280 Vac (for Personal Computer) 90∼280 Vac (for household loads);
- Frequency: 50Hz - 60Hz (automatic detection).
DC Input (Battery)
- Nominal voltage: 48 Vdc;
- Charging Voltage: 40-60 Vdc;
DC Solar Controller and Charger and AC
- Maximum photovoltaic power: 6400W;
- Optimal photovoltaic voltage for MPPT: 120 Vdc ~ 450 Vdc;
- Maximum open circuit photovoltaic voltage: 500 Vdc;
- Maximum charging current: 120A;
- Maximum efficiency: 98%.
Mechanical Specifications
- Measurements: 438x295x105h mm;
- Weight: 9 kg.
Working conditions
- Humidity: 5% to 95% relative humidity;
- Operating temperature: from 10 °C to +50 °C;
- Storage temperature: -15 °C to +60 °C.

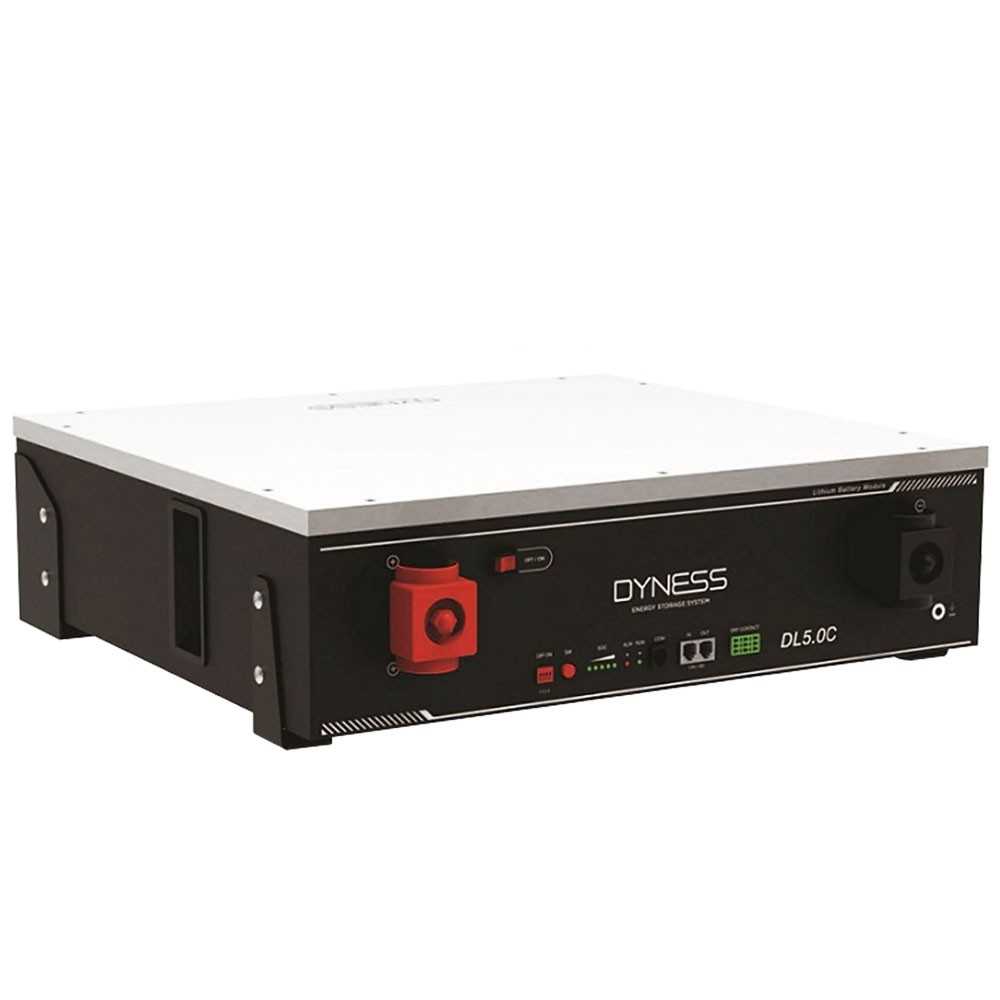

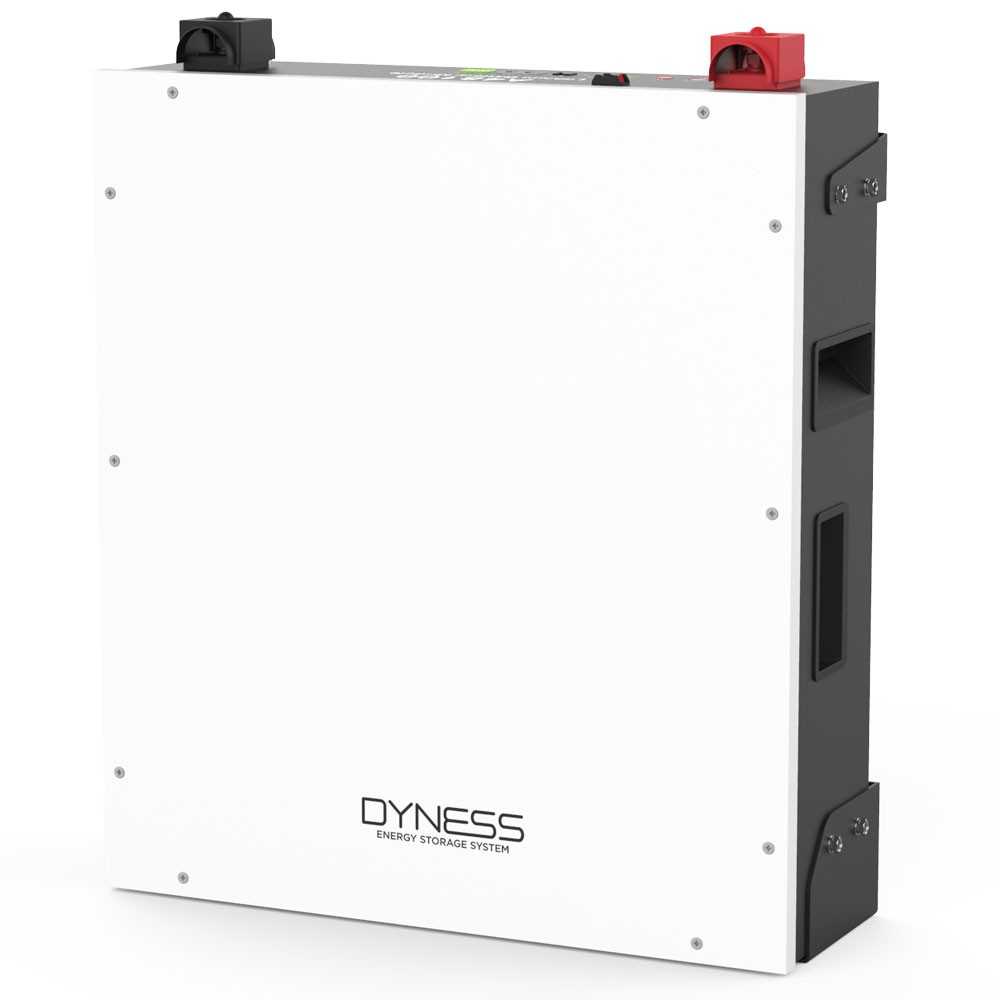

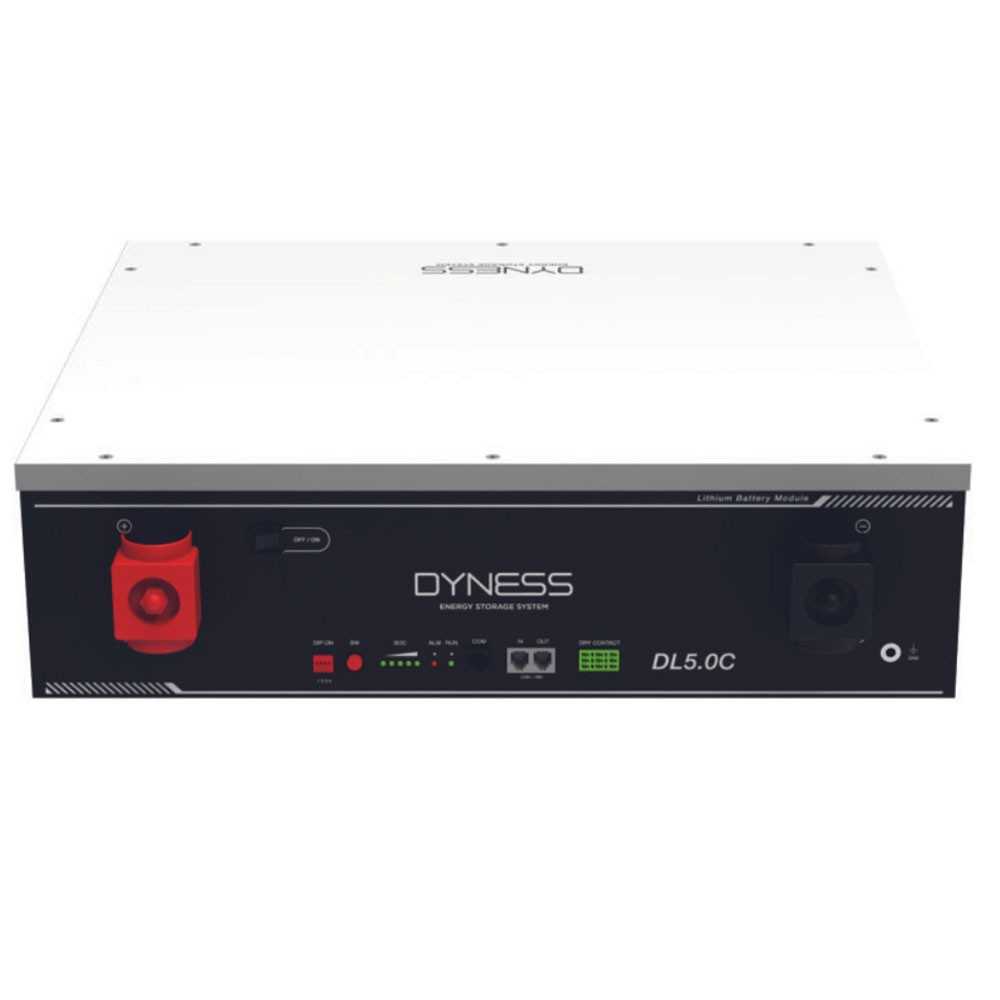

No. 1 - Dyness DL5.0C 5.12kW 51.2V LiFePO4 Battery with BMS

Dyness DL5.0C adopts economic design, and is tailor-made for residential and small commercial application. This LFP battery module supports remote upgrade and APP monitoring, and provides multiple installation methods. It is scalable from 5.12kWh to 256kWh (max. 50 modules in parallel), providing various energy options to meet different requirements.

APP Monitoring (optional) Real-time monitoring & Remote upgrade available
Module Design Flexible expansion

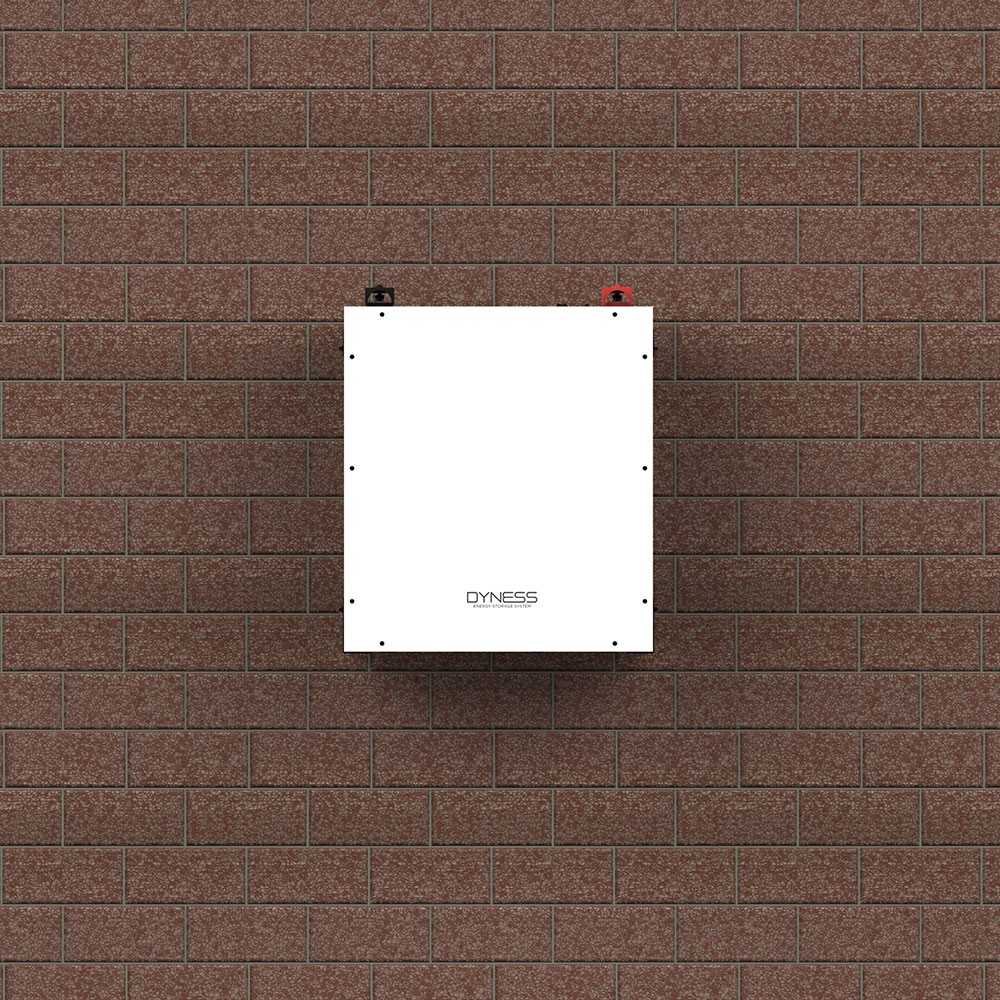

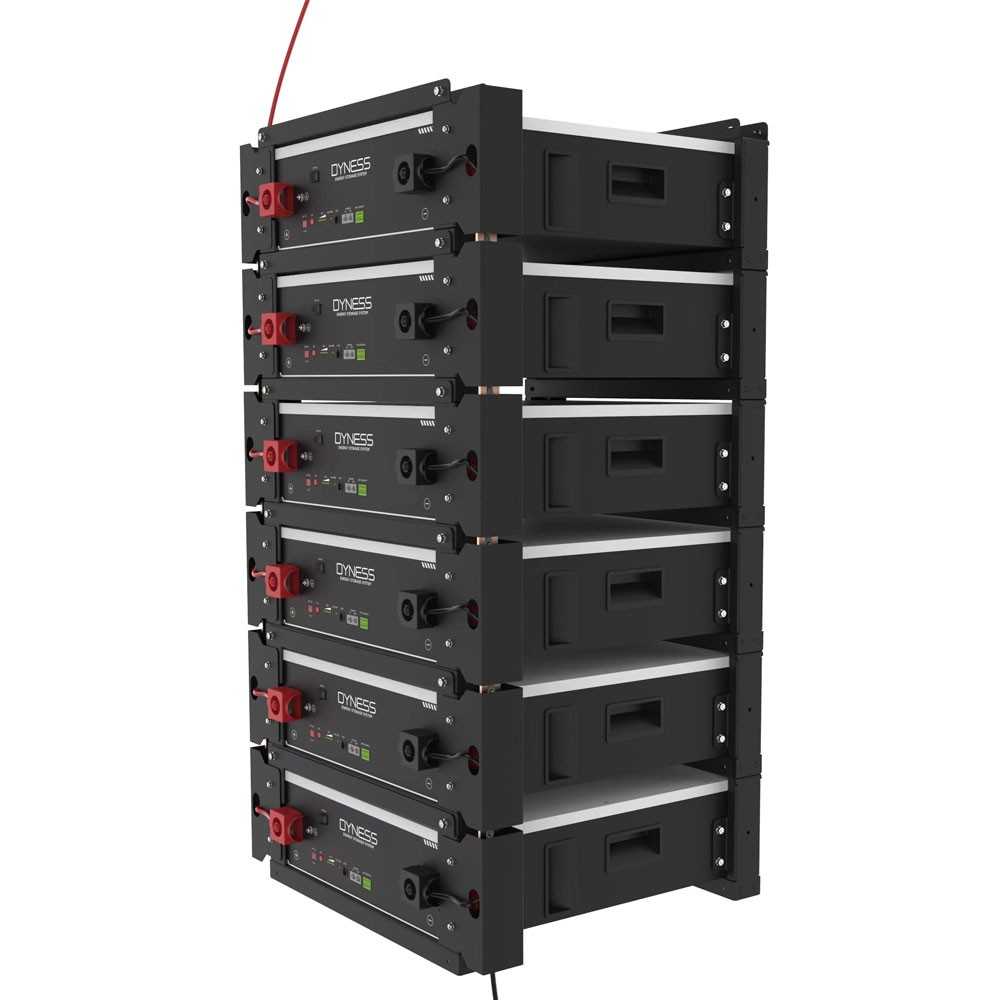

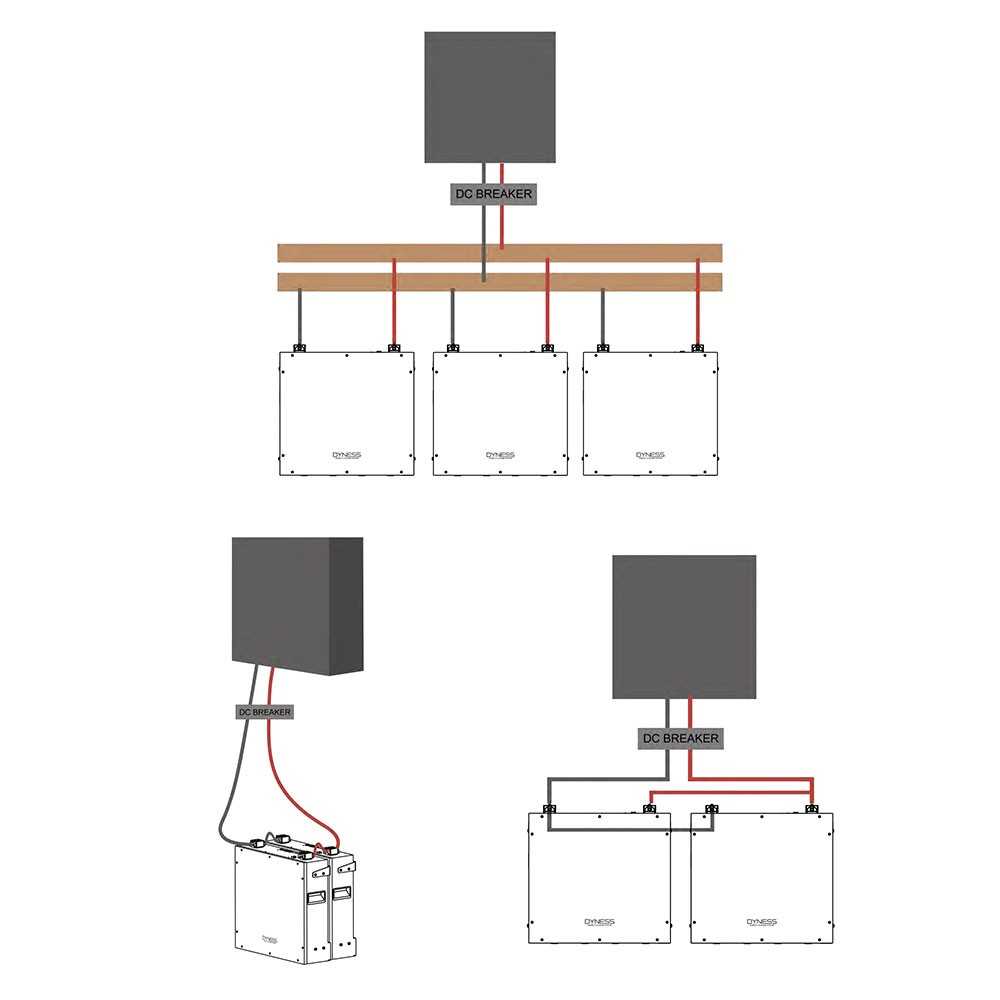

Various Mounting Methods Wall-mounted, floor-standing and stacked
High Safety LFP Cell level monitoring and balancing
Wide Compatibility Matching with leading inverters

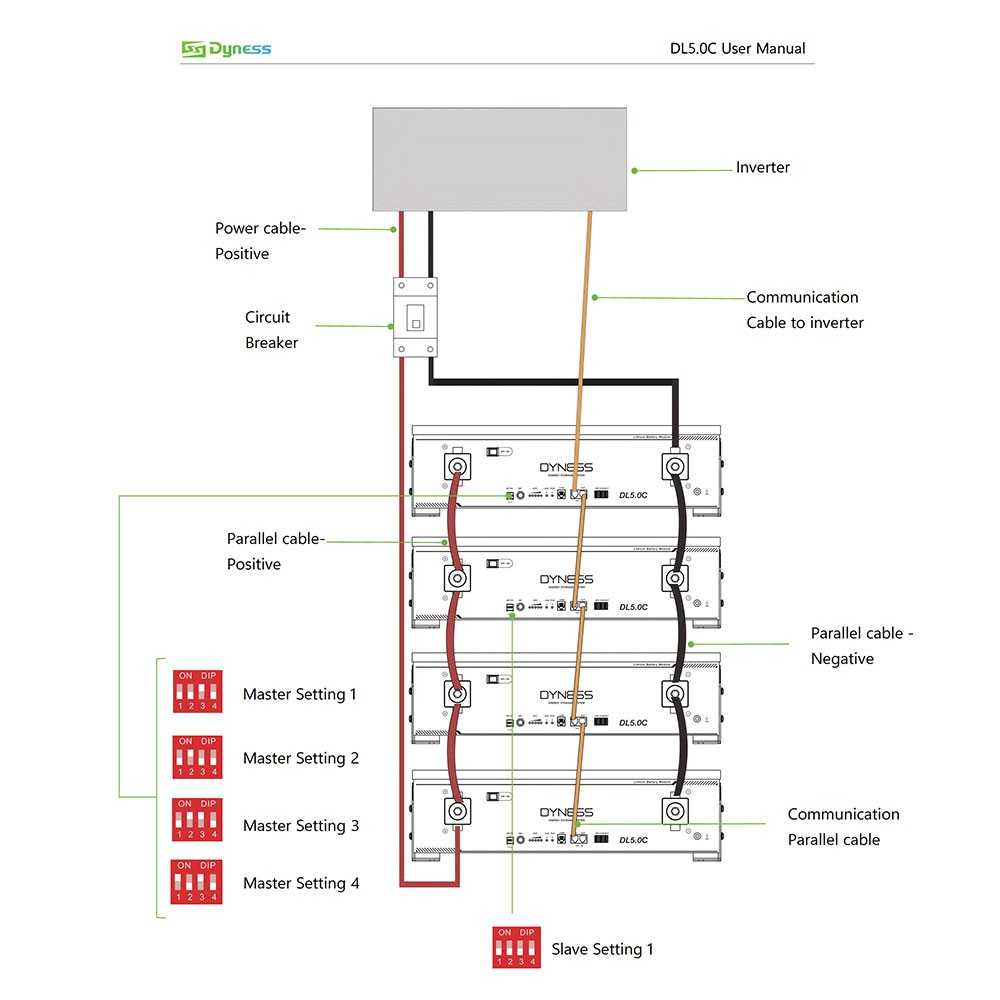

DL5.0C lithium iron phosphate battery system is a standard battery system unit, customers can choose a certain number of DL5.0C according to their needs, by connecting parallel to form a larger capacity battery pack, to meet the user's long-term power supply needs. The product is especially suitable for energy storage applications with high operating temperatures, limited installation space, long power backup time and long service life.
DL5.0C lithium iron phosphate battery energy storage system can provide energy storage for photovoltaic power generation users through parallel combination. Our product can store extra electricity into battery from photovoltaic power generation system in daytime and supply stable power to user’s equipment as power backup at nighttime or any time when needed. It can improve the efficiency of photovoltaic power generation and increase the electric power efficiency by peak load shifting.

DL5.0C energy storage product’s positive electrode materials are lithium iron phosphate, battery cells are managed effectively by BMS with better performance, the system’s features as below:
• Comply with European ROHS, Certified SGS, employ non-toxic, non-pollution environment-friendly battery.
• Anode materials are lithium iron phosphate (LiFePO4), safer with longer life span.
• Carries battery management system with better performance, possesses protection function like over-discharge, over-charge, over-current, abnormal temperature.
• Self-management on charging and discharging, Single core balancing function.
• Intelligent design configures integrated inspection module.
• Flexible configurations allow parallel of multi battery for longer standby time.
• Self-ventilation with lower system noise.
• Less battery self-discharge, then recharging period can be up to 10 months during the storage.
• No memory effect so that battery can be charged and discharged shallowly.
• With wide range of temperature for working environment, -20oC~ +55oC, circulation span and discharging performance are well under high temperature.
• Less volume, lighter weight.

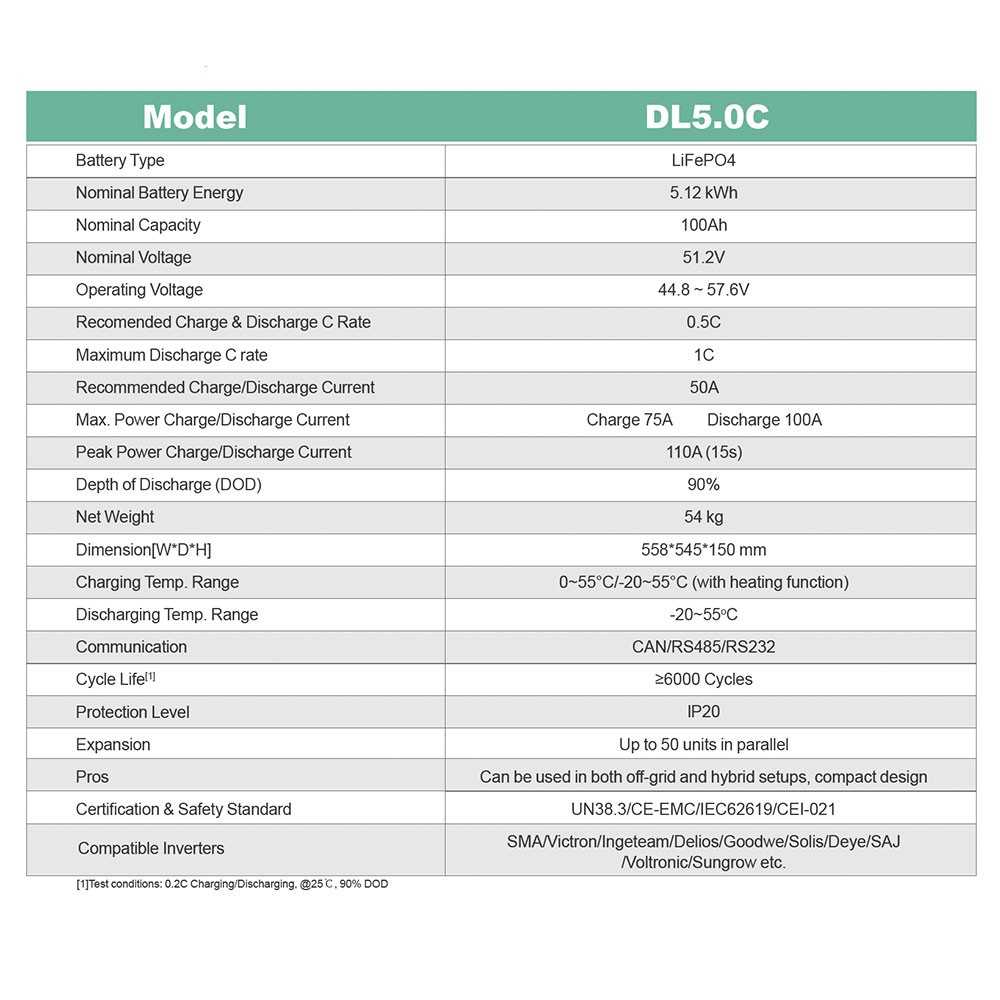

Technical data
Battery type: LiFePO4
Battery nominal energy: 5.12 kWh
Nominal capacity: 100 Ah
Nominal voltage: 51.2 V
Operating voltage: 44.8 ~ 57.6 V
Recommended C rate: 0.5C
Recommended charge/discharge current: 50 A
Maximum charge current: 75 A
Maximum discharge current: 100 A
Peak power Charge/discharge current: 110A (15s)
Depth of discharge (DOD): 90%
Net weight: 54 kg
Dimensions [LxWxH]: 558x545x150 mm
Charging Temperature Range: 0~55℃
Discharging Temperature Range: -20~55℃

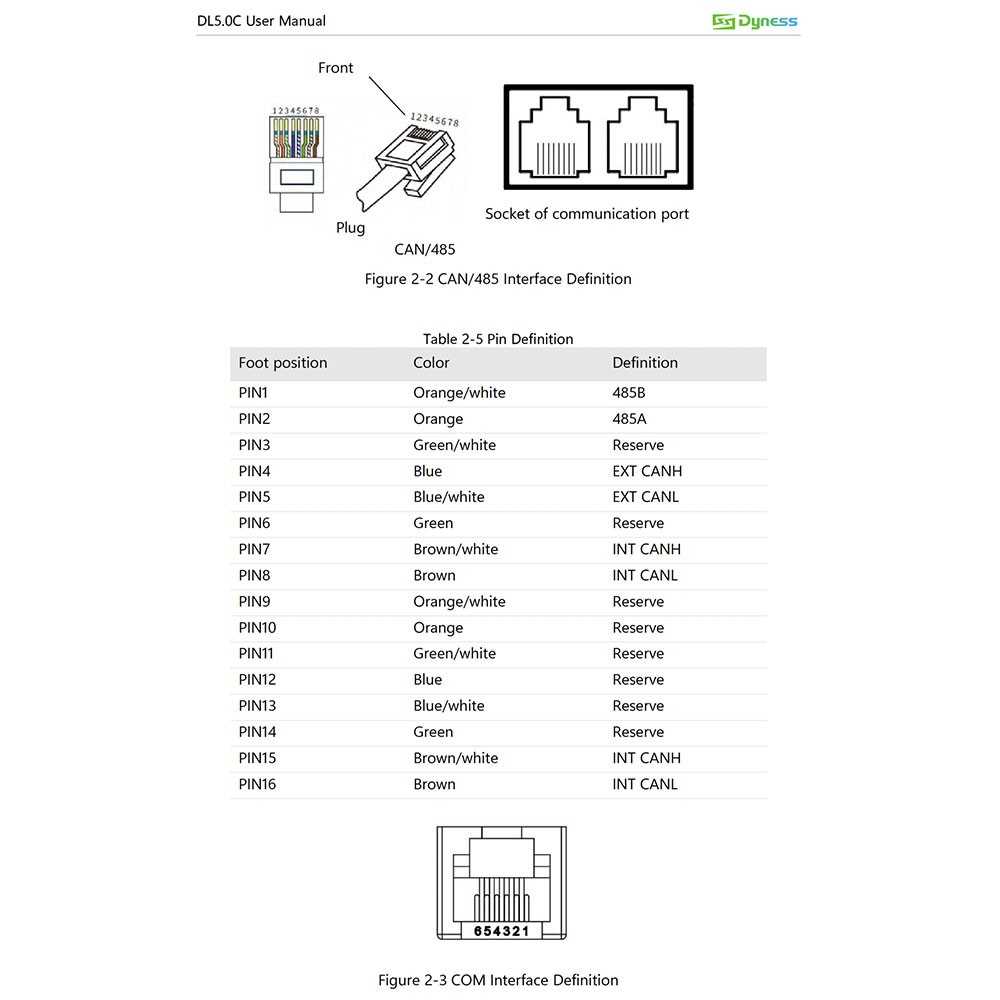

Communication: CAN/RS485/RS232
Life Cycle[1]: ≥6000 cycles
Protection Level: lP20
Expansion: Up to 50 units in parallel
Pros: Can be used in both off-grid and hybrid configurations, compact design
Certification and Safety Standards: UN38.3/CE-EMC/IEC62619/CEI-021
Compatible Inverters: SMA, Victron, Ingeteam, Delios, Goodwe, Solis, Deye, SAJ, Voltronic, Sungrow etc.

[1] Test Condition: 0.2C charge/discharge, @25℃, 90% DOD
