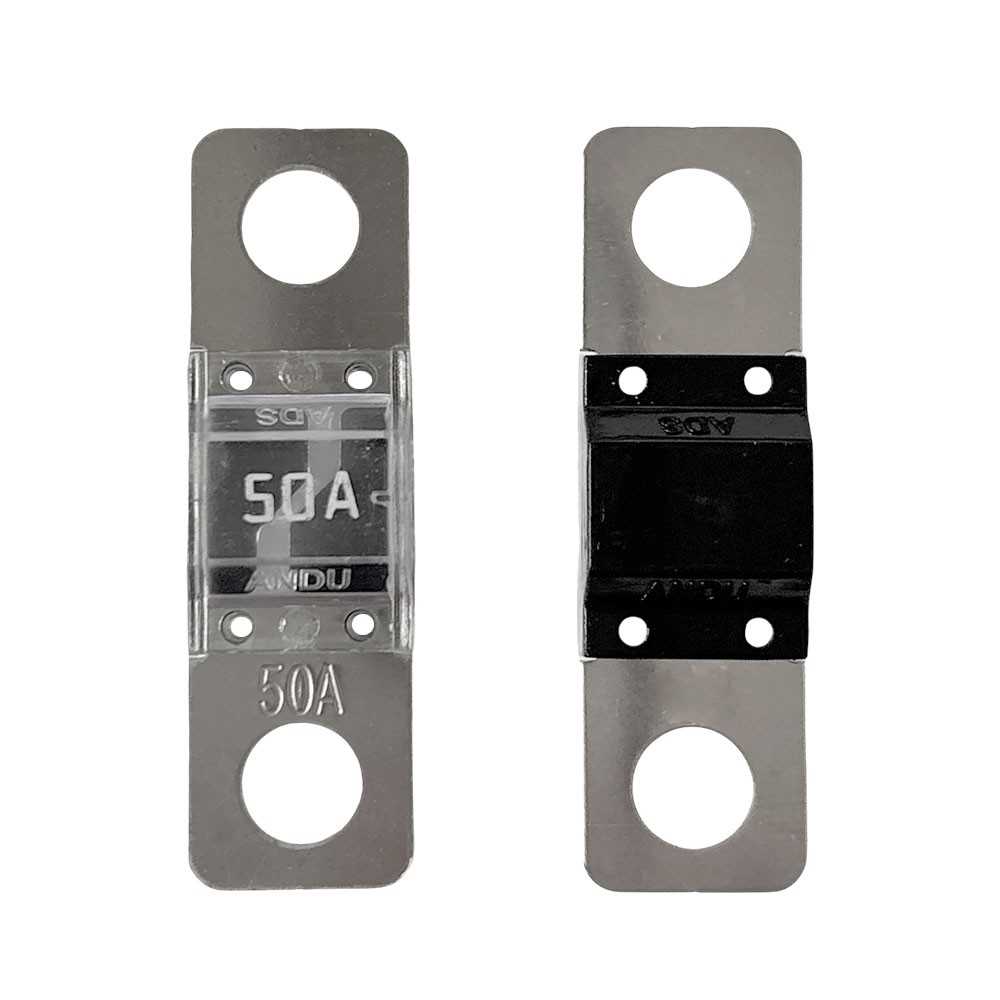

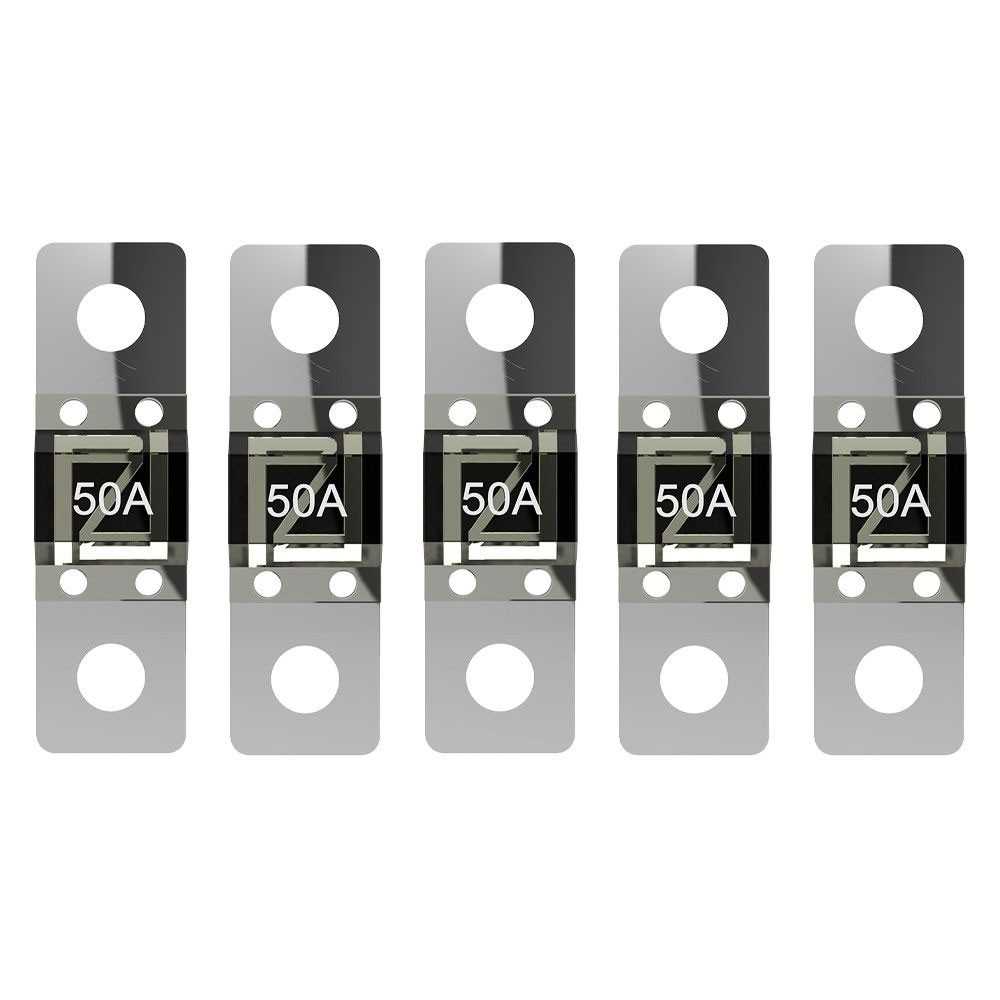

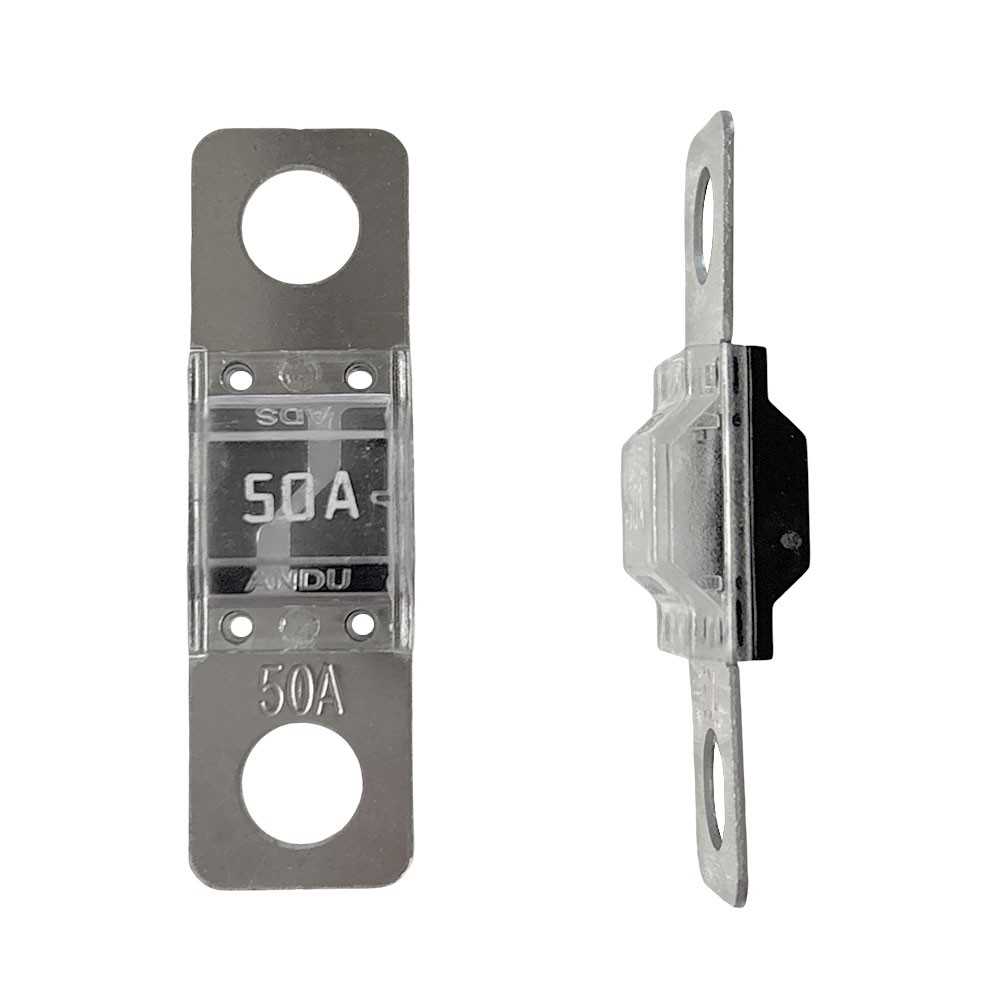

MIDI Fuse 50A 58V DC electrical systems OF01346550A

MIDI Fuse 50A 58V DC electrical systems

High-quality MIDI fuse designed to provide reliable protection for DC electrical systems. Thanks to its high breaking capacity and extremely low contact resistance, it ensures maximum safety and efficiency in automotive, marine, RV, solar, and industrial applications.
Specifically engineered for systems up to 58V DC, this fuse offers a modern and dependable solution for protecting high-current circuits. Compatible fuse holders for one or two fuses are available for professional installation.

Key Features
Maximum rated voltage: 58V DC
Very low contact resistance for improved system efficiency
Latest-generation high-current bolt-on fuse design
Ideal for automotive, marine, RV, and solar power applications
Reliable performance and long service life

Technical Specifications
Rated current: 50A
Maximum voltage: 58V DC
Operating temperature: -40°C to +120°C
Housing material (30-150A): PC + zinc alloy
Housing material (150A and above): PC + copper
Element material: zinc alloy or copper
Recommended tightening torque: 30 Nm
Certifications: RoHS, UL

Package Contents
1 × MIDI fuse, 50A
