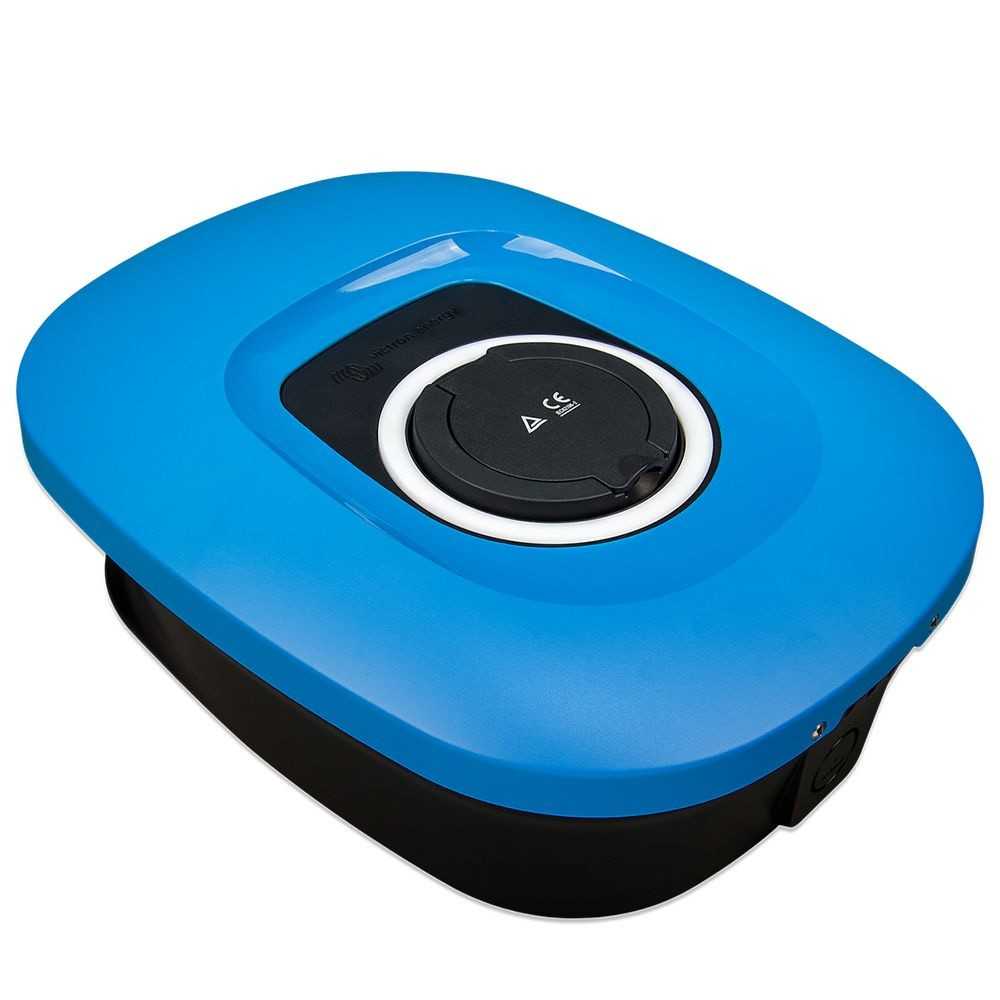

Victron Wallbox EV Charging Station NS 22kW 1-Phase 3-Phase Electric Car

Victron Wallbox EV Charging Station NS 22kW 1-Phase 3-Phase Electric Car

The EV Charging Station NS 22kW from Victron Energy is a powerful electric vehicle charging station that can be operated in both 3-phase and 1-phase modes. It delivers an impressive 22 kW AC power in 3-phase operation, while still providing a solid 7.3 kW in 1-phase mode. Although technically identical to the EV Charging Station, the new version features a modern design that is available in 3 different colors. Setup, configuration, and monitoring are conveniently done from VictronConnect via Bluetooth and/or the integrated web interface, which is accessible via a WiFi access point or WiFi LAN.
Furthermore, a GX device can be integrated, enabling remote control. It is particularly noteworthy that excess solar energy is used directly to charge your vehicle. Manual and time-controlled modes offer additional flexibility to meet the requirements of your electric vehicle, energy supply system, and general electric mobility.

Key Features
EV charging station with up to 22 kW charging power
Single-phase (7.3 kW) and three-phase (22 kW) operation
Configuration via VictronConnect and Bluetooth
Integrated web interface with Wi-Fi connectivity
Compatible with Victron GX devices for remote monitoring
Programmable RGB LED light ring indicating charging status
Available with black or white front panel
IP44 protection rating

Smart Control and Monitoring
The EV Charging Station NS can be managed directly through the VictronConnect app, allowing you to monitor charging status, adjust settings and view operating statistics.
For more advanced installations, the charging station can be integrated with a Cerbo GX, enabling remote monitoring and control via the Victron VRM Portal.

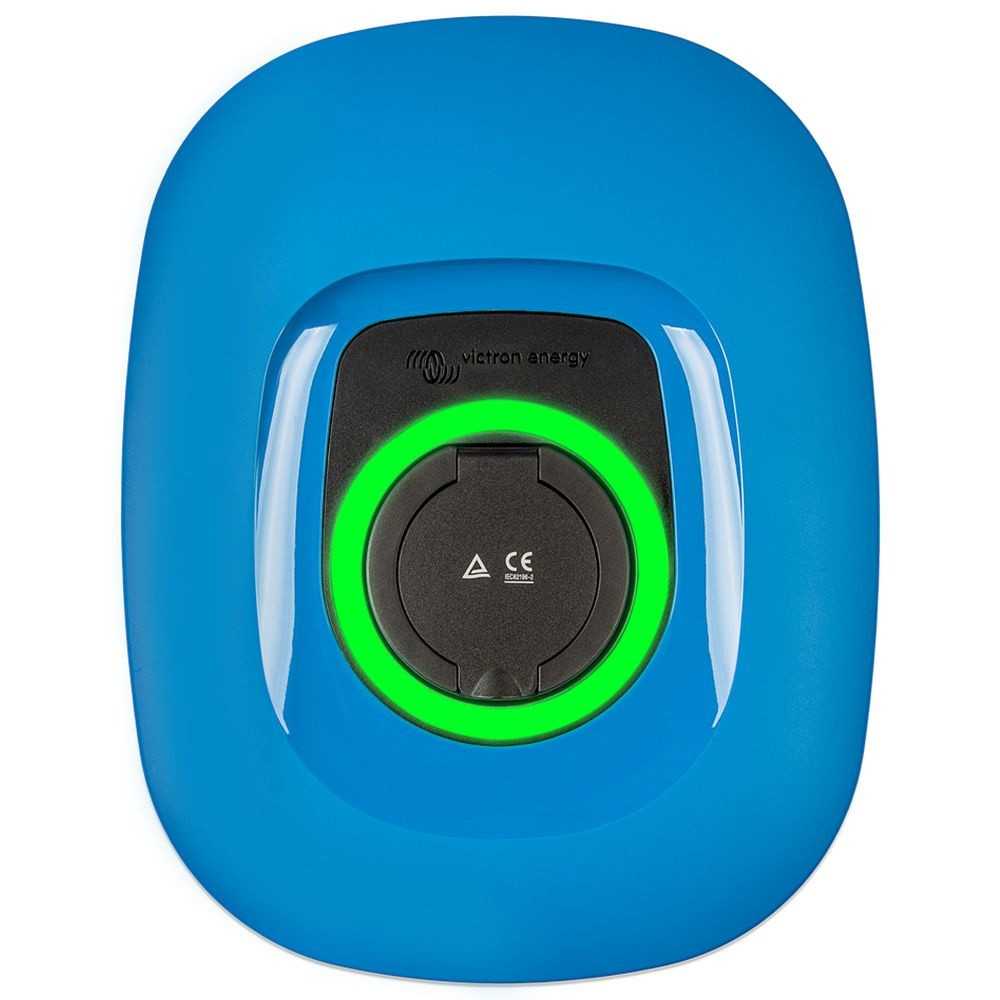

A fully programmable RGB LED light ring surrounding the charging connector provides an instant visual indication of the charger's operating status (disconnected, charging, ready, etc.) and can be customised through the integrated web interface.

Operating Modes
Manual mode for configuring the output current: In manual mode, the output current can be flexibly configured in the range from 6 to 32 A. The charging power can be controlled in various ways. Either via the web interface, from a GX device and VRM remote monitoring, or using VictronConnect. This makes it easy to manually start or stop the charging process as soon as a vehicle is connected to the charging station.

Optional GX device for VRM remote monitoring:
 -   Victron GX Touch 50 display panel for Cerbo GX
 -   Victron GX Touch 70 display panel for Cerbo GX

Automatic mode to ensure maximum efficiency of the PV system:
The charging station automatically detects when excess energy is available and uses only this energy to charge the vehicle. Instead of energy loss that would occur if excess energy were lost, it is stored in the vehicle's battery.
Time-controlled mode for charging the vehicle at specific times: Thanks to a fully programmable timer, the vehicle can be charged at different times. For example, during the night when grid costs are lower.

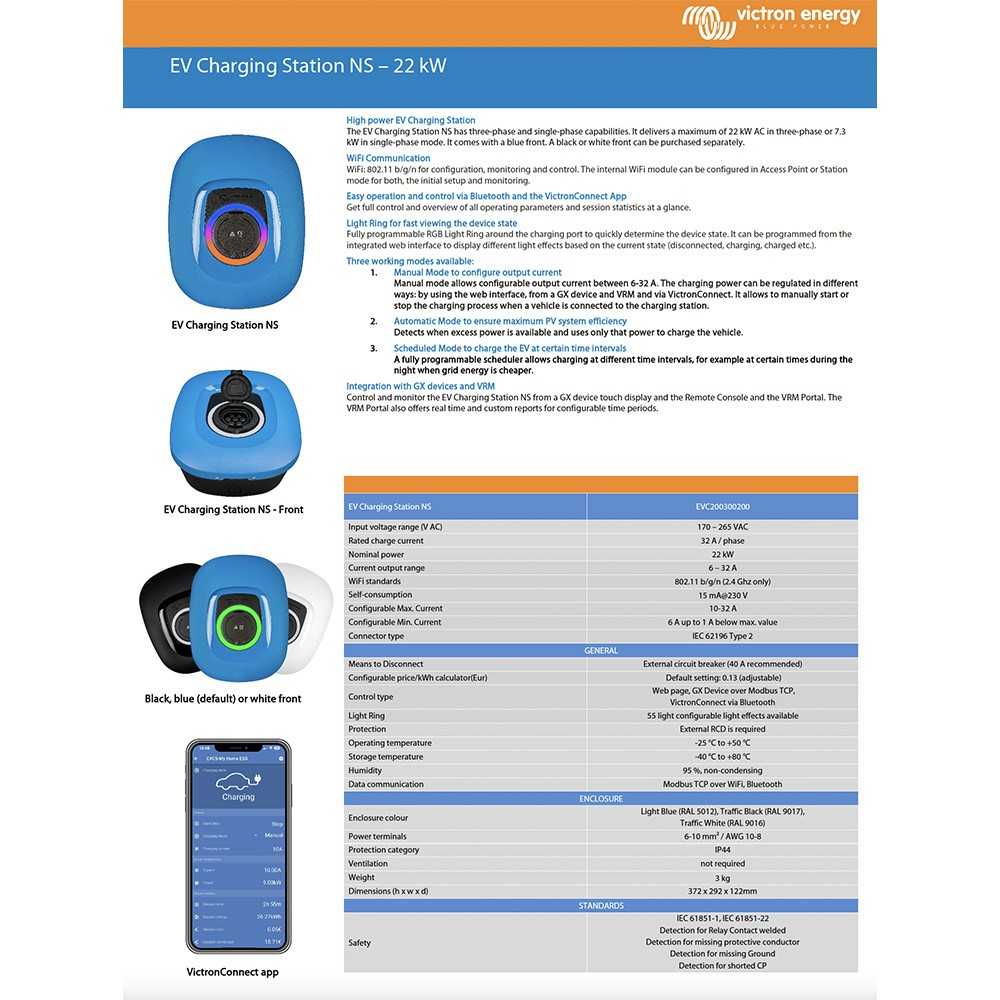

Technical Specifications
Maximum Charging Power: 22 kW
Operation: Single-phase & Three-phase
Input Voltage: 170–265 V AC
Nominal Charging Current: 32 A per phase
Adjustable Output Current: 6–32 A
Standby Power Consumption: 15 mA at 230 V
Operating Temperature: -25°C to +50°C
Storage Temperature: -40°C to +80°C
Protection Rating: IP44
Data Communication: Bluetooth, Wi-Fi, Modbus TCP via WLAN
Weight: 3 kg
Dimensions: 372 × 292 × 122 mm
