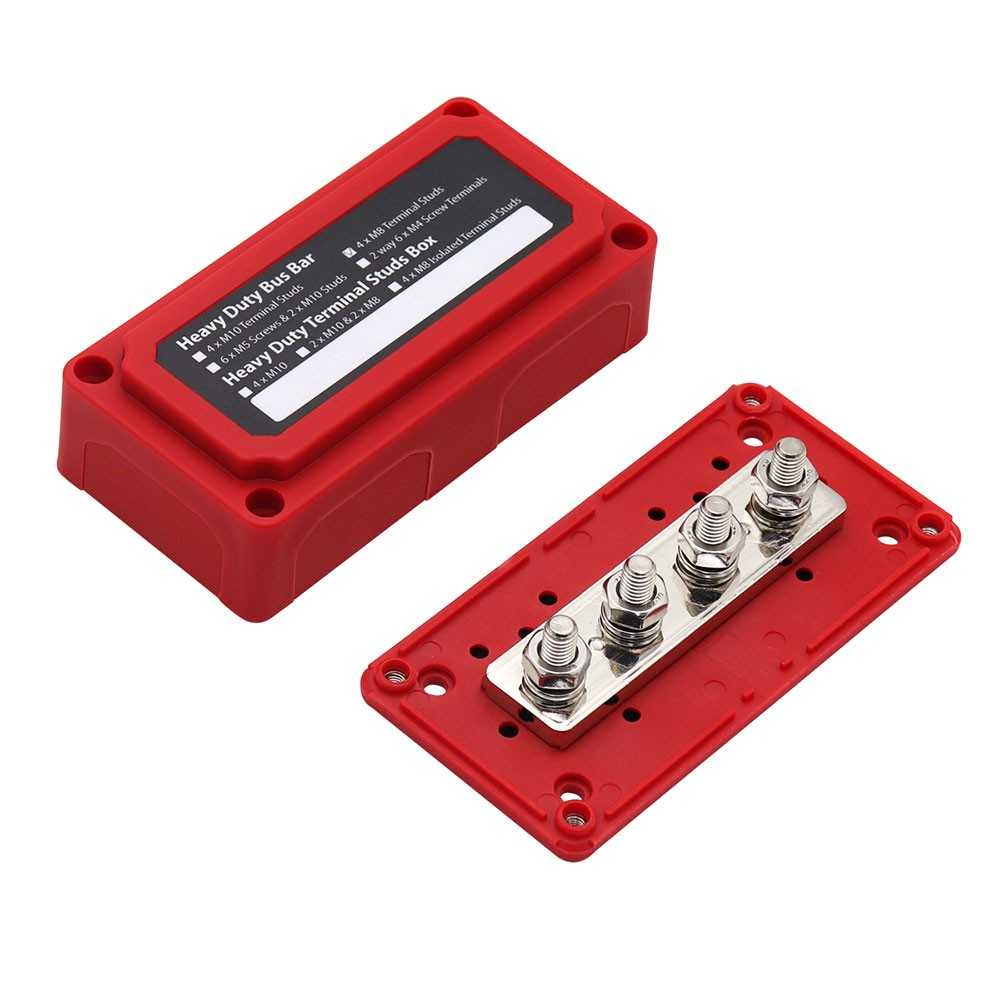

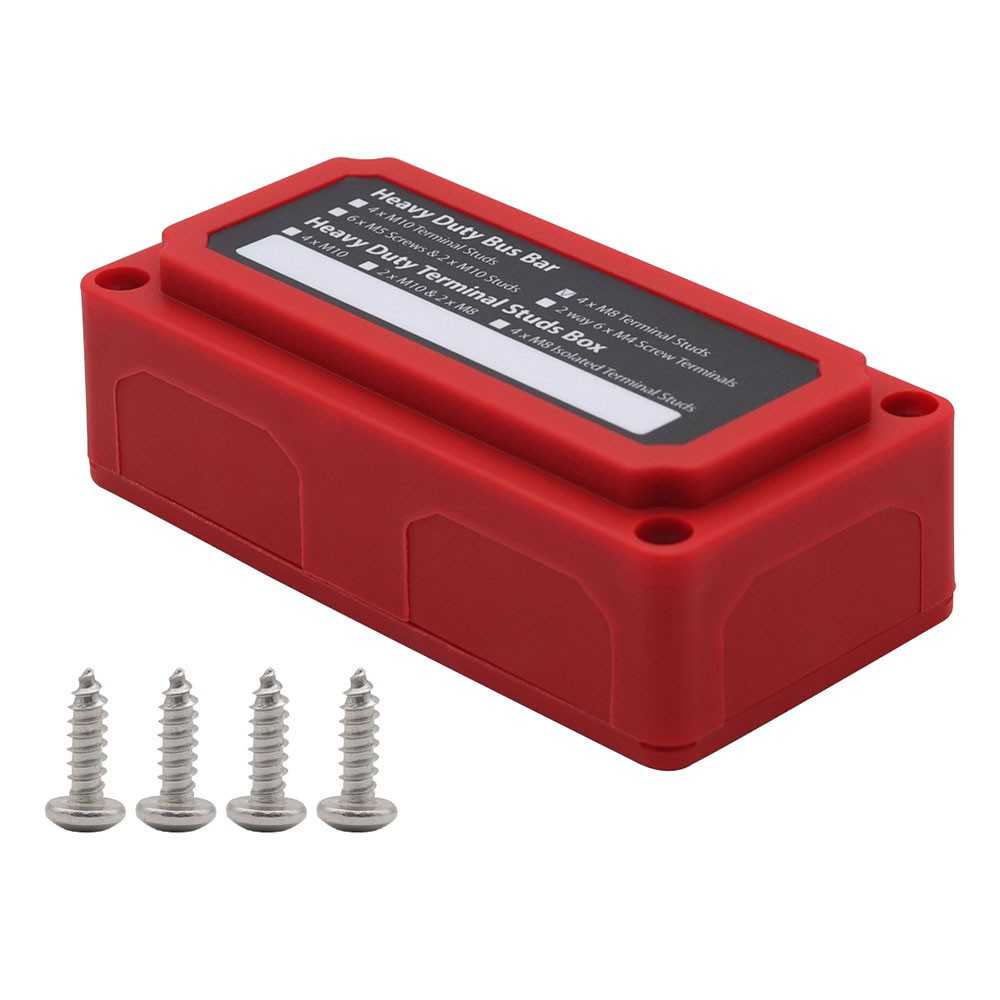

BusBar Box Rot 4xM8 Cable connection distribution box 48V max 200A Red

BusBar Box Rot 4xM8 Cable connection distribution box 48V max 200A

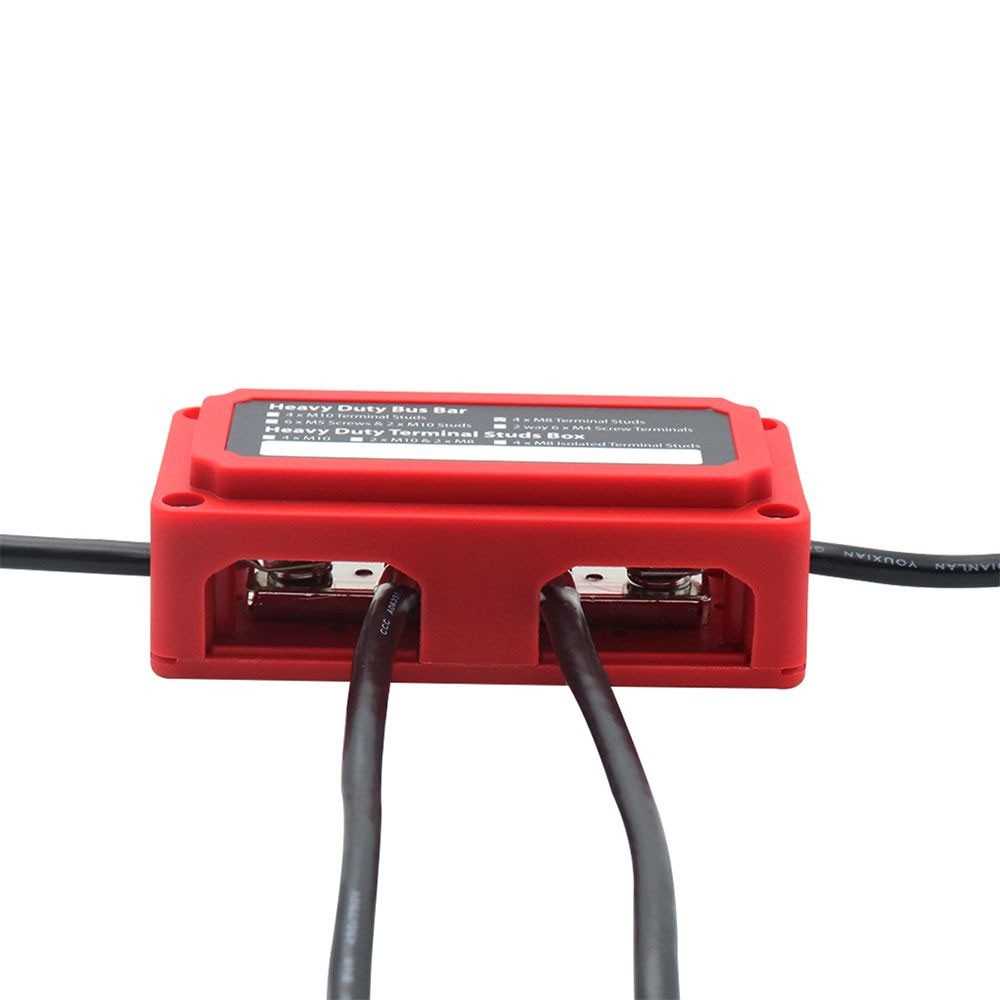

The BusBar Box distribution box allows of high-performance cables to be connected for one or more connections. The removable cover allows for easy and unobstructed cabling. The fiberglass-reinforced nylon base and housing ensure high mechanical strength and durability. With the blank writing space on the lid, each branch can be easily labeled.
Features

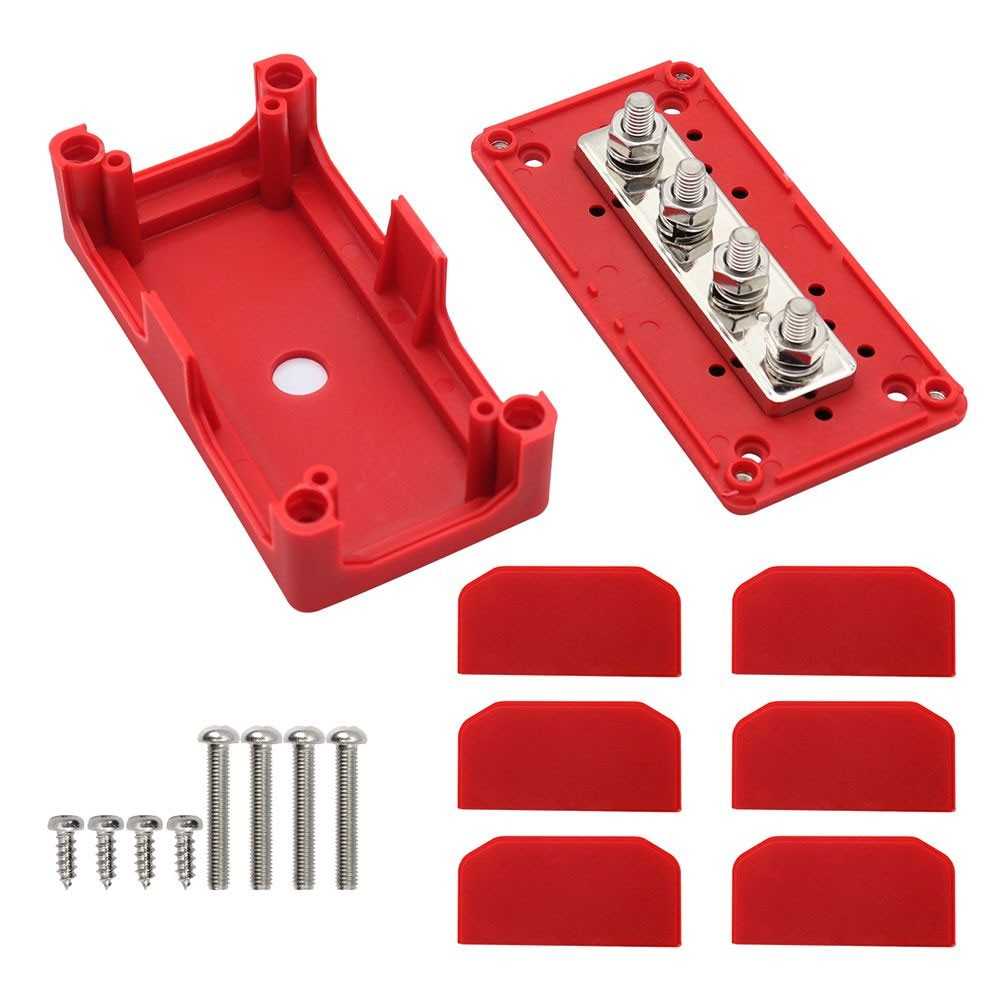

•    Removable insulation wall included
•    High power terminal studs (up to m8) allow max. 200a (rated power is determined by connected wires)
•    Terminal stud: M8
•    Module box design for easy wiring configurations
•    Material bus: brass, nickel-plated
•    Material base and housing: nylon, glass fiber reinforced
•    Max. Operating voltage: 48v DC

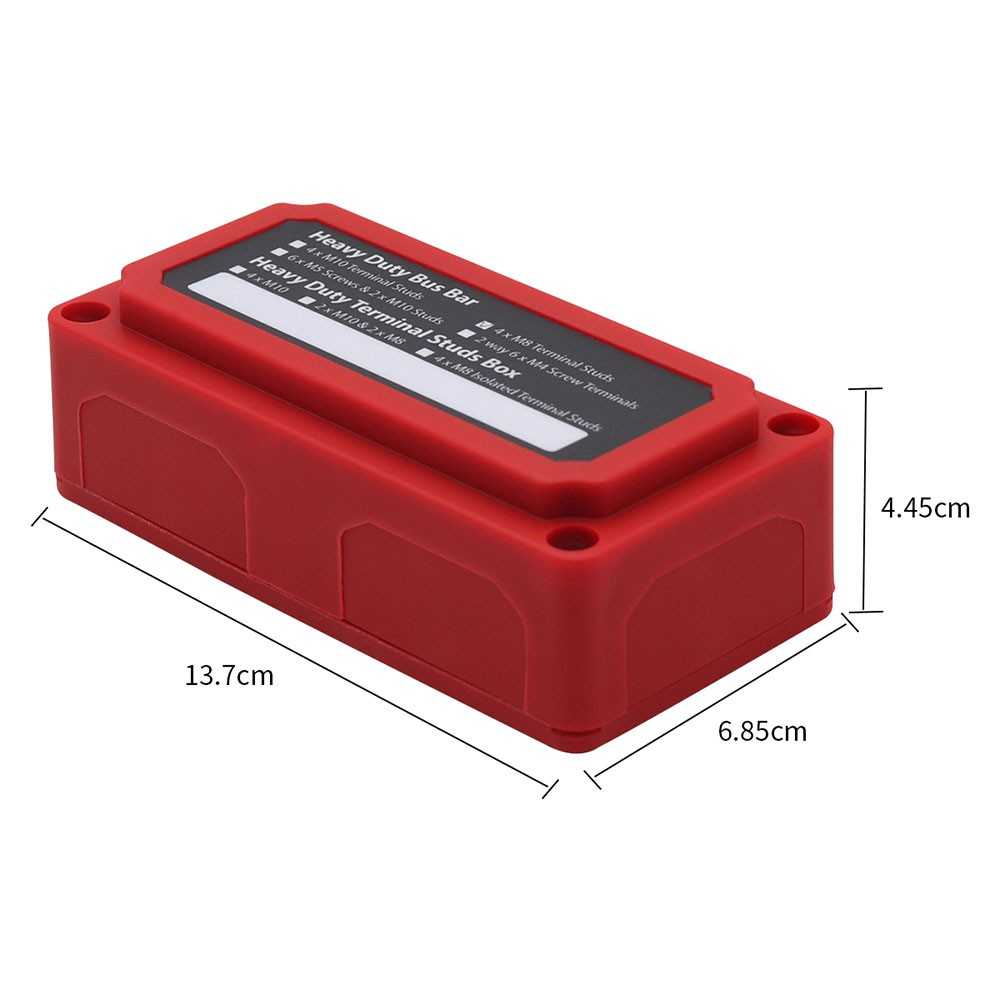

•    Dimensions: 137 x 45 x 69 mm
•    Weight: 0.42 kg
•    Color: Red
